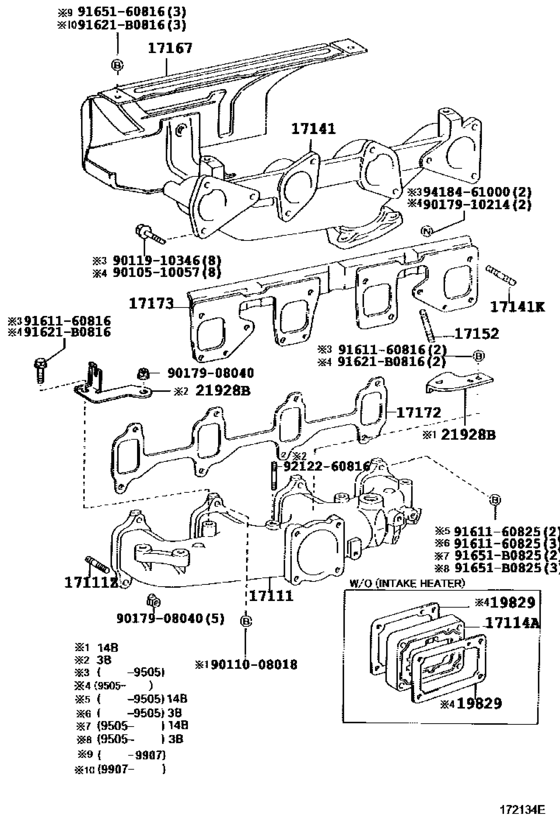

Manifold ([01.1993 - ] (9301- )14B,3B) Diagram Toyota COASTER
- Year
- 1993 - 2001
- Sales region
- General
- Frame
- BB42
- grade
- STD
- Roof
- SRF
- ENGINE
- 14B
- TRANSMISSION
- MTM
- DESTINATION
- GCC
- COOLER
- WOC
- Model
- COASTER
- From
- 01.1993
- To
- 08.2001
- Gear Shift Type
- 5F
- Seating Capacity
- 26S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17111-56190 Manifold, Intake[01.1993 - 05.1995] 14B..BB42 |
17111-56190 |
US $368.37 |
||
| replacements | |||||
|
17111
|
17111
17111-58060 Manifold, IntakeINTAKE [01.1993 - 05.1995] 14B..BB42 |
17111-58060 |
US $232.96 |
||
|
17111
|
17111
17171-58020 Gasket, Manifold To Cylinder Head[01.1993 - 05.1995] 14B..BB42 |
17171-58020 |
US $8.91 |
||
|
17111
|
17111
17111-58060 Manifold, IntakeINTAKE [05.1995 - 07.1999] 14B..BB42 |
17111-58060 |
US $232.96 |
||
|
17111Z
|
17111Z
90116-08352 Bolt, Stud(For Intake Manifold To Cylinder Head)[01.1993 - 07.1999] 14B,3B..BB40,42 |
90116-08352 |
US $2.08 |
||
|
17114A
|
17114A
17114-58010
Flange, Intake
[01.1993 - 05.1995] 14B..BB42..GCC,GEN |
17114-58010 |
— | ||
| replacements | |||||
|
17114A
|
17114A
17114-58020
Flange, Intake
[01.1993 - 05.1995] 14B..BB42..GCC,GEN |
17114-58020 |
— | ||
|
17114A
|
17114A
19829-17010 Gasket, Intake Heater[01.1993 - 05.1995] 14B..BB42..GCC,GEN |
19829-17010 |
from US $4.19 |
||
|
17114A
|
17114A
17114-58020
Flange, Intake
[05.1995 - 07.1999] 14B..BB42..GCC,GEN |
17114-58020 |
— | ||
|
17141
|
17141
17141-56060 Manifold, Exhaust[01.1993 - 07.1999] 14B,3B..BB40,42 |
17141-56060 |
US $198.02 |
||
|
17141K
|
17141K
90116-10063 Bolt, Stud(For Exhaust Manifold To Cylinder Head)[05.1995 - 07.1999] 14B,3B..BB40,42 |
90116-10063 |
from US $1.17 |
||
|
17141K
|
17141K
90116-10098
Bolt, Stud(For Exhaust Manifold To Cylinder Head)
[01.1993 - 05.1995] 14B,3B..BB4# |
90116-10098 |
— | ||
| replacement | |||||
|
17141K
|
17141K
90116-10063 Bolt, Stud(For Exhaust Manifold To Cylinder Head)[01.1993 - 05.1995] 14B,3B..BB4# |
90116-10063 |
from US $1.17 |
||
|
17152
|
17152
90116-10087 Bolt, Stud(For Turbocharger)[01.1993 - 05.1995] 14B,3B..BB4# |
90116-10087 |
from US $2.40 |
||
|
17152
|
17152
90126-10006 Bolt, Stud(For Manifold To Exhaust Pipe)[05.1995 - 07.1999] 14B,15BFT,3B..BB4#,5# |
90126-10006 |
from US $4.78 |
||
|
17167
|
17167
17167-56060 Insulator, Exhaust Manifold Heat, No.1[01.1993 - 07.1999] 14B,3B..BB40,42 |
17167-56060 |
US $108.33 |
||
|
17172
|
17172
17171-56010 Gasket, Manifold To Cylinder Head[01.1993 - 05.1995] 14B,3B..BB4# |
17171-56010 |
US $15.84 |
||
|
17172
|
17172
17171-58020 Gasket, Manifold To Cylinder Head[05.1995 - 07.1999] 14B,3B..BB40,42 |
17171-58020 |
US $8.91 |
||
|
17173
|
17173
17173-56040 Gasket, Exhaust Manifold To Head[01.1993 - 07.1999] 14B,3B..BB40,42 |
17173-56040 |
from US $16.77 |
||
|
19829
|
19829
19829-17010 Gasket, Intake Heater[05.1995 - 07.1999] 14B..BB42..GCC,GEN |
19829-17010 |
from US $4.19 |
||
|
21928B
|
21928B
21928-58070 Support, Throttle Wire[01.1993 - 07.1999] 14B..BB42 |
21928-58070 |
US $5.82 |
||
|
91621B0816
|
91621B0816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.88 |
||
|
91651B0825
|
91651B0825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.84 |
||
|
9010510057
|
9010510057
90105-10057 Bolt (For Front Lower Ball Joint) |
90105-10057 |
US $3.68 |
||
|
9011008018
|
9011008018
90110-08018 New Genuine Part |
90110-08018 |
US $1.22 |
||
|
9011910346
|
9011910346
90119-10346
Bolt (For Front Lower Ball Joint)
|
90119-10346 |
— | ||
| replacement | |||||
|
9011910346
|
9011910346
90105-10057 Bolt (For Front Lower Ball Joint) |
90105-10057 |
US $3.68 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.13 |
||
|
9017910214
|
9017910214
90179-10214 NUT |
90179-10214 |
US $1.76 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.13 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.07 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 Bolt |
90080-11396 |
US $3.72 |
||
|
9212260816
|
9212260816
92122-60816 Bolt, Stud(For Water Pump Set) |
92122-60816 |
US $1.31 |
||
|
9418461000
|
9418461000
94184-61000
Nut(For Rear Spring)
|
94184-61000 |
— | ||
| replacement | |||||
|
9418461000
|
9418461000
48284-37U70 Nut(For Rear Spring) |
48284-37U70 |
US $2.33 |
||
