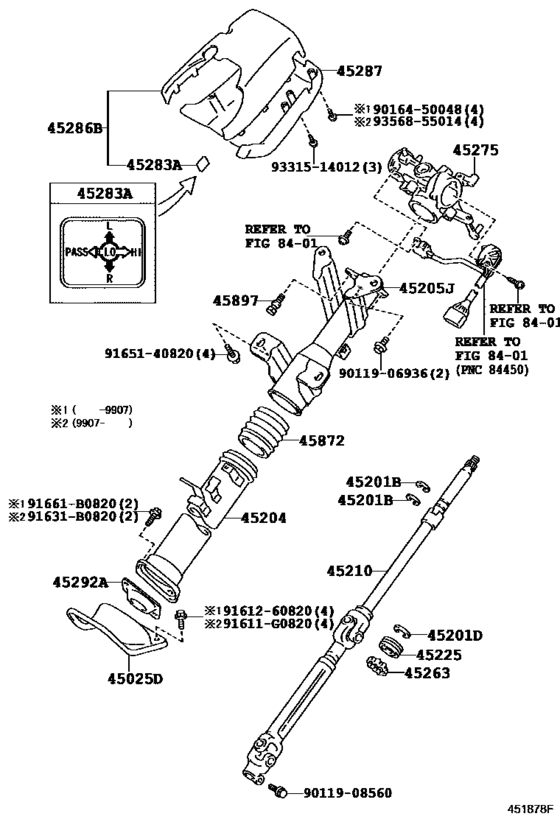

Steering Column & Shaft ([01.1993 - ] (9301- )BB50,XZB50..MTM..CHI,EUR,GEN,TAIW ; ( 9301- )BB4#,58,59,BZB40,50,HZB50 ,RZB40,50,TRB40,5 0,XZB40,59) Diagram Toyota COASTER
- Year
- 1993 - 2001
- Sales region
- General
- Frame
- BB42
- grade
- STD
- Roof
- SRF
- ENGINE
- 14B
- TRANSMISSION
- MTM
- DESTINATION
- GCC
- COOLER
- WOC
- Model
- COASTER
- From
- 01.1993
- To
- 08.2001
- Gear Shift Type
- 5F
- Seating Capacity
- 26S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45025D
|
45025D
45025-36140 Cover Sub-Assy, Steering Column Hole, No.1[01.1993 - 07.1999] BB4#,5#,HZB50,RZB40,50 |
45025-36140 |
US $48.34 |
||
|
45025D
|
45025D
45025-36150 Cover Sub-Assy, Steering Column Hole, No.1[07.1999 - 08.2001] BB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S, 22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
45025-36150 |
US $29.53 |
||
|
45201B
|
45201B
90520-17042 Ring, Shaft Snap(For Steering Main Shaft)[01.1993 - 07.1999] BB4#,5#,HZB50,RZB40,50 T=1.20,LOWER |
90520-17042 |
from US $0.86 |
||
|
45201B
|
45201B
90520-17269 Ring, Shaft Snap(For Steering Main Shaft)[01.1993 - 07.1999] BB4#,5#,HZB50,RZB40,50 T=1.20,UPPER |
90520-17269 |
US $1.92 |
||
|
45201D
|
45201D
96152-00300 Ring, Hole Snap (For Differential Side Gear Shaft)[01.1993 - 07.1999] BB4#,5#,HZB50,RZB40,50 |
96152-00300 |
US $0.70 |
||
|
45204
|
45204
45204-36190 Tube Assy, Steering Column, Lower[01.1993 - 07.1999] BB4#,5#,HZB50,RZB40,50 |
45204-36190 |
US $77.17 |
||
|
45204
|
45204
45204-36200 Tube Assy, Steering Column, Lower[07.1999 - 08.2001] BB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S, 22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
45204-36200 |
US $51.72 |
||
|
45205J
|
45205J
45205-36200 Tube Sub-Assy, Steering Column, Upper[01.1993 - 07.1999] HZB50..TD;HZB50..30S..4FC;BB4#,5#,RZB40,50;HZB50..(20S,22S,30S)..(EX,STD)..5F |
45205-36200 |
US $56.35 |
||
|
45210
|
45210
45210-36090 Shaft Assy, Steering Main[01.1993 - 07.1999] BB4#,5#,HZB50,RZB40,50 |
45210-36090 |
US $187.82 |
||
|
45225
|
45225
45225-26010 Ring, Shaft Snap(For Steering Main Shaft)[01.1993 - 07.1999] BB4#,5#,HZB50,RZB40,50 |
45225-26010 |
US $31.27 |
||
|
45263
|
45263
45263-32010 Ring, Steering Column, No.1[01.1993 - 07.1999] BB4#,5#,HZB50,RZB40,50 |
45263-32010 |
US $2.45 |
||
|
45275
|
45275
45307-36230 Bracket, Steering Column, Upper[01.1993 - 07.1999] HZB50..ARL,EUR;BB4#,5#,RZB40,50; HZB50..SRF..WOC;HZB50..LHD..STD..WC..GEN..5F COLD SPEC |
45307-36230 |
US $183.46 |
||
|
45283A
|
45283A
45283-22020 Plate, Beam Change & Turn Signal CautionSAFETY CAUTION [01.1993 - 07.1999] BB42,5#,HZB50,RZB40,50..LHD |
45283-22020 |
US $9.26 |
||
|
45286B
|
45286B
45286-36840-E0 Cover, Steering Column, UprSTEERING COLUMN, UPR [01.1993 - 07.1999] BB42,5#,HZB50,RZB40,50..LHD GRAIGE,TRIM4# |
45286-36840-E0 |
US $44.70 |
||
| replacement | |||||
|
45286B
|
45286B
45286-36840-B0
Cover, Steering Column, Upr
[01.1993 - 07.1999] BB42,5#,HZB50,RZB40,50..LHD GRAIGE,TRIM4# |
45286-36840-B0 |
— | ||
|
45287
|
45287
45287-36360-E0 Cover, Steering Column, LwrSTEERING COLUMN, LWR [01.1993 - 07.1999] BB42,5#,HZB50,RZB40,50..LHD GRAIGE,TRIM4# |
45287-36360-E0 |
US $44.70 |
||
| replacement | |||||
|
45287
|
45287
45287-36360-B0
Cover, Steering Column, Lwr
[01.1993 - 07.1999] BB42,5#,HZB50,RZB40,50..LHD GRAIGE,TRIM4# |
45287-36360-B0 |
— | ||
|
45292A
|
45292A
45292-27020 Seal, Main Shaft Lower Dust[01.1993 - 07.1999] BB4#,5#,HZB50,RZB40,50 |
45292-27020 |
US $11.53 |
||
|
45292A
|
45292A
45292-36060 Cover, Main Shaft Lower Dust[07.1999 - 08.2001] BB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S, 22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
45292-36060 |
US $10.83 |
||
|
45872
|
45872
45872-36040 Cover, Steering Column Tube[01.1993 - 07.1999] BB4#,5#,HZB50,RZB40,50 |
45872-36040 |
US $11.21 |
||
|
45897
|
45897
45897-12030 Bolt, Hexagon(For Steering Column Bracket)[01.1993 - 07.1999] HZB50..TD;HZB50..30S..4FC;BB4#,5#,RZB40,50;HZB50..(20S,22S,30S)..(EX,STD)..5F |
45897-12030 |
US $8.56 |
||
|
91611G0820
|
91611G0820
91611-G0820 Bolt |
91611-G0820 |
from US $1.31 |
||
|
91631B0820
|
91631B0820
91631-B0820 BOLT WWASHER |
91631-B0820 |
from US $0.82 |
||
|
91661B0820
|
91661B0820
91661-B0820 Bolt |
91661-B0820 |
US $2.56 |
||
|
9011906936
|
9011906936
90119-06936 New Genuine Part |
90119-06936 |
US $1.44 |
||
|
9011908560
|
9011908560
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.35 |
||
| replacement | |||||
|
9011908560
|
9011908560
90080-11555 Bolt w-washer |
90080-11555 |
US $44.70 |
||
|
9016450048
|
9016450048
90164-50048 SCREW |
90164-50048 |
from US $0.88 |
||
|
9161260820
|
9161260820
91612-60820 Bolt(For Clutch Release Cylinder Setting) |
91612-60820 |
US $1.89 |
||
| replacement | |||||
|
9161260820
|
9161260820
91611-G0820 Bolt |
91611-G0820 |
from US $1.31 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $1.06 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.82 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
