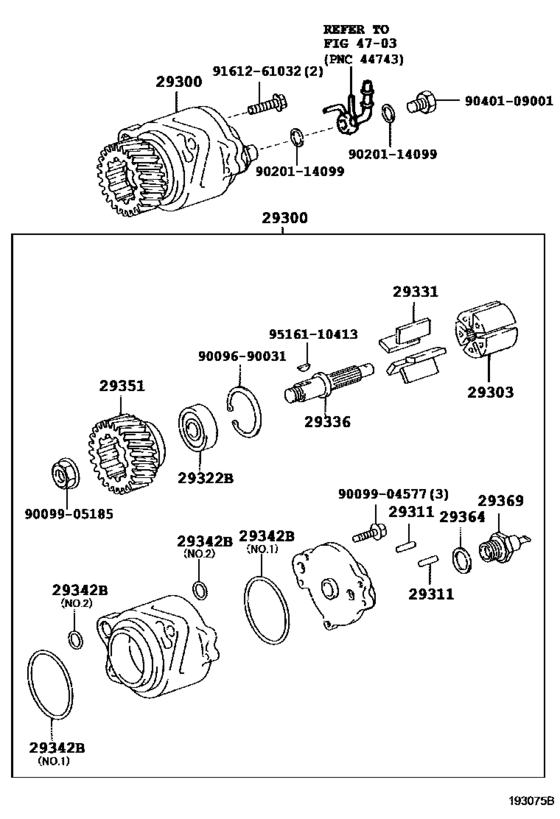

Vacuum Pump ([02.1999 - ] (9902- )14B,15B#,1BZFPE,3B) Diagram Toyota COASTER
- Year
- 1993 - 2001
- Sales region
- General
- Frame
- BB42
- grade
- STD
- Roof
- SRF
- ENGINE
- 14B
- TRANSMISSION
- MTM
- DESTINATION
- GCC
- COOLER
- WOC
- Model
- COASTER
- From
- 01.1993
- To
- 08.2001
- Gear Shift Type
- 5F
- Seating Capacity
- 26S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
29300
|
29300
29300-58050
Pump Assy, Vacuum
[01.1993 - 02.1999] 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
29300-58050 |
— | ||
| replacement | |||||
|
29300
|
29300
29300-58060 Pump Assy, Vacuum[01.1993 - 02.1999] 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
29300-58060 |
US $616.76 |
||
|
29300
|
29300
29300-58060 Pump Assy, Vacuum[02.1999 - 07.1999] 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
29300-58060 |
US $616.76 |
||
|
29303
|
29303
29337-27010
Rotor Sub-Assy, Vacuum Pump
[07.1999 - 08.2001] 14B..BB42..WOC..GCC;15BFT..BB50..WOC..5F;15BFT..BB50..EX..GEN;14B..BB42..RHD..HRF. .WOC;14B,15BFT..BB4#,50..17S,19S,22S |
29337-27010 |
— | ||
|
29311
|
29311
29311-76010 Pin, Vacuum Pump Dowel, No.1[01.1993 - 07.1999] 14B,15BFT,3B,1HZ#..BB4#,5#,HZB50 |
29311-76010 |
US $1.92 |
||
|
29322B
|
29322B
90099-10185 Bearing, Ball[01.1993 - 07.1999] 14B,15BFT,3B,1HZ#..BB4#,5#,HZB50 |
90099-10185 |
US $7.69 |
||
|
29331
|
29331
29331-27010
Blade, Vacuum Pump, A
[07.1999 - 08.2001] 14B..BB42..WOC..GCC;15BFT..BB50..WOC..5F;15BFT..BB50..EX..GEN;14B..BB42..RHD..HRF. .WOC;14B,15BFT..BB4#,50..17S,19S,22S |
29331-27010 |
— | ||
|
29331
|
29331
29331-58050 Blade, Vacuum Pump, A[01.1993 - 05.1994] 14B,3B..BB4# |
29331-58050 |
US $8.39 |
||
|
29331
|
29331
29331-67020 Blade, Vacuum Pump, A[05.1994 - 02.1999] 14B,15BFT,3B,1HZ#..BB4#,5#,HZB50 |
29331-67020 |
from US $5.24 |
||
|
29336
|
29336
29336-58040
Shaft, Vacuum Pump
[11.1999 - 08.2001] 14B..BB42..WOC..GCC;15BFT..BB50..WOC..5F;15BFT..BB50..EX..GEN;14B..BB42..RHD..HRF. .WOC;14B,15BFT..BB4#,50..17S,19S,22S |
29336-58040 |
— | ||
|
29336
|
29336
29336-58050
Shaft, Vacuum Pump
[01.1993 - 02.1999] 14B,15BFT,3B,1HZ#..BB4#,5#,HZB50 |
29336-58050 |
— | ||
|
29336
|
29336
29336-58060
Shaft, Vacuum Pump
[02.1999 - 07.1999] 14B,15BFT,3B..BB4#,5# |
29336-58060 |
— | ||
| replacement | |||||
|
29336
|
29336
29336-58040
Shaft, Vacuum Pump
[02.1999 - 07.1999] 14B,15BFT,3B..BB4#,5# |
29336-58040 |
— | ||
|
29342B
|
29342B
29342-58010 Packing, Vacuum Pump[01.1993 - 07.1999] 14B,15BFT,3B..BB4#,5# NO.1 |
29342-58010 |
US $3.84 |
||
|
29342B
|
29342B
29342-64010 Packing, Vacuum Pump[01.1993 - 07.1999] 14B,15BFT,3B..BB4#,5# NO.2 |
29342-64010 |
US $2.45 |
||
|
29351
|
29351
29351-58050
Gear, Vacuum Pump
[01.1993 - 07.1999] 14B,15BFT,3B..BB4#,5# |
29351-58050 |
— | ||
|
29364
|
29364
29364-66010 Washer, Vacuum Pump[01.1993 - 07.1999] 14B,15BFT,3B,1HZ#..BB4#,5#,HZB50 |
29364-66010 |
US $2.88 |
||
|
29369
|
29369
29369-64030 Valve Sub-Assy, Check[01.1993 - 07.1999] 14B,15BFT,3B,1HZ#..BB4#,5#,HZB50 |
29369-64030 |
US $23.76 |
||
|
9009690031
|
9009690031
90096-90031
RING HOLE SNAP
|
90096-90031 |
— | ||
|
9009904577
|
9009904577
90099-04577
New Genuine Part
|
90099-04577 |
— | ||
|
9009905185
|
9009905185
90099-05185 NUT |
90099-05185 |
US $1.67 |
||
|
9020114099
|
9020114099
90201-14099 Gasket(For Vacuum Pump Union) |
90201-14099 |
from US $3.24 |
||
|
9040109001
|
9040109001
90401-09001 Bolt, Union(For Vacuum Pump Union) |
90401-09001 |
US $2.48 |
||
| replacement | |||||
|
9040109001
|
9040109001
90401-09003 Bolt, Union(For Vacuum Pump Union) |
90401-09003 |
from US $2.56 |
||
|
9161261032
|
9161261032
91612-61032 New Genuine Part |
91612-61032 |
US $1.75 |
||
|
9516110413
|
9516110413
95161-10413
Key(For Alternator Pulley)
|
95161-10413 |
— | ||
