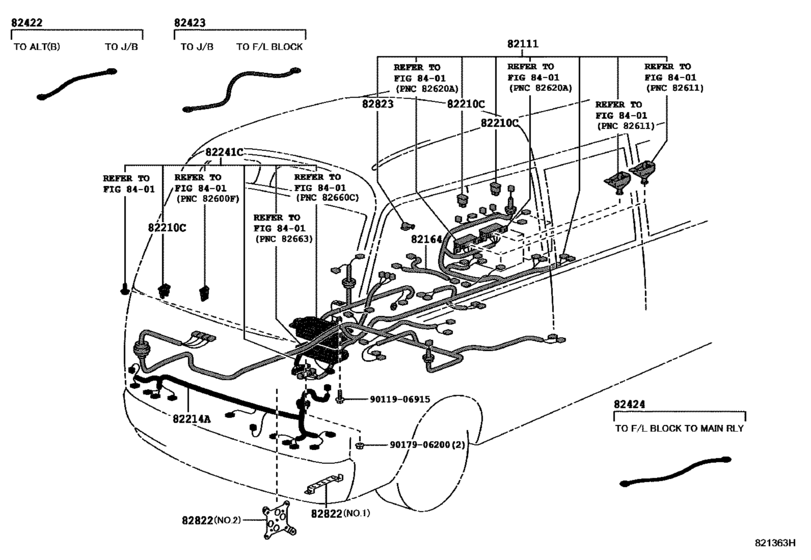

Wiring & Clamp ([09.1993 - 07.1999] ENGINE ROOM (9309-9907)LHD ; (9907-0608)LHD..IV) Diagram Toyota COASTER
- Year
- 1993 - 2001
- Sales region
- General
- Frame
- BB42
- grade
- STD
- Roof
- SRF
- ENGINE
- 14B
- TRANSMISSION
- MTM
- DESTINATION
- GCC
- COOLER
- WOC
- Model
- COASTER
- From
- 01.1993
- To
- 08.2001
- Gear Shift Type
- 5F
- Seating Capacity
- 26S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82111
|
82111
82111-36272 Wire, Engine Room MainENGINE ROOM MAIN [08.1998 - 11.1998] BB42..LHD..SRF |
82111-36272 |
US $2,620.80 |
||
|
82111
|
82111
82111-36273 Wire, Engine Room MainENGINE ROOM MAIN [11.1998 - 07.1999] BB42..LHD W(FR MANUAL HEATER & RR HEATER) |
82111-36273 |
US $3,043.04 |
||
|
82111
|
82111
82111-36274 Wire, Engine Room MainENGINE ROOM MAIN [07.1999 - 08.2001] BB42..LHD W(FRONT HEATER) |
82111-36274 |
US $2,984.80 |
||
|
82111
|
82111
82111-36570 Wire, Engine Room MainENGINE ROOM MAIN [01.1993 - 05.1995] BB42..LHD..WOC |
82111-36570 |
US $2,722.72 |
||
|
82111
|
82111
82111-36571 Wire, Engine Room MainENGINE ROOM MAIN [05.1995 - 05.1997] BB42..WOC..GCC; BB42..LHD..WOC..GEN FOLDING AUTO DOOR OR W(REAR HEATER..2PC) |
82111-36571 |
US $1,421.06 |
||
|
82111
|
82111
82111-36572 Wire, Engine Room MainENGINE ROOM MAIN [05.1997 - 08.1998] BB42..WOC..GCC; BB42..LHD..WOC..GEN W(FR MANUAL HEATER & RR HEATER) |
82111-36572 |
US $2,373.28 |
||
| replacement | |||||
|
82111
|
82111
82111-36272 Wire, Engine Room MainENGINE ROOM MAIN [05.1997 - 08.1998] BB42..WOC..GCC; BB42..LHD..WOC..GEN W(FR MANUAL HEATER & RR HEATER) |
82111-36272 |
US $2,620.80 |
||
|
82210C
|
82210C
90982-08188 Fusible Link[01.1993 - 07.1999] BB4#,5#,HZB50,RZB40,50 30A,TERMINAL:FEMALE,PACIFIC |
90982-08188 |
US $11.36 |
||
|
82210C
|
82210C
90982-08202 Fusible Link[01.1993 - 07.1999] BB4#,5#,HZB50,RZB40,50 60A,TERMINAL:MALE |
90982-08202 |
US $11.20 |
||
|
82210C
|
82210C
90982-08203 Fusible Link[01.1993 - 07.1999] BB4#,5#,HZB50,RZB40,50 80A,TERMINAL:MALE |
90982-08203 |
from US $7.36 |
||
|
82210C
|
82210C
90982-08216
Fusible Link
[01.1993 - 05.1995] BB4#,HZB50,RZB40,50 30A,TERMINAL:FEMALE,NO.3 |
90982-08216 |
— | ||
| replacement | |||||
|
82210C
|
82210C
90982-08188 Fusible Link[01.1993 - 05.1995] BB4#,HZB50,RZB40,50 30A,TERMINAL:FEMALE,NO.3 |
90982-08188 |
US $11.36 |
||
|
82210C
|
82210C
90982-08223 Fusible Link[01.1993 - 07.1999] BB4#,5#,HZB50,RZB40,50 30A,TERMINAL:MALE |
90982-08223 |
US $11.36 |
||
|
82210C
|
82210C
90982-08228 Fusible Link[01.1993 - 07.1999] BB4#,5#,HZB50,RZB40,50 50A,TERMINAL:MALE |
90982-08228 |
from US $9.28 |
||
|
82210C
|
82210C
90982-08246 Fusible Link[01.1993 - 07.1999] BB4#,5#,HZB50,RZB40,50 100A,TERMINAL:MALE |
90982-08246 |
from US $7.04 |
||
|
82210C
|
82210C
90982-08280 Fusible Link[05.1995 - 07.1999] BB4#,5#,HZB50,RZB40,50 30A,TERMINAL:FEMALE,YAZAKI |
90982-08280 |
from US $4.52 |
||
|
82210C
|
82210C
90982-08281 Fusible Link[07.1999 - 08.2001] BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42 ,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN 40A,TERMINAL:FEMALE |
90982-08281 |
from US $9.44 |
||
|
82210C
|
82210C
90982-08282 Fusible Link[07.1999 - 08.2001] BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42 ,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN 50A,TERMINAL:FEMALE |
90982-08282 |
from US $7.04 |
||
|
82214A
|
82214A
82214-36070 Wire, LampLAMP [01.1993 - 05.1997] BB42,HZB50,RZB40,50..LHD..CBU |
82214-36070 |
US $190.74 |
||
|
82214A
|
82214A
82214-36071 Wire, LampLAMP [05.1997 - 07.1999] BB42,HZB50,RZB40,50..LHD |
82214-36071 |
US $180.54 |
||
|
82214A
|
82214A
82214-36072
Wire, Lamp
[07.1999 - 08.2001] BB42,RZB40..WOC..GCC;BB42,HZB50,RZB40..LHD..(17S,20S,22S)..(GCC,GEN) |
82214-36072 |
— | ||
|
82214A
|
82214A
82214-36080 Wire, LampLAMP [01.1993 - 05.1997] BB42..LHD W(AIR CLEANER) |
82214-36080 |
US $214.03 |
||
|
82214A
|
82214A
82214-36081 Wire, LampLAMP [05.1997 - 07.1999] BB42..LHD W(AIR CLEANER) |
82214-36081 |
US $180.54 |
||
|
82214A
|
82214A
82214-36092 Wire, LampLAMP [07.1999 - 08.2001] BB42..WOC..GCC;BB42,HZB50..LHD..(20S,22S) W(AIR CLEANER PLUGGING WARNING) |
82214-36092 |
US $250.43 |
||
|
82241C
|
82241C
82241-36021 Wire, Relay[05.1995 - 05.1997] BB4#..RHD..WOC;BB42..WOC..GCC;HZB50..RHD..SRF;HZB50..HRF..WOC..DSL;HZB50..30S..GEN ..4FC 24V; BB42,HZB50..LHD..SRF..WOC..GEN *EX-USSR OR W(*RWD) |
82241-36021 |
US $260.62 |
||
|
82241C
|
82241C
82241-36022 Wire, Relay[05.1997 - 11.1998] BB42..WOC..GCC BATTERY 48D26RX2 OR W(FOLDING AUTO DOOR); BB42..LHD..WOC..GEN *EX-USSR OR BATTERY 48D26RX2 OR W(*RWD) OR W(FOLDING AUTO DOOR) |
82241-36022 |
US $262.08 |
||
|
82241C
|
82241C
82241-36040 Wire, RelayRELAY [01.1993 - 01.1994] BB42..RHD..WOC;RZB40..WOC..GEN;RZB50..SRF..GEN W(REAR WINDOW DEFOGGER OR FOLDING AUTO DOOR); BB4#,HZB50,RZB40..STD..WOC..(ARL,GCC) W(FOLDING AUTO DOOR) |
82241-36040 |
US $253.34 |
||
|
82241C
|
82241C
82241-36041 Wire, RelayRELAY [05.1995 - 05.1997] HZB50..RHD..SRF;HZB50..WOC..GEN 12V; BB42..LHD..WOC W(FOLDING AUTO DOOR) |
82241-36041 |
US $241.70 |
||
|
82241C
|
82241C
82241-36080 Wire, Relay[01.1993 - 09.1993] BB4#,HZB50..(19S,22S,26S)..WOC |
82241-36080 |
US $241.70 |
||
|
82241C
|
82241C
82241-36081 Wire, Relay[05.1995 - 05.1997] BB42..WOC 12V |
82241-36081 |
US $199.47 |
||
|
82241C
|
82241C
82241-36082 Wire, Relay[05.1997 - 08.1998] BB42..WOC |
82241-36082 |
US $180.54 |
||
| replacement | |||||
|
82241C
|
82241C
82241-36042 Wire, RelayRELAY [05.1997 - 08.1998] BB42..WOC |
82241-36042 |
US $219.86 |
||
|
82822
|
82822
82822-36030 Bracket,connector Block[01.1993 - 01.1994] BB4#,HZB50,RZB40,50 NO.1 |
82822-36030 |
US $11.07 |
||
|
82822
|
82822
82822-36070 Bracket,connector Block[05.1997 - 06.1998] BB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO NO.2 |
82822-36070 |
US $21.11 |
||
|
9011906915
|
9011906915
90119-06915 BOLT W-WASHER |
90119-06915 |
from US $0.70 |
||
|
9017906200
|
9017906200
90179-06200 New Genuine Part |
90179-06200 |
from US $1.16 |
||
