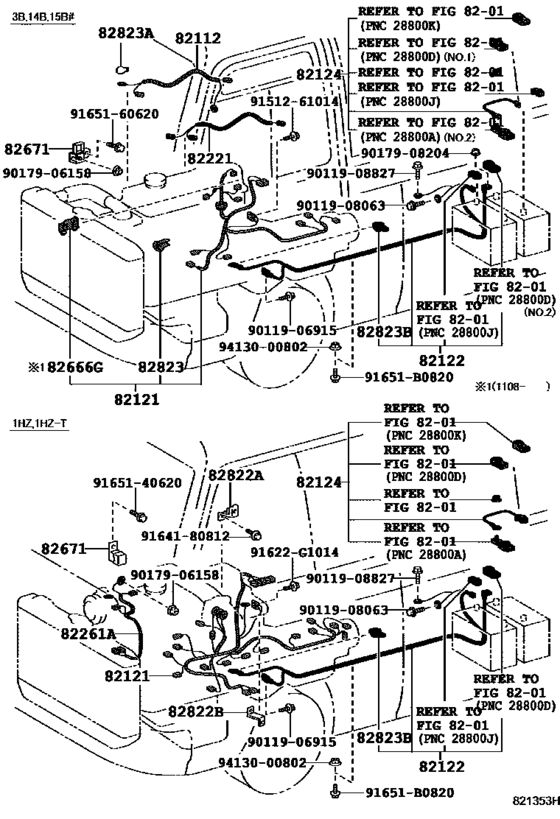

Wiring & Clamp ([01.1993 - 01.2015] ENGINE (9301-1501)BB4#,5#,HZB50) Diagram Toyota COASTER
- Year
- 1993 - 2001
- Sales region
- General
- Frame
- BB42
- grade
- STD
- Roof
- SRF
- ENGINE
- 14B
- TRANSMISSION
- MTM
- DESTINATION
- GCC
- COOLER
- WOC
- Model
- COASTER
- From
- 01.1993
- To
- 08.2001
- Gear Shift Type
- 5F
- Seating Capacity
- 26S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82121
|
82121
82121-36030 Wire, Engine[01.1993 - 05.1995] BB4# |
82121-36030 |
US $123.76 |
||
|
82121
|
82121
82121-36031 Wire, Engine[05.1995 - 05.1997] BB4# |
82121-36031 |
US $119.39 |
||
|
82121
|
82121
82121-36032 Wire, Engine[05.1997 - 07.1999] BB40,42 |
82121-36032 |
US $72.80 |
||
|
82122
|
82122
82122-36080 Wire, Engine, No.2ENGINE, NO.2 [01.1993 - 05.1995] BB42..LHD |
82122-36080 |
US $690.14 |
||
| replacement | |||||
|
82122
|
82122
82122-36081 Wire, Engine, No.2ENGINE, NO.2 [01.1993 - 05.1995] BB42..LHD |
82122-36081 |
US $693.06 |
||
|
82122
|
82122
82122-36081 Wire, Engine, No.2ENGINE, NO.2 [05.1995 - 05.1997] BB42..LHD |
82122-36081 |
US $693.06 |
||
|
82122
|
82122
82122-36082 Wire, Engine, No.2ENGINE, NO.2 [05.1997 - 07.1999] BB42,5#..LHD..(GCC,GEN) |
82122-36082 |
US $540.18 |
||
|
82122
|
82122
82122-36083 Wire, Engine, No.2ENGINE, NO.2 [07.1999 - 08.2001] BB50..WOC..5F;BB42..WOC..GCC;BB42,50..19S,22S |
82122-36083 |
US $819.73 |
||
|
82124
|
82124
82124-36010 Cable, Battery To Battery[01.1993 - 05.1995] BB4#,HZB50 |
82124-36010 |
US $80.08 |
||
|
82124
|
82124
82124-36011 Cable, Battery To Battery[05.1995 - 07.1999] BB4#,5#;HZB50..DSL |
82124-36011 |
US $76 |
||
|
82822B
|
82822B
82822-36010 Bracket, Connector Block[01.1993 - 05.1995] BB4#,HZB50,RZB40,50 |
82822-36010 |
US $4.66 |
||
|
82823A
|
82823A
82823-22050 Cap, Terminal, No.1[01.1993 - 05.1995] BB4#,RZB40,50 DARK GRAY |
82823-22050 |
from US $4.13 |
||
|
82823B
|
82823B
82823-30100 Cap, Terminal, No.1[05.1997 - 07.1999] HZB50..LHD;BB4#,5#..ARL,GCC,GEN,SCO |
82823-30100 |
US $4.96 |
||
|
91622G1014
|
91622G1014
91622-G1014 BOLT WWASHER |
91622-G1014 |
US $2.04 |
||
|
91651B0820
|
91651B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.11 |
||
| replacement | |||||
|
91651B0820
|
91651B0820
90080-11347 New Genuine Part |
90080-11347 |
US $2.48 |
||
|
9011906915
|
9011906915
90119-06915 BOLT W-WASHER |
90119-06915 |
from US $0.68 |
||
|
9011908063
|
9011908063
90119-08063 BOLT |
90119-08063 |
US $1.05 |
||
|
9011908827
|
9011908827
90119-08827 New Genuine Part |
90119-08827 |
US $1.44 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.99 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.80 |
||
|
9151261014
|
9151261014
91512-61014 BOLT FLANGE |
91512-61014 |
US $1.31 |
||
|
9164180812
|
9164180812
91641-80812 New Genuine Part |
91641-80812 |
US $1.76 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
|
9165160620
|
9165160620
91651-60620 BOLTWWASHER |
91651-60620 |
from US $1.28 |
||
|
9413000802
|
9413000802
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.09 |
||
| replacement | |||||
|
9413000802
|
9413000802
90170-A0001 New Genuine Part |
90170-A0001 |
US $1.59 |
||
