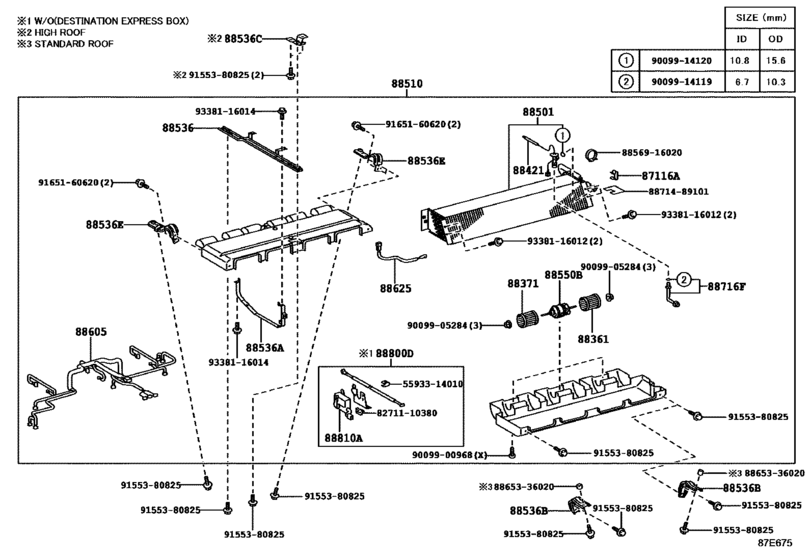

Heating & Air Conditioning - Cooler Unit ([01.2015 - ] COOLER UNIT (1501- )) Diagram Toyota COASTER
- Year
- 1993 - 2016
- Sales region
- Europe
- Frame
- BB42
- grade
- STD
- Roof
- SRF
- ENGINE
- 14B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 01.1993
- To
- 12.2016
- Gear Shift Type
- 5F
- Seating Capacity
- 26S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87116A
|
87116A
87116-14010
Spring, Heater Case Fastening
[01.2015 -] BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC |
87116-14010 |
— | ||
|
88361
|
88361
87105-36060 Fan, Cooler Blower, No.1[01.1993 - 07.1999] RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZ B50..RHD..HRF..WC..DSL |
87105-36060 |
from US $15.55 |
||
|
88371
|
88371
87105-36070 Fan, Cooler Blower, No.2[01.1993 - 07.1999] RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZ B50..RHD..HRF..WC..DSL |
87105-36070 |
US $20.01 |
||
|
88421
|
88421
88421-36010 Valve, Expansion, No.2[01.1993 - 09.1993] BB4#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F ..DSL |
88421-36010 |
US $141.23 |
||
| replacement | |||||
|
88421
|
88421
88421-36050 Valve, Expansion, No.2[01.1993 - 09.1993] BB4#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F ..DSL |
88421-36050 |
from US $117.78 |
||
|
88421
|
88421
88421-36011 Valve, Expansion, No.2[09.1993 - 07.1999] RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZ B50..RHD..HRF..WC..DSL |
88421-36011 |
US $139.78 |
||
| replacement | |||||
|
88421
|
88421
88421-36050 Valve, Expansion, No.2[09.1993 - 07.1999] RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZ B50..RHD..HRF..WC..DSL |
88421-36050 |
from US $117.78 |
||
|
88421
|
88421
88421-36050 Valve, Expansion, No.2[05.2005 - 01.2015] BB42..LHD..SRF..WC;BB42,XZB59..RHD..WC;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TR B40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD) |
88421-36050 |
from US $117.78 |
||
|
88501
|
88501
88501-36080 Evaporator Sub-Assy, Cooler, No.1[01.1993 - 07.1999] RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZ B50..RHD..HRF..WC..DSL |
88501-36080 |
from US $1,782.14 |
||
|
88510
|
88510
88510-36130
Unit Assy, Cooler
[01.1993 - 09.1993] HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;BB4#..WC..(ARL,GCC,GEN);HZB 50..HRF..WC..(ARL,GCC,GEN)..5F |
88510-36130 |
— | ||
| replacement | |||||
|
88510
|
88510
88510-36131
Unit Assy, Cooler
[01.1993 - 09.1993] HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;BB4#..WC..(ARL,GCC,GEN);HZB 50..HRF..WC..(ARL,GCC,GEN)..5F |
88510-36131 |
— | ||
|
88510
|
88510
88510-36131
Unit Assy, Cooler
[09.1993 - 07.1999] HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..(ARL,GCC,GE N)..5F;BB40,42,5#..WC..(ARL,EUR,GCC,GEN) |
88510-36131 |
— | ||
|
88510
|
88510
88510-36132
Unit Assy, Cooler
[07.1999 - 08.2004] BB58,59;HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC ;BB50..(19S,20S)..TDEFI;BB42,50..(21S,26S,30S)..WC..(ARL,GCC,GEN) |
88510-36132 |
— | ||
| replacement | |||||
|
88510
|
88510
88510-36133 Unit Assy, CoolerCOOLER [07.1999 - 08.2004] BB58,59;HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC ;BB50..(19S,20S)..TDEFI;BB42,50..(21S,26S,30S)..WC..(ARL,GCC,GEN) |
88510-36133 |
US $4,228.22 |
||
|
88510
|
88510
88510-36133 Unit Assy, CoolerCOOLER [01.2010 - 01.2015] BB42..RHD..WC;BB50,HZB50..WC;BB42..LHD..SRF..WC |
88510-36133 |
US $4,228.22 |
||
|
88510
|
88510
88510-36250
Unit Assy, Cooler
[01.2015 -] BB42,HZB50..WC |
88510-36250 |
— | ||
|
88536
|
88536
88536-36060
Bracket, Cooling Unit, No.1
[01.1993 - 07.1999] RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZ B50..RHD..HRF..WC..DSL |
88536-36060 |
— | ||
| replacement | |||||
|
88536
|
88536
88536-36061
Bracket, Cooling Unit, No.1
[01.1993 - 07.1999] RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZ B50..RHD..HRF..WC..DSL |
88536-36061 |
— | ||
|
88536
|
88536
88536-36061
Bracket, Cooling Unit, No.1
[07.2000 - 08.2004] HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..( 19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S).. WC..(ARL,GCC,GEN) |
88536-36061 |
— | ||
|
88536A
|
88536A
88536-36070
Bracket, Cooling Unit, No.2
[01.1993 - 07.1999] RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZ B50..RHD..HRF..WC..DSL |
88536-36070 |
— | ||
|
88536B
|
88536B
88536-36090
Bracket, Cooling Unit, No.3
[01.1993 - 07.1999] RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC |
88536-36090 |
— | ||
|
88536E
|
88536E
88536-36120
Bracket, Cooling Unit, No.5
[01.1993 - 07.1999] RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZ B50..RHD..HRF..WC..DSL LH |
88536-36120 |
— | ||
|
88536E
|
88536E
88536-36130 Bracket, Cooling Unit, No.5[01.1993 - 07.1999] RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZ B50..RHD..HRF..WC..DSL RH |
88536-36130 |
US $33.55 |
||
|
88550B
|
88550B
88550-36020 Motor Assy, Blower[01.1993 - 07.1999] BB4#,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL |
88550-36020 |
from US $219.36 |
||
|
88605
|
88605
88605-36120
Harness Sub-Assy, Cooler Wiring, No.1
[01.1993 - 07.1999] RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZ B50..RHD..HRF..WC..DSL |
88605-36120 |
— | ||
|
88605
|
88605
88605-36121
Harness Sub-Assy, Cooler Wiring, No.1
[07.1999 - 07.2000] HZB50..HRF..WC;HZB50..LHD..SRF..WC;BB4#,5#,RZB40,50..WC |
88605-36121 |
— | ||
| replacement | |||||
|
88605
|
88605
88605-36123
Harness Sub-Assy, Cooler Wiring, No.1
[07.1999 - 07.2000] HZB50..HRF..WC;HZB50..LHD..SRF..WC;BB4#,5#,RZB40,50..WC |
88605-36123 |
— | ||
|
88605
|
88605
88605-36122
Harness Sub-Assy, Cooler Wiring, No.1
[07.2000 - 08.2004] HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..( 19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S).. WC..(ARL,GCC,GEN) |
88605-36122 |
— | ||
| replacement | |||||
|
88605
|
88605
88605-36123
Harness Sub-Assy, Cooler Wiring, No.1
[07.2000 - 08.2004] HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..( 19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S).. WC..(ARL,GCC,GEN) |
88605-36123 |
— | ||
|
88605
|
88605
88605-36123
Harness Sub-Assy, Cooler Wiring, No.1
[01.2010 - 01.2015] BB42..RHD..WC;BB42..LHD..SRF..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC..(ARL,G CC,GEN,TAIW) |
88605-36123 |
— | ||
|
88605
|
88605
88605-36430
Harness Sub-Assy, Cooler Wiring, No.1
[01.2015 -] BB42,HZB50..WC |
88605-36430 |
— | ||
|
88625
|
88625
88625-36140 Thermistor, Cooler, No.1[01.1993 - 07.1999] RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZ B50..RHD..HRF..WC..DSL |
88625-36140 |
from US $8.04 |
||
|
88716F
|
88716F
88716-36270 Pipe, Cooler Refrigerant Liquid, F[07.1999 - 08.2004] HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..( 19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S).. WC..(ARL,GCC,GEN) |
88716-36270 |
US $17.91 |
||
|
88800D
|
88800D
88800-36020
Cooling Unit Servo
[01.1993 - 05.1993] HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;BB4#..WC..(ARL,GCC,GEN);HZB 50..HRF..WC..(ARL,GCC,GEN)..5F |
88800-36020 |
— | ||
|
88810A
|
88810A
88810-36021
Actuator Assy, Servo Moter
[12.1999 - 11.2002] BB42..26S..WC;HZB50..LHD..EX;BB5#..WC..TDEFI;HZB50..LHD..SRF..WC;BB50..LHD..WC..CB U..5F;HZB50..HRF..(DX,STD)..WC..5F |
88810-36021 |
— | ||
|
5593314010
|
5593314010
55933-14010 Clamp, Heater Control Wire |
55933-14010 |
US $3.84 |
||
|
8271110380
|
8271110380
82711-10380 Wire, Fuse To Fuse(for Combustion Heater) |
82711-10380 |
US $1.60 |
||
|
8856916020
|
8856916020
88569-16020
Clamp (for Cooler Relay)
|
88569-16020 |
— | ||
|
8865336020
|
8865336020
88653-36020
Pulley Assy, Idler (for Cooler)
|
88653-36020 |
— | ||
|
8871489101
|
8871489101
88714-89101
Insulator, Cooler Refrigerant Pipe, No.1
|
88714-89101 |
— | ||
|
9009900968
|
9009900968
90099-00968 Screw(For Air Conditioner Unit) |
90099-00968 |
US $0.88 |
||
|
9009905284
|
9009905284
90099-05284 NUT |
90099-05284 |
US $0.82 |
||
|
9009914119
|
9009914119
90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe) |
90099-14119 |
from US $2.27 |
||
| replacement | |||||
|
9009914119
|
9009914119
90099-14119-TH O RING |
90099-14119-TH |
US $0.68 |
||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $2.13 |
||
|
9155380825
|
9155380825
91553-80825 New Genuine Part |
91553-80825 |
US $1.76 |
||
|
9165160620
|
9165160620
91651-60620 BOLTWWASHER |
91651-60620 |
from US $1.28 |
||
|
9338116012
|
9338116012
93381-16012 Screw |
93381-16012 |
US $2.24 |
||
|
9338116014
|
9338116014
93381-16014 New Genuine Part |
93381-16014 |
US $0.87 |
||
