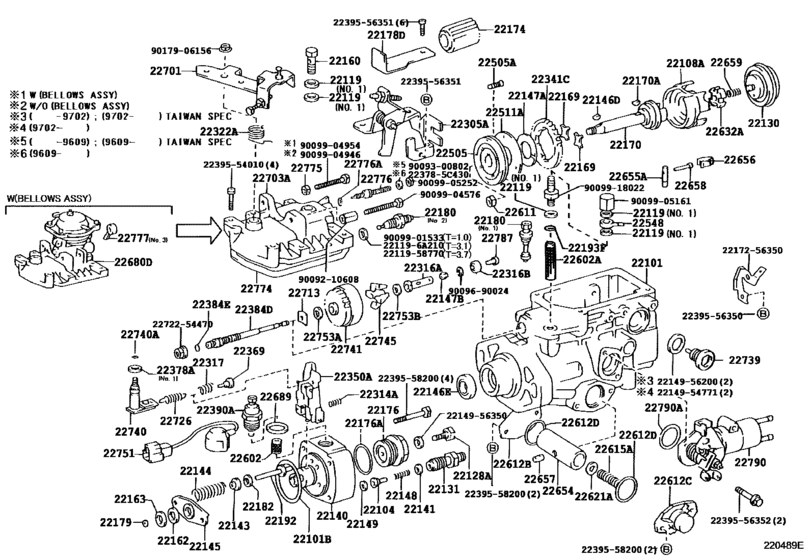

Injection Pump Body ([01.1993 - 05.1997] (9301-9705)14B ; (9705- )14B..GEN,SCO) Diagram Toyota COASTER
- Year
- 1993 - 2016
- Sales region
- Europe
- Frame
- BB42
- grade
- STD
- Roof
- SRF
- ENGINE
- 14B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 01.1993
- To
- 12.2016
- Gear Shift Type
- 5F
- Seating Capacity
- 26S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22101
|
22101
22101-54250 Housing Sub-Assy, Injection PumpINJECTION PUMP [01.1993 - 07.1999] 1HZ..HZB50..GEN..5F *HAC; 14B..BB42..GEN *HAC |
22101-54250 |
from US $160.74 |
||
|
22101
|
22101
22101-54770 Housing Sub-Assy, Injection Pump[01.1993 - 07.1999] 14B..BB42 |
22101-54770 |
US $166.61 |
||
|
22101B
|
22101B
90099-14053 Ring, O(For Injection Pump Housing)[01.1993 - 07.1999] 1HZ#..HZB50; 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
90099-14053 |
from US $3.84 |
||
|
22104
|
22104
22104-56350 Valve Sub-Assy, Injection Pump Delivery[01.1993 - 05.1997] 14B..BB42..GCC,GEN |
22104-56350 |
US $26.50 |
||
|
22108A
|
22108A
22108-96300
Ring Sub-Assy, Roller
[01.1993 - 07.1999] 14B..BB42 |
22108-96300 |
— | ||
|
22119
|
22119
22149-54800
Washer, Air Bleeder Nipple
[07.1999 - 08.2004] 14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC T=1.6,NO.2 |
22149-54800 |
— | ||
|
22119
|
22119
90201-12109 Washer, Air Bleeder Nipple[05.1995 - 07.1999] 14B,3B..BB40,42 T=1.6 |
90201-12109 |
from US $1.38 |
||
|
22128A
|
22128A
22128-56330
Bolt, Distributive Head
[01.1993 - 07.1999] 14B,15BFT..BB42,58;15BFT..BB50..GEN..IV |
22128-56330 |
— | ||
|
22130
|
22130
22130-56350 Camplate Sub-Assy, Face[01.1993 - 05.1997] 14B..BB42 |
22130-56350 |
US $82.78 |
||
|
22131
|
22131
22131-54010
Holder, Delivery Valve
[01.1993 - 07.1999] 14B..BB42 |
22131-54010 |
— | ||
|
22140
|
22140
22140-56350
Head Sub-Assy, Distributive Pump
[01.1993 - 05.1997] 14B..BB42 |
22140-56350 |
— | ||
|
22141
|
22141
22565-56350
Seat, Delivery Valve Spring
[01.1993 - 05.1997] 14B..BB42 |
22565-56350 |
— | ||
|
22143
|
22143
22143-56350
Seat, Spring Upper
[01.1993 - 07.1999] 14B,15BFT..BB42,58;15BFT..BB50..GEN..IV |
22143-56350 |
— | ||
|
22144
|
22144
22144-56350
Spring, Pump Plunger
[01.1993 - 05.1997] 14B..BB42 |
22144-56350 |
— | ||
|
22145
|
22145
22145-56350
Seat, Spring, Lower
[01.1993 - 07.1999] 14B,15BFT..BB42,58;15BFT..BB50..GEN..IV |
22145-56350 |
— | ||
|
22146D
|
22146D
90099-13018 Key(For Drive Gear)[01.1993 - 07.1999] 1HZ#..HZB50; 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
90099-13018 |
from US $6.88 |
||
|
22146E
|
22146E
22544-64740 Seal, Oil, Injection Pump Camshaft[01.1993 - 07.1999] 1HZ#..HZB50; 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
22544-64740 |
US $4.39 |
||
|
22147A
|
22147A
22161-54010 Washer, Drive Shaft[01.1993 - 07.1999] 1HZ#..HZB50; 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
22161-54010 |
US $6.99 |
||
|
22147B
|
22147B
22147-54290 Ring, Governor Sleeve[01.1993 - 07.1999] 1HZ#..HZB50; 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
22147-54290 |
US $3.69 |
||
|
22148
|
22148
22148-56350
Spring, Delivery Valve
[01.1993 - 05.1997] 14B..BB42 |
22148-56350 |
— | ||
|
22149
|
22149
22149-56351 Gasket, Delivery Valve[01.1993 - 07.1999] 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
22149-56351 |
from US $0.70 |
||
|
22160
|
22160
22160-56350
Screw Sub-Assy, Overflow
[01.1993 - 07.1999] 14B,15BFT..BB42,58;15BFT..BB50..GEN..IV |
22160-56350 |
— | ||
|
22162
|
22162
22162-54010 Plate, Plunger Upper[01.1993 - 07.1999] 1HZ#..HZB50; 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
22162-54010 |
from US $3.52 |
||
|
22163
|
22163
22163-54010 Plate, Plunger Lower[01.1993 - 07.1999] 1HZ#..HZB50; 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
22163-54010 |
from US $3.84 |
||
|
22169
|
22169
22169-54180 Joint, Rubber[01.1993 - 07.1999] 1HZ#..HZB50; 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
22169-54180 |
US $17.14 |
||
|
22170
|
22170
22170-56350 Shaft Sub-Assy, Drive[01.1993 - 05.1997] 14B..BB42 |
22170-56350 |
US $60.78 |
||
|
22170A
|
22170A
90099-13017 Key(For Drive Gear)[01.1993 - 07.1999] 1HZ#..HZB50; 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
90099-13017 |
US $9.73 |
||
|
22174
|
22174
22174-58270
Shaft, Spline
[01.1993 - 07.1999] 14B,15BFT..BB42,58;15BFT..BB50..GEN..IV |
22174-58270 |
— | ||
|
22176
|
22176
22176-54020 Plug, Distributive Head[01.1993 - 07.1999] 1HZ#..HZB50; 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
22176-54020 |
from US $10.48 |
||
|
22176A
|
22176A
22193-54772 Ring, O(For Distributive Head Plug)[08.1996 - 07.1999] 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58; 1HZ..HZB50..4FC;1HZ..HZB50..SCO W(BATTERY X 2) |
22193-54772 |
from US $2.97 |
||
|
22176A
|
22176A
90099-14052
Ring, O(For Distributive Head Plug)
[01.1993 - 08.1996] 14B,3B..BB4# |
90099-14052 |
— | ||
| replacement | |||||
|
22176A
|
22176A
22193-54772 Ring, O(For Distributive Head Plug)[01.1993 - 08.1996] 14B,3B..BB4# |
22193-54772 |
from US $2.97 |
||
|
22178D
|
22178D
22178-58890
Bracket, Idle Up
[01.1993 - 07.1999] 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
22178-58890 |
— | ||
|
22179
|
22179
22179-54010
Shim, Plunger Adjusting
[01.1993 - 07.1999] 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 T=1.9 |
22179-54010 |
— | ||
|
22179
|
22179
22179-54011
Shim, Plunger Adjusting
[01.1993 - 07.1999] 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 T=2.0 |
22179-54011 |
— | ||
|
22179
|
22179
22179-54012
Shim, Plunger Adjusting
[01.1993 - 07.1999] 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 T=2.1 |
22179-54012 |
— | ||
|
22179
|
22179
22179-54013
Shim, Plunger Adjusting
[01.1993 - 07.1999] 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 T=2.2 |
22179-54013 |
— | ||
|
22179
|
22179
22179-54014
Shim, Plunger Adjusting
[01.1993 - 07.1999] 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 T=2.3 |
22179-54014 |
— | ||
|
22179
|
22179
22179-54015
Shim, Plunger Adjusting
[01.1993 - 07.1999] 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 T=2.4 |
22179-54015 |
— | ||
|
22179
|
22179
22179-54016
Shim, Plunger Adjusting
[01.1993 - 07.1999] 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 T=2.5 |
22179-54016 |
— | ||
|
22179
|
22179
22179-54017
Shim, Plunger Adjusting
[01.1993 - 07.1999] 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 T=2.6 |
22179-54017 |
— | ||
|
22179
|
22179
22179-54018
Shim, Plunger Adjusting
[01.1993 - 07.1999] 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 T=2.7 |
22179-54018 |
— | ||
|
22179
|
22179
22179-54019
Shim, Plunger Adjusting
[01.1993 - 07.1999] 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 T=2.8 |
22179-54019 |
— | ||
|
22179
|
22179
22179-54020
Shim, Plunger Adjusting
[01.1993 - 07.1999] 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 T=2.9 |
22179-54020 |
— | ||
|
22180
|
22180
22180-56351
Valve Sub-Assy, Regulator
[01.1993 - 07.1999] 14B..BB42 NO.1 |
22180-56351 |
— | ||
|
22180
|
22180
22180-58650
Valve Sub-Assy, Regulator
[01.1993 - 07.1999] 14B..BB42 NO.2 |
22180-58650 |
— | ||
|
22182
|
22182
22182-54010 Plate, Tappet Adjusting Shim[01.1993 - 07.1999] 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 T=0.5 |
22182-54010 |
US $4.56 |
||
|
22182
|
22182
22183-54010
Plate, Tappet Adjusting Shim
[01.1993 - 07.1999] 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 T=0.8 |
22183-54010 |
— | ||
|
22182
|
22182
22184-54010
Plate, Tappet Adjusting Shim
[01.1993 - 07.1999] 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 T=1.0 |
22184-54010 |
— | ||
|
22182
|
22182
22185-54010
Plate, Tappet Adjusting Shim
[01.1993 - 07.1999] 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 T=1.2 |
22185-54010 |
— | ||
|
22182
|
22182
22186-54010
Plate, Tappet Adjusting Shim
[01.1993 - 07.1999] 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 T=1.5 |
22186-54010 |
— | ||
|
22182
|
22182
22187-54010
Plate, Tappet Adjusting Shim
[01.1993 - 07.1999] 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 T=1.8 |
22187-54010 |
— | ||
|
22182
|
22182
22188-54010 Plate, Tappet Adjusting Shim[01.1993 - 07.1999] 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 T=2.0 |
22188-54010 |
US $4.45 |
||
|
22192
|
22192
22192-56350
Guide Sub-Assy, Plunger Spring
[01.1993 - 07.1999] 14B,15BFT..BB42,58;15BFT..BB50..GEN..IV |
22192-56350 |
— | ||
|
22193F
|
22193F
22193-5B320 Ring, O(For Fuel Injection Pump Filter)[06.1996 - 02.1998] 14B,15BFT..BB42,58;15BFT..BB50..GEN..IV |
22193-5B320 |
from US $1.54 |
||
|
22314A
|
22314A
22314-54010 Spring, Lever Support[01.1993 - 07.1999] 1HZ#..HZB50; 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
22314-54010 |
US $5.91 |
||
|
22316A
|
22316A
22316-55030
Sleeve, Governor
[01.1993 - 07.1999] 14B..BB42 MARK 45 |
22316-55030 |
— | ||
|
22316B
|
22316B
90099-10148 Bearing, Ball(For Governor Sleeve)[01.1993 - 07.1999] 1HZ#..HZB50; 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
90099-10148 |
US $14.37 |
||
|
22317
|
22317
22317-56350
Spring, Governor Domper
[01.1993 - 07.1999] 14B,15BFT..BB42,58;15BFT..BB50..GEN..IV K=0.1,L=8.2 |
22317-56350 |
— | ||
|
22322A
|
22322A
22322-54020
Spring, Return
[01.1993 - 07.1999] 14B,3B..BB40,42 |
22322-54020 |
— | ||
|
22341C
|
22341C
22341-54010 Gear, Governor Drive[01.1993 - 07.1999] 1HZ#..HZB50; 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
22341-54010 |
US $22.78 |
||
|
22350A
|
22350A
22350-58541
Governor Assy, Torque Control
[05.1995 - 05.1997] 14B..BB42 |
22350-58541 |
— | ||
|
22350A
|
22350A
22350-58550
Governor Assy, Torque Control
[01.1993 - 05.1995] 14B..BB42..GCC,GEN; 14B..BB42..LHD..WOC..GEN CHINA SPEC + BATTERY(48D26R X2) OR EX-USSR SPEC + BATTERY(95D31R X2) |
22350-58550 |
— | ||
|
22350A
|
22350A
22350-58640
Governor Assy, Torque Control
[01.1993 - 05.1995] 14B..BB42..GEN *HAC |
22350-58640 |
— | ||
|
22369
|
22369
22369-54010 Seat, Governor Spring[01.1993 - 07.1999] 1HZ#..HZB50; 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
22369-54010 |
US $10.16 |
||
|
22378A
|
22378A
22113-77090
Washer, Drain Screw
[01.1993 - 05.1997] 14B..BB42..GEN W(HIGH ALTITUDE COMPENSATOR),NO.2 |
22113-77090 |
— | ||
|
22378A
|
22378A
22149-6D450
Gasket, Delivery Valve
[07.1999 - 08.2004] 14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC W(HIGH ALTITUDE COMPENSATOR),NO.2 |
22149-6D450 |
— | ||
|
22378A
|
22378A
22378-64010 Washer, Governor Thrust[01.1993 - 05.1997] 14B,3B..BB4#; 14B..BB42..GEN W(HIGH ALTITUDE COMPENSATOR),NO.1 |
22378-64010 |
US $0.42 |
||
|
22384D
|
22384D
22384-54010
Shaft, Governor
[01.1993 - 07.1999] 14B,3B..BB40,42; 1HZ..HZB50..GEN..5F *HAC |
22384-54010 |
— | ||
|
22384E
|
22384E
90099-14049 Ring, O(For Governor Main Shaft)[01.1993 - 07.1999] 1HZ#..HZB50; 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
90099-14049 |
US $2.42 |
||
|
22390A
|
22390A
22390-56290
Solenoid Assy, Fuel Cut
[01.1993 - 05.1995] 3B..BB40;14B..BB42..WC |
22390-56290 |
— | ||
| replacement | |||||
|
22390A
|
22390A
22390-56291 Solenoid Assy, Fuel Cut[01.1993 - 05.1995] 3B..BB40;14B..BB42..WC |
22390-56291 |
from US $108.33 |
||
|
22390A
|
22390A
22390-56291 Solenoid Assy, Fuel Cut[03.1997 - 05.1997] 14B..BB42..WC |
22390-56291 |
from US $108.33 |
||
|
22505
|
22505
22505-54010 Pump Sub-Assy, Fuel Feed[01.1993 - 07.1999] 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
22505-54010 |
from US $104.83 |
||
|
22505A
|
22505A
90099-00723 Screw(For Fuel Feed Pump)[01.1993 - 07.1999] 1HZ#..HZB50; 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
90099-00723 |
US $0.78 |
||
|
22511A
|
22511A
22511-58650 Cover, Feed Pump[01.1993 - 05.1995] 14B,3B..BB4# |
22511-58650 |
US $7.12 |
||
|
22548
|
22548
22548-17010
Nipple, Swivel
[01.1993 - 07.1999] 14B,3B..BB40,42 |
22548-17010 |
— | ||
|
22602
|
22602
22602-56350 Filter Sub-Assy, Fuel Injection Pump[01.1993 - 07.1999] 1HZ#..HZB50; 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
22602-56350 |
from US $10.31 |
||
|
22602A
|
22602A
22602-5B320 Filter Sub-Assy, Fuel Injection Pump, No.2[05.1995 - 02.1998] 14B,15BFT..BB42,58;15BFT..BB50..GEN..IV |
22602-5B320 |
from US $16.20 |
||
|
22611
|
22611
22611-58200
Nut, Timer Round
[01.1993 - 07.1999] 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
22611-58200 |
— | ||
|
22612B
|
22612B
22612-56350
Cover, Timer
[01.1993 - 07.1999] 14B,3B..BB40,42; 1HZ#..HZB50 |
22612-56350 |
— | ||
|
22612C
|
22612C
22790-56351
Cover, Timer
[01.1993 - 07.1999] 14B..BB42 |
22790-56351 |
— | ||
|
22612D
|
22612D
22193-17840 Ring, O(For Timer Cover)[01.1993 - 07.1999] 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
22193-17840 |
from US $2.73 |
||
|
22615A
|
22615A
22615-56330
Spring, Timer Outer
[01.1993 - 05.1995] 14B..BB42 L=57.8 |
22615-56330 |
— | ||
|
22615A
|
22615A
22615-56331
Spring, Timer Outer
[01.1993 - 05.1995] 14B..BB42 L=57.1 |
22615-56331 |
— | ||
|
22615A
|
22615A
22615-56332
Spring, Timer Outer
[01.1993 - 05.1995] 14B..BB42 L=56.5 |
22615-56332 |
— | ||
|
22615A
|
22615A
22615-58541
Spring, Timer Outer
[05.1995 - 05.1997] 14B..BB42 K=2.5,L=52.2 |
22615-58541 |
— | ||
|
22615A
|
22615A
22615-58542
Spring, Timer Outer
[05.1995 - 05.1997] 14B..BB42..GCC,GEN K=2.7,L=51.7 |
22615-58542 |
— | ||
|
22615A
|
22615A
22615-5C301
Spring, Timer Outer
[05.1995 - 05.1997] 14B..BB42 K=2.10,L=53.6 |
22615-5C301 |
— | ||
|
22615A
|
22615A
22615-5C302
Spring, Timer Outer
[05.1995 - 05.1997] 14B..BB42 K=2.30,L=52.9 |
22615-5C302 |
— | ||
|
22621A
|
22621A
22621-54010
Washer, Timer Adjusting
[01.1993 - 05.1997] 14B..BB42..GEN T=0.5,*HAC |
22621-54010 |
— | ||
|
22621A
|
22621A
22622-54010
Washer, Timer Adjusting
[01.1993 - 07.1999] 14B..BB42..GEN T=1.0,*HAC |
22622-54010 |
— | ||
|
22621A
|
22621A
22624-54010
Washer, Timer Adjusting
[01.1993 - 05.1997] 14B..BB42..GEN T=0.2,*HAC |
22624-54010 |
— | ||
|
22621A
|
22621A
22624-54800
Washer, Timer Adjusting
[01.1993 - 05.1997] 14B..BB42..GEN T=0.6,*HAC |
22624-54800 |
— | ||
|
22621A
|
22621A
22624-54803
Washer, Timer Adjusting
[01.1993 - 05.1997] 14B..BB42..GEN T=0.7,*HAC |
22624-54803 |
— | ||
|
22621A
|
22621A
22624-54804
Washer, Timer Adjusting
[01.1993 - 05.1997] 14B..BB42..GEN T=0.8,*HAC |
22624-54804 |
— | ||
|
22621A
|
22621A
22624-54805
Washer, Timer Adjusting
[01.1993 - 05.1997] 14B..BB42..GEN T=0.9,*HAC |
22624-54805 |
— | ||
|
22621A
|
22621A
22624-54806
Washer, Timer Adjusting
[01.1993 - 05.1997] 14B..BB42..GEN T=0.3,*HAC |
22624-54806 |
— | ||
|
22621A
|
22621A
22625-54277
Washer, Timer Adjusting
[01.1993 - 07.1999] 14B..BB42 T=1.0 |
22625-54277 |
— | ||
|
22632A
|
22632A
22632-56350 Coupling, Injection Pump[01.1993 - 05.1997] 14B..BB42 |
22632-56350 |
US $37.64 |
||
|
22654
|
22654
22654-56330
Piston, Timer
[01.1993 - 05.1995] 14B..BB42 |
22654-56330 |
— | ||
|
22654
|
22654
22654-56340
Piston, Timer
[05.1995 - 05.1997] 14B..BB42 |
22654-56340 |
— | ||
|
22655A
|
22655A
22655-54010 Pin, Timer Slide[01.1993 - 07.1999] 14B,3B..BB40,42; 1HZ#..HZB50 |
22655-54010 |
US $36.72 |
||
|
22656
|
22656
22656-17840 Clip, Timer[01.1993 - 07.1999] 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
22656-17840 |
US $0.92 |
||
|
22657
|
22657
22657-54010 Clip, Timer[01.1993 - 07.1999] 1HZ#..HZB50; 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
22657-54010 |
US $28.98 |
||
|
22658
|
22658
22658-17840 Stopper, Timer[01.1993 - 05.1997] 3B..BB40 NO.1; 14B..BB42 |
22658-17840 |
US $1.01 |
||
|
22659
|
22659
22659-58650 Spring, Coupling[01.1993 - 05.1997] 14B..BB42 |
22659-58650 |
US $1.60 |
||
|
22680D
|
22680D
22680-56320
Bellows Assy, Pneumatic
[01.1993 - 07.1999] 14B..BB42..GEN |
22680-56320 |
— | ||
|
22689
|
22689
22689-56350 Washer(For Swivel Nipple)[01.1993 - 07.1999] 1HZ#..HZB50; 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
22689-56350 |
US $0.70 |
||
|
22701
|
22701
22701-58890
Lever Sub-Assy, Adjusting
[01.1993 - 07.1999] 14B,3B..BB40,42 MARK 478 |
22701-58890 |
— | ||
|
22701
|
22701
22701-58891
Lever Sub-Assy, Adjusting
[01.1993 - 07.1999] 14B,3B..BB40,42 MARK 479 |
22701-58891 |
— | ||
|
22703A
|
22703A
22703-58540
Cover Sub-Assy, Governor
[01.1993 - 07.1999] 14B..BB42..GEN *HAC |
22703-58540 |
— | ||
|
22703A
|
22703A
22703-6A210
Cover Sub-Assy, Governor
[01.1993 - 07.1999] 14B..BB42 |
22703-6A210 |
— | ||
|
22713
|
22713
22713-54010 Washer, Governor Gear Adjusting[01.1993 - 07.1999] 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 T=1.05 |
22713-54010 |
US $6.86 |
||
|
22713
|
22713
22714-54010
Washer, Governor Gear Adjusting
[01.1993 - 07.1999] 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 T=1.25 |
22714-54010 |
— | ||
|
22713
|
22713
22715-54010
Washer, Governor Gear Adjusting
[01.1993 - 07.1999] 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 T=1.45 |
22715-54010 |
— | ||
|
22713
|
22713
22716-54010
Washer, Governor Gear Adjusting
[01.1993 - 07.1999] 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 T=1.65 |
22716-54010 |
— | ||
|
22713
|
22713
22717-54010 Washer, Governor Gear Adjusting[01.1993 - 07.1999] 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 T=1.85 |
22717-54010 |
US $7.59 |
||
|
22726
|
22726
22726-58470
Spring, Speed Control
[01.1993 - 07.1999] 14B..BB42 |
22726-58470 |
— | ||
|
22739
|
22739
22739-54020 Bolt, Governor Link Support[01.1993 - 07.1999] 1HZ#..HZB50; 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
22739-54020 |
US $12.15 |
||
|
22740
|
22740
22740-21910 Shaft Sub-Assy, Governor Adjusting[01.1993 - 05.1995] 14B..BB42..WOC L=20; 14B..BB42..LHD..HRF..26S CHINA SPEC,L=20; 14B..BB42..RHD..WC..GEN *HAC,L=20; 14B..BB42..LHD..22S;14B..BB42..SRF..WC..GEN *HAC,L=20 |
22740-21910 |
US $25.08 |
||
|
22740
|
22740
22740-58480
Shaft Sub-Assy, Governor Adjusting
[01.1993 - 05.1995] 1HZ..HZB50 L=17.5; 14B..BB42..WC; 14B..BB42..LHD..HRF..26S CHINA SPEC,L=17.5; 14B..BB42..RHD..WC..GEN *HAC,L=17.5; 14B..BB42..LHD..22S;14B..BB42..SRF..WC..GEN *HAC,L=17.5; 14B..BB42..WOC BATTERY(48D26R X2) |
22740-58480 |
— | ||
|
22740A
|
22740A
22193-54770 Ring, O(For Governor Adjusting Shaft)[01.1993 - 07.1999] 1HZ#..HZB50; 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
22193-54770 |
from US $2.36 |
||
|
22741
|
22741
22741-54020 Holder Sub-Assy, Flyweight[01.1993 - 07.1999] 1HZ#..HZB50; 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
22741-54020 |
US $80.65 |
||
|
22745
|
22745
22745-56350
Flyweight, Distributive Pump
[01.1993 - 02.1995] 14B..BB42 |
22745-56350 |
— | ||
|
22745
|
22745
22745-5C090
Flyweight, Distributive Pump
[05.1995 - 05.1997] 14B..BB42 |
22745-5C090 |
— | ||
|
22751
|
22751
22751-5C020
Wire Sub-Assy, Fuel Cut Solenoid
[01.1993 - 07.1999] 14B..BB42..WC; 14B..BB42..RHD..WOC;14B..BB42..WOC..GCC BATTERY(48D26R X2); 14B..BB42..LHD..WOC..GEN BATTERY(48D26R X2) OR CIS SPEC & BATTERY(95D31R X2) |
22751-5C020 |
— | ||
|
22753A
|
22753A
22753-54010 Washer, Flyweight, No.1[01.1993 - 07.1999] 1HZ#..HZB50; 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
22753-54010 |
US $1.54 |
||
|
22753B
|
22753B
22753-54020 Washer, Flyweight, No.2[01.1993 - 07.1999] 1HZ#..HZB50; 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
22753-54020 |
US $1.68 |
||
|
22774
|
22774
22774-54270 Gasket, Governor Cover[01.1993 - 07.1999] 1HZ#..HZB50; 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
22774-54270 |
from US $3.14 |
||
|
22775
|
22775
22775-77121 Nut, Rock[01.1993 - 07.1999] 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
22775-77121 |
US $3.20 |
||
|
22776
|
22776
22776-55030
Screw, Smoke Set Adjusting
[01.1993 - 07.1999] 14B,15BFT..BB42,58;15BFT..BB50..GEN..IV |
22776-55030 |
— | ||
|
22776A
|
22776A
22193-54771 Ring, O(For Smoke Set Screw)[08.1996 - 07.1999] 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58; 1HZ..HZB50..5F |
22193-54771 |
US $1.37 |
||
|
22776A
|
22776A
90099-14047
Ring, O(For Smoke Set Screw)
[01.1993 - 08.1996] 14B,3B..BB4# |
90099-14047 |
— | ||
| replacement | |||||
|
22776A
|
22776A
22193-54771 Ring, O(For Smoke Set Screw)[01.1993 - 08.1996] 14B,3B..BB4# |
22193-54771 |
US $1.37 |
||
|
22777
|
22777
22777-54120
Cap, Rubber(For Bellows)
[01.1993 - 07.1999] 14B..BB42..GEN NO.1 |
22777-54120 |
— | ||
|
22777
|
22777
22777-54351
Cap, Rubber(For Bellows)
[01.1993 - 07.1999] 14B..BB42..GEN NO.3 |
22777-54351 |
— | ||
|
22777
|
22777
22777-64410
Cap, Rubber(For Bellows)
[01.1993 - 07.1999] 14B..BB42..GEN NO.2 |
22777-64410 |
— | ||
|
22787
|
22787
22787-17145
Plug, Governor Sleeve
[05.1995 - 05.1997] 14B..BB42 L=5.1 |
22787-17145 |
— | ||
|
22787
|
22787
22787-54026 Plug, Governor Sleeve[01.1993 - 02.1995] 14B,3B..BB4# L=3.3 |
22787-54026 |
US $9.42 |
||
|
22787
|
22787
22787-54027 Plug, Governor Sleeve[01.1993 - 02.1995] 14B,3B..BB4# L=3.4 |
22787-54027 |
US $19.34 |
||
|
22787
|
22787
22787-54028
Plug, Governor Sleeve
[01.1993 - 02.1995] 14B..BB42 L=3.5 |
22787-54028 |
— | ||
|
22787
|
22787
22787-54029
Plug, Governor Sleeve
[01.1993 - 02.1995] 14B..BB42 L=3.6 |
22787-54029 |
— | ||
|
22787
|
22787
22787-54030
Plug, Governor Sleeve
[01.1993 - 02.1995] 14B..BB42 L=3.7 |
22787-54030 |
— | ||
|
22787
|
22787
22787-54031
Plug, Governor Sleeve
[01.1993 - 07.1999] 14B..BB42 L=3.8 |
22787-54031 |
— | ||
|
22787
|
22787
22787-54032
Plug, Governor Sleeve
[01.1993 - 02.1995] 14B..BB42 L=3.9 |
22787-54032 |
— | ||
|
22787
|
22787
22787-54033
Plug, Governor Sleeve
[01.1993 - 02.1995] 14B..BB42 L=4.0 |
22787-54033 |
— | ||
|
22787
|
22787
22787-54034
Plug, Governor Sleeve
[01.1993 - 02.1995] 14B..BB42 L=4.3 |
22787-54034 |
— | ||
|
22787
|
22787
22787-54035
Plug, Governor Sleeve
[01.1993 - 05.1997] 14B..BB42 L=4.5 |
22787-54035 |
— | ||
|
22787
|
22787
22787-54036
Plug, Governor Sleeve
[01.1993 - 02.1995] 14B..BB42 L=4.7 |
22787-54036 |
— | ||
|
22787
|
22787
22787-56350
Plug, Governor Sleeve
[05.1995 - 05.1997] 14B..BB42 L=5.9 |
22787-56350 |
— | ||
|
22787
|
22787
22787-56352
Plug, Governor Sleeve
[05.1995 - 05.1997] 14B..BB42 L=6.1 |
22787-56352 |
— | ||
|
22787
|
22787
22787-64640
Plug, Governor Sleeve
[01.1993 - 02.1995] 14B..BB42 L=4.1 |
22787-64640 |
— | ||
|
22787
|
22787
22787-64641
Plug, Governor Sleeve
[01.1993 - 02.1998] 14B..BB42 L=3.0 |
22787-64641 |
— | ||
|
22787
|
22787
22787-64642
Plug, Governor Sleeve
[01.1993 - 02.1995] 14B..BB42 L=3.1 |
22787-64642 |
— | ||
|
22787
|
22787
22787-64643
Plug, Governor Sleeve
[01.1993 - 02.1995] 14B..BB42 L=3.2 |
22787-64643 |
— | ||
|
22787
|
22787
22787-64680
Plug, Governor Sleeve
[01.1993 - 02.1995] 14B..BB42 L=4.2 |
22787-64680 |
— | ||
|
221196A210
|
221196A210
22119-6A210
Washer, Air Bleeder Nipple
|
22119-6A210 |
— | ||
|
223785C430
|
223785C430
22378-5C430 Washer, Governor Thrust |
22378-5C430 |
US $0.72 |
||
|
2211958770
|
2211958770
22119-58770
Washer, Air Bleeder Nipple
|
22119-58770 |
— | ||
|
2214954771
|
2214954771
22149-54771 Gasket, Delivery Valve |
22149-54771 |
US $0.76 |
||
|
2214956200
|
2214956200
22149-56200 Gasket, Delivery Valve |
22149-56200 |
from US $0.90 |
||
|
2214956350
|
2214956350
22149-56350
Gasket, Delivery Valve
|
22149-56350 |
— | ||
|
2217256350
|
2217256350
22172-56350
Clip, Connector Support, Solenoid
|
22172-56350 |
— | ||
|
2239554010
|
2239554010
22395-54010
Bolt, Socket(For Injection Pump Governor Cover)
|
22395-54010 |
— | ||
|
2239556350
|
2239556350
22395-56350
Bolt, Socket(for Injection Pump Governor Cover)
|
22395-56350 |
— | ||
|
2239556351
|
2239556351
22395-56351 Bolt, Socket(for Injection Pump Governor Cover) |
22395-56351 |
US $1.48 |
||
|
2239556352
|
2239556352
22395-56352 Bolt, Socket(for Injection Pump Governor Cover) |
22395-56352 |
US $1.44 |
||
|
2239558200
|
2239558200
22395-58200
Bolt, Socket(For Injection Pump Governor Cover)
|
22395-58200 |
— | ||
|
2272254470
|
2272254470
22722-54470 Nut, Governor Shaft Rock |
22722-54470 |
US $11.15 |
||
|
9009210608
|
9009210608
90092-10608
New Genuine Part
|
90092-10608 |
— | ||
|
9009300802
|
9009300802
90093-00802
Washer, Plate(For Connecting Pin)
|
90093-00802 |
— | ||
|
9009690024
|
9009690024
90096-90024 Ring, O(For Stopper Lever) |
90096-90024 |
US $1.68 |
||
|
9009901533
|
9009901533
90099-01533
Washer, Air Bleeder Nipple
|
90099-01533 |
— | ||
|
9009904576
|
9009904576
90099-04576 BOLT |
90099-04576 |
US $1.54 |
||
|
9009904946
|
9009904946
90099-04946 Ring, O(For Bellows Cover) |
90099-04946 |
US $4.43 |
||
|
9009904954
|
9009904954
90099-04954
BOLT
|
90099-04954 |
— | ||
|
9009905161
|
9009905161
90099-05161 Nut, Timer Round |
90099-05161 |
from US $1.25 |
||
|
9009905252
|
9009905252
90099-05252 NUT HEXAGON |
90099-05252 |
US $0.80 |
||
|
9009918022
|
9009918022
90099-18022
SCREW
|
90099-18022 |
— | ||
|
9017906156
|
9017906156
90179-06156 Nut (For Transmission Control Cable) |
90179-06156 |
from US $0.72 |
||
