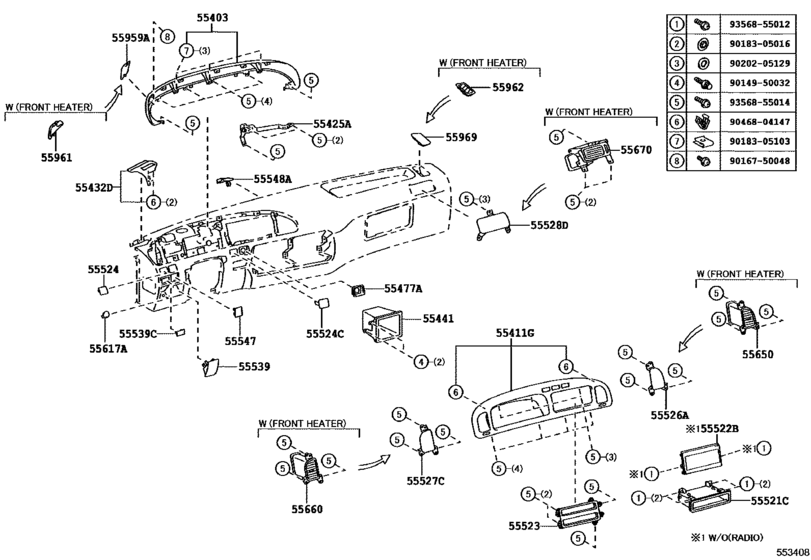

Instrument Panel & Glove Compartment ([01.2015 - ] (1501- )LHD) Diagram Toyota COASTER
- Year
- 1993 - 2016
- Sales region
- Europe
- Frame
- BB42
- grade
- STD
- Roof
- SRF
- ENGINE
- 14B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 01.1993
- To
- 12.2016
- Gear Shift Type
- 5F
- Seating Capacity
- 26S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55403
|
55403
55421-36020-B0
Hood Sub-Assy, Meter
[08.2001 - 08.2004] BB42,50,58,HZB50,RZB40,50..LHD..(EUR,GCC,GEN) DK.CHARCOAL,TRIM1# |
55421-36020-B0 |
— | ||
| replacement | |||||
|
55403
|
55403
55421-36021-B0
PANEL INSTRUMENT
[08.2001 - 08.2004] BB42,50,58,HZB50,RZB40,50..LHD..(EUR,GCC,GEN) DK.CHARCOAL,TRIM1# |
55421-36021-B0 |
— | ||
|
55403
|
55403
55421-36020-E0 Hood Sub-Assy, MeterMETER [01.1993 - 07.1999] BB42,5#,HZB50,RZB40,50..LHD GREIGE,TRIM4# |
55421-36020-E0 |
US $120.85 |
||
| replacement | |||||
|
55403
|
55403
55421-36021-E0
Hood Sub-Assy, Meter
[01.1993 - 07.1999] BB42,5#,HZB50,RZB40,50..LHD GREIGE,TRIM4# |
55421-36021-E0 |
— | ||
|
55411G
|
55411G
55411-36020
Panel, Instrument Cluster Finish, No.1
[01.1993 - 05.1995] HZB50..GEN..4FC;BB42,HZB50,RZB40,50..LHD..(EUR,GCC) W(FRONT HEATER); RZB40,50..GEN;BB42..SRF..WC..GEN;HZB50..LHD..HRF..WOC..DSL;BB42,HZB50..LHD..(20S,2 2S) CHINA SPEC OR W(FRONT HEATER); HZB50..LHD..STD..WC..GEN..5F;BB42,HZB50..LHD..SR |
55411-36020 |
— | ||
|
55411G
|
55411G
55411-36040 Panel, Instrument Cluster Finish, No.1INSTRUMENT CLUSTER FINISH, NO.1 [01.1993 - 07.1999] BB42,HZB50,RZB40,50..LHD..CBU |
55411-36040 |
US $109.20 |
||
|
55425A
|
55425A
55425-36020 Bracket, Meter Hood SetMETER HOOD SET [01.1993 - 07.1999] BB42,5#,HZB50,RZB40,50..LHD |
55425-36020 |
US $9.61 |
||
|
55432D
|
55432D
55432-36020-B0 Panel, Instrument Panel Finish, Lower No.1INSTRUMENT PANEL FINISH, LOWER NO.1 [08.2001 - 08.2004] BB42,50,58,HZB50,RZB40,50..LHD..(EUR,GCC,GEN) DK.CHARCOAL,TRIM1# |
55432-36020-B0 |
from US $9.61 |
||
|
55432D
|
55432D
55432-36020-E0
Panel, Instrument Panel Finish, Lower No.1
[01.1993 - 07.1999] BB42,5#,HZB50,RZB40,50..LHD GREIGE,TRIM4# |
55432-36020-E0 |
— | ||
|
55441
|
55441
55441-36010 Box, Instrument Panel[01.1993 - 07.1999] BB50..WC..GEN;BB4#,58,HZB50,RZB40,50..CBU |
55441-36010 |
US $93.24 |
||
|
55441
|
55441
55441-36020
Box, Instrument Panel
[09.2012 - 01.2015] BB42,50,HZB50,TRB40,50..LHD |
55441-36020 |
— | ||
|
55477A
|
55477A
55477-36010 Bezel, Cigarette Lighter Hole[01.1993 - 07.1999] BB4#,5#,HZB50,RZB40,50 |
55477-36010 |
US $5.42 |
||
|
55521C
|
55521C
55521-16030 Cover, Radio Tuner Opening[01.1993 - 05.1995] BB4#,RZB40,50;HZB50..ARL,GCC,GEN TYPE B:REFER TO ILLUSTRATION |
55521-16030 |
from US $24.02 |
||
|
55521C
|
55521C
55521-16040
Cover, Stereo Opening
[01.1993 - 05.1995] RZB40..EX..GCC;BB4#,HZB50,RZB40,50..STD TYPE A:REFER TO ILLUSTRATION |
55521-16040 |
— | ||
| replacement | |||||
|
55521C
|
55521C
55521-36020
Cover, Stereo Opening
[01.1993 - 05.1995] RZB40..EX..GCC;BB4#,HZB50,RZB40,50..STD TYPE A:REFER TO ILLUSTRATION |
55521-36020 |
— | ||
|
55521C
|
55521C
55521-36020
Cover, Stereo Opening
[09.2009 - 09.2012] BB42..LHD..SRF;BB50,HZB50,TRB40,50..LHD TYPE A:REFER TO ILLUSTRATION |
55521-36020 |
— | ||
|
55521C
|
55521C
55521-36040
Cover, Stereo Opening
[09.2012 - 01.2015] BB42,50,HZB50,TRB40,50..LHD TYPE B:REFER TO ILLUSTRATION |
55521-36040 |
— | ||
|
55521C
|
55521C
55521-44020 Cover, Stereo Opening[09.2009 - 09.2012] BB42..LHD..SRF;BB50,HZB50,TRB40,50..LHD TYPE B:REFER TO ILLUSTRATION |
55521-44020 |
US $21.58 |
||
|
55522B
|
55522B
55522-52020 Cover, Stereo Opening[01.2015 -] BB42,BZB40,50,HZB50,TRB40,50,XZB40,50..STD..(GCC,GEN) |
55522-52020 |
from US $14.14 |
||
|
55524
|
55524
55524-36010-B0 Cover, Switch Bace Hole[08.2001 - 08.2004] BB50..IV;BB50..STD..GEN..5F;BB42,BZB40,50,HZB50,RZB40,50..(17S,20S,26S,30S)..(GCC, GEN) DK.CHARCOAL,TRIM1# |
55524-36010-B0 |
US $8.56 |
||
|
55524
|
55524
55524-36010-E0 Cover, Switch Bace Hole[01.1993 - 03.1993] BB4#;HZB50..ARL,GCC,GEN GREIGE,TRIM4# |
55524-36010-E0 |
US $4.89 |
||
|
55524C
|
55524C
55524-36010-B0 Cover, Switch Bace Hole[08.2001 - 08.2004] BB42,5#,BZB40,50,HZB50,RZB40,50..EUR,GCC,GEN DK.CHARCOAL,TRIM1# |
55524-36010-B0 |
US $8.56 |
||
|
55524C
|
55524C
55524-36010-E0 Cover, Switch Bace Hole[01.1993 - 03.1994] BB4#,HZB50,RZB40,50 GREIGE,TRIM4# |
55524-36010-E0 |
US $4.89 |
||
|
55526A
|
55526A
55526-36010
Cover, Instrument Panel Register Opening, No.1
[01.1993 - 07.1999] BB42,RZB40,50..GCC,GEN;HZB50..(20S,30S)..(GCC,GEN) |
55526-36010 |
— | ||
|
55527C
|
55527C
55527-36010
Cover, Instrument Panel Register Opening, No.2
[01.1993 - 07.1999] BB42,RZB40,50..GCC,GEN;HZB50..(20S,30S)..(GCC,GEN) |
55527-36010 |
— | ||
|
55528D
|
55528D
55528-36020-B0 Cover, Instrument Panel Register Opening, No.3INSTRUMENT PANEL REGISTER OPENING, NO.3 [08.2001 - 08.2004] BB42,50,HZB50,RZB40,50..LHD..(GCC,GEN)..5F DK.CHARCOAL,TRIM1# |
55528-36020-B0 |
US $8.74 |
||
|
55528D
|
55528D
55528-36020-E0 Cover, Instrument Panel Register Opening, No.3INSTRUMENT PANEL REGISTER OPENING, NO.3 [01.1993 - 07.1999] BB42,HZB50,RZB40,50..LHD..CBU GREIGE,TRIM4# |
55528-36020-E0 |
US $12.67 |
||
|
55539
|
55539
55546-36010-B0
Cover, Spare Switch Hole
[08.2001 - 08.2004] BB50..RHD..6F;BB50..LHD..(EUR,GEN);BB42,HZB50,RZB40,50..STD..(GCC,GEN) DK.CHARCOAL,TRIM1# |
55546-36010-B0 |
— | ||
|
55539
|
55539
55546-36010-E0
Cover, Spare Switch Hole
[01.1993 - 12.1997] HZB50..30S..4FC;BB4#,5#,HZB50,RZB40,50..(DX,STD)..5F GREIGE,TRIM4# |
55546-36010-E0 |
— | ||
| replacement | |||||
|
55539
|
55539
55546-36010-B0
Cover, Spare Switch Hole
[01.1993 - 12.1997] HZB50..30S..4FC;BB4#,5#,HZB50,RZB40,50..(DX,STD)..5F GREIGE,TRIM4# |
55546-36010-B0 |
— | ||
|
55539C
|
55539C
55539-20030-B3 Cover, Spare Switch Hole[08.2001 - 08.2004] HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,EUR,GCC,GEN DK.CHARCOAL,TRIM1# |
55539-20030-B3 |
US $9.09 |
||
|
55539C
|
55539C
55539-20030-E1 Cover, Spare Switch Hole[01.1993 - 09.1993] BB4#,HZB50..DSL GREIGE,TRIM4# |
55539-20030-E1 |
US $8.01 |
||
| replacement | |||||
|
55539C
|
55539C
55539-32010-C0 Cover, Cooler Switch Hole[01.1993 - 09.1993] BB4#,HZB50..DSL GREIGE,TRIM4# |
55539-32010-C0 |
from US $3.35 |
||
|
55547
|
55547
55547-20020-B1 Cover, Remote Control Mirror Hole[08.2001 - 08.2004] HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,EUR,GCC,GEN DK.CHARCOAL,TRIM1# |
55547-20020-B1 |
US $13.28 |
||
|
55547
|
55547
55547-20020-E0
Cover, Remote Control Mirror Hole
[01.1993 - 09.1993] BB4#,HZB50 GREIGE,TRIM4# |
55547-20020-E0 |
— | ||
|
55548A
|
55548A
55548-36010-B0 Cover, Instrument Panel Hole[08.2001 - 08.2004] HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,EUR,GCC,GEN DK.CHARCOAL,TRIM1# |
55548-36010-B0 |
US $2.71 |
||
|
55548A
|
55548A
55548-36010-E0 Cover, Instrument Panel Hole[01.1993 - 09.1993] BB4#,HZB50 GREIGE,TRIM4# |
55548-36010-E0 |
US $2.62 |
||
|
55617A
|
55617A
55617-10010-B3 Cover, Throttle Knob Hole[08.2001 - 08.2004] HZB50..RHD..GEN;BB42,5#,BZB40,50,RZB40,50..ARL,EUR,GCC,GEN DK.CHARCOAL,TRIM1# |
55617-10010-B3 |
US $4.54 |
||
|
55617A
|
55617A
55617-10010-E0 Cover, Throttle Knob Hole[01.1993 - 07.1999] HZB50..RHD..5F;HZB50..LHD..TD;BB4#,5#,RZB40,50 GREIGE,TRIM4# |
55617-10010-E0 |
US $3.49 |
||
| replacement | |||||
|
55617A
|
55617A
55617-10010-22 Cover, Choke Knob Hole[01.1993 - 07.1999] HZB50..RHD..5F;HZB50..LHD..TD;BB4#,5#,RZB40,50 GREIGE,TRIM4# |
55617-10010-22 |
US $2.80 |
||
|
55650
|
55650
55650-36010 Register Assy, Instrument Panel, No.1[01.1993 - 05.1995] BB42,HZB50..RHD;HZB50..GEN..4FC;HZB50..LHD..(EUR,GCC);BB4#,RZB40,50..ARL,GCC; RZB40,50..GEN;BB42..SRF..WC..GEN;HZB50..LHD..HRF..WOC..DSL;BB42,HZB50..LHD..(20S,2 2S) CHINA SPEC OR W(FRONT HEATER); HZB50..LHD..STD..WC..GEN..5F;BB42,HZB50 |
55650-36010 |
US $56.09 |
||
|
55660
|
55660
55660-36010 Register Assy, Instrument Panel, No.2[01.1993 - 05.1995] BB42,HZB50..RHD;HZB50..GEN..4FC;HZB50..LHD..(EUR,GCC);BB4#,RZB40,50..ARL,GCC; RZB40,50..GEN;BB42..SRF..WC..GEN;HZB50..LHD..HRF..WOC..DSL;BB42,HZB50..LHD..(20S,2 2S) CHINA SPEC OR W(FRONT HEATER); HZB50..LHD..STD..WC..GEN..5F;BB42,HZB50 |
55660-36010 |
US $48.05 |
||
|
55670
|
55670
55670-36020-B0 Register Assy, Instrument Panel, No.3INSTRUMENT PANEL, NO.3 [08.2001 - 08.2004] BB42,50,58,HZB50,RZB40,50..LHD..(EUR,GCC,GEN) DK.CHARCOAL,TRIM1# |
55670-36020-B0 |
US $77.17 |
||
|
55670
|
55670
55670-36020-E0 Register Assy, Instrument Panel, No.3INSTRUMENT PANEL, NO.3 [01.1993 - 05.1995] HZB50..GEN..4FC;BB42,HZB50,RZB40,50..LHD..(EUR,GCC) GREIGE,TRIM4#; HZB50..LHD..STD..WC..GEN..5F;BB42,HZB50..LHD..SRF..WOC..GEN *EX-USSR SPEC & COLD AREA SPEC,GREIGE,TRIM4#; RZB40,50..GEN;BB42..SRF..WC..GEN;HZB50..LHD..HRF..WOC..DSL;BB4 |
55670-36020-E0 |
US $69.45 |
||
|
55959A
|
55959A
55959-36020-B0 Cover, Defroster Nozzle Opening, No.1DEFROSTER NOZZLE OPENING, NO.1 [08.2001 - 08.2004] BB42,50,HZB50,RZB40,50..LHD..(GCC,GEN)..5F DK.CHARCOAL,TRIM1# |
55959-36020-B0 |
US $8.01 |
||
|
55959A
|
55959A
55959-36020-E0 Cover, Defroster Nozzle Opening, No.1DEFROSTER NOZZLE OPENING, NO.1 [01.1993 - 07.1999] BB42,HZB50,RZB40,50..LHD..CBU GREIGE,TRIM4# |
55959-36020-E0 |
US $11.94 |
||
| replacement | |||||
|
55959A
|
55959A
55959-36020-B0 Cover, Defroster Nozzle Opening, No.1DEFROSTER NOZZLE OPENING, NO.1 [01.1993 - 07.1999] BB42,HZB50,RZB40,50..LHD..CBU GREIGE,TRIM4# |
55959-36020-B0 |
US $8.01 |
||
|
55961
|
55961
55961-36020-B0 Nozzle, Side Defroster, No.1SIDE DEFROSTER, NO.1 [08.2001 - 08.2004] BB42,50,58,HZB50,RZB40,50..LHD..(EUR,GCC,GEN) DK.CHARCOAL,TRIM1# |
55961-36020-B0 |
US $13.54 |
||
|
55961
|
55961
55961-36020-E0 Nozzle, Side Defroster, No.1SIDE DEFROSTER, NO.1 [01.1993 - 05.1995] HZB50..GEN..4FC;BB42,HZB50,RZB40,50..LHD..(EUR,GCC) GREIGE,TRIM4#; RZB40,50..GEN;BB42..SRF..WC..GEN;HZB50..LHD..HRF..WOC..DSL;BB42,HZB50..LHD..(20S,2 2S) CHINA SPEC OR W(FRONT HEATER),GREIGE,TRIM4#; HZB50..LHD..STD..WC..GEN..5F;BB42,HZ |
55961-36020-E0 |
US $16.31 |
||
|
55962
|
55962
55962-36020-B0 Nozzle, Side Defroster, No.2SIDE DEFROSTER, NO.2 [08.2001 - 08.2004] BB42,50,58,HZB50,RZB40,50..LHD..(EUR,GCC,GEN) DK.CHARCOAL,TRIM1# |
55962-36020-B0 |
US $7.86 |
||
|
55962
|
55962
55962-36020-E0 Nozzle, Side Defroster, No.2SIDE DEFROSTER, NO.2 [01.1993 - 05.1995] HZB50..GEN..4FC;BB42,HZB50,RZB40,50..LHD..(EUR,GCC) GREIGE,TRIM4#; RZB40,50..GEN;BB42..SRF..WC..GEN;HZB50..LHD..HRF..WOC..DSL;BB42,HZB50..LHD..(20S,2 2S) CHINA SPEC OR W(FRONT HEATER),GREIGE,TRIM4#; HZB50..LHD..STD..WC..GEN..5F;BB42,HZ |
55962-36020-E0 |
US $7.13 |
||
|
55969
|
55969
55969-36020-B0
Cover, Defroster Nozzle Opening, No.2
[08.2001 - 08.2004] BB42,50,HZB50,RZB40,50..LHD..(GCC,GEN)..5F DK.CHARCOAL,TRIM1# |
55969-36020-B0 |
— | ||
|
55969
|
55969
55969-36020-E0
Cover, Defroster Nozzle Opening, No.2
[01.1993 - 07.1999] BB42,HZB50,RZB40,50..LHD..CBU GREIGE,TRIM4# |
55969-36020-E0 |
— | ||
| replacement | |||||
|
55969
|
55969
55969-36020-B0
Cover, Defroster Nozzle Opening, No.2
[01.1993 - 07.1999] BB42,HZB50,RZB40,50..LHD..CBU GREIGE,TRIM4# |
55969-36020-B0 |
— | ||
|
9014950032
|
9014950032
90149-50032 Screw |
90149-50032 |
US $1.28 |
||
|
9016750048
|
9016750048
90167-50048 New Genuine Part |
90167-50048 |
US $0.87 |
||
|
9018305016
|
9018305016
90183-05016 NUT |
90183-05016 |
US $1.28 |
||
|
9018305103
|
9018305103
90183-05103 NUT |
90183-05103 |
US $1.44 |
||
|
9020205129
|
9020205129
90202-05129 New Genuine Part |
90202-05129 |
US $1.75 |
||
|
9046804147
|
9046804147
90468-04147 Clip(For Back Door Trim Board) |
90468-04147 |
US $1.12 |
||
|
9356855012
|
9356855012
93568-55012 SCREW |
93568-55012 |
from US $0.96 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
