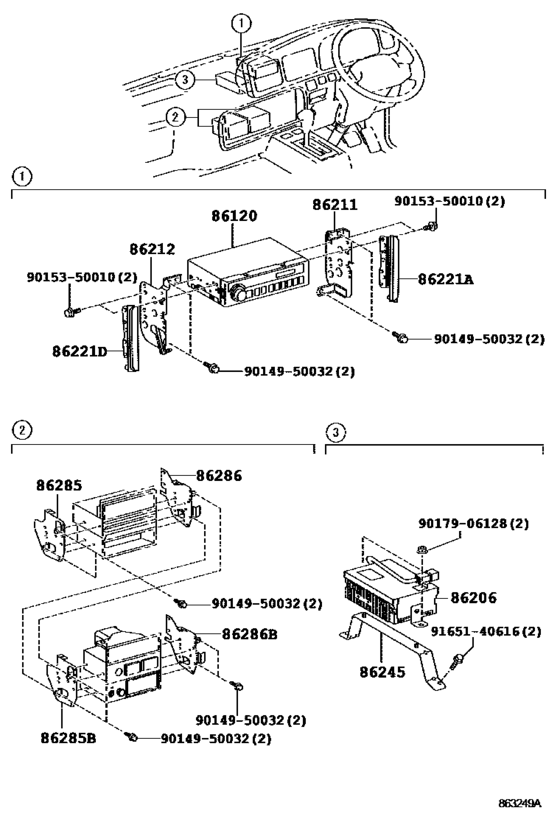

Radio Receiver & Amplifier & Condenser ([09.2012 - ] RADIO & CONVERTER (0708- )RHD ; (1209- )LHD) Diagram Toyota COASTER
- Year
- 1993 - 2016
- Sales region
- General
- Frame
- BB42
- grade
- STD
- Roof
- SRF
- ENGINE
- 14B
- TRANSMISSION
- MTM
- DESTINATION
- GCC
- COOLER
- WC
- Model
- COASTER
- From
- 01.1993
- To
- 12.2016
- Gear Shift Type
- 5F
- Seating Capacity
- 26S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86120
|
86120
86120-10460 Receiver Assy, RadioRADIO [07.1999 - 08.2004] BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;RZB40..26S..W C..(GCC,GEN);BB50,RZB50..30S..(GCC,GEN);HZB50,RZB40..LHD..WOC..GEN;BB42,HZB50..HRF ..(26S,30S)..WC MATSUSHITA, ID=52202,AM/FM |
86120-10460 |
US $928.93 |
||
|
86120
|
86120
86120-16650 Receiver Assy, RadioRADIO [08.2011 - 09.2012] BB42,50,HZB50,TRB40,50 MATSUSHITA, ID=52201 |
86120-16650 |
US $320.32 |
||
|
86120
|
86120
86120-16660
Receiver Assy, Radio
[07.1999 - 08.2004] BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;RZB40..26S..W C..(GCC,GEN);HZB50,RZB40..LHD..WOC..GEN;BB50,58,RZB50..(23S,30S)..(GCC,GEN);BB42,5 0,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI) FUJITSU TEN,ID=17409,AM/ |
86120-16660 |
— | ||
|
86120
|
86120
86120-16670
Receiver Assy, Radio
[07.1999 - 08.2004] BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40.. LHD..WOC..GEN;BB50,RZB50..30S..(GCC,GEN);BB42,HZB50..HRF..(26S,30S)..WC;HZB50,RZB4 0..LHD..(20S,26S)..WC..(GCC,GEN) FUJITSU TEN,ID=17410,AM/FM ETR CASSE |
86120-16670 |
— | ||
|
86120
|
86120
86120-16680
Receiver Assy, Radio
[07.1999 - 08.2004] BB42..WC..GCC;BB42..SRF..GEN;BB59,BZB50..EX;BB42..LHD..HRF..WOC;HZB50..HRF..30S..W C;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50,RZB50..30S..(GCC,GEN);BB42,5 0..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S |
86120-16680 |
— | ||
|
86120
|
86120
86120-1A010 Receiver Assy, RadioRADIO [01.1993 - 05.1995] HZB50,RZB40..17S,20S;BB42,HZB50,RZB40,50..STD..(GCC,SCO) MATSUSHITA,AM/FM/SW |
86120-1A010 |
US $544.54 |
||
|
86120
|
86120
86120-1A020 Receiver Assy, RadioRADIO [01.1993 - 05.1995] RZB40..STD;RZB40..EX..GCC;BB4#,HZB50,RZB50..17S,19S,22S,26S,30S FUJITSU TEN,ID=12201,AM/FM ETR |
86120-1A020 |
US $1,339.52 |
||
|
86120
|
86120
86120-26160
Receiver Assy, Radio
[09.2012 - 01.2013] BB42,HZB50,TRB40,50..GCC PANASONIC,ID=52898 |
86120-26160 |
— | ||
|
86120
|
86120
86120-26230
Receiver Assy, Radio
[01.2015 - 11.2015] XZB59;BB42,HZB50,TRB40,50,XZB40,50..(20S,21S,26S,30S)..(GCC,GEN,TAIW) FUJITSU TEN,ID100315 |
86120-26230 |
— | ||
| replacement | |||||
|
86120
|
86120
86120-26231
Receiver Assy, Radio
[01.2015 - 11.2015] XZB59;BB42,HZB50,TRB40,50,XZB40,50..(20S,21S,26S,30S)..(GCC,GEN,TAIW) FUJITSU TEN,ID100315 |
86120-26231 |
— | ||
|
86120
|
86120
86120-26231
Receiver Assy, Radio
[12.2015 -] XZB59;BB42,HZB50,TRB40,50,XZB40,50..(20S,21S,26S,30S)..(GCC,GEN,TAIW) FUJITSU TEN,ID100648 |
86120-26231 |
— | ||
|
86120
|
86120
86120-28600
Receiver Assy, Radio
[09.2012 - 01.2015] BB42,50,HZB50,TRB40,50,XZB5#..GCC,GEN,TAIW FUJITSUTEN,ID=100111 |
86120-28600 |
— | ||
|
86120
|
86120
86120-2B380 Receiver Assy, RadioRADIO [05.1997 - 02.1998] BB4#,5#,HZB50,RZB40,50..(17S,19S,22S,26S,30S)..(ARL,GCC,GEN) FUJITSU TEN,ID=17202,AM/FM CASSETTE |
86120-2B380 |
US $2,431.52 |
||
|
86120
|
86120
86120-35050 Receiver Assy, RadioRADIO [05.1997 - 07.1999] BB42,HZB50,RZB40,50..(17S,22S,26S,30S)..(GCC,GEN)..5F MATSUSHITA,ID=57100,AM CASSETTE |
86120-35050 |
US $2,184 |
||
|
86120
|
86120
86120-35100
Receiver Assy, Radio
[05.1997 - 07.1999] BB50,HZB50..EX;BB42,HZB50,RZB40,50..STD..GCC MATSUSHITA,ID=57401,AM/FM ETR CASSETTE (AM=9KHZ STEP) |
86120-35100 |
— | ||
|
86120
|
86120
86120-35190
Receiver Assy, Radio
[07.1999 - 08.2004] BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;RZB40..26S..W C..(GCC,GEN);BB50,RZB50..30S..(GCC,GEN);HZB50,RZB40..LHD..WOC..GEN;BB42,HZB50..HRF ..(26S,30S)..WC MATSUSHITA, ID=57101,AM ETR CASSETTE 2 SPEAKER |
86120-35190 |
— | ||
|
86120
|
86120
86120-37040 Receiver Assy, RadioRADIO [01.1993 - 05.1995] BB4#,HZB50..(DX,STD)..DSL MATSUSHITA,ID=52102,AM 5 BUTTON |
86120-37040 |
US $342.16 |
||
|
86120
|
86120
86120-60C10
Receiver Assy, Radio
[08.2007 - 09.2012] BB42..RHD;BB42..LHD..SRF;BB50,HZB50,TRB40,50,XZB50..(21S,26S,30S)..(GCC,GEN,TAIW) FUJITSU TEN,ID=17424 |
86120-60C10 |
— | ||
|
86206
|
86206
86206-36020 Converter Sub-Assy, Voltage[01.1993 - 05.1995] BB4#,HZB50..DSL |
86206-36020 |
US $390.21 |
||
| replacement | |||||
|
86206
|
86206
86206-36120 Converter Sub-Assy, Voltage[01.1993 - 05.1995] BB4#,HZB50..DSL |
86206-36120 |
US $430.98 |
||
|
86206
|
86206
86206-36090 Converter Sub-Assy, Voltage[10.2005 - 11.2014] BB42..RHD;BB42..LHD..SRF;BB50,HZB50..30S |
86206-36090 |
US $269.36 |
||
| replacement | |||||
|
86206
|
86206
86206-36091 Converter Sub-Assy, Voltage[10.2005 - 11.2014] BB42..RHD;BB42..LHD..SRF;BB50,HZB50..30S |
86206-36091 |
US $314.50 |
||
|
86206
|
86206
86206-36091 Converter Sub-Assy, Voltage[12.2014 - 01.2015] BB42,50,HZB50 |
86206-36091 |
US $314.50 |
||
|
86211
|
86211
86211-36020
Bracket, Radio, No.1
[01.1993 - 05.1997] BB4#,50,HZB50,RZB40,50 |
86211-36020 |
— | ||
|
86211
|
86211
86211-36030 Bracket, Radio, No.1[05.1997 - 07.1999] BB4#,5#,HZB50,RZB40,50 |
86211-36030 |
US $14.68 |
||
|
86212
|
86212
86212-36010
Bracket, Radio, No.2
[01.1993 - 05.1997] BB4#,50,HZB50,RZB40,50 |
86212-36010 |
— | ||
|
86212
|
86212
86212-36030 Bracket, Radio, No.2RADIO, NO.2 [05.1997 - 07.1999] BB42,5#,HZB50,RZB40,50..LHD |
86212-36030 |
US $6.70 |
||
|
86221A
|
86221A
86221-52060 Panel, Radio Receiver[09.2012 - 01.2015] BB42,HZB50,TRB40,50..GCC |
86221-52060 |
from US $1.60 |
||
|
86221D
|
86221D
86221-52050 Panel, Radio Receiver[09.2012 - 01.2015] BB42,HZB50,TRB40,50..GCC |
86221-52050 |
from US $1.60 |
||
|
86245
|
86245
86245-36020 Bracket, Voltage ConverterVOLTAGE CONVERTER [01.1993 - 07.1999] BB42,5#,HZB50..LHD..CBU |
86245-36020 |
US $22.13 |
||
|
86245
|
86245
86245-36030
Bracket, Voltage Converter
[08.2007 - 01.2015] BB42..LHD..SRF;BB50,HZB50..LHD |
86245-36030 |
— | ||
|
86285
|
86285
86285-36050
Bracket, Amplifier, No.1
[09.2012 - 01.2015] BB42,50,HZB50,TRB40,50,XZB50..LHD..CBU |
86285-36050 |
— | ||
|
86285
|
86285
86285-36060
Bracket, Amplifier, No.1
[01.2015 -] BB42,HZB50,TRB40,50,XZB40,50..LHD |
86285-36060 |
— | ||
|
86286
|
86286
86286-36030
Bracket, Amplifier, No.2
[09.2012 - 01.2015] BB42,50,HZB50,TRB40,50,XZB50..LHD..CBU |
86286-36030 |
— | ||
|
86286
|
86286
86286-36040
Bracket, Amplifier, No.2
[01.2015 -] BB42,HZB50,TRB40,50,XZB40,50..LHD |
86286-36040 |
— | ||
|
9014950032
|
9014950032
90149-50032 Screw |
90149-50032 |
from US $1.28 |
||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
from US $0.74 |
||
|
9017906128
|
9017906128
90179-06128 NUT |
90179-06128 |
US $1.12 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.80 |
||
| replacements | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.54 |
||
|
9165140616
|
9165140616
90080-11395 New Genuine Part |
90080-11395 |
US $2.73 |
||
