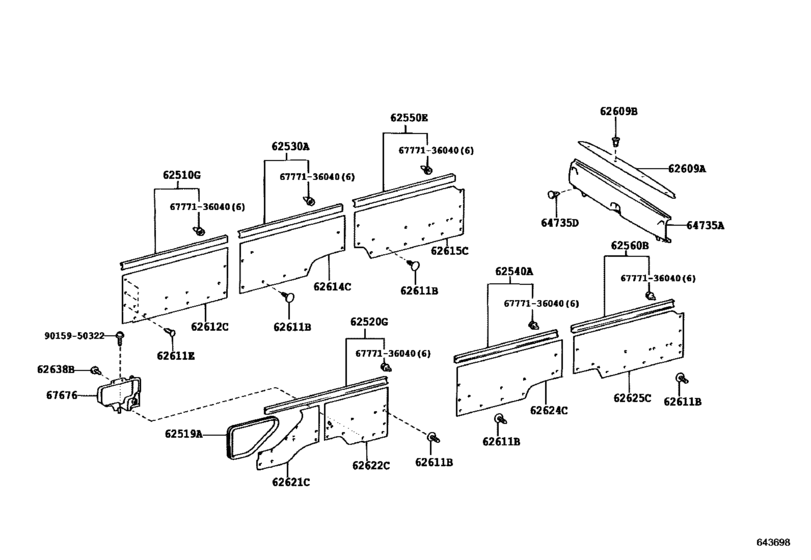

Inside Trim Board ([01.2015 - ] (1501- )BB42,BZB40,XZB40..RHD) Diagram Toyota COASTER
- Year
- 2011 - 2016
- Sales region
- Europe
- Frame
- BB42
- grade
- STD
- Roof
- SRF
- ENGINE
- 14B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 08.2011
- To
- 12.2016
- Gear Shift Type
- 5F
- Seating Capacity
- 26S
- Vehicle Model
- Coaster
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62510G
|
62510G
62510-36161-B0 Trim Assy, Side No.1, Rh[08.2004 - 01.2015] BB42,HZB50..RHD DK.CHARCOAL,TRIM1# |
62510-36161-B0 |
US $74.26 |
||
|
62519A
|
62519A
62519-36010-B0 Trim, Side Lower Window[08.2004 - 01.2015] BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40.. STD..(DCR,DSL,EFI,LPG,TD) MD.CHARCOAL,TRIM1# |
62519-36010-B0 |
US $42.66 |
||
|
62520G
|
62520G
62520-36401-B0 Trim Assy, Side No.1, LhSIDE NO.1, LH [08.2004 - 01.2015] HZB50..RHD;BB42..RHD..WOC DK.CHARCOAL,TRIM1#; BB42..RHD..WC W(2 POINT PASSENGERS SEAT BELT),DK.CHARCOAL,TRIM1# |
62520-36401-B0 |
US $87.36 |
||
|
62520G
|
62520G
62520-36411-B0 Trim Assy, Side No.1, LhSIDE NO.1, LH [08.2011 - 01.2015] BB42..RHD..SRF..WC DK.CHARCOAL,TRIM1# |
62520-36411-B0 |
US $87.36 |
||
|
62530A
|
62530A
62570-36011-B0 Trim Assy, Side No.2, Rh[08.2004 - 01.2015] XZB50..STD..GEN;BB42,50,BZB40,50,HZB50,XZB40..RHD..(17S,20S,26S,30S) DK.CHARCOAL,TRIM1# |
62570-36011-B0 |
US $81.84 |
||
|
62540A
|
62540A
62540-36231-B0 Trim Assy, Side No.2, Lh[08.2004 - 01.2015] XZB50..STD..GEN;BB42,50,BZB40,50,HZB50,XZB40..RHD..(17S,20S,26S,30S) DK.CHARCOAL,TRIM1# |
62540-36231-B0 |
US $81.84 |
||
|
62550E
|
62550E
62540-36231-B0 Trim Assy, Side No.2, Lh[08.2004 - 01.2015] BB42,BZB40,RZB40,TRB40,XZB40 DK.CHARCOAL,TRIM1# |
62540-36231-B0 |
US $81.84 |
||
|
62560B
|
62560B
62530-36261-B0 Trim Assy, Side, No.3 Lh[08.2004 - 01.2015] BB42,BZB40,XZB40..RHD DK.CHARCOAL,TRIM1# |
62530-36261-B0 |
US $74.26 |
||
|
62609A
|
62609A
62691-36010-B0 Board Sub-Assy, Luggage Partition[08.2004 - 01.2015] BB42..RHD;BB42..LHD..SRF;BB50,HZB50,TRB40,50..26S,30S MD.CHARCOAL,TRIM1# |
62691-36010-B0 |
US $29.56 |
||
| replacement | |||||
|
62609A
|
62609A
62691-36011-B0 Board Sub-Assy, Luggage Partition[08.2004 - 01.2015] BB42..RHD;BB42..LHD..SRF;BB50,HZB50,TRB40,50..26S,30S MD.CHARCOAL,TRIM1# |
62691-36011-B0 |
US $29.56 |
||
|
62609A
|
62609A
62691-36040-B0
Board Sub-Assy, Luggage Partition
[01.2015 - 12.2016] BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S MD.CHARCOAL,TRIM1# |
62691-36040-B0 |
— | ||
|
62609B
|
62609B
90467-08104-B1 Clip (For Luggage Partition Board)[08.2004 - 01.2015] BB42..RHD;BB42..LHD..SRF;BB50,HZB50,TRB40,50..26S,30S MD.CHARCOAL,TRIM1# |
90467-08104-B1 |
from US $1.09 |
||
|
62611B
|
62611B
67771-26230-B4 Clip (For Side Trim Board)[07.2012 - 01.2015] BB42,TRB40 MD.CHARCOAL,TRIM1# |
67771-26230-B4 |
US $2.56 |
||
|
62611B
|
62611B
90467-08104-B1 Clip (For Luggage Partition Board)[08.2004 - 06.2012] BB42..GCC;BB42..RHD..SRF..WC MD.CHARCOAL,TRIM1# |
90467-08104-B1 |
from US $1.09 |
||
|
62612C
|
62612C
62612-36010-B0 Board, Side Trim No.2, Rh[08.2004 - 01.2015] XZB50..WC..ARL;BB42,HZB50..RHD MD.CHARCOAL,TRIM1# |
62612-36010-B0 |
US $133.95 |
||
|
62612C
|
62612C
62612-36530-B0 Board, Side Trim No.2, Rh[01.2015 - 12.2016] BB42,HZB50..RHD..WC MD.CHARCOAL,TRIM1#; XZB50..EX..5F SINGAPORE SPEC,MD.CHARCOAL,TRIM1# |
62612-36530-B0 |
US $133.95 |
||
|
62614C
|
62614C
62614-36010-B0 Board, Side Trim No.4, Rh[08.2004 - 01.2015] BB42..RHD;BB42..LHD..SRF;BB50,HZB50,TRB40,50,XZB50..(21S,26S,30S)..(GCC,GEN,TAIW) MD.CHARCOAL,TRIM1#; XZB50..EX SINGAPORE SPEC,MD.CHARCOAL,TRIM1# |
62614-36010-B0 |
US $133.95 |
||
|
62614C
|
62614C
62614-36530-B0
Board, Side Trim No.4, Rh
[01.2015 - 12.2016] BB42,BZB40,XZB40..RHD MD.CHARCOAL,TRIM1# |
62614-36530-B0 |
— | ||
|
62615C
|
62615C
62615-36250-B0 Board, Side Trim No.5, Rh[08.2004 - 01.2015] BB42..RHD;BB42..LHD..SRF;BB50,HZB50,TRB40,50..26S,30S MD.CHARCOAL,TRIM1# |
62615-36250-B0 |
US $133.95 |
||
|
62615C
|
62615C
62615-36750-B0 Board, Side Trim No.5, Rh[01.2015 - 12.2016] BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S MD.CHARCOAL,TRIM1# |
62615-36750-B0 |
US $133.95 |
||
|
62621C
|
62621C
62621-36040-B0 Board, Side Trim No.1, Lh[08.2004 - 01.2015] BB42,HZB50,XZB40..RHD MD.CHARCOAL,TRIM1#; XZB50..EX SINGAPORE SPEC,MD.CHARCOAL,TRIM1# |
62621-36040-B0 |
US $82.99 |
||
|
62621C
|
62621C
62621-36110-B0 Board, Side Trim No.1, Lh[01.2015 - 12.2016] BB42,HZB50..RHD MD.CHARCOAL,TRIM1# |
62621-36110-B0 |
US $82.99 |
||
|
62622C
|
62622C
62622-36300-B0 Board, Side Trim No.2, LhSIDE TRIM NO.2, LH [08.2004 - 01.2015] BB42,HZB50..RHD W(3 POINT DRIVERS SEAT BELT & 2 POINT PASSENGERS SEAT BELT),MD.CHARCOAL,TRIM1# |
62622-36300-B0 |
US $82.99 |
||
|
62622C
|
62622C
62622-36310-B0 Board, Side Trim No.2, Lh[08.2011 - 01.2015] BB42..RHD..SRF..WC MD.CHARCOAL,TRIM1# |
62622-36310-B0 |
US $82.99 |
||
|
62622C
|
62622C
62622-36410-B0
Board, Side Trim No.2, Lh
[01.2015 - 12.2016] BB42,HZB50..RHD MD.CHARCOAL,TRIM1# |
62622-36410-B0 |
— | ||
|
62624C
|
62624C
62624-36010-B0 Board, Side Trim No.4, Lh[08.2004 - 01.2015] BB42..RHD;BB42..LHD..SRF;BB50,HZB50,TRB40,50,XZB50..(21S,26S,30S)..(GCC,GEN,TAIW) MD.CHARCOAL,TRIM1#; XZB50..EX SINGAPORE SPEC,MD.CHARCOAL,TRIM1# |
62624-36010-B0 |
US $133.95 |
||
|
62624C
|
62624C
62624-36640-B0
Board, Side Trim No.4, Lh
[01.2015 - 12.2016] BB42,BZB40,XZB40..RHD MD.CHARCOAL,TRIM1# |
62624-36640-B0 |
— | ||
|
62625C
|
62625C
62625-36260-B0 Board, Side Trim No.5, Lh[08.2004 - 01.2015] BB42..RHD;BB42..LHD..SRF;BB50,HZB50,TRB40,50..26S,30S MD.CHARCOAL,TRIM1# |
62625-36260-B0 |
US $133.95 |
||
|
62625C
|
62625C
62625-36740-B0 Board, Side Trim No.5, Lh[01.2015 - 12.2016] BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S MD.CHARCOAL,TRIM1# |
62625-36740-B0 |
US $133.95 |
||
|
62638B
|
62638B
90467-08104-B1 Clip (For Luggage Partition Board)[08.2004 - 01.2015] BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,X ZB40..STD..(DCR,DSL,EFI,LPG,TD) MD.CHARCOAL,TRIM1# |
90467-08104-B1 |
from US $1.09 |
||
|
67676
|
67676
67676-36030-B0 Cover, Side Trim Board, Front Lh[08.2004 - 08.2012] BB42,HZB50..RHD MD.CHARCOAL,TRIM1# |
67676-36030-B0 |
US $112.11 |
||
| replacement | |||||
|
67676
|
67676
67676-36031-B0 Cover, Side Trim Board, Front Lh[08.2004 - 08.2012] BB42,HZB50..RHD MD.CHARCOAL,TRIM1# |
67676-36031-B0 |
US $93.18 |
||
|
67676
|
67676
67676-36031-B0 Cover, Side Trim Board, Front Lh[09.2012 - 01.2015] BB42,HZB50..RHD MD.CHARCOAL,TRIM1# |
67676-36031-B0 |
US $93.18 |
||
|
6777136040
|
6777136040
67771-36040 Weatherstrip, Back Door Trim, Rh |
67771-36040 |
from US $2.18 |
||
|
9015950322
|
9015950322
90159-50322 SCREW WWASHER |
90159-50322 |
from US $0.74 |
||
