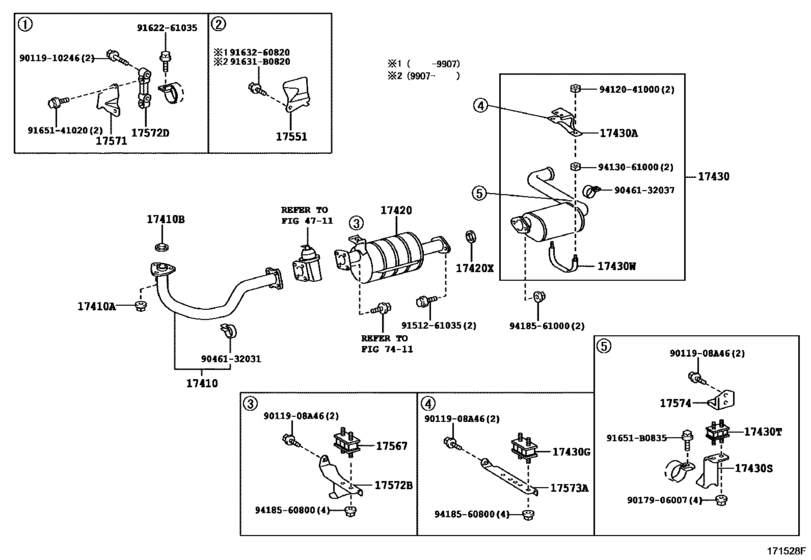

Exhaust Pipe ([02.1998 - 08.2001] (9802-0108)15BFT..BB43) Diagram Toyota COASTER
- Year
- 1998 - 2001
- Sales region
- Europe
- Frame
- BB43
- grade
- STD
- Roof
- HRF
- ENGINE
- 15BFT
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 02.1998
- To
- 08.2001
- Gear Shift Type
- 5F
- Seating Capacity
- 17S
- Vehicle Model
- Coaster
- Driver's Position
- RHD
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17401-58311 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [08.1997 - 07.1999] 15BFT..BB43,5# |
17401-58311 |
from US $200.93 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[01.1993 - 07.1999] 14B,15BFT,3B,1HZ#,3RZF..BB4#,5#,HZB50,RZB40,50 |
90179-10070 |
from US $1.54 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[01.1993 - 07.1999] 14B,15BFT,3B,1HZ#,3RZF..BB4#,5#,HZB50,RZB40,50 |
90080-17187 |
US $33.80 |
||
|
17410B
|
17410B
90917-06059 Gasket, Exhaust Pipe[01.1993 - 07.1999] 14B,15BFT,3B,1HZ..BB4#,5#,HZB50 |
90917-06059 |
from US $4.95 |
||
|
17420
|
17420
17403-58480 Pipe Assy, Exhaust, CenterEXHAUST, CENTER [02.1998 - 07.1999] 15BFT..BB43 |
17403-58480 |
from US $258.92 |
||
|
17420X
|
17420X
90917-06062 Gasket, Exhaust Pipe[07.1993 - 07.1999] 14B,15BFT,3B,3RZF..BB4#,RZB40 NO.1 |
90917-06062 |
from US $6.10 |
||
| replacement | |||||
|
17420X
|
17420X
90080-43034 Gasket, Exhaust Pipe[07.1993 - 07.1999] 14B,15BFT,3B,3RZF..BB4#,RZB40 NO.1 |
90080-43034 |
US $32.67 |
||
|
17430
|
17430
17405-17201 Pipe Assy, Exhaust, Tail[02.1998 - 07.1999] 15BFT..BB43 |
17405-17201 |
from US $278.38 |
||
|
17430A
|
17430A
17576-56040 Clamp No.1, Exhaust Pipe Center, Center[01.1993 - 07.1999] 15BFT,3B,3RZF..BB40,43,RZB40 |
17576-56040 |
US $36.40 |
||
|
17430G
|
17430G
17567-58010 Cushion, Exhaust Pipe Front (For Rear)[01.1993 - 07.1999] 15BFT,3B,1HZ#,3RZF..BB40,43,5#,HZB50,RZB40 |
17567-58010 |
from US $9.75 |
||
|
17430S
|
17430S
17561-68010 Bracket, Exhaust Tail Pipe (For Rear)[02.1998 - 07.1999] 15BFT..BB43 |
17561-68010 |
US $6.12 |
||
|
17430T
|
17430T
17567-17010 Cushion, Exhaust Pipe Center, Rear[01.1993 - 07.1999] 14B,15BFT,3B,1HZ#,3RZF..BB4#,5#,HZB50,RZB40,50 |
17567-17010 |
from US $11.41 |
||
|
17430W
|
17430W
17504-56020 Clamp No.2, Exhaust Pipe Center, Center[01.1993 - 07.1999] 15BFT,3B,3RZF..BB40,43,RZB40 |
17504-56020 |
from US $23.73 |
||
|
17551
|
17551
17551-17011 Insulator, Exhaust Pipe Heat, No.1[09.1993 - 07.1999] 14B,15BFT,3B,1HZ#,3RZF..BB4#,5#,HZB50,RZB40,50 |
17551-17011 |
from US $6.40 |
||
|
17567
|
17567
17567-58010 Cushion, Exhaust Pipe Front (For Rear)[01.1993 - 07.1999] 14B,15BFT,3B,3RZF..BB4#,RZB40,50 |
17567-58010 |
from US $9.75 |
||
|
17571
|
17571
17571-58301 Bracket, Exhaust Pipe Support, No.1[08.1997 - 07.1999] 14B,15BFT,3B..BB4#,5# |
17571-58301 |
US $11.65 |
||
|
17572B
|
17572B
17572-17030 Bracket, Exhaust Pipe Support, No.2[01.1993 - 07.1999] 14B,15BFT,3B,3RZF..BB4#,RZB40,50 |
17572-17030 |
US $15.29 |
||
|
17572D
|
17572D
17579-73010 Bracket, Exhaust Pipe Front (For Front)[01.1993 - 07.1999] 14B,15BFT,3B,1HZ..BB4#,5#,HZB50..5F |
17579-73010 |
US $11.36 |
||
|
17573A
|
17573A
17572-58090 Bracket, Exhaust Pipe Support, No.3[09.1993 - 07.1999] 3RZF..RZB50 FRONT; 14B..BB42..LHD;15BFT,3B,3RZF..BB40,43,RZB40 |
17572-58090 |
US $14.27 |
||
|
17574
|
17574
17574-17010 Bracket, Exhaust Pipe Support, No.4[01.1993 - 07.1999] 14B,15BFT,3B,1HZ#,3RZF..BB4#,5#,HZB50,RZB40,50 |
17574-17010 |
US $18.64 |
||
|
17574
|
17574
17574-58170 Bracket, Exhaust Pipe Support, No.4[07.1999 - 08.2001] 15BFT..BB50..WOC..5F;15BFT..BB50..EX..GEN;1HZ..HZB50..RHD..SRF;1HZ..HZB50..RHD..(2 0S,22S)..GEN;14B,3RZFE..BB42,RZB40..WOC..GCC;14B,1HZ..BB42,HZB50..RHD..HRF..WOC..G EN;14B,15BFT,3RZFE..BB4#,50,RZB40..(17S,19S,22S)..GEN |
17574-58170 |
US $12.81 |
||
|
91631B0820
|
91631B0820
91631-B0820 BOLT WWASHER |
91631-B0820 |
from US $0.82 |
||
|
91651B0835
|
91651B0835
91651-B0835 BOLT |
91651-B0835 |
US $1.60 |
||
|
9011908A46
|
9011908A46
90119-08A46 BOLT WWASHER |
90119-08A46 |
US $1.28 |
||
|
9011910246
|
9011910246
90119-10246 Bolt W Washer |
90119-10246 |
US $1.75 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.86 |
||
|
9046132031
|
9046132031
90461-32031 CLAMP |
90461-32031 |
US $8.04 |
||
|
9046132037
|
9046132037
90461-32037 Clamp No.1, Exhaust Tail Pipe (For Front) |
90461-32037 |
US $14.24 |
||
|
9151261035
|
9151261035
91512-61035 Bolt(For Transaxle Case & Engine Setting) |
91512-61035 |
from US $1.21 |
||
| replacement | |||||
|
9151261035
|
9151261035
90080-10204 New Genuine Part |
90080-10204 |
US $2.97 |
||
|
9162261035
|
9162261035
91622-61035 BOLT WWASHER |
91622-61035 |
US $1.60 |
||
|
9163260820
|
9163260820
91632-60820 New Genuine Part |
91632-60820 |
US $1.89 |
||
| replacement | |||||
|
9163260820
|
9163260820
91631-B0820 BOLT WWASHER |
91631-B0820 |
from US $0.82 |
||
|
9165141020
|
9165141020
91651-41020 BOLT W-WASHER |
91651-41020 |
from US $1.44 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.80 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
|
9413061000
|
9413061000
94130-61000 Nut(For Clutch Pedal Stopper) |
94130-61000 |
from US $0.82 |
||
|
9418560800
|
9418560800
94185-60800 NUT |
94185-60800 |
from US $0.90 |
||
|
9418561000
|
9418561000
94185-61000 NUTLOCK |
94185-61000 |
from US $1.01 |
||
