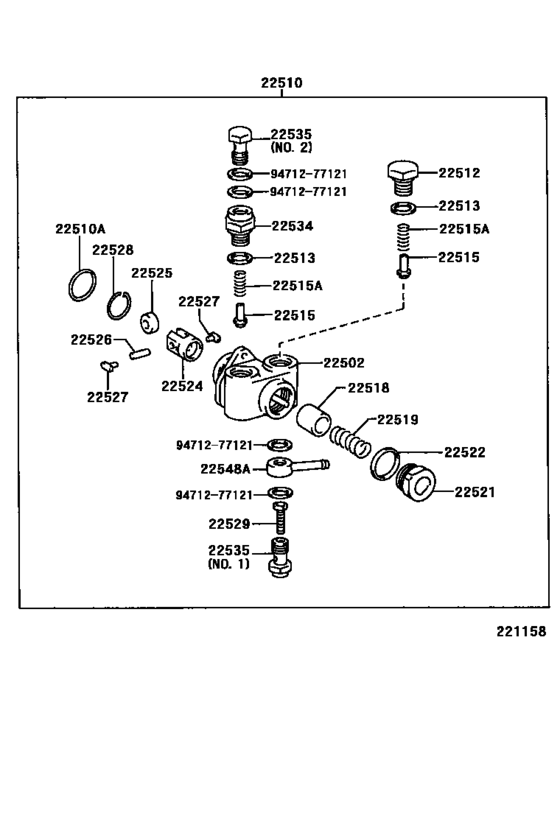

Fuel Feed Pump ([05.1996 - ] (9605- )15BFT..BB50..CHI,EUR ; (9605- )15B FT..BB43,50..RHD..GEN ; (9605- ) 15BFT..BB50..STD. .GEN..CBU) Diagram Toyota COASTER
- Year
- 1998 - 2001
- Sales region
- Europe
- Frame
- BB43
- grade
- STD
- Roof
- HRF
- ENGINE
- 15BFT
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 02.1998
- To
- 08.2001
- Gear Shift Type
- 5F
- Seating Capacity
- 17S
- Vehicle Model
- Coaster
- Driver's Position
- RHD
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22502
|
22502
22502-5C350
Housing Sub-Assy, Fuel
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU |
22502-5C350 |
— | ||
|
22510
|
22510
22510-5C350 Pump Assy, Fuel FeedFUEL FEED [05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU |
22510-5C350 |
US $364 |
||
|
22510A
|
22510A
90099-14015 Ring, O(For Fuel Feed Pump)[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU |
90099-14015 |
US $11.20 |
||
|
22512
|
22512
22512-77020 Plug, Feed Pump Check Valve Chamber[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU |
22512-77020 |
US $9.96 |
||
|
22513
|
22513
22513-77020 Gasket, Check Valve Chamber Plug[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU |
22513-77020 |
from US $3.30 |
||
|
22515
|
22515
22515-77021 Valve, Feed Pump Check[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU |
22515-77021 |
US $1.12 |
||
|
22515
|
22515
S2256-31041 Valve, Feed Pump Check[07.1999 - 08.2004] 15BFT..BB50..6F;15BFT..BB50..EX;15BFT..BB43,50..STD..CBU..5F |
S2256-31041 |
US $1.16 |
||
| replacement | |||||
|
22515
|
22515
22515-77021 Valve, Feed Pump Check[07.1999 - 08.2004] 15BFT..BB50..6F;15BFT..BB50..EX;15BFT..BB43,50..STD..CBU..5F |
22515-77021 |
US $1.12 |
||
|
22515A
|
22515A
90501-05141 Spring, Feed Pump Check Valve[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU |
90501-05141 |
US $0.84 |
||
|
22518
|
22518
22518-77020 Piston, Feed Pump[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU BLUE |
22518-77020 |
US $22.89 |
||
|
22519
|
22519
22519-5C350
Spring, Feed Pump Piston
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU |
22519-5C350 |
— | ||
|
22521
|
22521
22521-77021
Plug, Feed Pump Piston Chamber
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU |
22521-77021 |
— | ||
|
22522
|
22522
22522-67010
Gasket, Feed Pump Piston Plug
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU |
22522-67010 |
— | ||
|
22524
|
22524
22524-5C350
Tappet, Feed Pump
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU |
22524-5C350 |
— | ||
|
22525
|
22525
22525-77020 Roller, Feed Pump Tappet[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU |
22525-77020 |
US $5.59 |
||
|
22526
|
22526
22526-5C350
Pin, Feed Pump Tappet Roller
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU |
22526-5C350 |
— | ||
|
22527
|
22527
22527-5C350
Block, Feed Pump Tappet Sliding
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU |
22527-5C350 |
— | ||
|
22528
|
22528
22528-77020 Ring, Feed Pump Tappet Snap[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU |
22528-77020 |
US $3.32 |
||
|
22529
|
22529
22529-67010 Filter, Fuel Pump[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU |
22529-67010 |
US $2.62 |
||
|
22534
|
22534
22534-5C350
Support, Valve
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU |
22534-5C350 |
— | ||
|
22535
|
22535
22535-46010
Screw, Fuel Pipe Follow
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU NO.1 |
22535-46010 |
— | ||
|
22535
|
22535
90099-18010 Screw, Fuel Pipe Follow[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU NO.2 |
90099-18010 |
US $3.32 |
||
|
22548A
|
22548A
22548-5C350
Nipple, Swivel(For Fuel Feed Pump)
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU |
22548-5C350 |
— | ||
|
9471277121
|
9471277121
94712-77121 Gasket, Nipple Union(For Fuel) |
94712-77121 |
from US $1.12 |
||
