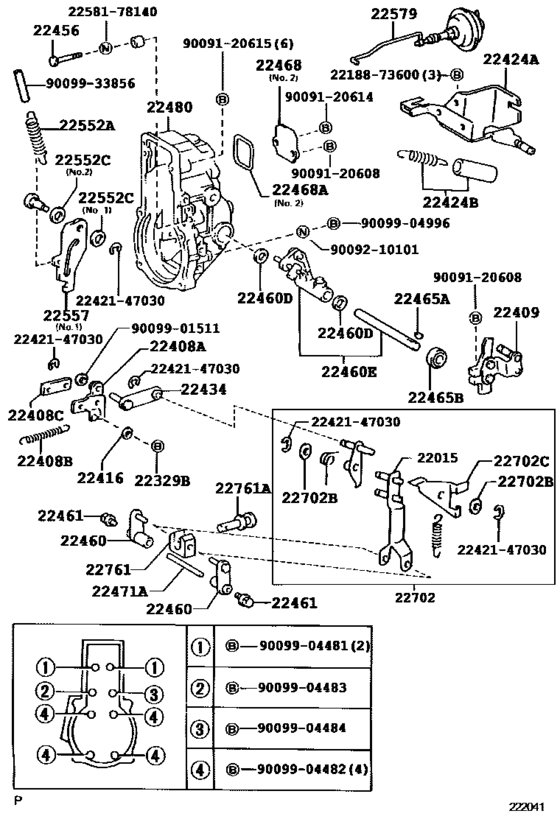

Mechanical Governor ([05.1996 - ] (9605- )15BFT..BB50..CHI,EUR ; (9605- )15B FT..BB43,50..RHD..GEN ; (9605- ) 15BFT..BB50..STD. .GEN..CBU) Diagram Toyota COASTER
- Year
- 1998 - 2001
- Sales region
- General
- Frame
- BB43
- grade
- STD
- Roof
- HRF
- ENGINE
- 15BFT
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 02.1998
- To
- 08.2001
- Gear Shift Type
- 5F
- Seating Capacity
- 17S
- Vehicle Model
- Coaster
- Driver's Position
- RHD
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22329B
|
22329B
22329-5C350
Bolt, Diaphragm Connecting, No.3
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU |
22329-5C350 |
— | ||
|
22408A
|
22408A
22408-5C350
Arm Sub-Assy(For Control Lack)
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU |
22408-5C350 |
— | ||
|
22408B
|
22408B
22432-78030
Spring, Return(For Arm)
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU |
22432-78030 |
— | ||
|
22408C
|
22408C
22567-78130
Nut, Arm
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU |
22567-78130 |
— | ||
|
22409
|
22409
22409-5C350
Lever Sub-Assy, Supproting
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU |
22409-5C350 |
— | ||
|
22416
|
22416
22416-78130 Washer, Governor Lock[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU |
22416-78130 |
US $2.33 |
||
|
22424A
|
22424A
22424-5C350
Arm, Spring
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU |
22424-5C350 |
— | ||
|
22424B
|
22424B
22440-5C350
Spring, Return(For Spring Arm)
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU |
22440-5C350 |
— | ||
|
22434
|
22434
22016-78031 Shackle[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU |
22016-78031 |
US $30.14 |
||
| replacement | |||||
|
22434
|
22434
S2204-51110
Shackle
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU |
S2204-51110 |
— | ||
|
22456
|
22456
22443-68150
Screw, Stop
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU |
22443-68150 |
— | ||
|
22460
|
22460
22011-78030
Lever Sub-Assy, Support
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU |
22011-78030 |
— | ||
|
22460D
|
22460D
22416-78030
Washer, Lock(For Steering Lever)
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU T=0.75 |
22416-78030 |
— | ||
|
22460D
|
22460D
22416-78031
Washer, Idling Spring
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU T=0.80 |
22416-78031 |
— | ||
|
22460D
|
22460D
22737-78035
Washer, Idling Spring
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU T=0.50 |
22737-78035 |
— | ||
|
22460D
|
22460D
22737-78036
Washer, Idling Spring
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU T=0.55 |
22737-78036 |
— | ||
|
22460D
|
22460D
22737-78037
Washer, Lock(For Steering Lever)
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU T=0.60 |
22737-78037 |
— | ||
|
22460D
|
22460D
22737-78038
Washer, Lock(For Steering Lever)
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU T=0.65 |
22737-78038 |
— | ||
|
22460D
|
22460D
22737-78039
Washer, Lock(For Steering Lever)
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU T=0.70 |
22737-78039 |
— | ||
|
22460E
|
22460E
22460-78030
Arm Assy, Guide
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU |
22460-78030 |
— | ||
|
22461
|
22461
22446-78030
Plug, Screw
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU |
22446-78030 |
— | ||
|
22465A
|
22465A
90099-13013
Key, Woodruff(For Adjusting Lever)
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU |
90099-13013 |
— | ||
|
22465B
|
22465B
90099-15036 Seal, Oil(For Adjusting Lever)[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU |
90099-15036 |
US $3.93 |
||
|
22468
|
22468
22458-5C350
Cover, Plate
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU NO.3 |
22458-5C350 |
— | ||
|
22468
|
22468
22458-78030
Cover, Plate
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU NO.2 |
22458-78030 |
— | ||
|
22468
|
22468
22555-5C350
Cover, Plate
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU NO.1 |
22555-5C350 |
— | ||
|
22468A
|
22468A
90099-14039
Ring, O(For Fullroad Stopper Housing)
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU NO.1 |
90099-14039 |
— | ||
| replacement | |||||
|
22468A
|
22468A
22442-5C360
Ring, O(For Fullroad Stopper Housing)
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU NO.1 |
22442-5C360 |
— | ||
|
22468A
|
22468A
90099-14069
O, Ring
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU NO.2 |
90099-14069 |
— | ||
|
22471A
|
22471A
22558-78031
Shaft, Lever Supporting
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU |
22558-78031 |
— | ||
|
22480
|
22480
22790-5C350
Cover Sub-Assy, Governor
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU |
22790-5C350 |
— | ||
|
22552A
|
22552A
22432-78031
Spring, Return(For Cam Plate)
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU |
22432-78031 |
— | ||
|
22552C
|
22552C
22416-58270
Bush, Cam Plate
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU NO.2 |
22416-58270 |
— | ||
|
22552C
|
22552C
22416-78032
Washer, Idling Spring
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU T=0.2,NO.1 |
22416-78032 |
— | ||
|
22552C
|
22552C
22416-78033
Washer, Idling Spring
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU T=0.3,NO.1 |
22416-78033 |
— | ||
|
22552C
|
22552C
22416-78034
Washer, Idling Spring
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU T=0.4,NO.1 |
22416-78034 |
— | ||
|
22552C
|
22552C
22416-78035
Washer, Idling Spring
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU T=0.5,NO.1 |
22416-78035 |
— | ||
|
22557
|
22557
22456-5C360
Cam, Full Stop
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU NO.1 |
22456-5C360 |
— | ||
|
22557
|
22557
22557-5C351
Cam, Full Stop
[03.1997 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU NO.2 |
22557-5C351 |
— | ||
|
22579
|
22579
22579-5C350
Actuator, Fuel Cut
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU |
22579-5C350 |
— | ||
|
22702
|
22702
22702-78030
Lever Assy, Floating
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU |
22702-78030 |
— | ||
|
22761
|
22761
22761-78031
Slider(For Speed Control)
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU |
22761-78031 |
— | ||
|
22761A
|
22761A
22752-5C351
Shaft, Sliding Weight
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU L=21.8 |
22752-5C351 |
— | ||
|
22761A
|
22761A
22752-5C352
Shaft, Sliding Weight
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU L=31.6 |
22752-5C352 |
— | ||
|
22761A
|
22761A
22752-5C353
Shaft, Sliding Weight
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU L=31.4 |
22752-5C353 |
— | ||
|
22761A
|
22761A
22752-5C354
Shaft, Sliding Weight
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU L=31.2 |
22752-5C354 |
— | ||
|
22761A
|
22761A
22752-5C355
Shaft, Sliding Weight
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU L=31.0 |
22752-5C355 |
— | ||
|
22761A
|
22761A
22752-5C356
Shaft, Sliding Weight
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU L=30.8 |
22752-5C356 |
— | ||
|
22761A
|
22761A
22752-5C357
Shaft, Sliding Weight
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU L=32.0 |
22752-5C357 |
— | ||
|
22761A
|
22761A
22752-5C358
Shaft, Sliding Weight
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU L=32.1 |
22752-5C358 |
— | ||
|
22761A
|
22761A
22752-78030
Shaft, Sliding Weight
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU L=31.9 |
22752-78030 |
— | ||
|
22761A
|
22761A
22752-78031
Shaft, Sliding Weight
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU L=31.7 |
22752-78031 |
— | ||
|
22761A
|
22761A
22752-78032
Shaft, Sliding Weight
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU L=31.5 |
22752-78032 |
— | ||
|
22761A
|
22761A
22752-78033
Shaft, Sliding Weight
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU L=31.3 |
22752-78033 |
— | ||
|
22761A
|
22761A
22752-78034
Shaft, Sliding Weight
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU L=31.1 |
22752-78034 |
— | ||
|
22761A
|
22761A
22752-78035
Shaft, Sliding Weight
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU L=30.9 |
22752-78035 |
— | ||
|
22761A
|
22761A
22752-78036
Shaft, Sliding Weight
[05.1996 - 07.1999] 15BFT..BB50..EUR;15BFT..BB43,50..CBU L=30.7 |
22752-78036 |
— | ||
|
2218873600
|
2218873600
22188-73600
Plate, Tappet Adjusting Shim
|
22188-73600 |
— | ||
|
2242147030
|
2242147030
22421-47030
Washer, Plate(For Connecting Pin)
|
22421-47030 |
— | ||
|
2258178140
|
2258178140
22581-78140
Nut
|
22581-78140 |
— | ||
|
9009120608
|
9009120608
90091-20608 BOLT |
90091-20608 |
US $0.42 |
||
|
9009120614
|
9009120614
90091-20614
New Genuine Part
|
90091-20614 |
— | ||
|
9009120615
|
9009120615
90091-20615
Bolt
|
90091-20615 |
— | ||
|
9009210101
|
9009210101
90092-10101
Nut (For Front Wiper Arm Setting)
|
90092-10101 |
— | ||
|
9009901511
|
9009901511
90099-01511
New Genuine Part
|
90099-01511 |
— | ||
|
9009904481
|
9009904481
90099-04481
New Genuine Part
|
90099-04481 |
— | ||
|
9009904482
|
9009904482
90099-04482
New Genuine Part
|
90099-04482 |
— | ||
|
9009904483
|
9009904483
90099-04483
New Genuine Part
|
90099-04483 |
— | ||
|
9009904484
|
9009904484
90099-04484
New Genuine Part
|
90099-04484 |
— | ||
|
9009904996
|
9009904996
90099-04996
New Genuine Part
|
90099-04996 |
— | ||
|
9009933856
|
9009933856
90099-33856 Tube, Rubber |
90099-33856 |
US $0.44 |
||
