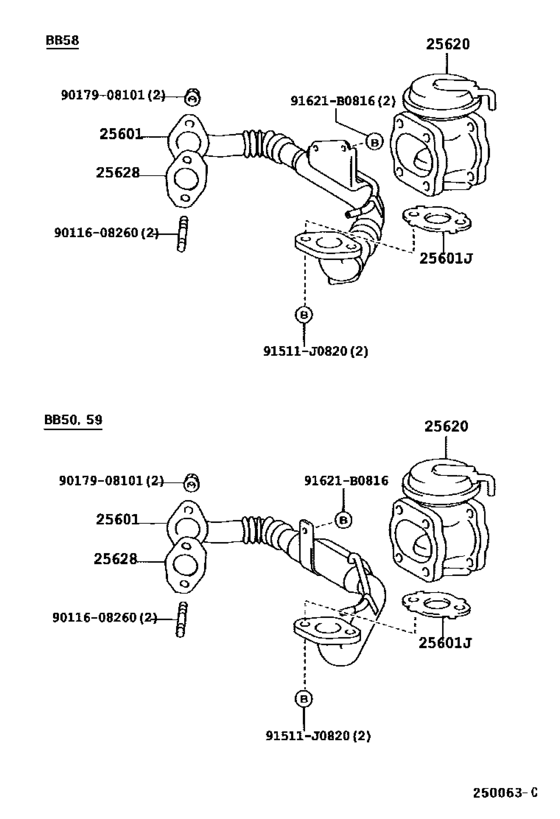

Exhaust Gas Recirculation System ([07.1999 - ] (9907- )15BFTE) Diagram Toyota COASTER
- Year
- 2003 - 2006
- Sales region
- Europe
- Frame
- BB50
- grade
- STD
- Roof
- HRF
- ENGINE
- 15BFTE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 02.2003
- To
- 08.2006
- Gear Shift Type
- 5F
- Seating Capacity
- 17S
- Vehicle Model
- Coaster
- Driver's Position
- RHD
- Fuel Induction
- TDEFI
- Building Condition
- CBU
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
25601
|
25601
25601-58060
Pipe Sub-Assy, Egr, No.1
[05.2001 - 08.2004] 15BFTE..BB50,59 |
25601-58060 |
— | ||
|
25601J
|
25601J
25634-58010 Gasket(For Egr Pipe, No.1)[07.1999 - 08.2004] 15BFTE..BB5# |
25634-58010 |
US $11.20 |
||
|
25620
|
25620
25620-58040 Valve Assy, Egr[07.1999 - 08.2004] 15BFTE..BB5# |
25620-58040 |
US $262.08 |
||
|
25628
|
25628
25628-58010 Gasket, Egr Inlet[07.1999 - 08.2004] 15BFTE..BB5# |
25628-58010 |
US $26.14 |
||
|
91511J0820
|
91511J0820
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
from US $1.07 |
||
|
91621B0816
|
91621B0816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.90 |
||
|
9011608260
|
9011608260
90116-08260 Bolt, Stud(For Turbine Housing) |
90116-08260 |
US $1.60 |
||
|
9017908101
|
9017908101
90179-08101 NUT |
90179-08101 |
from US $0.84 |
