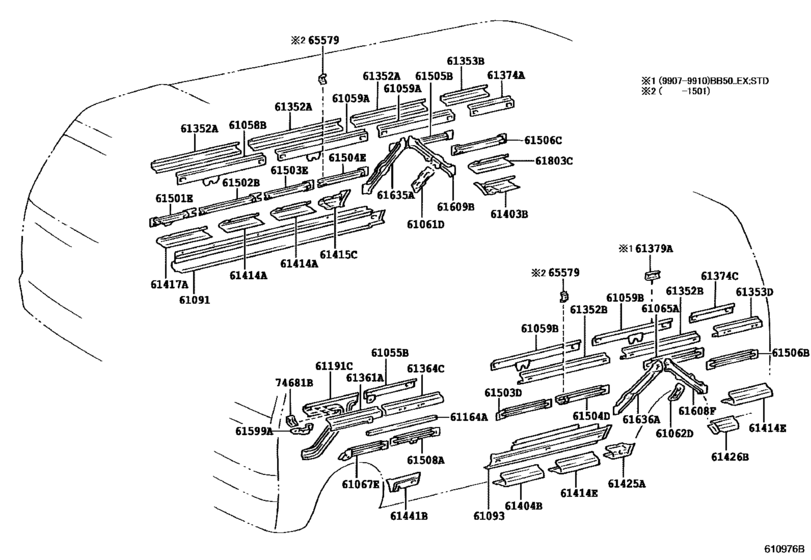

Side Member ([01.1993 - ] (1/2) (9301- )BB50,59,BZB50,HZB50,XZB5#..RHD) Diagram Toyota COASTER
- Year
- 2003 - 2006
- Sales region
- Europe
- Frame
- BB50
- grade
- STD
- Roof
- HRF
- ENGINE
- 15BFTE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 02.2003
- To
- 08.2006
- Gear Shift Type
- 5F
- Seating Capacity
- 17S
- Vehicle Model
- Coaster
- Driver's Position
- RHD
- Fuel Induction
- TDEFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61055B
|
61055B
61055-36020 Rail Sub-Assy, No.2 Center, Inner, Lh[07.1999 - 08.2004] BB42..RHD..SRF;HZB50..RHD..HRF..STD..WC..GEN..5F;BB42,50,59,BZB40,50..RHD..WC..5F. .(DSL,LPG,TDEFI) |
61055-36020 |
US $56.64 |
||
| replacement | |||||
|
61055B
|
61055B
61055-36021 Rail Sub-Assy, No.2 Center, Inner, Lh[07.1999 - 08.2004] BB42..RHD..SRF;HZB50..RHD..HRF..STD..WC..GEN..5F;BB42,50,59,BZB40,50..RHD..WC..5F. .(DSL,LPG,TDEFI) |
61055-36021 |
US $39.89 |
||
|
61055B
|
61055B
61055-36021 Rail Sub-Assy, No.2 Center, Inner, Lh[04.2006 - 08.2006] BB59,BZB50..EX;BB50..5F..TDEFI |
61055-36021 |
US $39.89 |
||
|
61058B
|
61058B
61058-36010 Rail Sub-Assy, No.3 Center, Inner, Rh[07.1999 - 08.2004] BB42..RHD..SRF;BB50..RHD..CBU..TDEFI;BB42,59,BZB40,50..RHD..WC;HZB50..RHD..HRF..ST D..WC..GEN..5F |
61058-36010 |
US $51.25 |
||
|
61059A
|
61059A
61059-36020 Rail Sub-Assy, No.4 Center, Inner, Rh[07.1999 - 08.2004] BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..S RF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50, RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB |
61059-36020 |
US $49.94 |
||
|
61059B
|
61059B
61059-36020 Rail Sub-Assy, No.4 Center, Inner, Rh[07.1999 - 08.2004] BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..S RF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50, RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB |
61059-36020 |
US $49.94 |
||
|
61065A
|
61065A
61065-36011 Rail Sub-Assy, No.5 Seat Anchor, Lh[08.2001 - 08.2004] BB50,BZB40,50..RHD..(DX,STD)..CBU |
61065-36011 |
US $58.09 |
||
|
61067E
|
61067E
61067-36020 Rail Sub-Assy, No.7 Seat Anchor, Lh[07.1999 - 08.2004] BB42..RHD..SRF;HZB50..RHD..HRF..STD..WC..GEN..5F;BB42,50,59,BZB40,50..RHD..WC..5F. .(DSL,LPG,TDEFI) |
61067-36020 |
US $65.52 |
||
|
61091
|
61091
61091-36030 Rail Sub-Assy, No.2 Lower Inner, Rh[07.1999 - 08.2004] HZB50..RHD..HRF..STD..WC..GEN..5F;BB50,59,BZB50..RHD..(ARL,GEN)..(LPG,TDEFI) |
61091-36030 |
US $136.86 |
||
|
61093
|
61093
61093-36050 Rail Sub-Assy, No.2 Lower Inner, Lh[07.1999 - 08.2004] HZB50..RHD..HRF..STD..WC..GEN..5F;BB50,59,BZB50..RHD..(ARL,GEN)..(LPG,TDEFI) |
61093-36050 |
US $125.22 |
||
| replacement | |||||
|
61093
|
61093
61093-36110 Rail Sub-Assy, No.2 Lower Inner, Lh[07.1999 - 08.2004] HZB50..RHD..HRF..STD..WC..GEN..5F;BB50,59,BZB50..RHD..(ARL,GEN)..(LPG,TDEFI) |
61093-36110 |
US $103.38 |
||
|
61164A
|
61164A
61163-36902 Stiffener, Side Panel, Upper No.4[07.1999 - 08.2004] BB42..RHD..SRF;BB50..RHD..CBU..TDEFI;BB42,59,BZB40,50..RHD..WC;HZB50..RHD..HRF..ST D..WC..GEN..5F |
61163-36902 |
US $94.64 |
||
|
61191C
|
61191C
61191-36010 Reinforcement, Side Lower Window, Lh[07.1999 - 08.2004] BB42..RHD..SRF;BB50..RHD..CBU..TDEFI;BB42,59,BZB40,50..RHD..WC;HZB50..RHD..HRF..ST D..WC..GEN..5F |
61191-36010 |
US $64.36 |
||
|
61352A
|
61352A
61352-36020 Rail, No.2 Center Outer, Rh[07.1999 - 08.2004] BB50..RHD..(DX,STD)..CBU;BB4#,BZB40,50,HZB50..RHD..(17S,20S,22S,26S,30S) |
61352-36020 |
US $49.94 |
||
|
61352B
|
61352B
61352-36020 Rail, No.2 Center Outer, Rh[07.1999 - 08.2004] BB50..RHD..(DX,STD)..CBU;BB4#,BZB40,50,HZB50..RHD..(17S,20S,22S,26S,30S) |
61352-36020 |
US $49.94 |
||
|
61353B
|
61353B
61353-36010 Rail, No.3 Center Outer, Rh[07.1999 - 08.2004] HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(19S, 20S)..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN) |
61353-36010 |
US $28.10 |
||
|
61353D
|
61353D
61353-36010 Rail, No.3 Center Outer, Rh[07.1999 - 08.2004] HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(19S, 20S)..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN) |
61353-36010 |
US $28.10 |
||
|
61361A
|
61361A
61361-36010 Rail, No.1 Center Outer, Lh[07.1999 - 08.2004] BB42..RHD..SRF;BB50..RHD..CBU..TDEFI;BB42,59,BZB40,50..RHD..WC;HZB50..RHD..HRF..ST D..WC..GEN..5F |
61361-36010 |
US $44.55 |
||
|
61364C
|
61364C
61354-36010 Rail, No.4 Center Outer, Lh[07.1999 - 08.2004] BB42..RHD..SRF;BB50..RHD..CBU..TDEFI;BB42,59,BZB40,50..RHD..WC;HZB50..RHD..HRF..ST D..WC..GEN..5F |
61354-36010 |
US $46.74 |
||
|
61374A
|
61374A
61374-36011 Rail, No.4 Center Inner[01.2000 - 08.2004] HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(19S, 20S)..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN) |
61374-36011 |
US $21.11 |
||
|
61374C
|
61374C
61374-36011 Rail, No.4 Center Inner[01.2000 - 08.2004] HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(19S, 20S)..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN) |
61374-36011 |
US $21.11 |
||
|
61379A
|
61379A
61379-36010 Bracket, Center Pillar Garnish[07.1999 - 08.2004] BB50,BZB40,50..17S |
61379-36010 |
US $5.97 |
||
|
61403B
|
61403B
61403-36010 Rail Sub-Assy, No.6 Lower Outer, Rh[07.1999 - 08.2004] BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..S RF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50, RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB |
61403-36010 |
US $45.86 |
||
|
61404B
|
61404B
61404-36030 Rail Sub-Assy, No.6 Lower Outer, Lh[07.1999 - 08.2004] BB42..RHD..SRF;BB50..RHD..CBU..TDEFI;BB42,BZB40,50,HZB50..RHD..HRF..(17S,21S,26S,3 0S)..WC |
61404-36030 |
US $139.78 |
||
| replacement | |||||
|
61404B
|
61404B
61404-36031 Rail Sub-Assy, No.6 Lower Outer, Lh[07.1999 - 08.2004] BB42..RHD..SRF;BB50..RHD..CBU..TDEFI;BB42,BZB40,50,HZB50..RHD..HRF..(17S,21S,26S,3 0S)..WC |
61404-36031 |
US $96.10 |
||
|
61414A
|
61414A
61414-36010 Rail,no.4 Lower Outer, Rh[08.2004 - 08.2006] BB59,BZB50..EX;BB50..RHD..CBU |
61414-36010 |
US $94.64 |
||
|
61414E
|
61414E
61414-36010 Rail,no.4 Lower Outer, Rh[07.1999 - 08.2004] BB42..WC..GCC;RZB40..WOC..GEN;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN); HZB50..RHD..HRF..STD..WC..GEN..5F;BB50,59,BZB50..RHD..(ARL,GEN)..(LPG,TDEFI) |
61414-36010 |
US $94.64 |
||
|
61415C
|
61415C
61415-36010 Rail, No.5 Lower Outer, Rh[07.1999 - 08.2004] BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..S RF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50, RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB |
61415-36010 |
US $35.53 |
||
|
61417A
|
61417A
61417-36011 Rail, No.7 Lower Outer, Rh[07.1999 - 08.2004] BB42..RHD..SRF;BB50..RHD..CBU..TDEFI;BB42,59,BZB40,50..RHD..WC;HZB50..RHD..HRF..ST D..WC..GEN..5F |
61417-36011 |
US $65.52 |
||
|
61425A
|
61425A
61425-36010 Rail, No.5 Lower Outer, Lh[07.1999 - 08.2004] BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..S RF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50, RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB |
61425-36010 |
US $32.18 |
||
|
61426B
|
61426B
61426-36010 Rail, No.6 Lower Outer, Lh[07.1999 - 08.2004] BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..S RF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50, RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB |
61426-36010 |
US $33.92 |
||
|
61441B
|
61441B
61441-36010 Rail, No.1 Lower Inner, Lh[07.1999 - 08.2004] BB42..RHD..SRF;BB50..RHD..CBU..TDEFI;BB42,59,BZB40,50..RHD..WC;HZB50..RHD..HRF..ST D..WC..GEN..5F |
61441-36010 |
US $55.76 |
||
| replacement | |||||
|
61441B
|
61441B
61441-36011 Rail, No.1 Lower Inner, Lh[07.1999 - 08.2004] BB42..RHD..SRF;BB50..RHD..CBU..TDEFI;BB42,59,BZB40,50..RHD..WC;HZB50..RHD..HRF..ST D..WC..GEN..5F |
61441-36011 |
US $39.46 |
||
|
61441B
|
61441B
61441-36011 Rail, No.1 Lower Inner, Lh[08.2004 - 08.2006] BB59,BZB50..EX;BB50..RHD..CBU |
61441-36011 |
US $39.46 |
||
|
61501E
|
61501E
61501-36011 Rail Sub-Assy, Seat Anchor, Rh[07.1999 - 08.2004] BB42..RHD..SRF;BB50..RHD..CBU..TDEFI;BB42,59,BZB40,50..RHD..WC;HZB50..RHD..HRF..ST D..WC..GEN..5F |
61501-36011 |
US $91.73 |
||
| replacement | |||||
|
61501E
|
61501E
61501-36021 Rail Sub-Assy, Seat Anchor, RhSEAT ANCHOR, LH [07.1999 - 08.2004] BB42..RHD..SRF;BB50..RHD..CBU..TDEFI;BB42,59,BZB40,50..RHD..WC;HZB50..RHD..HRF..ST D..WC..GEN..5F |
61501-36021 |
US $62.90 |
||
|
61502B
|
61502B
61502-36010 Rail Sub-Assy, No.2 Seat Anchor, Rh[07.1999 - 08.2004] BB42..RHD..SRF;BB50..RHD..CBU..TDEFI;BB42,59,BZB40,50..RHD..WC;HZB50..RHD..HRF..ST D..WC..GEN..5F |
61502-36010 |
US $70.47 |
||
|
61503D
|
61503D
61503-36050 Rail Sub-Assy, No.3 Seat Anchor[07.1999 - 08.2004] BB50,BZB50..RHD..CBU..(LPG,TDEFI);HZB50..RHD..HRF..STD..WC..GEN..5F |
61503-36050 |
US $94.64 |
||
|
61503E
|
61503E
61503-36010 Rail Sub-Assy, No.3 Seat Anchor, Rh[07.1999 - 08.2004] HZB50..RHD..HRF..STD..WC..GEN..5F;BB50,59,BZB50..RHD..(ARL,GEN)..(LPG,TDEFI) |
61503-36010 |
US $65.52 |
||
|
61504D
|
61504D
61504-36010 Rail Sub-Assy, No.4 Seat Anchor[07.1999 - 08.2004] HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(19S, 20S)..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN) |
61504-36010 |
US $55.47 |
||
|
61504E
|
61504E
61504-36010 Rail Sub-Assy, No.4 Seat Anchor[07.1999 - 08.2004] HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(19S, 20S)..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN) |
61504-36010 |
US $55.47 |
||
|
61505B
|
61505B
61505-36011 Rail Sub-Assy, No.5 Seat Anchor, Rh[08.2001 - 08.2004] BB50,BZB40,50..RHD..(DX,STD)..CBU |
61505-36011 |
US $69.74 |
||
|
61506B
|
61506B
61506-36011 Rail Sub-Assy, No.6[07.1999 - 08.2004] BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..S RF..WC;HZB50,RZB40..LHD..WOC..GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB 50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB50,58,BZB40,50,RZB50..( |
61506-36011 |
US $65.52 |
||
|
61506C
|
61506C
61506-36011 Rail Sub-Assy, No.6[07.1999 - 08.2004] BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..S RF..WC;HZB50,RZB40..LHD..WOC..GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB 50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB50,58,BZB40,50,RZB50..( |
61506-36011 |
US $65.52 |
||
|
61508A
|
61508A
61508-36100 Rail Sub-Assy, No.8 Seat Anchor[07.1999 - 08.2004] BB50,59,BZB40,50..RHD..(ARL,GEN)..(LPG,TDEFI); BB42..RHD..SRF;BB42,HZB50..RHD..HRF..STD..WC..GEN..5F W(3-POINT ASSISTANTS SEAT BELT) |
61508-36100 |
US $112.11 |
||
|
61599A
|
61599A
61599-36010 Bracket, Stiffener, No.6, Lh[07.1999 - 08.2004] BB42..RHD..SRF;BB50..RHD..CBU..TDEFI;BB42,59,BZB40,50..RHD..WC;HZB50..RHD..HRF..ST D..WC..GEN..5F |
61599-36010 |
US $13.25 |
||
|
61608F
|
61608F
61608-36021 Brace Sub-Assy, Quarter Wheel House, Lh[07.1999 - 08.2004] BB50,BZB40,50..RHD..(DX,STD)..CBU |
61608-36021 |
US $65.52 |
||
|
61609B
|
61609B
61609-36021 Brace Sub-Assy, Quarter Panel[07.1999 - 08.2004] BB50,BZB40,50..RHD..(DX,STD)..CBU |
61609-36021 |
US $65.52 |
||
|
61635A
|
61635A
61635-36010 Brace, Quarter Wheel House, Rh[07.1999 - 08.2004] BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..S RF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50, RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB |
61635-36010 |
US $65.52 |
||
|
61636A
|
61636A
61636-36010 Brace Sub-Assy, Quarter Wheel House, Lh[07.1999 - 08.2004] BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..S RF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50, RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB |
61636-36010 |
US $65.52 |
||
|
61803C
|
61803C
61803-36010 Rail Sub-Assy, No.4 Lower Outer, Rh[07.1999 - 08.2004] BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..S RF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50, RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB |
61803-36010 |
US $55.47 |
||
