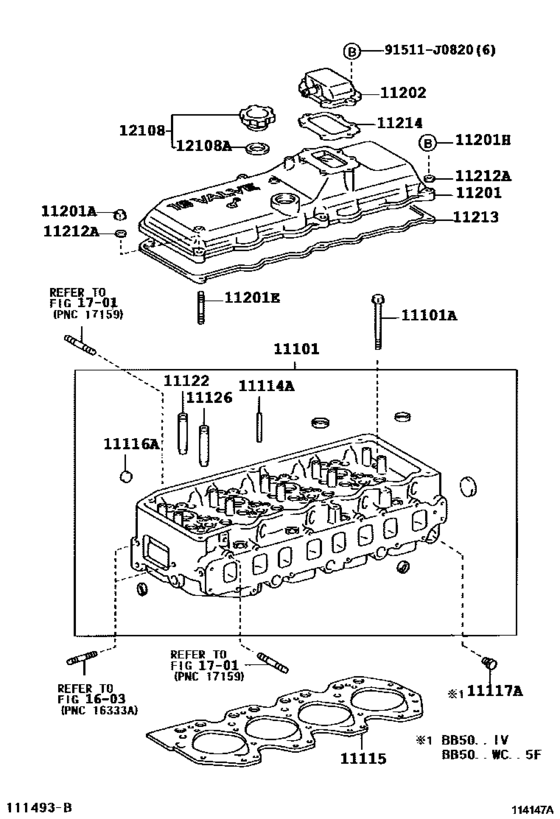

Cylinder Head ([07.1999 - ] (9907- )15BFTE) Diagram Toyota COASTER
- Year
- 2003 - 2006
- Sales region
- General
- Frame
- BB50
- grade
- STD
- Roof
- HRF
- ENGINE
- 15BFTE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 02.2003
- To
- 08.2006
- Gear Shift Type
- 5F
- Seating Capacity
- 17S
- Vehicle Model
- Coaster
- Driver's Position
- RHD
- Fuel Induction
- TDEFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-58100 Head Sub-Assy, Cylinder[07.1999 - 08.2004] 15BFTE..BB5# |
11101-58100 |
US $2,213.12 |
||
|
11101A
|
11101A
90910-02084 Bolt(For Cylinder Head Set)[07.1999 - 08.2004] 14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF ..WOC;15BFTE,1BZFPE..BB5#,BZB40,50;15BFT..BB50..STD..GEN..CBU..5F |
90910-02084 |
from US $8.48 |
||
|
11114A
|
11114A
90250-09007 Pin, Straight[07.1999 - 08.2004] 15BFTE,1BZFPE..BB5#,BZB40,50;15BFT..BB50..STD..GEN..CBU..5F L=53.5,OD=9 |
90250-09007 |
US $3.84 |
||
|
11115
|
11115
11115-58131 Gasket, Cylinder Head[07.1999 - 08.2004] 15BFT..BB50..STD..GEN..CBU..5F;15BFTE,1BZFPE..BB50,59,BZB40,50 T=1.20 |
11115-58131 |
from US $100.25 |
||
|
11115
|
11115
11115-58141 Gasket, Cylinder Head[07.1999 - 08.2004] 15BFTE..BB50,59;15BFT..BB50..STD..GEN..CBU..5F T=1.30 |
11115-58141 |
from US $105.75 |
||
|
11115
|
11115
11115-58151 Gasket, Cylinder Head[07.1999 - 08.2004] 15BFTE..BB50,59;15BFT..BB50..STD..GEN..CBU..5F T=1.40 |
11115-58151 |
from US $98.83 |
||
|
11116A
|
11116A
90331-14006 Plug, Tight, No.1[08.2004 - 08.2006] 15BFTE..BB5#;1BZFPE..BZB50..EX |
90331-14006 |
US $0.35 |
||
|
11117A
|
11117A
90345-54005 Plug, W/head Taper Screw, No.1[05.2003 - 08.2004] 15BFTE..BB50..STD..5F |
90345-54005 |
US $4.32 |
||
|
11122
|
11122
11122-58020 Bush, Intake Valve Guide[07.1999 - 08.2004] 15BFTE,1BZFPE..BB5#,BZB40,50;15BFT..BB50..STD..GEN..CBU..5F STD |
11122-58020 |
from US $7.43 |
||
|
11126
|
11126
11122-58020 Bush, Intake Valve Guide[07.1999 - 08.2004] 15BFTE,1BZFPE..BB5#,BZB40,50;15BFT..BB50..STD..GEN..CBU..5F STD |
11122-58020 |
from US $7.43 |
||
|
11201
|
11201
11201-58070 Cover Sub-Assy, Cylinder Head[07.1999 - 08.2004] 15BFTE..BB5# |
11201-58070 |
US $269.36 |
||
|
11201A
|
11201A
90179-08040 Nut, Cap(For Cylinder Head Cover)[07.1999 - 08.2004] 14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF ..WOC;15BFTE,1BZFPE..BB5#,BZB40,50;15BFT..BB50..STD..GEN..CBU..5F |
90179-08040 |
from US $1.13 |
||
|
11201E
|
11201E
92112-60835 Bolt, Stud(For Cylinder Head Cover Set)[07.1999 - 03.2004] 15BFTE,1BZFPE..BB5#,BZB40,50 |
92112-60835 |
US $3.04 |
||
|
11201E
|
11201E
92112-80835 Bolt, Stud(For Cylinder Head Cover Set)[03.2004 - 08.2004] 15BFTE,1BZFPE..BB5#,BZB40,50 |
92112-80835 |
US $1.16 |
||
|
11201H
|
11201H
91511-B0835
Bolt(For Cylinder Head Set Sub)
[07.1999 - 08.2004] 15BFTE,1BZFPE..BB5#,BZB40,50;15BFT..BB50..STD..GEN..CBU..5F |
91511-B0835 |
— | ||
| replacement | |||||
|
11201H
|
11201H
90105-08200 Bolt(For Cylinder Head Set Sub)[07.1999 - 08.2004] 15BFTE,1BZFPE..BB5#,BZB40,50;15BFT..BB50..STD..GEN..CBU..5F |
90105-08200 |
US $2.24 |
||
|
11202
|
11202
11202-58010 Cover Sub-Assy, Cylinder Head, Lh[07.1999 - 08.2004] 15BFTE..BB5# |
11202-58010 |
US $61.73 |
||
|
11212A
|
11212A
11228-56010 Cushion, Cylinder Head Cover[07.1999 - 08.2004] 14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF ..WOC;15BFTE,1BZFPE..BB5#,BZB40,50;15BFT..BB50..STD..GEN..CBU..5F |
11228-56010 |
US $5.28 |
||
|
11213
|
11213
11213-58021 Gasket, Cylinder Head Cover[07.1999 - 08.2004] 15BFTE,1BZFPE..BB5#,BZB40,50;15BFT..BB50..STD..GEN..CBU..5F |
11213-58021 |
US $18.54 |
||
|
11214
|
11214
11214-58010 Gasket, Cylinder Head Cover, No.2[07.1999 - 08.2004] 15BFTE..BB5# |
11214-58010 |
US $8.15 |
||
|
12108
|
12108
12180-55010 Cap Sub-Assy, Oil Filler[07.1999 - 08.2004] 1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD. .SRF..WC; 14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF ..WOC;15BFTE,1BZFPE..BB5#,BZB40,50;15BFT..BB50..STD..GEN..C |
12180-55010 |
from US $10.08 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[07.1999 - 08.2004] 3RZFE..RZB40,50; 14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF ..WOC;15BFTE,1BZFPE..BB5#,BZB40,50;15BFT..BB50..STD..GEN..CBU..5F |
90430-37140 |
from US $1.21 |
||
|
91511J0820
|
91511J0820
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
from US $1.07 |
||
