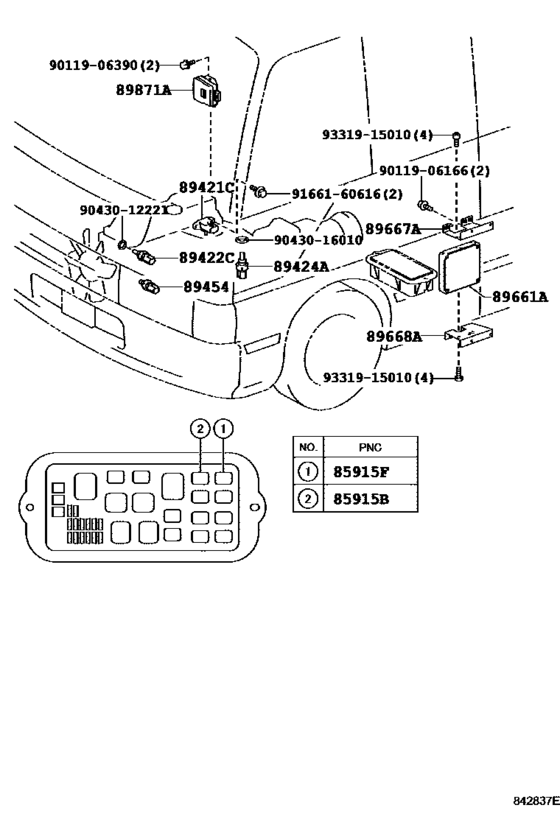

Electronic Controled Diesel (Ecd) ([07.1999 - 08.2006] (9907-0608)TDEFI) Diagram Toyota COASTER
- Year
- 2003 - 2006
- Sales region
- General
- Frame
- BB50
- grade
- STD
- Roof
- HRF
- ENGINE
- 15BFTE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 02.2003
- To
- 08.2006
- Gear Shift Type
- 5F
- Seating Capacity
- 17S
- Vehicle Model
- Coaster
- Driver's Position
- RHD
- Fuel Induction
- TDEFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85915B
|
85915B
90987-02017 Relay, Ignition, No.1[07.1999 - 08.2004] BB5#..TDEFI |
90987-02017 |
from US $45.60 |
||
|
85915F
|
85915F
90987-02017 Relay, Ignition, No.1[07.1999 - 08.2004] BB5#..TDEFI |
90987-02017 |
from US $45.60 |
||
|
89421C
|
89421C
89421-21010 Sensor Assy, Vacuum (For E.f.i.)[07.1999 - 08.2004] BB5#..TDEFI |
89421-21010 |
US $139.12 |
||
|
89422C
|
89422C
89422-35010 Sensor, Water Temperature (For E.f.i.)[07.1999 - 08.2004] BB5#..TDEFI |
89422-35010 |
from US $40.58 |
||
|
89424A
|
89424A
89424-28020 Sensor, Inlet Air Temperature (For Diesel Turbo)[07.1999 - 08.2004] BB5#..TDEFI |
89424-28020 |
US $94.64 |
||
|
89454
|
89454
89454-60010 Sensor, Fuel Temperature[07.1999 - 08.2004] BB5#..TDEFI |
89454-60010 |
from US $36.78 |
||
|
89661A
|
89661A
89661-36070
Computer, Engine Control
[05.2001 - 08.2004] BB50,59..(EUR,GEN)..TDEFI |
89661-36070 |
— | ||
|
89667A
|
89667A
89667-36020 Bracket, Engine Control Computer[07.1999 - 08.2004] BB5#..TDEFI |
89667-36020 |
US $5.97 |
||
|
89668A
|
89668A
89668-36010 Bracket, Engine Control Computer, No.2[07.1999 - 08.2004] BB5#..TDEFI |
89668-36010 |
US $8.01 |
||
|
89871A
|
89871A
89871-36010 Driver, Injector[07.1999 - 08.2004] BB5#..TDEFI |
89871-36010 |
US $672 |
||
|
9011906166
|
9011906166
90119-06166 BOLT |
90119-06166 |
US $1.28 |
||
|
9011906390
|
9011906390
90119-06390 BOLT WWASHER |
90119-06390 |
US $1.12 |
||
|
9043012221
|
9043012221
90430-12221 Gasket |
90430-12221 |
from US $1.13 |
||
|
9043016010
|
9043016010
90430-16010 Gasket, Neutral Start Switch |
90430-16010 |
from US $1.01 |
||
|
9166160616
|
9166160616
91661-60616 BOLT |
91661-60616 |
from US $0.74 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
