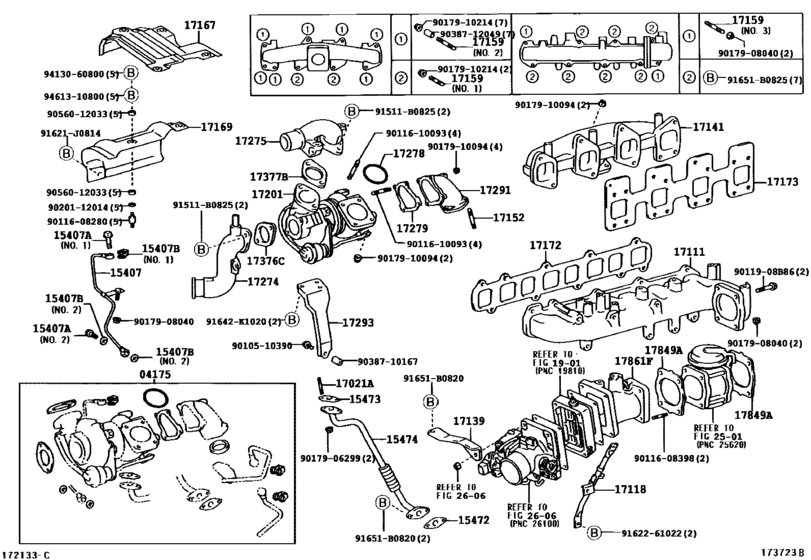

Manifold ([07.1999 - ] (9907- )15BFTE) Diagram Toyota COASTER
- Year
- 2003 - 2006
- Sales region
- General
- Frame
- BB50
- grade
- STD
- Roof
- HRF
- ENGINE
- 15BFTE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 02.2003
- To
- 08.2006
- Gear Shift Type
- 5F
- Seating Capacity
- 17S
- Vehicle Model
- Coaster
- Driver's Position
- RHD
- Fuel Induction
- TDEFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04175
|
04175
04175-58040 Gasket Kit, Turbocharger[07.1999 - 08.2004] 15BFTE..BB5# |
04175-58040 |
US $80.08 |
||
|
15407
|
15407
15407-58040 Pipe Sub-Assy, Turbo Oil Inlet[07.1999 - 08.2004] 15BFTE..BB5# |
15407-58040 |
US $77.17 |
||
|
15407A
|
15407A
90401-10062 Bolt, Union(For Turbo Oil Inlet Pipe)[07.1999 - 08.2004] 15BFTE..BB5# NO.1 |
90401-10062 |
US $5.53 |
||
|
15407A
|
15407A
90401-12028 Bolt, Union(For Turbo Oil Inlet Pipe)[07.1999 - 08.2004] 15BFTE..BB5# NO.2; 15BFT..BB50..STD..GEN..CBU..5F |
90401-12028 |
US $4.89 |
||
|
15407B
|
15407B
90430-12025 Gasket(For Turbo Oil Inlet Pipe)[07.1999 - 08.2004] 15BFTE..BB5# NO.2; 15BFT..BB50..STD..GEN..CBU..5F |
90430-12025 |
US $2.56 |
||
|
15407B
|
15407B
90904-30009 Gasket(For Turbo Oil Inlet Pipe)[07.1999 - 08.2004] 15BFTE..BB5# NO.1 |
90904-30009 |
US $4.95 |
||
|
15472
|
15472
15472-58011 Gasket, Turbo Oil Outlet, No.1[07.1999 - 08.2004] 15BFTE..BB5#;15BFT..BB50..STD..GEN..CBU..5F |
15472-58011 |
US $8.32 |
||
|
15473
|
15473
15473-58010 Gasket, Turbo Oil Outlet, No.2[07.1999 - 08.2004] 15BFTE..BB5# |
15473-58010 |
US $6.29 |
||
|
15474
|
15474
15474-58010 Pipe, Turbo Oil Outlet[07.1999 - 08.2004] 15BFTE..BB5# |
15474-58010 |
US $90.85 |
||
|
17021A
|
17021A
90116-06048 Bolt, Stud(For Oil Pan)[07.1999 - 04.2004] 15BFTE..BB5# |
90116-06048 |
from US $0.84 |
||
|
17111
|
17111
17111-58120 Manifold, Intake[07.1999 - 08.2004] 15BFTE..BB5# |
17111-58120 |
US $419.33 |
||
|
17118
|
17118
17118-58031 Stay, Manifold[10.2002 - 08.2004] 15BFTE..BB5# |
17118-58031 |
US $44.84 |
||
|
17139
|
17139
17139-58020 Stay, Manifold, No.2[07.1999 - 08.2004] 15BFTE..BB5# |
17139-58020 |
US $16.02 |
||
|
17141
|
17141
17141-58070 Manifold, Exhaust[07.1999 - 08.2004] 15BFTE..BB5# |
17141-58070 |
US $382.64 |
||
|
17152
|
17152
90126-10006 Bolt, Stud(For Manifold To Exhaust Pipe)[07.1999 - 08.2004] 1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD. .SRF..WC; 14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF ..WOC;15BFTE,1BZFPE..BB5#,BZB40,50;15BFT..BB50..STD..GEN..C |
90126-10006 |
from US $4.78 |
||
|
17159
|
17159
90116-10063 Bolt, Stud(For Exhaust Manifold To Cylinder Head)[07.1999 - 08.2004] 15BFTE..BB5# NO.1 |
90116-10063 |
from US $1.17 |
||
|
17159
|
17159
90116-10198 Bolt, Stud(For Exhaust Manifold To Cylinder Head)[07.1999 - 08.2004] 15BFTE..BB5# NO.2 |
90116-10198 |
US $14.24 |
||
|
17159
|
17159
92132-60820 Bolt, Stud(For Intake Manifold To Cylinder Head)[07.1999 - 08.2004] 15BFTE..BB5# NO.3 |
92132-60820 |
US $0.79 |
||
|
17167
|
17167
17167-58061 Insulator, Exhaust Manifold Heat, No.1[08.2001 - 08.2004] 15BFTE..BB5# |
17167-58061 |
US $90.27 |
||
|
17169
|
17169
17169-58010 Insulator, Exhaust Manifold Heat, No.3[07.1999 - 08.2004] 15BFTE..BB5# |
17169-58010 |
US $53.29 |
||
|
17172
|
17172
17171-58030 Gasket, Manifold To Cylinder Head[07.1999 - 08.2004] 15BFTE..BB5# |
17171-58030 |
US $15.58 |
||
|
17173
|
17173
17173-58050 Gasket, Exhaust Manifold To Head[07.1999 - 08.2004] 15BFTE..BB5# |
17173-58050 |
US $46.39 |
||
|
17201
|
17201
17201-58070 Turbocharger Sub-Assy[07.1999 - 08.2004] 15BFTE..BB5# |
17201-58070 |
US $2,839.20 |
||
| replacement | |||||
|
17201
|
17201
17201-58070-B0 Turbocharger Sub-Assy[07.1999 - 08.2004] 15BFTE..BB5# |
17201-58070-B0 |
US $2,839.20 |
||
|
17201
|
17201
17201-58070-B0 Turbocharger Sub-Assy[08.2004 - 08.2006] 15BFTE..BB5# GRAY |
17201-58070-B0 |
US $2,839.20 |
||
|
17274
|
17274
17274-58050 Elbow, Compressor Inlet[07.1999 - 08.2004] 15BFTE..BB5# |
17274-58050 |
US $154.34 |
||
|
17275
|
17275
17275-58060 Elbow, Compressor Outlet[07.1999 - 08.2004] 15BFTE..BB5# |
17275-58060 |
US $104.83 |
||
|
17278
|
17278
17278-58030 Gasket, Turbo To Exhaust Manifold[07.1999 - 08.2004] 15BFTE..BB5#;15BFT..BB50..STD..GEN..CBU..5F |
17278-58030 |
US $7.86 |
||
|
17279
|
17279
17279-58040 Gasket, Turbine Outlet Elbow[07.1999 - 08.2004] 15BFTE..BB5# |
17279-58040 |
US $18.05 |
||
|
17291
|
17291
17291-58040 Elbow, Turbine Outlet[07.1999 - 08.2004] 15BFTE..BB5# |
17291-58040 |
US $177.63 |
||
|
17293
|
17293
17293-58030 Stay, Turbocharger[07.1999 - 08.2004] 15BFTE..BB5# |
17293-58030 |
US $47.17 |
||
|
17376C
|
17376C
17376-17010 Gasket, Air Tube[07.1999 - 08.2004] 15BFTE..BB5# |
17376-17010 |
from US $2.13 |
||
|
17377B
|
17377B
17377-88410 Gasket, Air Tube, No.2[07.1999 - 08.2004] 15BFTE..BB5# |
17377-88410 |
from US $6.40 |
||
|
17849A
|
17849A
17849-58020 Gasket, Intake Air Connector[07.1999 - 08.2004] 15BFTE..BB5# |
17849-58020 |
US $14.40 |
||
|
17861F
|
17861F
17861-58060 Connector, Intake Air[07.1999 - 08.2004] 15BFTE..BB5# |
17861-58060 |
US $257.71 |
||
|
91511B0825
|
91511B0825
91511-B0825 Bolt (For Transfer Stiffener Plate) |
91511-B0825 |
US $2.24 |
||
|
91621J0814
|
91621J0814
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.74 |
||
|
91642K1020
|
91642K1020
91642-K1020 BOLT WWASHER |
91642-K1020 |
US $2.72 |
||
|
91651B0820
|
91651B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.05 |
||
| replacement | |||||
|
91651B0820
|
91651B0820
90080-11347 New Genuine Part |
90080-11347 |
US $2.48 |
||
|
91651B0825
|
91651B0825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.84 |
||
|
9011908B86
|
9011908B86
90119-08B86 New Genuine Part |
90119-08B86 |
US $3.06 |
||
|
9010510390
|
9010510390
90105-10390 Bolt(For Vane Pump Bracket Settinng) |
90105-10390 |
US $4.08 |
||
|
9011608280
|
9011608280
90116-08280 STUD |
90116-08280 |
US $2.24 |
||
|
9011608398
|
9011608398
90116-08398 New Genuine Part |
90116-08398 |
US $4.08 |
||
|
9011610093
|
9011610093
90116-10093 Bolt, Stud(For Turbocharger) |
90116-10093 |
from US $2.76 |
||
|
9017906299
|
9017906299
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.72 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.13 |
||
|
9017910094
|
9017910094
90179-10094 NUT |
90179-10094 |
from US $2.93 |
||
|
9017910214
|
9017910214
90179-10214 NUT |
90179-10214 |
US $1.76 |
||
|
9020112014
|
9020112014
90201-12014 New Genuine Part |
90201-12014 |
US $1.92 |
||
|
9038710167
|
9038710167
90387-10167 New Genuine Part |
90387-10167 |
US $5.53 |
||
|
9038712049
|
9038712049
90387-12049 New Genuine Part |
90387-12049 |
US $4.64 |
||
|
9056012033
|
9056012033
90560-12033 New Genuine Part |
90560-12033 |
US $1.76 |
||
|
9162261022
|
9162261022
91622-61022 BOLT WWASHER |
91622-61022 |
US $1.25 |
||
|
9413060800
|
9413060800
94130-60800 Nut(For Clutch Pedal Stopper) |
94130-60800 |
from US $0.72 |
||
| replacement | |||||
|
9413060800
|
9413060800
90170-A0003 New Genuine Part |
90170-A0003 |
US $2.22 |
||
|
9461310800
|
9461310800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.68 |
||
