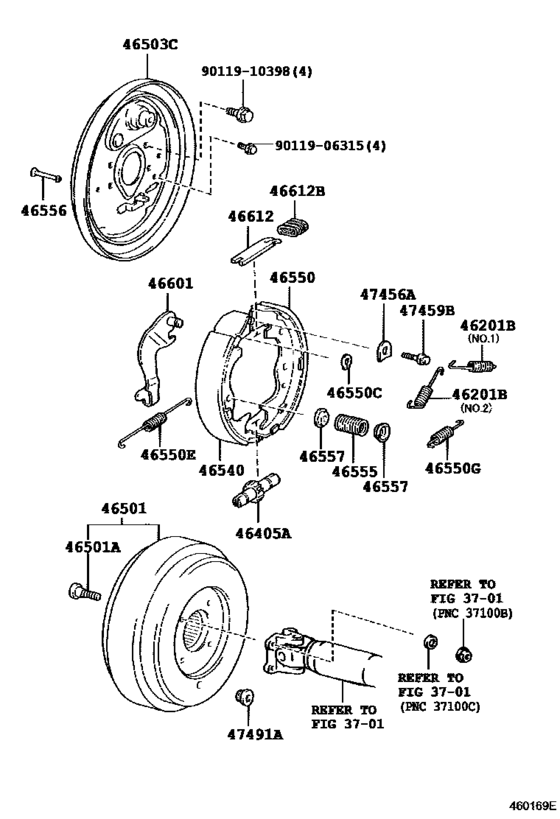

Parking Brake & Cable ([05.1997 - 09.2012] (9705-1209)BB50..17S,20S,30S) Diagram Toyota COASTER
- Year
- 2003 - 2006
- Sales region
- General
- Frame
- BB50
- grade
- STD
- Roof
- HRF
- ENGINE
- 15BFTE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 02.2003
- To
- 08.2006
- Gear Shift Type
- 5F
- Seating Capacity
- 17S
- Vehicle Model
- Coaster
- Driver's Position
- RHD
- Fuel Induction
- TDEFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46201B
|
46201B
90507-20020 Spring, Tension[07.1999 - 08.2004] HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF ..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S).. (ARL,GEN) NO.1 |
90507-20020 |
from US $1.76 |
||
|
46201B
|
46201B
90507-20021 Spring, Tension[07.1999 - 08.2004] HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF ..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S).. (ARL,GEN) NO.2 |
90507-20021 |
from US $1.76 |
||
|
46405A
|
46405A
47405-36010 Screw Set, Shoe Adjusting, Rh[07.1999 - 08.2004] HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF ..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S).. (ARL,GEN) |
47405-36010 |
from US $18.24 |
||
|
46501
|
46501
46501-36220 Drum Sub-Assy, Parking Brake[07.1999 - 08.2004] HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF ..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S).. (ARL,GEN) |
46501-36220 |
US $262.08 |
||
|
46501A
|
46501A
90114-11124 Bolt (For Transfer Output Shaft Companion Flange)[07.1999 - 08.2004] BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..S RF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S).. (ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC |
90114-11124 |
from US $1.40 |
||
|
46503C
|
46503C
46503-36060 Plate Sub-Assy, Parking Brake[07.1999 - 08.2004] BB50,59,BZB50..RHD..(LPG,TDEFI);HZB50..RHD..HRF..STD..WC..GEN..5F |
46503-36060 |
US $267.90 |
||
| replacement | |||||
|
46503C
|
46503C
46503-37710 Plate Sub-Assy, Parking Brake[07.1999 - 08.2004] BB50,59,BZB50..RHD..(LPG,TDEFI);HZB50..RHD..HRF..STD..WC..GEN..5F |
46503-37710 |
US $176.47 |
||
|
46503C
|
46503C
46503-37710 Plate Sub-Assy, Parking Brake[01.2006 - 08.2006] BB59,BZB50..EX;BB50..5F..TDEFI |
46503-37710 |
US $176.47 |
||
|
46540
|
46540
46540-37030 Shoe Assy, Parking Brake, Rh Or Center No.1[07.1999 - 08.2004] HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF ..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S).. (ARL,GEN) |
46540-37030 |
from US $28.28 |
||
|
46540
|
46540
46540-37040 Shoe Assy, Parking Brake, Rh Or Center No.1[01.2006 - 08.2006] BB59,BZB50..EX;BB50..5F..TDEFI |
46540-37040 |
from US $34.20 |
||
|
46550
|
46550
46550-37030 Shoe Assy, Parking Brake, Rh Or Center No.2[07.1999 - 08.2004] HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF ..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S).. (ARL,GEN) |
46550-37030 |
from US $22.19 |
||
|
46550
|
46550
46550-37040 Shoe Assy, Parking Brake, Rh Or Center No.2[01.2006 - 08.2006] BB59,BZB50..EX;BB50..5F..TDEFI |
46550-37040 |
from US $26.15 |
||
|
46550C
|
46550C
90213-06003 Washer, Type C(For Parking Brake Shoe)[07.1999 - 08.2004] HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF ..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S).. (ARL,GEN) |
90213-06003 |
from US $1.44 |
||
|
46550E
|
46550E
90506-14054 Spring, Tension, No.2(For Parking Brake Shoe Return)[07.1999 - 08.2004] BB50,58..LHD..TDEFI LOWER; HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF ..WC;BB50..RHD..IV..TDEFI;BB59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN) |
90506-14054 |
from US $1.76 |
||
|
46550G
|
46550G
90506-14055 Spring, Tension, No.3(For Parking Brake Shoe Return)[07.1999 - 08.2004] BB50,59,BZB50..RHD..(LPG,TDEFI);HZB50..RHD..HRF..STD..WC..GEN..5F |
90506-14055 |
US $1.46 |
||
|
46555
|
46555
90501-16108 Spring, Brake Shoe Hold Down[07.1999 - 08.2004] HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF ..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S).. (ARL,GEN) |
90501-16108 |
from US $1.44 |
||
|
46556
|
46556
47447-20030 Pin, Shoe Hold Down Spring[07.1999 - 08.2004] HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF ..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S).. (ARL,GEN) |
47447-20030 |
from US $1.74 |
||
|
46557
|
46557
47449-20011 Cup, Brake Shoe Hold Down[07.1999 - 08.2004] HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF ..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S).. (ARL,GEN) |
47449-20011 |
from US $1.92 |
||
|
46601
|
46601
46601-36051 Lever Sub-Assy, Parking Brake Shoe[07.1999 - 08.2004] BB50,59,BZB50..RHD..(LPG,TDEFI);HZB50..RHD..HRF..STD..WC..GEN..5F |
46601-36051 |
US $18.24 |
||
|
46612
|
46612
46612-36050 Strut, Parking Brake Shoe Lever[07.1999 - 08.2004] BB50,59,BZB50..RHD..(LPG,TDEFI);HZB50..RHD..HRF..STD..WC..GEN..5F |
46612-36050 |
from US $9.15 |
||
|
46612B
|
46612B
90504-10010 Spring, Compression(For Parking Brake Shoe Strut)[07.1999 - 08.2004] HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF ..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S).. (ARL,GEN) |
90504-10010 |
from US $1.44 |
||
|
47456A
|
47456A
47456-20030 Plate, Shoe Guide(For Parking Brake)[07.1999 - 08.2004] HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF ..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S).. (ARL,GEN) |
47456-20030 |
from US $0.86 |
||
|
47459B
|
47459B
47459-30010 Bolt, Parking Brake Shoe Guide Plate Set[07.1999 - 08.2004] HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF ..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S).. (ARL,GEN) |
47459-30010 |
from US $3.71 |
||
|
47491A
|
47491A
47491-22020 Plug, Shoe Adjusting Hole (For Parking Brake)[07.1999 - 08.2004] HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF ..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S).. (ARL,GEN) |
47491-22020 |
from US $1.77 |
||
|
9011906315
|
9011906315
90119-06315 BOLT |
90119-06315 |
US $1.12 |
||
|
9011910398
|
9011910398
90119-10398 BOLT |
90119-10398 |
US $1.76 |
||
