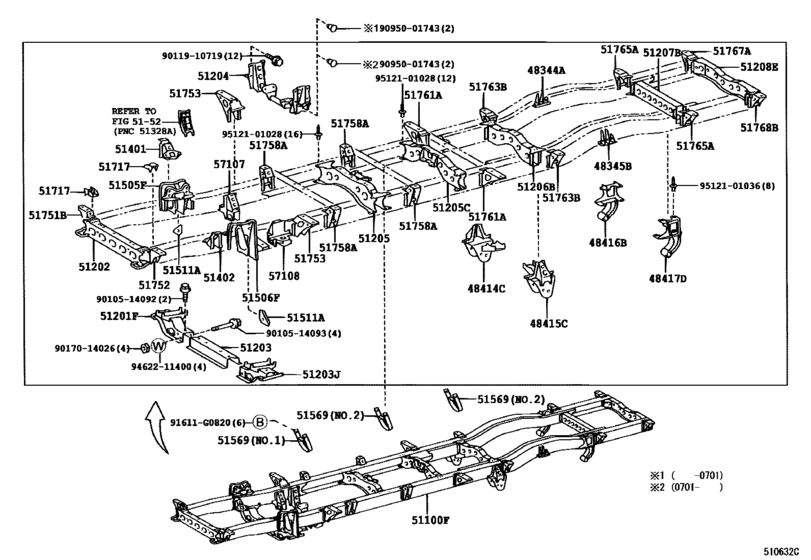

Frame ([12.2000 - ] (0012- )BB53,RZB53,TRB53,XZB53) Diagram Toyota COASTER
- Year
- 2004 - 2007
- Sales region
- General
- Frame
- BB53
- grade
- EX
- ENGINE
- 15BFT
- TRANSMISSION
- MTM
- Model
- COASTER (CHINA)
- From
- 11.2004
- To
- 01.2007
- Seating Capacity
- 23S
- Vehicle Model
- Coaster
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48344A
|
48344A
48344-36460
Stopper, Bumper, Rear Rh
[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
48344-36460 |
— | ||
|
48345B
|
48345B
48345-36070
Stopper, Bumper, Rear Lh
[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
48345-36070 |
— | ||
|
48414C
|
48414C
48414-36360
Bracket, Spring, No.3 Rh
[04.2004 - 02.2011] BB5#,RZB5#,TRB53,XZB53 |
48414-36360 |
— | ||
|
48415C
|
48415C
48415-36120
Bracket, Spring, No.3 Lh
[04.2004 - 02.2011] BB5#,RZB5#,TRB53,XZB53 |
48415-36120 |
— | ||
|
48416B
|
48416B
48416-36330
Bracket, Spring, No.4 Rh
[10.2003 - 02.2011] BB5#,RZB5#,TRB53,XZB53 |
48416-36330 |
— | ||
|
48417D
|
48417D
48417-36200
Bracket, Spring, No.4 Lh
[10.2003 - 02.2011] BB5#,RZB5#,TRB53,XZB53 |
48417-36200 |
— | ||
|
51100F
|
51100F
51001-3C110
Frame Sub-Assy
[10.2003 - 01.2007] BB53 |
51001-3C110 |
— | ||
|
51201F
|
51201F
51201-36220
Crossmember Sub-Assy, Front Suspension
[10.2003 - 07.2012] BB53,RZB53,TRB53,XZB53 |
51201-36220 |
— | ||
| replacement | |||||
|
51201F
|
51201F
51201-36221
Crossmember Sub-Assy, Front Suspension
[10.2003 - 07.2012] BB53,RZB53,TRB53,XZB53 |
51201-36221 |
— | ||
|
51202
|
51202
51201-36210
Crossmember Sub-Assy, Frame, No.1
[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
51201-36210 |
— | ||
|
51203
|
51203
51202-36210
Crossmember Sub-Assy, Frame, No.2
[10.2003 - 01.2007] BB53,RZB53 |
51202-36210 |
— | ||
|
51203J
|
51203J
51203-36380
Crossmember Sub-Assy, Front Suspension, Lh
[10.2003 - 07.2012] BB53,RZB53,TRB53,XZB53 |
51203-36380 |
— | ||
| replacement | |||||
|
51203J
|
51203J
51203-36381
Crossmember Sub-Assy, Front Suspension, Lh
[10.2003 - 07.2012] BB53,RZB53,TRB53,XZB53 |
51203-36381 |
— | ||
|
51204
|
51204
51203-36320 Crossmember Sub-Assy, Frame, No.3[10.2003 - 01.2007] BB53,RZB53 |
51203-36320 |
US $250.43 |
||
|
51205
|
51205
51204-36220
Crossmember Sub-Assy, Frame, No.4
[10.2003 - 10.2013] BB5#,RZB5#,XZB53 |
51204-36220 |
— | ||
| replacement | |||||
|
51205
|
51205
51204-36221
Crossmember Sub-Assy, Frame, No.4
[10.2003 - 10.2013] BB5#,RZB5#,XZB53 |
51204-36221 |
— | ||
|
51205C
|
51205C
51205-36200 Crossmember Sub-Assy, Frame, No.5FRAME, NO.5 [10.2003 - 10.2013] BB5#,RZB5#,XZB53 |
51205-36200 |
US $112.11 |
||
| replacement | |||||
|
51205C
|
51205C
51205-36202
Crossmember Sub-Assy, Frame, No.5
[10.2003 - 10.2013] BB5#,RZB5#,XZB53 |
51205-36202 |
— | ||
|
51206B
|
51206B
51206-36130
Crossmember Sub-Assy, Frame, No.6
[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
51206-36130 |
— | ||
|
51207B
|
51207B
51207-36150
Crossmember Sub-Assy, Frame, No.7
[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
51207-36150 |
— | ||
|
51208E
|
51208E
51208-36060
Crossmember Sub-Assy, Frame, No.8
[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
51208-36060 |
— | ||
|
51401
|
51401
51421-36210 Bracket Sub-Assy, Engine Front Mounting, Rh[10.2003 - 02.2011] BB53,XZB53 |
51421-36210 |
US $36.11 |
||
|
51402
|
51402
51421-36210 Bracket Sub-Assy, Engine Front Mounting, Rh[10.2003 - 02.2011] BB53,XZB53 |
51421-36210 |
US $36.11 |
||
|
51505F
|
51505F
51505-36030 Support Sub-Assy, Upper Control Arm[10.2003 -] BB53,RZB53,TRB53,XZB53 |
51505-36030 |
US $154.34 |
||
|
51506F
|
51506F
51506-36120 Support Sub-Assy, Upper Control Arm, Lh[10.2003 -] BB53,RZB53,TRB53,XZB53 |
51506-36120 |
US $154.34 |
||
|
51511A
|
51511A
51511-36080 Seat, Front Spring Support[10.2003 -] BB53,RZB53,TRB53,XZB53 |
51511-36080 |
US $10.63 |
||
|
51569
|
51569
51569-36180 Guard, Propeller Shaft[10.2003 - 04.2011] BB5#,RZB5#,TRB53,XZB53 NO.2 |
51569-36180 |
US $27.08 |
||
|
51569
|
51569
51569-36190 Guard, Propeller Shaft[10.2003 - 04.2011] BB5#,RZB5#,TRB53,XZB53 NO.1 |
51569-36190 |
US $23.15 |
||
|
51717
|
51717
51717-36010 Plate, Body Support BracketBODY SUPPORT BRACKET [10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
51717-36010 |
US $8.30 |
||
|
51751B
|
51751B
51751-36090 Bracket, Body Support, No.1 RhBODY SUPPORT, NO.1 RH [10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
51751-36090 |
US $27.08 |
||
|
51752
|
51752
51752-36010 Bracket, Body Support, No.1 LhBODY SUPPORT, NO.1 LH [10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
51752-36010 |
US $27.08 |
||
|
51753
|
51753
51753-36051 Bracket, Body Support, No.2[10.2003 - 08.2011] BB53,RZB53,TRB53,XZB53 |
51753-36051 |
US $41.20 |
||
|
51758A
|
51758A
51758-36020 Bracket, Body Support, No.4 Rh[10.2003 - 08.2011] BB5#,RZB5#,TRB53,XZB53 |
51758-36020 |
US $22.42 |
||
|
51761A
|
51761A
51761-36041 Bracket, Body Support, No.5 Rh[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
51761-36041 |
US $37.27 |
||
|
51763B
|
51763B
51763-36061 Bracket, Body Support, No.6[10.2003 - 01.2007] BB5#,RZB5#..20S,23S,24S |
51763-36061 |
US $20.53 |
||
|
51765A
|
51765A
51765-36051 Bracket, Frame Body Mounting, No.7 Rh[10.2003 - 02.2011] BB5#,RZB5#,TRB53,XZB53 |
51765-36051 |
US $14.56 |
||
|
51767A
|
51767A
51767-36150 Bracket, Frame Body Mounting, No.8 Rh[10.2003 - 02.2011] BB5#,RZB5#,TRB53,XZB53 |
51767-36150 |
US $14.27 |
||
|
51768B
|
51768B
51767-36150 Bracket, Frame Body Mounting, No.8 Rh[10.2003 - 02.2011] BB5#,RZB5#,TRB53,XZB53 |
51767-36150 |
US $14.27 |
||
|
57107
|
57107
57121-36020 Bracket Sub-Assy, Strut Bar, Rh[10.2003 -] BB53,RZB53,TRB53,XZB53 |
57121-36020 |
US $60.42 |
||
|
57108
|
57108
57122-36020 Bracket Sub-Assy, Strut Bar, Lh[10.2003 -] BB53,RZB53,TRB53,XZB53 |
57122-36020 |
US $60.42 |
||
|
91611G0820
|
91611G0820
91611-G0820 Bolt |
91611-G0820 |
from US $1.31 |
||
|
9010514092
|
9010514092
90105-14092 New Genuine Part |
90105-14092 |
US $2.48 |
||
|
9010514093
|
9010514093
90105-14093 New Genuine Part |
90105-14093 |
US $5.68 |
||
|
9011910719
|
9011910719
90119-10719 BOLT WWASHER |
90119-10719 |
US $3.68 |
||
|
9017014026
|
9017014026
90170-14026 Nut(For Front Support To Front Shock Absorber Rh) |
90170-14026 |
from US $0.99 |
||
|
9095001743
|
9095001743
90950-01743
PLUG HOLE
|
90950-01743 |
— | ||
|
9462211400
|
9462211400
94622-11400 New Genuine Part |
94622-11400 |
US $3.84 |
||
|
9512101028
|
9512101028
95121-01028 RIVET |
95121-01028 |
from US $2.65 |
||
|
9512101036
|
9512101036
95121-01036 RIVET |
95121-01036 |
US $4.08 |
||
