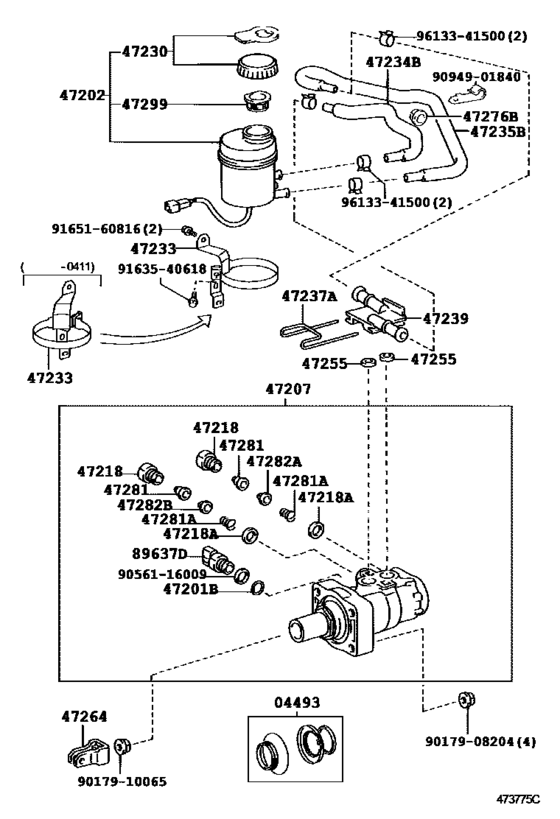

Brake Master Cylinder ([10.2003 - ] (0310- )) Diagram Toyota COASTER
- Year
- 2003 - 2007
- Sales region
- General
- Frame
- BB54
- grade
- STD
- ENGINE
- 15BFT
- TRANSMISSION
- MTM
- Model
- COASTER (CHINA)
- From
- 10.2003
- To
- 01.2007
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04493
|
04493
04493-36221
Cylinder Kit, Brake Master
[10.2003 - 02.2004] BB5#,RZB5# |
04493-36221 |
— | ||
| replacement | |||||
|
04493
|
04493
04493-36230 Cylinder Kit, Brake Master[10.2003 - 02.2004] BB5#,RZB5# |
04493-36230 |
US $45.60 |
||
|
04493
|
04493
04493-36230 Cylinder Kit, Brake Master[02.2004 - 03.2014] BB5#,RZB5#,TRB53,XZB53 |
04493-36230 |
US $45.60 |
||
|
47201B
|
47201B
90301-15014 Ring, O(For Drain Plug)[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
90301-15014 |
US $1.31 |
||
|
47202
|
47202
47220-36130 Reservoir Sub-Assy, Brake Master CylinderBRAKE MASTER CYLINDER [10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
47220-36130 |
US $87.36 |
||
|
47207
|
47207
47207-36021 Cylinder Sub-Assy, Brake Master Less Reservoir Tank[10.2003 - 02.2004] BB5#,RZB5# |
47207-36021 |
US $529.98 |
||
| replacement | |||||
|
47207
|
47207
47207-37060 Cylinder Sub-Assy, Brake Master Less Reservoir Tank[10.2003 - 02.2004] BB5#,RZB5# |
47207-37060 |
from US $456.40 |
||
|
47207
|
47207
47207-37060 Cylinder Sub-Assy, Brake Master Less Reservoir Tank[02.2004 -] BB5#,RZB5#,TRB53,XZB53 |
47207-37060 |
from US $456.40 |
||
|
47218
|
47218
47218-36091 Plug, Master Cylinder Fluid Outlet[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
47218-36091 |
US $5.39 |
||
|
47218A
|
47218A
90430-16013 Gasket(For Fluid Outlet Plug)[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
90430-16013 |
US $1.02 |
||
|
47230
|
47230
47230-20100
Cap Assy, Brake Master Cylinder Reservoir Filler
[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
47230-20100 |
— | ||
| replacement | |||||
|
47230
|
47230
47230-47090 Cap Assy, Brake Master Cylinder Reservoir Filler[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
47230-47090 |
from US $12.32 |
||
|
47233
|
47233
47233-36070 Bracket, ReservoirRESERVOIR [10.2003 - 11.2004] BB5#,RZB5# |
47233-36070 |
from US $6.99 |
||
|
47233
|
47233
47233-36080
Bracket, Reservoir
[11.2004 - 09.2007] BB5#,RZB5#,TRB53,XZB53 |
47233-36080 |
— | ||
| replacement | |||||
|
47233
|
47233
47233-0S010
Bracket, Reservoir
[11.2004 - 09.2007] BB5#,RZB5#,TRB53,XZB53 |
47233-0S010 |
— | ||
|
47234B
|
47234B
47234-36190 Tube, Reservoir, No.1RESERVOIR, NO.1 [10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
47234-36190 |
US $6.12 |
||
|
47235B
|
47235B
47235-36200 Tube, Brake Master Cyrinder Reservoir, No.2BRAKE MASTER CYRINDER RESERVOIR, NO.2 [10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
47235-36200 |
US $12.23 |
||
|
47237A
|
47237A
47237-36020 Stopper, Breke Master Cylinder Reservoir Tank[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
47237-36020 |
US $5.28 |
||
|
47239
|
47239
47239-36030 Connector, Brake Master Cylinder ReservoirBRAKE MASTER CYLINDER RESERVOIR [10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
47239-36030 |
US $10.92 |
||
|
47255
|
47255
47255-52010 Grommet, Master Cylinder Reservoir[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
47255-52010 |
from US $2.46 |
||
|
47264
|
47264
47264-50010 Clevis, Master Cylinder Push Rod[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
47264-50010 |
from US $8.32 |
||
|
47276B
|
47276B
90480-27006 Grommet(For Brake Master Cylinder Bracket)[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
90480-27006 |
US $1.89 |
||
|
47281
|
47281
47281-36010 Valve, Brake Master Cylinder Outlet Check[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
47281-36010 |
US $4.37 |
||
|
47281A
|
47281A
90905-01054 Spring Compression(For Outlet Check Valve)[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
90905-01054 |
US $0.29 |
||
|
47282A
|
47282A
47282-36010 Seat, Outlet Check Valve, No.1[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
47282-36010 |
US $0.58 |
||
|
47282B
|
47282B
47282-36020 Seat, Outlet Check Valve, No.1[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
47282-36020 |
US $0.58 |
||
|
47299
|
47299
47299-17010
Strainer, Brake Master Cylinder Reservoir
[10.2003 - 12.2003] BB5#,RZB5# |
47299-17010 |
— | ||
| replacement | |||||
|
47299
|
47299
47299-20060 Strainer, Brake Master Cylinder Reservoir[10.2003 - 12.2003] BB5#,RZB5# |
47299-20060 |
US $1.89 |
||
|
47299
|
47299
47299-20060 Strainer, Brake Master Cylinder Reservoir[01.2004 -] BB5#,RZB5#,TRB53,XZB53 |
47299-20060 |
US $1.89 |
||
|
89637D
|
89637D
89637-51010 Sensor, Oil Pressure[10.2003 - 03.2014] BB5#,RZB5#,TRB53,XZB53 |
89637-51010 |
US $256.84 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.80 |
||
|
9017910065
|
9017910065
90179-10065 Nut, Master Cylinder Push Rod Clevis Lock |
90179-10065 |
from US $1.44 |
||
|
9056116009
|
9056116009
90561-16009 Spacer(For Brake Booster Pump Oil Pressure Sensor) |
90561-16009 |
US $0.61 |
||
|
9094901840
|
9094901840
90949-01840
New Genuine Part
|
90949-01840 |
— | ||
|
9163540618
|
9163540618
91635-40618 BOLT W-WASHER |
91635-40618 |
US $1.12 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.07 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 Bolt |
90080-11396 |
US $3.72 |
||
|
9613341500
|
9613341500
96133-41500 Clamp Or Clip(For Air Hose, No.5) |
96133-41500 |
from US $2.24 |
||
