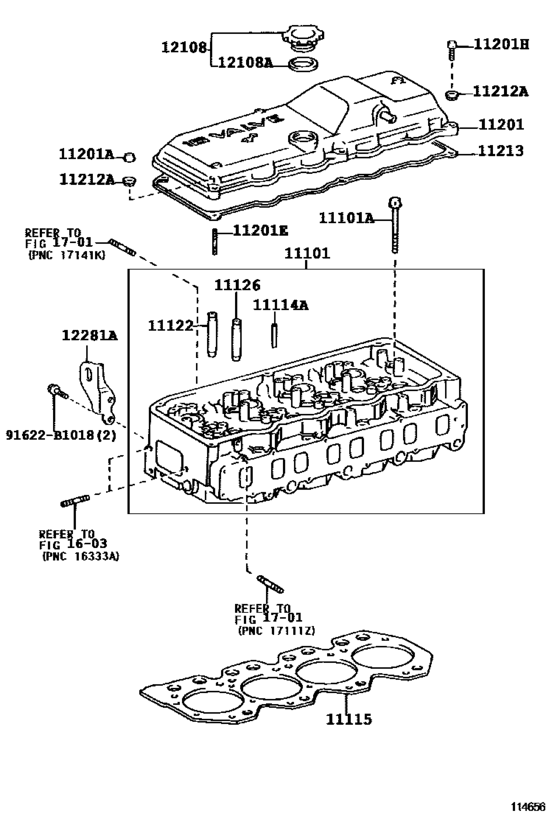

Cylinder Head ([10.2003 - ] (0310- )15BFT) Diagram Toyota COASTER
- Year
- 2003 - 2007
- Sales region
- General
- Frame
- BB54
- grade
- STD
- ENGINE
- 15BFT
- TRANSMISSION
- MTM
- Model
- COASTER (CHINA)
- From
- 10.2003
- To
- 01.2007
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-58091 Head Sub-Assy, Cylinder[10.2003 - 01.2007] 15BFT..BB5# |
11101-58091 |
US $1,514.24 |
||
|
11101A
|
11101A
90910-02084 Bolt(For Cylinder Head Set)[10.2003 - 01.2007] 15BFT..BB5# |
90910-02084 |
from US $8.48 |
||
|
11114A
|
11114A
90250-09007 Pin, Straight[10.2003 - 01.2007] 15BFT..BB5# L=53.5,OD=9 |
90250-09007 |
US $3.84 |
||
|
11115
|
11115
11115-58131 Gasket, Cylinder Head[10.2003 - 01.2007] 15BFT..BB5# T=1.20 |
11115-58131 |
from US $100.25 |
||
|
11115
|
11115
11115-58141 Gasket, Cylinder Head[10.2003 - 01.2007] 15BFT..BB5# T=1.30 |
11115-58141 |
from US $106.41 |
||
|
11115
|
11115
11115-58151 Gasket, Cylinder Head[10.2003 - 01.2007] 15BFT..BB5# T=1.40 |
11115-58151 |
from US $98.83 |
||
|
11122
|
11122
11122-58020 Bush, Intake Valve Guide[10.2003 - 01.2007] 15BFT..BB5# STD |
11122-58020 |
from US $7.43 |
||
|
11126
|
11126
11122-58020 Bush, Intake Valve Guide[10.2003 - 01.2007] 15BFT..BB5# STD |
11122-58020 |
from US $7.43 |
||
|
11201
|
11201
11201-58040
Cover Sub-Assy, Cylinder Head
[10.2003 - 09.2005] 15BFT..BB5# |
11201-58040 |
— | ||
| replacement | |||||
|
11201
|
11201
11201-58041 Cover Sub-Assy, Cylinder Head[10.2003 - 09.2005] 15BFT..BB5# |
11201-58041 |
US $283.05 |
||
|
11201
|
11201
11201-58041 Cover Sub-Assy, Cylinder Head[09.2005 - 01.2007] 15BFT..BB5# |
11201-58041 |
US $283.05 |
||
|
11201A
|
11201A
90179-08040 Nut, Cap(For Cylinder Head Cover)[10.2003 - 01.2007] 15BFT..BB5# |
90179-08040 |
from US $1.13 |
||
|
11201E
|
11201E
92112-60835 Bolt, Stud(For Cylinder Head Cover Set)[10.2003 - 02.2004] 15BFT..BB5# |
92112-60835 |
US $3.04 |
||
|
11201E
|
11201E
92112-80835 Bolt, Stud(For Cylinder Head Cover Set)[02.2004 - 01.2007] 15BFT..BB5# |
92112-80835 |
US $1.16 |
||
|
11201H
|
11201H
91511-B0835
Bolt(For Cylinder Head Set Sub)
[10.2003 - 01.2007] 15BFT..BB5# |
91511-B0835 |
— | ||
| replacement | |||||
|
11201H
|
11201H
90105-08200 Bolt(For Cylinder Head Set Sub)[10.2003 - 01.2007] 15BFT..BB5# |
90105-08200 |
US $2.24 |
||
|
11212A
|
11212A
11228-56010 Cushion, Cylinder Head Cover[10.2003 - 01.2007] 15BFT..BB5# |
11228-56010 |
US $5.28 |
||
|
11213
|
11213
11213-58021 Gasket, Cylinder Head Cover[10.2003 - 01.2007] 15BFT..BB5# |
11213-58021 |
US $18.54 |
||
|
12108
|
12108
12180-55010 Cap Sub-Assy, Oil Filler[10.2003 - 01.2007] 15BFT..BB5# |
12180-55010 |
from US $10.08 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[10.2003 - 01.2007] 3RZFE..RZB5#; 15BFT..BB5# |
90430-37140 |
from US $1.25 |
||
|
12281A
|
12281A
12281-58010 Hanger, Engine, No.1[10.2003 - 01.2007] 15BFT..BB5# |
12281-58010 |
US $15.72 |
||
|
91622B1018
|
91622B1018
91622-B1018 BOLT WWASHER |
91622-B1018 |
from US $0.94 |
||
