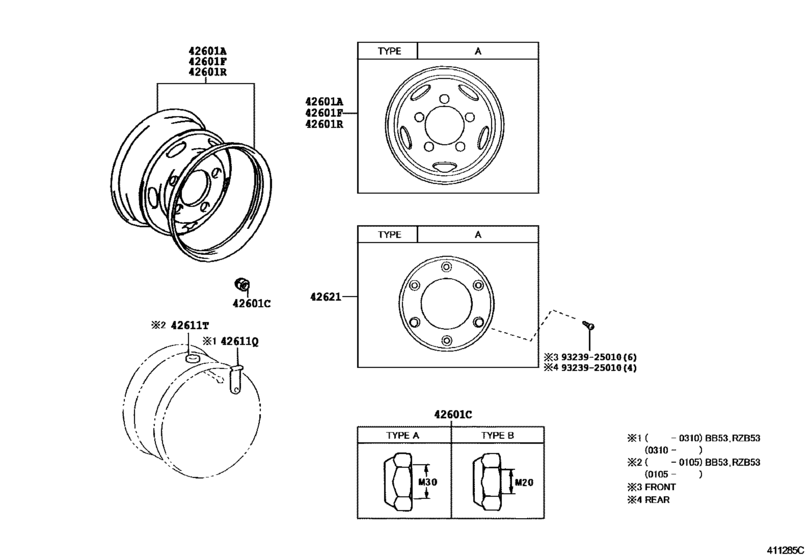

Disc Wheel & Wheel Cap ([12.2000 - ] (0012- )) Diagram Toyota COASTER
- Year
- 2003 - 2007
- Sales region
- General
- Frame
- BB54
- grade
- STD
- ENGINE
- 15BFT
- TRANSMISSION
- MTM
- Model
- COASTER (CHINA)
- From
- 10.2003
- To
- 01.2007
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42601A
|
42601A
42610-36490
Wheel, Disc (For Spare)
[10.2003 -] BB5#,RZB5#,TRB53,XZB53 16X5.50F |
42610-36490 |
— | ||
|
42601C
|
42601C
42633-55030 Nut, Hub (For Axle)[10.2003 -] BB5#,RZB5#,TRB53,XZB53..CBU TYPE A:REFER TO ILLUSTRATION,RH |
42633-55030 |
from US $10.24 |
||
|
42601C
|
42601C
42634-55030 Nut, Hub (For Axle)[10.2003 -] BB5#,RZB5#,TRB53,XZB53..CBU TYPE A:REFER TO ILLUSTRATION,LH |
42634-55030 |
from US $7.35 |
||
|
42601C
|
42601C
90942-01107 Nut, Hub (For Axle)[10.2003 -] BB5#,RZB5#,TRB53,XZB53..CBU TYPE B:REFER TO ILLUSTRATION,RH |
90942-01107 |
from US $8.62 |
||
|
42601C
|
42601C
90942-01108 Nut, Hub (For Axle)[10.2003 -] BB5#,RZB5#,TRB53,XZB53..CBU TYPE B:REFER TO ILLUSTRATION,LH |
90942-01108 |
from US $7.13 |
||
|
42601F
|
42601F
42610-36490
Wheel, Disc (For Spare)
[10.2003 -] BB5#,RZB5#,TRB53,XZB53 16X5.50F |
42610-36490 |
— | ||
|
42601R
|
42601R
42610-36490
Wheel, Disc (For Spare)
[10.2003 -] BB5#,RZB5#,TRB53,XZB53 16X5.50F |
42610-36490 |
— | ||
|
42611Q
|
42611Q
90468-10014 Clip (For Tube)[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
90468-10014 |
US $1.92 |
||
|
42611T
|
42611T
90201-11009 Washer (For Tube)[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
90201-11009 |
US $1.31 |
||
|
42621
|
42621
42621-36160 Cap, Wheel[10.2003 -] BB5#,RZB5#,TRB53,XZB53..CBU TYPE A:REFER TO ILLUSTRATION,FRONT |
42621-36160 |
from US $16.09 |
||
|
42621
|
42621
42621-36170 Cap, Wheel[10.2003 -] BB5#,RZB5#,TRB53,XZB53..CBU TYPE A:REFER TO ILLUSTRATION,REAR |
42621-36170 |
from US $15.99 |
||
|
9323925010
|
9323925010
93239-25010 SCREW |
93239-25010 |
from US $0.76 |
