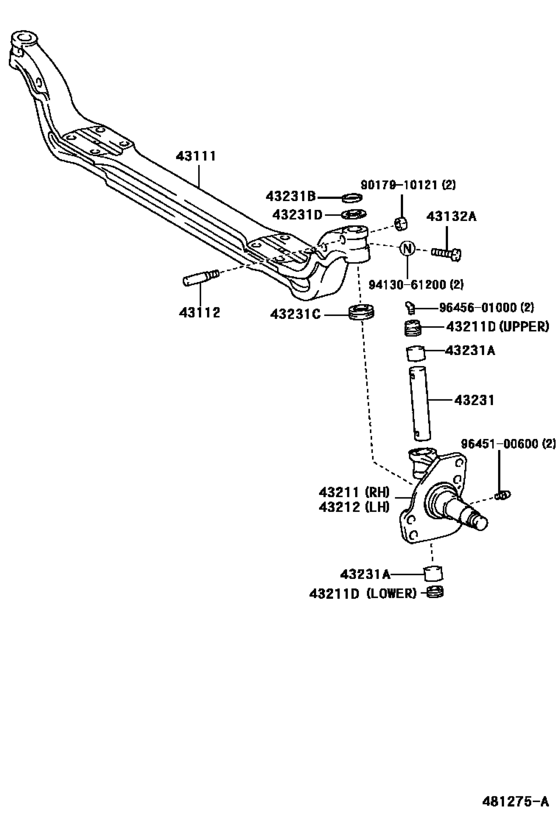

Front Axle Arm & Steering Knuckle ([12.2000 - 01.2007] (0012-0701)BB54,RZB54) Diagram Toyota COASTER
- Year
- 2003 - 2007
- Sales region
- General
- Frame
- BB54
- grade
- STD
- ENGINE
- 15BFT
- TRANSMISSION
- MTM
- Model
- COASTER (CHINA)
- From
- 10.2003
- To
- 01.2007
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43111
|
43111
43111-36130
I Beam, Front Axle
[10.2003 - 01.2007] BB54,RZB54..20S,23S |
43111-36130 |
— | ||
|
43112
|
43112
43112-36040
Pin, King Pin Lock
[10.2003 - 01.2007] BB54,RZB54..20S,23S |
43112-36040 |
— | ||
|
43132A
|
43132A
90106-12001 Bolt, Round Hexagon (For Steering Knuckle Stopper Bolt)[10.2003 - 01.2007] BB54,RZB54..20S,23S |
90106-12001 |
US $3.84 |
||
|
43211
|
43211
43201-36130 Knuckle, Steering, RhSTEERING, RH [10.2003 - 01.2007] BB54,RZB54 |
43201-36130 |
US $228.59 |
||
|
43211D
|
43211D
90345-33003 Plug (For Steering Knuckle)[10.2003 - 01.2007] BB54,RZB54..20S,23S LOWER |
90345-33003 |
US $5.12 |
||
|
43211D
|
43211D
90345-33004 Plug (For Steering Knuckle)[10.2003 - 01.2007] BB54,RZB54..20S,23S UPPER |
90345-33004 |
US $3.84 |
||
|
43212
|
43212
43202-36120 Knuckle, Steering, LhSTEERING, LH [10.2003 - 01.2007] BB54,RZB54 |
43202-36120 |
US $228.59 |
||
|
43231
|
43231
43231-36050
Pin, Steering Knuckle King
[10.2003 - 01.2007] BB54,RZB54..20S,23S |
43231-36050 |
— | ||
|
43231A
|
43231A
90999-73086 Bush, Bimetal Formed (For Steering Knuckle King Pin Bush)[10.2003 - 04.2004] BB54 |
90999-73086 |
US $7.36 |
||
|
43231B
|
43231B
90312-28003 Seal, Dust Or Ring, O (For Steering Knuckle King Pin)[10.2003 - 01.2007] BB54,RZB54..20S,23S |
90312-28003 |
US $1.92 |
||
|
43231C
|
43231C
90367-28001 Bearing (For Steering Knuckle King Pin)[10.2003 - 01.2007] BB54,RZB54..20S,23S |
90367-28001 |
from US $8.33 |
||
|
43231D
|
43231D
90564-28001 Shim (For King Pin)[10.2003 - 01.2007] BB54,RZB54..20S,23S T=1.9 |
90564-28001 |
US $2.48 |
||
|
43231D
|
43231D
90564-28002 Shim (For King Pin)[10.2003 - 01.2007] BB54,RZB54..20S,23S T=2.0 |
90564-28002 |
US $2.48 |
||
|
43231D
|
43231D
90564-28003 Shim (For King Pin)[10.2003 - 01.2007] BB54,RZB54..20S,23S T=2.1 |
90564-28003 |
US $2.48 |
||
|
43231D
|
43231D
90564-28004 Shim (For King Pin)[10.2003 - 01.2007] BB54,RZB54..20S,23S T=2.2 |
90564-28004 |
US $2.48 |
||
|
43231D
|
43231D
90564-28005 Shim (For King Pin)[10.2003 - 01.2007] BB54,RZB54..20S,23S T=2.3 |
90564-28005 |
US $2.48 |
||
|
43231D
|
43231D
90564-28006 Shim (For King Pin)[10.2003 - 01.2007] BB54,RZB54..20S,23S T=2.4 |
90564-28006 |
US $2.48 |
||
|
9017910121
|
9017910121
90179-10121 NUT |
90179-10121 |
US $1.44 |
||
|
9413061200
|
9413061200
94130-61200 Nut |
94130-61200 |
from US $0.99 |
||
|
9645100600
|
9645100600
96451-00600 Fitting, Grease Small(For Tail Gate Lock Link) |
96451-00600 |
from US $1.50 |
||
|
9645601000
|
9645601000
96456-01000 FITTING GREASE |
96456-01000 |
US $4.16 |
