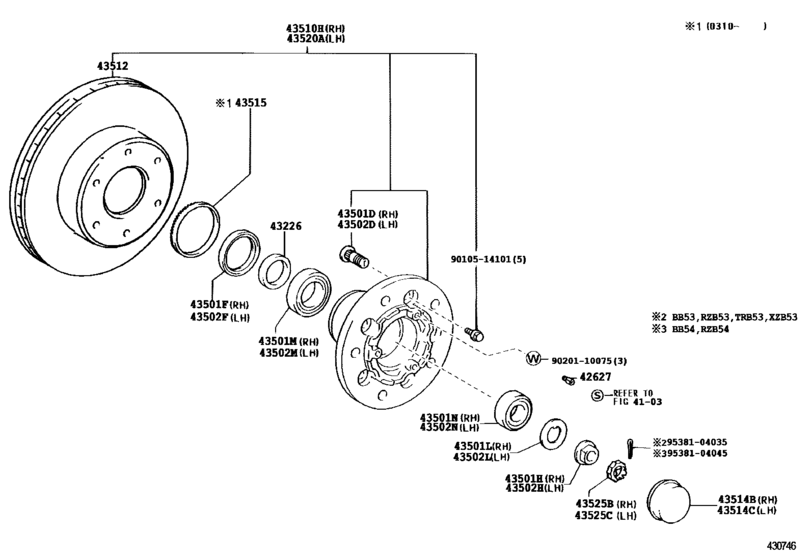

Front Axle Hub ([10.2003 - ] (0012-0310)BB53,RZB53 ; (0310- )) Diagram Toyota COASTER
- Year
- 2003 - 2007
- Sales region
- General
- Frame
- BB54
- grade
- STD
- ENGINE
- 15BFT
- TRANSMISSION
- MTM
- Model
- COASTER (CHINA)
- From
- 10.2003
- To
- 01.2007
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42627
|
42627
42627-36020 Bolt, Front Wheel Cap Set[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
42627-36020 |
from US $2.54 |
||
|
43226
|
43226
43226-36020
Spacer, Steering Knuckle
[10.2003 - 01.2007] BB54,RZB54 |
43226-36020 |
— | ||
|
43501D
|
43501D
90942-02071 Bolt, Hub (For Rear Axle Rh)[10.2003 - 01.2007] BB54,RZB54 |
90942-02071 |
from US $7.55 |
||
|
43501F
|
43501F
90311-68002 Seal, Oil (For Front Axle Hub Rh)[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
90311-68002 |
from US $12 |
||
|
43501H
|
43501H
90178-28001 Nut (For Front Axle Shaft Rh)[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
90178-28001 |
from US $2.36 |
||
|
43501L
|
43501L
90214-29002
Washer, Claw (For Front Axle Hub Rh)
[10.2003 - 01.2007] BB54,RZB54 |
90214-29002 |
— | ||
|
43501M
|
43501M
90366-50063 Bearing (For Front Axle Hub Inner Rh)[10.2003 - 01.2007] BB54,RZB54 |
90366-50063 |
US $50.96 |
||
|
43501N
|
43501N
90366-35111 Bearing (For Front Axle Hub Outer Rh)[10.2003 - 01.2007] BB54,RZB54 |
90366-35111 |
US $42.22 |
||
|
43502D
|
43502D
90942-02072 Bolt, Hub (For Rear Axle Lh)[10.2003 - 01.2007] BB54,RZB54 |
90942-02072 |
from US $7.68 |
||
|
43502F
|
43502F
90311-68002 Seal, Oil (For Front Axle Hub Rh)[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
90311-68002 |
from US $12 |
||
|
43502H
|
43502H
90178-28001 Nut (For Front Axle Shaft Rh)[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
90178-28001 |
from US $2.36 |
||
|
43502L
|
43502L
90214-29002
Washer, Claw (For Front Axle Hub Rh)
[10.2003 - 01.2007] BB54,RZB54 |
90214-29002 |
— | ||
|
43502M
|
43502M
90366-50063 Bearing (For Front Axle Hub Inner Rh)[10.2003 - 01.2007] BB54,RZB54 |
90366-50063 |
US $50.96 |
||
|
43502N
|
43502N
90366-35111 Bearing (For Front Axle Hub Outer Rh)[10.2003 - 01.2007] BB54,RZB54 |
90366-35111 |
US $42.22 |
||
|
43510H
|
43510H
43510-36340
Hub & Disc(Drum) Assy, Front Axle, Rh
[10.2003 - 01.2007] BB54,RZB54 |
43510-36340 |
— | ||
|
43512
|
43512
43512-36200
Disc, Front
[10.2003 - 01.2007] BB54,RZB54 |
43512-36200 |
— | ||
|
43514B
|
43514B
43514-36060
Cap, Front Axle Hub Grease, Rh
[10.2003 - 01.2007] BB54,RZB54 |
43514-36060 |
— | ||
|
43514C
|
43514C
43514-36060
Cap, Front Axle Hub Grease, Rh
[10.2003 - 01.2007] BB54,RZB54 |
43514-36060 |
— | ||
|
43515
|
43515
43515-37010 Rotor, Skid Control, Front[10.2003 -] BB5#,RZB5#,TRB53,XZB53..20S,23S,29S,30S |
43515-37010 |
from US $14.63 |
||
|
43520A
|
43520A
43520-36340
Hub & Disc(Drum) Assy, Front Axle, Lh
[10.2003 - 01.2007] BB54,RZB54 |
43520-36340 |
— | ||
|
43525B
|
43525B
43525-36020
Cap, Front Wheel Adjusting Lock, Rh
[10.2003 - 01.2007] BB54,RZB54 |
43525-36020 |
— | ||
|
43525C
|
43525C
43525-36020
Cap, Front Wheel Adjusting Lock, Rh
[10.2003 - 01.2007] BB54,RZB54 |
43525-36020 |
— | ||
|
9010514101
|
9010514101
90105-14101 BOLT WASHER BASED |
90105-14101 |
US $3.04 |
||
|
9020110075
|
9020110075
90201-10075 WASHER |
90201-10075 |
from US $0.96 |
||
|
9538104035
|
9538104035
95381-04035 PIN |
95381-04035 |
from US $0.92 |
||
|
9538104045
|
9538104045
95381-04045 PINCOTTER |
95381-04045 |
from US $0.86 |
