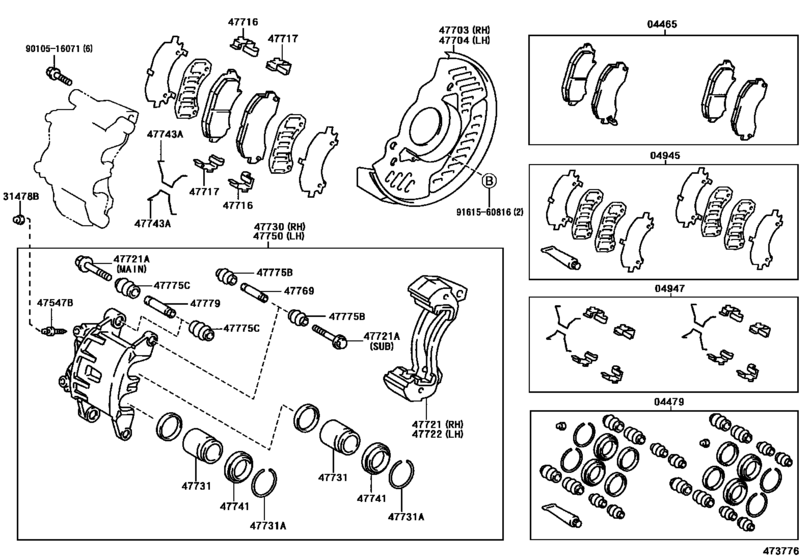

Front Disc Brake Caliper & Dust Cover ([10.2003 - ] (0310- )BB54,RZB54) Diagram Toyota COASTER
- Year
- 2003 - 2007
- Sales region
- General
- Frame
- BB54
- grade
- STD
- ENGINE
- 15BFT
- TRANSMISSION
- MTM
- Model
- COASTER (CHINA)
- From
- 10.2003
- To
- 01.2007
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04465
|
04465
04465-37030 Pad Kit, Disc Brake, Front[10.2003 - 01.2007] BB54,RZB54 MARK AISIN T536 |
04465-37030 |
from US $168.48 |
||
|
04479
|
04479
04479-37010 Cylinder Kit, Disc Brake, Front[10.2003 - 01.2007] BB54,RZB54 |
04479-37010 |
from US $68.55 |
||
|
04945
|
04945
04945-37030 Shim Kit, Anti Squeal, Front[10.2003 - 01.2007] BB54,RZB54 |
04945-37030 |
US $22.19 |
||
|
04947
|
04947
04947-36020 Fitting Kit, Disc Brake, Front[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
04947-36020 |
US $42.10 |
||
|
31478B
|
31478B
31478-30010 Bleeder Plug Cap[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
31478-30010 |
from US $1.66 |
||
|
47547B
|
47547B
47547-12010 Plug, Bleeder(For Release Cylinder)[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
47547-12010 |
from US $2.46 |
||
|
47703
|
47703
47703-36070 Cover Sub-Assy, Disc Brake Dust, Front RhDISC BRAKE DUST, FRONT RH [10.2003 - 01.2007] BB54,RZB54 |
47703-36070 |
US $36.98 |
||
|
47704
|
47704
47704-36070 Cover Sub-Assy, Disc Brake Dust, Front LhDISC BRAKE DUST, FRONT LH [10.2003 - 01.2007] BB54,RZB54 |
47704-36070 |
US $36.98 |
||
|
47716
|
47716
47716-36020 Plate, Pad Support, No.1(For Front Disc Brake)[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
47716-36020 |
US $4.16 |
||
|
47717
|
47717
47717-36020 Plate, Pad Support, No.2(For Front Disc Brake)[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
47717-36020 |
US $4.16 |
||
|
47721
|
47721
47721-37030 Mounting, Front Disc Brake Cylinder, Rh[10.2003 - 01.2007] BB54,RZB54 |
47721-37030 |
US $180.54 |
||
|
47721A
|
47721A
90119-08B87 Bolt(For Front Disc Brake Cylinder Mounting)[10.2003 - 01.2007] BB54,RZB54 *8-1.25PX59-27,SUB PIN SIDE |
90119-08B87 |
US $1.92 |
||
|
47721A
|
47721A
90119-12256 Bolt(For Front Disc Brake Cylinder Slide)[10.2003 - 01.2007] BB54,RZB54 *12-1.25PX75-30,MAIN PIN SIDE |
90119-12256 |
from US $2.93 |
||
|
47722
|
47722
47722-37020 Mounting, Front Disc Brake Cylinder, Lh[10.2003 - 01.2007] BB54,RZB54 |
47722-37020 |
US $180.54 |
||
|
47730
|
47730
47730-37030 Cylinder Assy, Front Disc Brake, Rh[10.2003 - 01.2007] BB54,RZB54 |
47730-37030 |
US $793.80 |
||
|
47731
|
47731
47731-37010
Piston, Front Disc Brake
[10.2003 - 01.2007] BB54,RZB54 |
47731-37010 |
— | ||
| replacement | |||||
|
47731
|
47731
47731-36020 Piston, Front Disc Brake[10.2003 - 01.2007] BB54,RZB54 |
47731-36020 |
from US $25.08 |
||
|
47731A
|
47731A
90522-61001 Ring, Set(For Front Disc Brake Piston)[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
90522-61001 |
US $0.93 |
||
|
47741
|
47741
47741-37010 Boot, Front Disc Brake Cylinder[10.2003 - 01.2007] BB54,RZB54..20S,23S |
47741-37010 |
US $5.42 |
||
|
47743A
|
47743A
47743-36020 Spring, Anti-Squeal(For Front Disc Brake)[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
47743-36020 |
from US $1.17 |
||
|
47750
|
47750
47750-37030 Cylinder Assy, Disc Brake, Lh[10.2003 - 01.2007] BB54,RZB54 |
47750-37030 |
US $793.80 |
||
|
47769
|
47769
47769-36030 Bush, Cylinder Slide, No.1(For Front Disc Brake)[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
47769-36030 |
US $5.28 |
||
|
47775B
|
47775B
47775-36040 Boot, Bush Dust, No.1[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
47775-36040 |
US $4.48 |
||
|
47775C
|
47775C
47775-36050 Boot, Bush Dust, No.1[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
47775-36050 |
US $7.36 |
||
|
47779
|
47779
47779-36010 Bush, Cylinder Slide, No.2(For Front Disc Brake)[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
47779-36010 |
from US $10.40 |
||
|
9010516071
|
9010516071
90105-16071 Bolt, Hexagon(For Front Disc Brake Caliper) |
90105-16071 |
US $3.84 |
||
|
9161560816
|
9161560816
91615-60816 Bolt(For Oil Receiver Pipe) |
91615-60816 |
US $2.62 |
||
| replacement | |||||
|
9161560816
|
9161560816
91611-60814 Bolt |
91611-60814 |
from US $0.80 |
||
