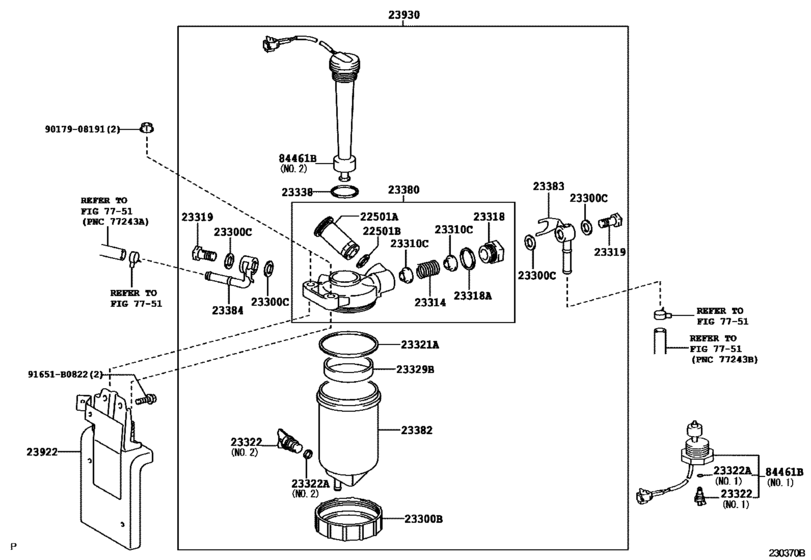

Fuel Filter ([07.2004 - ] TYPE B (0407- )15BFT) Diagram Toyota COASTER
- Year
- 2003 - 2007
- Sales region
- General
- Frame
- BB54
- grade
- STD
- ENGINE
- 15BFT
- TRANSMISSION
- MTM
- Model
- COASTER (CHINA)
- From
- 10.2003
- To
- 01.2007
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22501A
|
22501A
22501-54010 Pump Sub-Assy, Priming[07.2004 - 01.2007] 15BFT..BB5# TYPE B:REFER TO ILLUSTRATION |
22501-54010 |
US $38.44 |
||
|
22501A
|
22501A
22501-87302
Pump Sub-Assy, Priming
[10.2003 - 01.2007] 15BFT..BB5# TYPE A:REFER TO ILLUSTRATION |
22501-87302 |
— | ||
|
22501B
|
22501B
23344-54020 Gasket(For Priming Pump)[07.2004 - 01.2007] 15BFT..BB5# |
23344-54020 |
US $0.98 |
||
|
23300B
|
23300B
23323-54010
Nut(For Fuel Filter Case Support)
[07.2004 - 01.2007] 15BFT..BB5# |
23323-54010 |
— | ||
|
23300C
|
23300C
22447-47030 Gasket, Nipple Union(For Fuel)[07.2004 - 01.2007] 15BFT..BB5# TYPE B:REFER TO ILLUSTRATION |
22447-47030 |
US $0.84 |
||
|
23300C
|
23300C
94712-77121 Gasket, Nipple Union(For Fuel)[10.2003 - 01.2007] 15BFT..BB5# TYPE A:REFER TO ILLUSTRATION |
94712-77121 |
US $1.12 |
||
|
23310C
|
23310C
23316-54010 Valve Sub-Assy, Fuel Filter[10.2003 - 01.2007] 15BFT..BB5# |
23316-54010 |
from US $3.35 |
||
|
23314
|
23314
23314-54010
Spring, Fuel Filter
[10.2003 - 01.2007] 15BFT..BB5# |
23314-54010 |
— | ||
|
23318
|
23318
23323-54020
Bolt, Union
[07.2004 - 01.2007] 15BFT..BB5# |
23323-54020 |
— | ||
|
23318A
|
23318A
15318-44010 Gasket, Oil Pressure Valve[10.2003 - 01.2007] 15BFT..BB5# |
15318-44010 |
US $5.59 |
||
|
23319
|
23319
23319-48010
Union, Nipple(For Fuel Filter Inlet)
[10.2003 - 01.2007] 15BFT..BB5# TYPE A:REFER TO ILLUSTRATION |
23319-48010 |
— | ||
|
23319
|
23319
90099-18011
Screw, Fuel Pipe Follow
[07.2004 - 01.2007] 15BFT..BB5# TYPE B:REFER TO ILLUSTRATION |
90099-18011 |
— | ||
|
23321A
|
23321A
23312-54010 Gasket, Filter Bowl[07.2004 - 01.2007] 15BFT..BB5# |
23312-54010 |
US $9.43 |
||
|
23322
|
23322
23322-54010 Plug,air(For Oil Cooler Drain Cock)[07.2004 - 01.2007] 15BFT..BB5# NO.2 |
23322-54010 |
from US $5.09 |
||
|
23322
|
23322
23388-64470 Plug, Drain(For Fuel Filter)[11.2004 - 01.2007] 15BFT..BB5# NO.1 |
23388-64470 |
from US $4.97 |
||
|
23322A
|
23322A
23344-54010 O-Ring (For Drain Plug)[07.2004 - 01.2007] 15BFT..BB5# TYPE B:REFER TO ILLUSTRATION,NO.2 |
23344-54010 |
from US $1.70 |
||
|
23322A
|
23322A
23344-54020 Gasket(For Priming Pump)[10.2003 - 01.2007] 15BFT..BB5# TYPE A:REFER TO ILLUSTRATION |
23344-54020 |
US $0.98 |
||
|
23329B
|
23329B
23329-54010
Float, Level Warning
[07.2004 - 01.2007] 15BFT..BB5# |
23329-54010 |
— | ||
|
23338
|
23338
23338-54010 Gasket(For Warning Switch)[07.2004 - 01.2007] 15BFT..BB5# |
23338-54010 |
US $3.32 |
||
|
23380
|
23380
23380-54061 Cap Assy, Fuel FilterFUEL FILTER [07.2004 - 01.2007] 15BFT..BB5# |
23380-54061 |
US $100.46 |
||
|
23382
|
23382
23382-58070
Case, Fuel Filter
[07.2004 - 01.2007] 15BFT..BB5# |
23382-58070 |
— | ||
|
23383
|
23383
23383-58070 Union, Fuel FilterFUEL FILTER [07.2004 - 01.2007] 15BFT..BB5# |
23383-58070 |
US $18.20 |
||
|
23384
|
23384
23384-58070 Union, Fuel Filter, No.2FUEL FILTER, NO.2 [07.2004 - 01.2007] 15BFT..BB5# |
23384-58070 |
US $18.20 |
||
|
23922
|
23922
23922-58020
Support, Fuel Sedimenter
[07.2004 - 01.2007] 15BFT..BB5# |
23922-58020 |
— | ||
|
23930
|
23930
23930-58070 Sedimenter Assy, FuelFUEL [07.2004 - 01.2007] 15BFT..BB5# |
23930-58070 |
US $314.50 |
||
|
84461B
|
84461B
84461-28040
Switch, Level Warning
[07.2004 - 01.2007] BB5# NO.1 |
84461-28040 |
— | ||
| replacement | |||||
|
84461B
|
84461B
84461-28041 Switch, Level Warning[07.2004 - 01.2007] BB5# NO.1 |
84461-28041 |
from US $76.96 |
||
|
84461B
|
84461B
84461-35120 Switch, Level WarningLEVEL WARNING [07.2004 - 01.2007] BB5# NO.2 |
84461-35120 |
US $80.08 |
||
|
91651B0822
|
91651B0822
91651-B0822 BOLT WWASHER |
91651-B0822 |
US $1.76 |
||
|
9017908191
|
9017908191
90179-08191 New Genuine Part |
90179-08191 |
US $1.44 |
||
