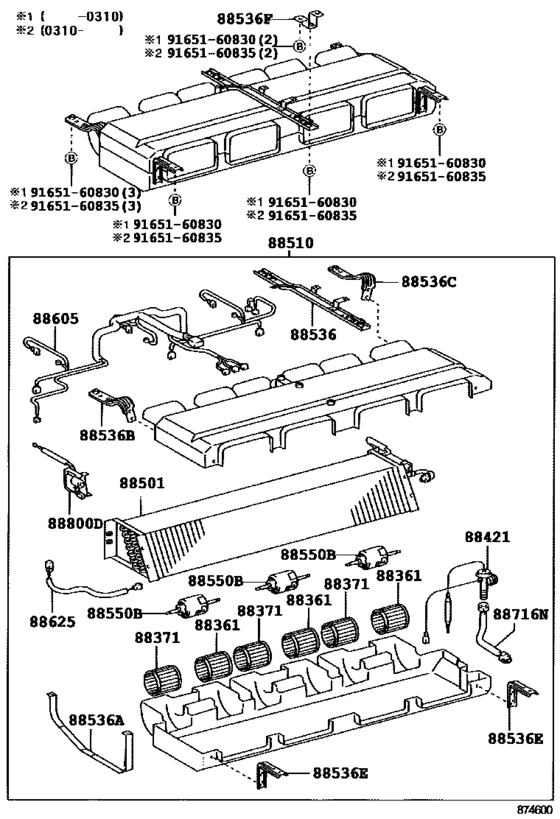

Heating & Air Conditioning - Cooler Unit ([12.2000 - ] (0012- )) Diagram Toyota COASTER
- Year
- 2003 - 2007
- Sales region
- General
- Frame
- BB54
- grade
- STD
- ENGINE
- 15BFT
- TRANSMISSION
- MTM
- Model
- COASTER (CHINA)
- From
- 10.2003
- To
- 01.2007
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88361
|
88361
87105-36110
Fan, Cooler Blower, No.1
[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
87105-36110 |
— | ||
|
88371
|
88371
87105-36120
Fan, Cooler Blower, No.2
[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
87105-36120 |
— | ||
|
88421
|
88421
88421-36040
Valve, Expansion, No.2
[10.2003 - 05.2005] BB5#,RZB5# |
88421-36040 |
— | ||
| replacement | |||||
|
88421
|
88421
88421-36060
Valve, Expansion, No.2
[10.2003 - 05.2005] BB5#,RZB5# |
88421-36060 |
— | ||
|
88421
|
88421
88421-36060
Valve, Expansion, No.2
[06.2005 -] BB5#,RZB5#,TRB53,XZB53 |
88421-36060 |
— | ||
|
88501
|
88501
88501-36110
Evaporator Sub-Assy, Cooler, No.1
[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
88501-36110 |
— | ||
|
88510
|
88510
88510-36201
Unit Assy, Cooler
[10.2003 - 01.2007] BB5# |
88510-36201 |
— | ||
|
88536
|
88536
88536-36160
Bracket, Cooling Unit, No.1
[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
88536-36160 |
— | ||
|
88536A
|
88536A
88536-36170
Bracket, Cooling Unit, No.2
[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
88536-36170 |
— | ||
|
88536B
|
88536B
88536-36180
Bracket, Cooling Unit, No.3
[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
88536-36180 |
— | ||
|
88536C
|
88536C
88536-36190
Bracket, Cooling Unit, No.4
[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
88536-36190 |
— | ||
|
88536E
|
88536E
88536-36140
Bracket, Cooling Unit, No.3
[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
88536-36140 |
— | ||
|
88536F
|
88536F
88536-36150
Bracket, Cooling Unit, No.6
[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
88536-36150 |
— | ||
|
88550B
|
88550B
88550-36180
Motor Assy, Blower
[10.2003 - 01.2007] BB5# |
88550-36180 |
— | ||
|
88605
|
88605
88605-36320
Harness Sub-Assy, Cooler Wiring, No.1
[10.2003 - 08.2012] BB5#,RZB5#,TRB53,XZB53 |
88605-36320 |
— | ||
| replacement | |||||
|
88605
|
88605
88605-0S430
Harness Sub-Assy, Cooler Wiring, No.1
[10.2003 - 08.2012] BB5#,RZB5#,TRB53,XZB53 |
88605-0S430 |
— | ||
|
88625
|
88625
88625-36170
Thermistor, Cooler, No.1
[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
88625-36170 |
— | ||
|
88716N
|
88716N
88716-36460
Pipe, Cooler Refrigerant Liquid, F
[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
88716-36460 |
— | ||
|
88800D
|
88800D
88800-36030
Cooling Unit Servo
[10.2003 - 01.2007] BB5# |
88800-36030 |
— | ||
|
9165160830
|
9165160830
91651-60830 Bolt (For Transfer Power Take-Off Cover) |
91651-60830 |
US $1.44 |
||
|
9165160835
|
9165160835
91651-60835 Bolt(For Front Suspension Control Accumulator) |
91651-60835 |
from US $1.44 |
||
