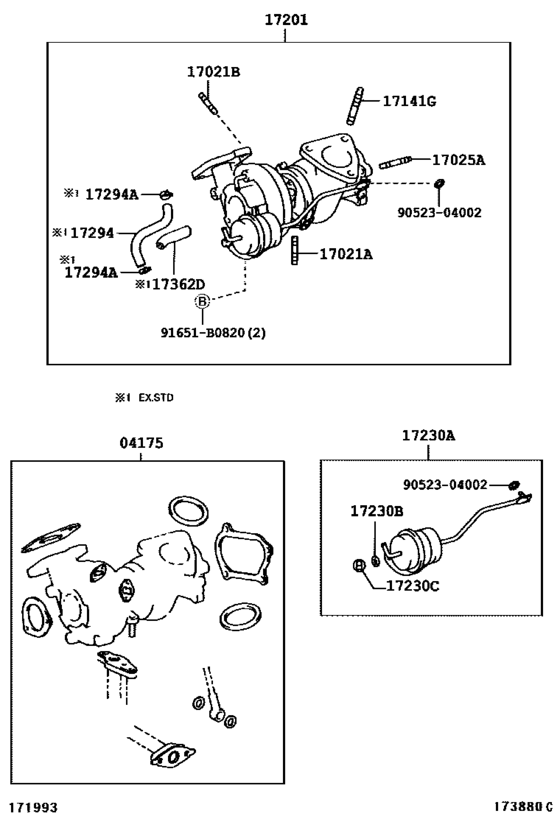

Manifold ([10.2003 - ] (0310- )15BFT) Diagram Toyota COASTER
- Year
- 2003 - 2007
- Sales region
- General
- Frame
- BB54
- grade
- STD
- ENGINE
- 15BFT
- TRANSMISSION
- MTM
- Model
- COASTER (CHINA)
- From
- 10.2003
- To
- 01.2007
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04175
|
04175
04175-58060 Gasket Kit, TurbochargerTURBOCHARGER [10.2003 - 01.2007] 15BFT..BB5# |
04175-58060 |
US $68.14 |
||
|
17021A
|
17021A
90116-08158 Bolt, Stud(For Bearing Housing)[10.2003 - 01.2007] 15BFT..BB5# |
90116-08158 |
US $4.96 |
||
|
17021B
|
17021B
90116-06048 Bolt, Stud(For Oil Pan)[10.2003 - 01.2007] 15BFT..BB5# |
90116-06048 |
from US $0.72 |
||
|
17025A
|
17025A
90126-08017 Bolt, Stud(For Turbine Housing)[10.2003 - 01.2007] 15BFT..BB5# |
90126-08017 |
US $2.77 |
||
|
17141G
|
17141G
90116-10175 Bolt, Stud(For Turbine Housing)[10.2003 - 01.2007] 15BFT..BB5# |
90116-10175 |
from US $1.33 |
||
|
17201
|
17201
17201-58040 Turbocharger Sub-Assy[10.2003 - 01.2007] 15BFT..BB5#..EX,STD |
17201-58040 |
US $2,779.50 |
||
|
17230A
|
17230A
17230-59105 Repair Actuaor Assy, W/bracket[10.2003 - 01.2007] 15BFT..BB5#..EX,STD |
17230-59105 |
US $326.14 |
||
|
17230B
|
17230B
90201-08081 Washer, Plate(For Repair Actuator Set)[10.2003 - 01.2007] 15BFT..BB5# T=0.5 |
90201-08081 |
US $2.24 |
||
|
17230B
|
17230B
90201-08082 Washer, Plate(For Repair Actuator Set)[10.2003 - 01.2007] 15BFT..BB5# T=1.0 |
90201-08082 |
US $1.60 |
||
|
17230B
|
17230B
90201-08086 Washer, Plate(For Repair Actuator Set)[10.2003 - 01.2007] 15BFT..BB5# T=2.0 |
90201-08086 |
US $1.46 |
||
|
17230B
|
17230B
90201-08087 Washer, Plate(For Repair Actuator Set)[10.2003 - 01.2007] 15BFT..BB5# T=3.0 |
90201-08087 |
US $1.89 |
||
|
17230C
|
17230C
91621-60822 Bolt, W/washer(For Repair Actuator Set)[10.2003 - 01.2007] 15BFT..BB5# |
91621-60822 |
US $1.44 |
||
|
17294
|
17294
90445-12151 Hose, Actuator[10.2003 - 01.2007] 15BFT..BB5#..EX,STD |
90445-12151 |
US $2.91 |
||
|
17294A
|
17294A
96132-51100 Clip (For Hose)[10.2003 - 01.2007] 15BFT..BB5#..EX,STD |
96132-51100 |
from US $1.92 |
||
|
17362D
|
17362D
17362-58020 Protector, Actuator Hose[10.2003 - 01.2007] 15BFT..BB5#..EX,STD |
17362-58020 |
US $5.68 |
||
|
91651B0820
|
91651B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.07 |
||
| replacement | |||||
|
91651B0820
|
91651B0820
90080-11347 New Genuine Part |
90080-11347 |
US $2.48 |
||
|
9052304002
|
9052304002
90523-04002 RING |
90523-04002 |
US $1.28 |
||
