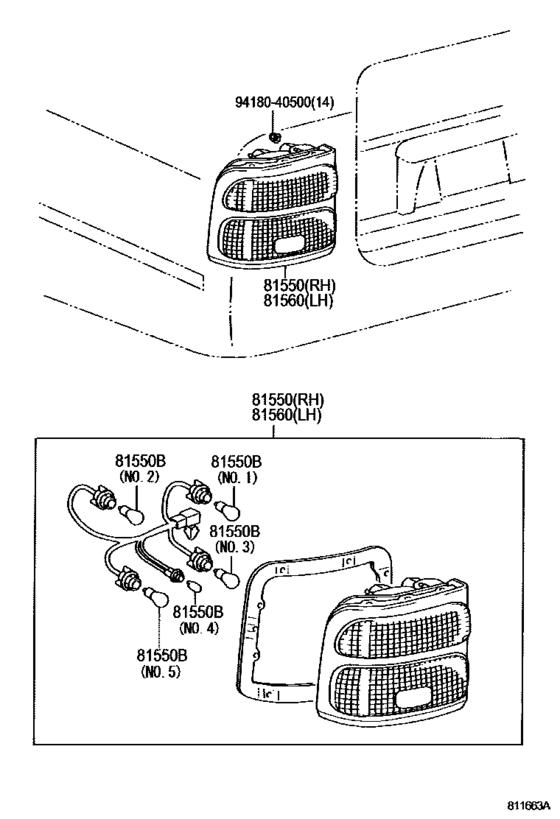

Rear Combination Lamp ([12.2000 - ] (0012- )) Diagram Toyota COASTER
- Year
- 2003 - 2007
- Sales region
- General
- Frame
- BB54
- grade
- STD
- ENGINE
- 15BFT
- TRANSMISSION
- MTM
- Model
- COASTER (CHINA)
- From
- 10.2003
- To
- 01.2007
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-36360
Lamp Assy, Rear Combination, Rh
[10.2003 - 11.2006] BB54 |
81550-36360 |
— | ||
| replacement | |||||
|
81550
|
81550
81550-36361
Lamp Assy, Rear Combination, Rh
[10.2003 - 11.2006] BB54 |
81550-36361 |
— | ||
|
81550
|
81550
81550-36361
Lamp Assy, Rear Combination, Rh
[11.2006 - 01.2007] BB54 |
81550-36361 |
— | ||
|
81550B
|
81550B
90981-12015 Bulb, Spot Lamp[10.2003 - 01.2007] BB5# 24V 5W,NO.4 |
90981-12015 |
from US $3.36 |
||
|
81550B
|
81550B
90981-16014 Bulb (For Front Turn Signal Lamp)[10.2003 - 01.2007] BB5# 24V 21W,NO.1 & NO.2 & NO.3 |
90981-16014 |
from US $4.32 |
||
|
81550B
|
81550B
90981-16015 Bulb (For Front Turn Signal Lamp)[10.2003 - 01.2007] BB5# 24V 21/5W,NO.5 |
90981-16015 |
from US $5.60 |
||
|
81560
|
81560
81560-36250
Lamp Assy, Rear Combination, Lh
[10.2003 - 11.2006] BB54 |
81560-36250 |
— | ||
| replacement | |||||
|
81560
|
81560
81560-36251
Lamp Assy, Rear Combination, Lh
[10.2003 - 11.2006] BB54 |
81560-36251 |
— | ||
|
81560
|
81560
81560-36251
Lamp Assy, Rear Combination, Lh
[11.2006 - 01.2007] BB54 |
81560-36251 |
— | ||
|
9418040500
|
9418040500
94180-40500 Nut, Tilt Roof Housing |
94180-40500 |
US $1.28 |
||
