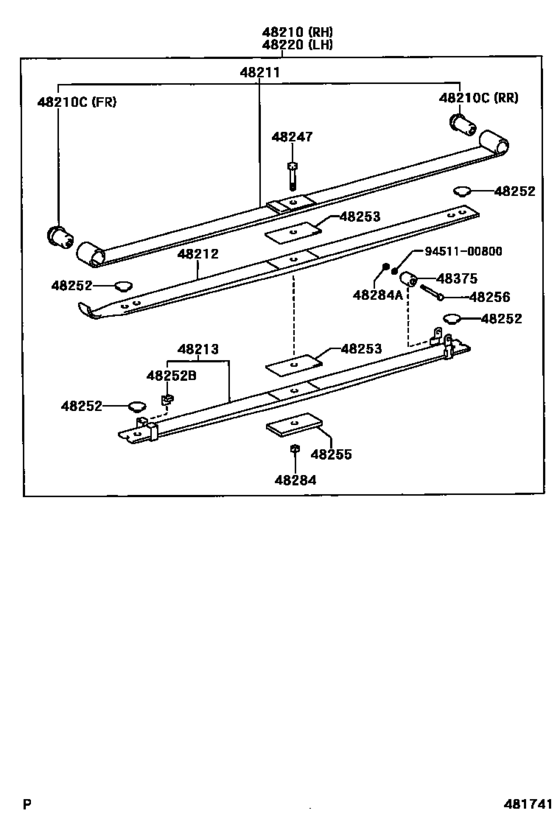

Rear Spring & Shock Absorber ([12.2000 - 01.2007] 3-LEAF (0012-0701)BB54,RZB54..20S,23S) Diagram Toyota COASTER
- Year
- 2003 - 2007
- Sales region
- General
- Frame
- BB54
- grade
- STD
- ENGINE
- 15BFT
- TRANSMISSION
- MTM
- Model
- COASTER (CHINA)
- From
- 10.2003
- To
- 01.2007
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48210
|
48210
48210-3C300
Spring Assy, Rear Rh
[10.2003 - 01.2007] BB54,RZB54..20S,23S 3-LEAF |
48210-3C300 |
— | ||
|
48210C
|
48210C
90389-16015 Bimetal Formed Bush(For Front Spring)[10.2003 - 01.2007] BB5#,RZB5#..20S,23S,24S REAR |
90389-16015 |
US $19.74 |
||
| replacement | |||||
|
48210C
|
48210C
90389-16030 BUSH[10.2003 - 01.2007] BB5#,RZB5#..20S,23S,24S REAR |
90389-16030 |
from US $19.46 |
||
|
48210C
|
48210C
90389-16018 Bush(For Rear Spring Leaf)[10.2003 - 01.2007] BB5#,RZB5#..20S,23S,24S FRONT |
90389-16018 |
from US $18.54 |
||
|
48211
|
48211
48201-3C300 Leaf, Rear Spring, No.1REAR SPRING, NO.1 [10.2003 - 01.2007] BB54,RZB54..20S,23S PASSENGER SIDE |
48201-3C300 |
US $345.07 |
||
|
48211
|
48211
48201-3C310 Leaf, Rear Spring, No.1REAR SPRING, NO.1 [10.2003 - 01.2007] BB54,RZB54..20S,23S DRIVER SIDE |
48201-3C310 |
US $345.07 |
||
|
48212
|
48212
48212-3C300 Leaf, Rear Spring, No.2REAR SPRING, NO.2 [10.2003 - 01.2007] BB54,RZB54..20S,23S PASSENGER SIDE |
48212-3C300 |
US $222.77 |
||
|
48212
|
48212
48212-3C310 Leaf, Rear Spring, No.2REAR SPRING, NO.2 [10.2003 - 01.2007] BB54,RZB54..20S,23S DRIVER SIDE |
48212-3C310 |
US $222.77 |
||
|
48213
|
48213
48202-3C300 Leaf, Rear Spring, No.3REAR SPRING, NO.3 [10.2003 - 01.2007] BB54,RZB54..20S,23S PASSENGER SIDE |
48202-3C300 |
US $199.47 |
||
|
48213
|
48213
48202-3C310 Leaf, Rear Spring, No.3REAR SPRING, NO.3 [10.2003 - 01.2007] BB54,RZB54..20S,23S DRIVER SIDE |
48202-3C310 |
US $199.47 |
||
|
48220
|
48220
48210-3C310
Spring Assy, Rear Lh
[10.2003 - 01.2007] BB54,RZB54..20S,23S 3-LEAF |
48210-3C310 |
— | ||
|
48247
|
48247
48247-3C280 Bolt, Rear Spring, CenterREAR SPRING, CENTER [10.2003 - 01.2007] BB54,RZB54..20S,23S |
48247-3C280 |
US $5.39 |
||
|
48252
|
48252
48252-3B800 Silencer, Front Spring, No.1[10.2003 - 01.2007] BB54,RZB54..20S,23S |
48252-3B800 |
from US $12 |
||
|
48252B
|
48252B
48252-37380 Silencer, Rear Spring[10.2003 - 01.2007] BB54,RZB54..20S,23S |
48252-37380 |
US $8.64 |
||
|
48253
|
48253
48253-3B730 Spacer, Rear Spring, No.1[10.2003 -] BB5#,RZB5#,TRB53,XZB53..20S,23S,24S |
48253-3B730 |
US $6.29 |
||
|
48255
|
48255
48253-3C300 Spacer, Rear Spring LeafREAR SPRING LEAF [10.2003 - 01.2007] BB54,RZB54..20S,23S |
48253-3C300 |
US $135.41 |
||
|
48256
|
48256
48256-26010 Bolt, Hexagon(For Rear Spring Clip Set)[10.2003 -] BB5#,RZB5#,TRB53,XZB53..20S,23S,24S |
48256-26010 |
US $2.04 |
||
|
48284
|
48284
48284-37130 Nut, Front Spring Center Bolt[10.2003 -] BB5#,RZB5#,TRB53,XZB53..20S,23S,24S |
48284-37130 |
from US $1.19 |
||
|
48284A
|
48284A
48284-20440 Nut, Rear Spring Clip[10.2003 -] BB5#,RZB5#,TRB53,XZB53..20S,23S,24S |
48284-20440 |
US $0.96 |
||
|
48375
|
48375
48375-36010 Damper, Leaf Spring Dynamic[10.2003 - 01.2007] BB5#,RZB5#..20S,24S 2-LEAF OR 3-LEAF |
48375-36010 |
US $19.95 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
