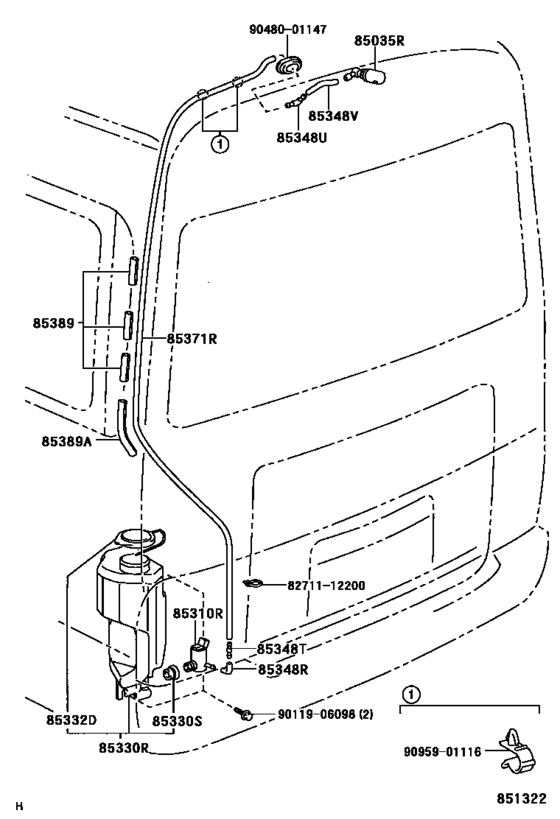

Rear Washer ([10.2003 - 12.2006] (0310-0612)BB5#) Diagram Toyota COASTER
- Year
- 2003 - 2007
- Sales region
- General
- Frame
- BB54
- grade
- STD
- ENGINE
- 15BFT
- TRANSMISSION
- MTM
- Model
- COASTER (CHINA)
- From
- 10.2003
- To
- 01.2007
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85035R
|
85035R
85391-36020 Nozzle Sub-Assy, Rear Washer[10.2003 - 12.2006] BB5#,RZB5#..20S,23S,24S |
85391-36020 |
from US $9.44 |
||
|
85310R
|
85310R
85330-36160 Motor And Pump Assy, Windshield Washer[10.2003 - 12.2006] BB5# |
85330-36160 |
US $110.18 |
||
|
85330R
|
85330R
85325-36031
Jar Assy, Rear Washer
[10.2003 - 12.2006] BB5#,RZB5#..20S,23S,24S |
85325-36031 |
— | ||
|
85330S
|
85330S
90099-32089 Bush, Headlamp Cleaner Washer Jar[10.2003 - 12.2006] BB5#,RZB5#..20S,23S,24S |
90099-32089 |
from US $0.98 |
||
| replacements | |||||
|
85330S
|
85330S
90099320891
Grommet
[10.2003 - 12.2006] BB5#,RZB5#..20S,23S,24S |
90099320891 |
— | ||
|
85330S
|
85330S
90068-32002 Bush, Windshield Washer Jar[10.2003 - 12.2006] BB5#,RZB5#..20S,23S,24S |
90068-32002 |
US $7.46 |
||
|
85332D
|
85332D
85316-35130 Cap, Rear Washer Tank[10.2003 - 12.2006] BB5#,RZB5#..20S,23S,24S |
85316-35130 |
from US $3.52 |
||
|
85348R
|
85348R
85355-14481 Joint, Windshield Washer Elbow, No.1[10.2003 - 12.2006] BB5# |
85355-14481 |
US $0.98 |
||
|
85348T
|
85348T
85349-89122 Valve Sub-Assy, Washer[10.2003 - 12.2006] BB5# |
85349-89122 |
from US $1.25 |
||
|
85348U
|
85348U
85355-20200 Joint, Windshield Washer Hose, No.1[10.2003 - 12.2006] BB5# |
85355-20200 |
from US $1.03 |
||
|
85348V
|
85348V
85395-36010
Joint, Rear Washer Hose, No.4
[10.2003 - 12.2006] BB5# |
85395-36010 |
— | ||
|
85371R
|
85371R
90446-06006 Hose, Windshield Washer (From Motor To Joint)[10.2003 - 12.2006] BB5# *H,L=1957 |
90446-06006 |
from US $7.14 |
||
|
85389
|
85389
85389-36030
Packing, Windshield Washer Hose, No.1
[10.2003 - 12.2006] BB5#,RZB5#..20S,23S,24S |
85389-36030 |
— | ||
|
85389A
|
85389A
85389-36020
Packing, Windshield Washer Hose, No.2
[10.2003 - 12.2006] BB5#,RZB5#..20S,23S,24S |
85389-36020 |
— | ||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
from US $1.66 |
||
|
9011906098
|
9011906098
90119-06098 BOLT |
90119-06098 |
US $1.28 |
||
|
9048001147
|
9048001147
90480-01147 New Genuine Part |
90480-01147 |
US $2.77 |
||
|
9095901116
|
9095901116
90959-01116 BRACKET |
90959-01116 |
US $0.96 |
||
