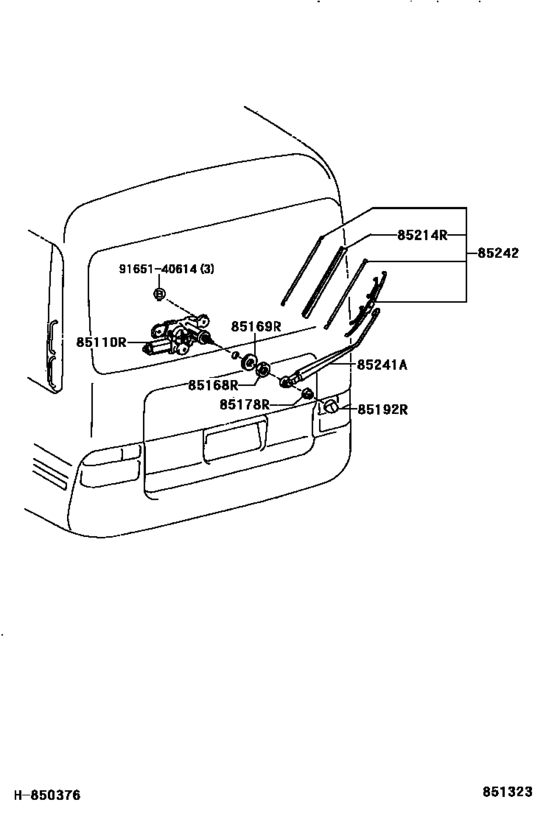

Rear Wiper ([10.2003 - ] (0310- )CBU) Diagram Toyota COASTER
- Year
- 2003 - 2007
- Sales region
- General
- Frame
- BB54
- grade
- STD
- ENGINE
- 15BFT
- TRANSMISSION
- MTM
- Model
- COASTER (CHINA)
- From
- 10.2003
- To
- 01.2007
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110R
|
85110R
85130-36020
Motor Assy, Rear Wiper
[10.2003 - 12.2006] BB5# |
85130-36020 |
— | ||
| replacement | |||||
|
85110R
|
85110R
85130-36030 Motor Assy, Rear Wiper[10.2003 - 12.2006] BB5# |
85130-36030 |
from US $491.26 |
||
|
85168R
|
85168R
90099-05157 Nut, Windshield Wiper Link Pivot[10.2003 - 12.2006] BB5#,RZB5#..20S,23S,24S |
90099-05157 |
from US $3.52 |
||
|
85169R
|
85169R
85179-16150 Washer, Rear Wiper Link Pivot, No.1[10.2003 - 12.2006] BB5#,RZB5#..20S,23S,24S |
85179-16150 |
from US $1.92 |
||
|
85178R
|
85178R
90179-06158 Nut, Rear Wiper Link Pivot, No.2[10.2003 - 12.2006] BB5#,RZB5#..20S,23S,24S |
90179-06158 |
from US $0.99 |
||
|
85192R
|
85192R
85292-36010 Cover, Rear Wiper Arm[10.2003 - 12.2006] BB5#,RZB5#..20S,23S,24S |
85292-36010 |
US $1.76 |
||
|
85214R
|
85214R
85214-10100 Rubber, Rear Wiper[10.2003 - 12.2006] BB5#,RZB5#..20S,23S,24S |
85214-10100 |
from US $8.46 |
||
|
85241A
|
85241A
85241-36011 Arm Assy, Rear Wiper[10.2003 - 12.2006] BB5#,RZB5#..20S,23S,24S |
85241-36011 |
from US $31.75 |
||
|
85242
|
85242
85242-60050 Blade Assy, Rear Wiper[10.2003 - 12.2006] BB5#,RZB5#..20S,23S,24S |
85242-60050 |
from US $23.32 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
