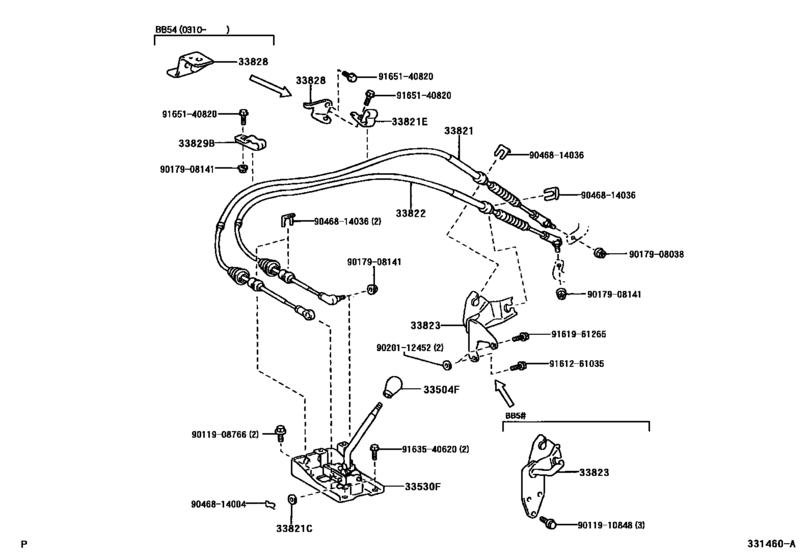

Shift Lever & Retainer ([12.2000 - 01.2007] (0012-0701)) Diagram Toyota COASTER
- Year
- 2003 - 2007
- Sales region
- General
- Frame
- BB54
- grade
- STD
- ENGINE
- 15BFT
- TRANSMISSION
- MTM
- Model
- COASTER (CHINA)
- From
- 10.2003
- To
- 01.2007
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33504F
|
33504F
33504-36051-C0 Knob Sub-Assy, Shift Lever[10.2003 - 03.2014] BB5#,RZB5#,TRB53,XZB53 BLACK,TRIM4# |
33504-36051-C0 |
US $25.99 |
||
|
33530F
|
33530F
33530-36200 Lever Assy, Shift (For Floor Shift)SHIFT (FOR FLOOR SHIFT) [10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
33530-36200 |
US $51.83 |
||
|
33821
|
33821
33821-36150 Cable Transmission Control Shift (For Floor Shift)[10.2003 - 01.2007] BB54 |
33821-36150 |
US $180.54 |
||
|
33821C
|
33821C
90201-08023 Washer, Plate (For Transfer Control Cable)[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
90201-08023 |
US $0.73 |
||
|
33821E
|
33821E
33829-36111 Clamp, No.1 (For Transmission Control Cable)[10.2003 -] BB54,TRB53 |
33829-36111 |
US $3.79 |
||
|
33822
|
33822
33822-36130 Cable Transmission Control Select (For Floor Shift)[10.2003 - 01.2007] BB54 |
33822-36130 |
US $180.54 |
||
|
33823
|
33823
33804-36030 Bracket, Transmission Control Cable, No.1TRANSMISSION CONTROL CABLE, NO.1 [10.2003 - 01.2007] BB5# |
33804-36030 |
US $46.16 |
||
|
33828
|
33828
33828-36080 Bracket, Transmission Control Cable, No.4TRANSMISSION CONTROL CABLE, NO.4 [10.2003 - 08.2011] BB54,XZB53 |
33828-36080 |
US $8.56 |
||
|
33829B
|
33829B
33829-37120 Clamp, Transmission Control Cable[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
33829-37120 |
US $3.06 |
||
|
9011908766
|
9011908766
90119-08766 BOLT WWASHER |
90119-08766 |
US $1.22 |
||
|
9011910848
|
9011910848
90119-10848 New Genuine Part |
90119-10848 |
US $1.31 |
||
|
9017908038
|
9017908038
90179-08038 Nut |
90179-08038 |
from US $0.80 |
||
|
9017908141
|
9017908141
90179-08141
Nut (For Transmission Control Cable)
|
90179-08141 |
— | ||
| replacement | |||||
|
9017908141
|
9017908141
90179-08038 Nut |
90179-08038 |
from US $0.80 |
||
|
9020112452
|
9020112452
90201-12452 Nut(For Backing Plate To Steering Knuckle Setting) |
90201-12452 |
from US $1.19 |
||
|
9046814004
|
9046814004
90468-14004 Union, Auxiliary Fuel Band |
90468-14004 |
from US $0.70 |
||
|
9046814036
|
9046814036
90468-14036 CLIP |
90468-14036 |
US $2.91 |
||
|
9161261035
|
9161261035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
US $1.60 |
||
|
9161961265
|
9161961265
91619-61265 Bolt(For Transaxle & Engine Setting) |
91619-61265 |
US $3.68 |
||
|
9163540620
|
9163540620
91635-40620 New Genuine Part |
91635-40620 |
US $0.96 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $1.06 |
||
