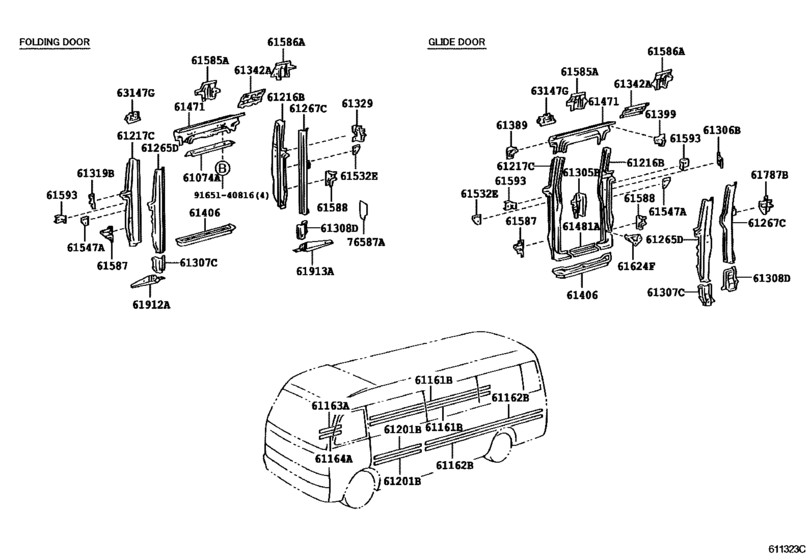

Side Member ([12.2000 - ] (0012- )) Diagram Toyota COASTER
- Year
- 2003 - 2007
- Sales region
- General
- Frame
- BB54
- grade
- STD
- ENGINE
- 15BFT
- TRANSMISSION
- MTM
- Model
- COASTER (CHINA)
- From
- 10.2003
- To
- 01.2007
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61074A
|
61074A
61074-36011
Rail Sub-Assy, Center Door, Rh
[10.2003 - 03.2011] BB54,RZB54,TRB53,XZB53..STD,STDH |
61074-36011 |
— | ||
|
61161B
|
61161B
61162-36902 Stiffener, Side Panel, Upper No.1[10.2003 - 03.2011] BB5#,RZB5#,TRB53,XZB53 |
61162-36902 |
US $149.97 |
||
|
61162B
|
61162B
61162-36902 Stiffener, Side Panel, Upper No.1[10.2003 - 03.2011] BB5#,RZB5#,TRB53,XZB53 |
61162-36902 |
US $149.97 |
||
|
61163A
|
61163A
61163-36902 Stiffener, Side Panel, Upper No.4[10.2003 - 07.2011] BB5#,RZB5#,TRB53,XZB53 |
61163-36902 |
US $94.64 |
||
|
61164A
|
61164A
61163-36902 Stiffener, Side Panel, Upper No.4[10.2003 - 07.2011] BB5#,RZB5#,TRB53,XZB53 |
61163-36902 |
US $94.64 |
||
|
61201B
|
61201B
61201-36902 Stiffener Sub-Assy, Side Panel, No.1[10.2003 - 07.2011] BB5#,RZB5#,TRB53,XZB53 |
61201-36902 |
US $100.46 |
||
|
61216B
|
61216B
61216-36020 Pillar, No.3[10.2003 -] BB54,RZB54;TRB53..IV5 |
61216-36020 |
from US $167.44 |
||
|
61217C
|
61217C
61217-36020 Pillar, No.4[10.2003 -] BB54,RZB54,TRB53,XZB53..STD,STDH |
61217-36020 |
from US $167.44 |
||
|
61265D
|
61265D
61044-36440 Pillar, No.3 Inner, Upper LhNO.3 INNER, UPPER LH [10.2003 - 10.2004] BB54,RZB54 |
61044-36440 |
US $218.40 |
||
|
61265D
|
61265D
61044-36441 Pillar, No.3 Inner, Upper Lh[10.2004 - 10.2006] BB54,RZB54 |
61044-36441 |
US $218.40 |
||
| replacement | |||||
|
61265D
|
61265D
61044-36442
Pillar, No.3 Inner, Upper Lh
[10.2004 - 10.2006] BB54,RZB54 |
61044-36442 |
— | ||
|
61265D
|
61265D
61044-36442
Pillar, No.3 Inner, Upper Lh
[11.2006 -] BB54,RZB54,TRB53,XZB53..STD,STDH |
61044-36442 |
— | ||
|
61267C
|
61267C
61045-36470 Pillar, No.4 Inner, Upper LhNO.4 INNER, UPPER LH [10.2003 - 11.2004] BB54,RZB54 |
61045-36470 |
US $221.31 |
||
|
61267C
|
61267C
61045-36471 Pillar, No.4 Inner, Upper Lh[11.2004 - 10.2006] BB54,RZB54 |
61045-36471 |
US $222.77 |
||
| replacement | |||||
|
61267C
|
61267C
61045-36472
Pillar, No.4 Inner, Upper Lh
[11.2004 - 10.2006] BB54,RZB54 |
61045-36472 |
— | ||
|
61267C
|
61267C
61045-36472
Pillar, No.4 Inner, Upper Lh
[11.2006 -] BB54,RZB54,TRB53,XZB53..STD,STDH |
61045-36472 |
— | ||
|
61307C
|
61307C
61307-36040 Pillar Sub-Assy, Center Body, Inner Front[10.2003 -] BB54,RZB54,TRB53,XZB53..STD,STDH |
61307-36040 |
US $133.95 |
||
|
61308D
|
61308D
61308-36030 Pillar Sub-Assy, Center Body, Inner Rear[10.2003 -] BB54,RZB54,TRB53,XZB53..STD,STDH |
61308-36030 |
US $136.86 |
||
|
61319B
|
61319B
61319-36020 Plate, Center Body Pillar, Outer Rh[10.2003 - 01.2007] BB54,RZB54..20S,23S |
61319-36020 |
US $14.41 |
||
|
61329
|
61329
61329-36020 Plate, Center Body Pillar, Outer Lh[10.2003 -] BB54,RZB54,TRB53,XZB53..STD,STDH |
61329-36020 |
from US $13.10 |
||
|
61342A
|
61342A
61342-36050
Rail, No.1 Upper Inner, Rear Lh
[10.2003 -] BB54,RZB54,TRB53,XZB53..STD,STDH |
61342-36050 |
— | ||
|
61406
|
61406
61406-36060 Rail Sub-Assy, No.7 Lower Inner, Lower LhNO.7 LOWER INNER, LOWER LH [10.2003 -] BB54,RZB54,TRB53,XZB53..STD,STDH |
61406-36060 |
US $97.55 |
||
|
61471
|
61471
61471-36070 Rail, Center Door, OuterCENTER DOOR, OUTER [10.2003 - 10.2006] BB54,RZB54 |
61471-36070 |
US $144.14 |
||
| replacement | |||||
|
61471
|
61471
61471-36071
Rail, Center Door, Outer
[10.2003 - 10.2006] BB54,RZB54 |
61471-36071 |
— | ||
|
61471
|
61471
61471-36071
Rail, Center Door, Outer
[11.2006 - 08.2011] BB54,RZB54,TRB53,XZB53..STD,STDH |
61471-36071 |
— | ||
|
61532E
|
61532E
61532-36010 Gusset, Seat Anchor, No.2[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
61532-36010 |
US $5.97 |
||
|
61547A
|
61547A
61547-36010 Gusset, Seat Anchor, No.7 Lh[10.2003 -] BB5#,RZB5#;TRB53..IV5;TRB53,XZB53..EX,LX |
61547-36010 |
US $5.97 |
||
|
61585A
|
61585A
61585-36040 Gusset, Rear Door Pillar, Front[10.2003 - 10.2006] BB54,RZB54 |
61585-36040 |
US $42.52 |
||
| replacement | |||||
|
61585A
|
61585A
61585-36041 Gusset, Rear Door Pillar, Front[10.2003 - 10.2006] BB54,RZB54 |
61585-36041 |
US $29.27 |
||
|
61585A
|
61585A
61585-36041 Gusset, Rear Door Pillar, Front[11.2006 -] BB54,RZB54,TRB53,XZB53..STD,STDH |
61585-36041 |
US $29.27 |
||
|
61586A
|
61586A
61586-36040 Gusset, Rear Door Pillar, Rear[10.2003 - 10.2006] BB54,RZB54 |
61586-36040 |
US $42.52 |
||
| replacement | |||||
|
61586A
|
61586A
61586-36041 Gusset, Rear Door Pillar, Rear[10.2003 - 10.2006] BB54,RZB54 |
61586-36041 |
US $29.27 |
||
|
61586A
|
61586A
61586-36041 Gusset, Rear Door Pillar, Rear[11.2006 -] BB54,RZB54,TRB53,XZB53..STD,STDH |
61586-36041 |
US $29.27 |
||
|
61587
|
61587
61587-36010 Gusset, Center Door Pillar, Front Lh[10.2003 -] BB5#,RZB5#;TRB53..IV5;TRB53,XZB53..EX,LX |
61587-36010 |
US $18.35 |
||
|
61588
|
61588
61588-36010 Gusset, Center Door Pillar, Rear Lh[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
61588-36010 |
US $18.35 |
||
|
61593
|
61593
61593-36010 Bracket, Stiffener, No.3[10.2003 -] BB5#,RZB5#;TRB53..IV5;TRB53,XZB53..EX,LX |
61593-36010 |
US $4.51 |
||
|
61912A
|
61912A
61912-36010 Plate, Lower Rail, Inner No.2LOWER RAIL, INNER NO.2 [10.2003 - 04.2004] BB54,RZB54 |
61912-36010 |
US $13.25 |
||
|
61912A
|
61912A
61912-36020 Plate, Lower Rail, Inner No.2LOWER RAIL, INNER NO.2 [04.2004 -] BB54,RZB54,TRB53,XZB53..STD,STDH |
61912-36020 |
US $8.15 |
||
|
61913A
|
61913A
61913-36010 Plate, Lower Rail, Inner No.3LOWER RAIL, INNER NO.3 [10.2003 - 04.2004] BB54,RZB54 |
61913-36010 |
US $17.18 |
||
|
61913A
|
61913A
61913-36030 Plate, Lower Rail, Inner No.3LOWER RAIL, INNER NO.3 [04.2004 -] BB54,RZB54,TRB53,XZB53..STD,STDH |
61913-36030 |
US $10.63 |
||
|
63147G
|
63147G
63147-36010 Bracket, Roof Panel Reinforcement[10.2003 - 07.2012] BB5#,RZB5#;TRB53,XZB53..EX,LX |
63147-36010 |
US $29.27 |
||
| replacement | |||||
|
63147G
|
63147G
63147-36011 Bracket, Roof Panel Reinforcement[10.2003 - 07.2012] BB5#,RZB5#;TRB53,XZB53..EX,LX |
63147-36011 |
US $21.99 |
||
|
76587A
|
76587A
76587-36010 Protector, Center Pillar OuterCENTER PILLAR OUTER [10.2003 -] BB54,RZB54,TRB53,XZB53..STD,STDH |
76587-36010 |
US $31.45 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $1.03 |
||
