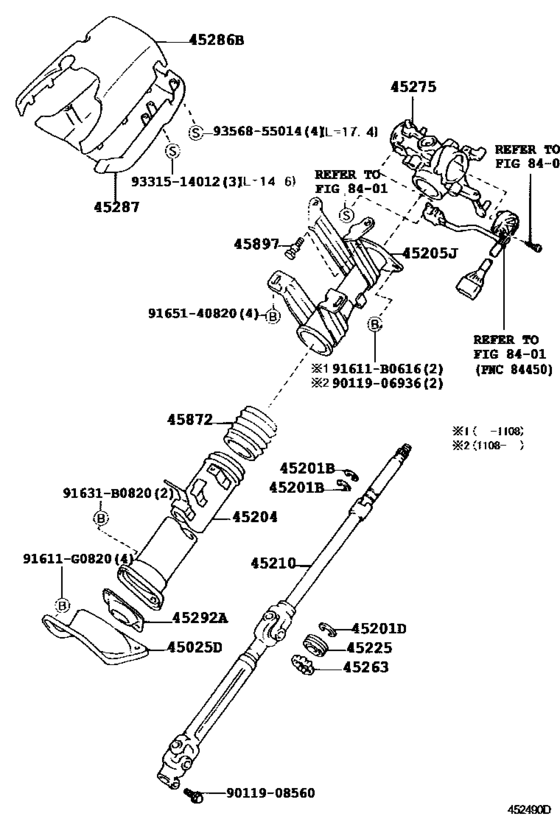

Steering Column & Shaft ([12.2000 - ] (0012- )) Diagram Toyota COASTER
- Year
- 2003 - 2007
- Sales region
- General
- Frame
- BB54
- grade
- STD
- ENGINE
- 15BFT
- TRANSMISSION
- MTM
- Model
- COASTER (CHINA)
- From
- 10.2003
- To
- 01.2007
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45025D
|
45025D
45025-36160
Cover Sub-Assy, Steering Column Hole, No.1
[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
45025-36160 |
— | ||
|
45201B
|
45201B
90520-17042 Ring, Shaft Snap(For Steering Main Shaft)[10.2003 -] BB5#,RZB5#,TRB53,XZB53 T=1.20 |
90520-17042 |
from US $0.86 |
||
|
45201D
|
45201D
96152-00300 Ring, Hole Snap (For Differential Side Gear Shaft)[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
96152-00300 |
US $0.70 |
||
|
45204
|
45204
45204-36210
Tube Assy, Steering Column, Lower
[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
45204-36210 |
— | ||
|
45205J
|
45205J
45205-36210
Tube Sub-Assy, Steering Column, Upper
[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
45205-36210 |
— | ||
|
45210
|
45210
45210-36110
Shaft Assy, Steering Main
[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
45210-36110 |
— | ||
|
45225
|
45225
45225-26010 Ring, Shaft Snap(For Steering Main Shaft)[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
45225-26010 |
US $31.27 |
||
|
45263
|
45263
45263-32010 Ring, Steering Column, No.1[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
45263-32010 |
US $2.45 |
||
|
45275
|
45275
45307-36230 Bracket, Steering Column, Upper[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
45307-36230 |
US $183.46 |
||
|
45286B
|
45286B
45286-36860-E0
Cover, Steering Column, Upr
[10.2003 - 03.2014] BB5#,RZB5#,TRB53,XZB53 GREIGE,TRIM4# |
45286-36860-E0 |
— | ||
|
45287
|
45287
45287-36380-E0
Cover, Steering Column, Lwr
[10.2003 - 03.2014] BB5#,RZB5#,TRB53,XZB53 GREIGE,TRIM4# |
45287-36380-E0 |
— | ||
|
45292A
|
45292A
45292-36060 Cover, Main Shaft Lower Dust[10.2003 - 10.2004] BB5#,RZB5# |
45292-36060 |
US $10.83 |
||
|
45292A
|
45292A
45292-36070
Cover, Main Shaft Lower Dust
[10.2004 -] BB5#,RZB5#,TRB53,XZB53 |
45292-36070 |
— | ||
|
45872
|
45872
45872-36040 Cover, Steering Column Tube[10.2003 - 10.2004] BB5#,RZB5# |
45872-36040 |
US $11.21 |
||
|
45872
|
45872
45872-36050
Cover, Steering Column Tube
[10.2004 -] BB5#,RZB5#,TRB53,XZB53 |
45872-36050 |
— | ||
|
45897
|
45897
45897-12030 Bolt, Hexagon(For Steering Column Bracket)[10.2003 - 08.2011] BB5#,RZB5#,TRB53,XZB53 |
45897-12030 |
US $8.56 |
||
|
91611B0616
|
91611B0616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $1.19 |
||
|
91611G0820
|
91611G0820
91611-G0820 Bolt |
91611-G0820 |
from US $1.31 |
||
|
91631B0820
|
91631B0820
91631-B0820 BOLT WWASHER |
91631-B0820 |
from US $0.82 |
||
|
9011906936
|
9011906936
90119-06936 New Genuine Part |
90119-06936 |
US $1.44 |
||
|
9011908560
|
9011908560
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.35 |
||
| replacement | |||||
|
9011908560
|
9011908560
90080-11555 Bolt w-washer |
90080-11555 |
US $44.70 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $1.06 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.82 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.57 |
||
