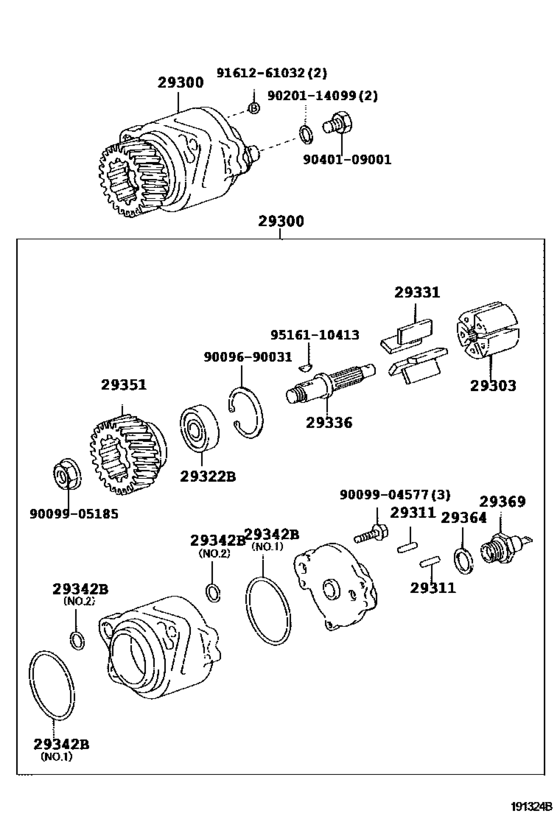

Vacuum Pump ([12.2000 - ] (0012- )15B#) Diagram Toyota COASTER
- Year
- 2003 - 2007
- Sales region
- General
- Frame
- BB54
- grade
- STD
- ENGINE
- 15BFT
- TRANSMISSION
- MTM
- Model
- COASTER (CHINA)
- From
- 10.2003
- To
- 01.2007
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
29300
|
29300
29300-58070
Pump Assy, Vacuum
[10.2003 - 01.2007] 15BFT..BB5# |
29300-58070 |
— | ||
|
29303
|
29303
29337-27010
Rotor Sub-Assy, Vacuum Pump
[10.2003 - 01.2007] 15BFT..BB5# |
29337-27010 |
— | ||
|
29311
|
29311
29311-76010 Pin, Vacuum Pump Dowel, No.1[10.2003 - 02.2012] N04C,15BFT..BB5#,XZB53 |
29311-76010 |
US $1.92 |
||
|
29322B
|
29322B
90099-10185 Bearing, Ball[10.2003 - 02.2012] N04C,15BFT..BB5#,XZB53 |
90099-10185 |
from US $7.69 |
||
|
29331
|
29331
29331-27010
Blade, Vacuum Pump, A
[10.2003 - 01.2007] 15BFT..BB5# |
29331-27010 |
— | ||
|
29336
|
29336
29336-58040
Shaft, Vacuum Pump
[10.2003 - 01.2007] 15BFT..BB5# |
29336-58040 |
— | ||
|
29342B
|
29342B
29342-58010 Packing, Vacuum Pump[10.2003 - 01.2007] 15BFT..BB5# NO.1 |
29342-58010 |
from US $3.84 |
||
|
29342B
|
29342B
29342-64010 Packing, Vacuum Pump[10.2003 - 01.2007] 15BFT..BB5# NO.2 |
29342-64010 |
from US $2.45 |
||
|
29351
|
29351
29351-58050
Gear, Vacuum Pump
[10.2003 - 01.2007] 15BFT..BB5# |
29351-58050 |
— | ||
|
29364
|
29364
29364-66010 Washer, Vacuum Pump[10.2003 - 02.2012] 15BFT..BB5# |
29364-66010 |
US $2.88 |
||
|
29369
|
29369
29369-64030 Valve Sub-Assy, Check[10.2003 - 02.2012] 15BFT..BB5# |
29369-64030 |
US $23.76 |
||
|
9009690031
|
9009690031
90096-90031
RING HOLE SNAP
|
90096-90031 |
— | ||
|
9009904577
|
9009904577
90099-04577
New Genuine Part
|
90099-04577 |
— | ||
|
9009905185
|
9009905185
90099-05185 NUT |
90099-05185 |
US $1.67 |
||
|
9020114099
|
9020114099
90201-14099 Gasket(For Vacuum Pump Union) |
90201-14099 |
from US $1.56 |
||
|
9040109001
|
9040109001
90401-09001 Bolt, Union(For Vacuum Pump Union) |
90401-09001 |
US $2.48 |
||
| replacement | |||||
|
9040109001
|
9040109001
90401-09003 Bolt, Union(For Vacuum Pump Union) |
90401-09003 |
from US $2.56 |
||
|
9161261032
|
9161261032
91612-61032 New Genuine Part |
91612-61032 |
US $1.75 |
||
|
9516110413
|
9516110413
95161-10413
Key(For Alternator Pulley)
|
95161-10413 |
— | ||
