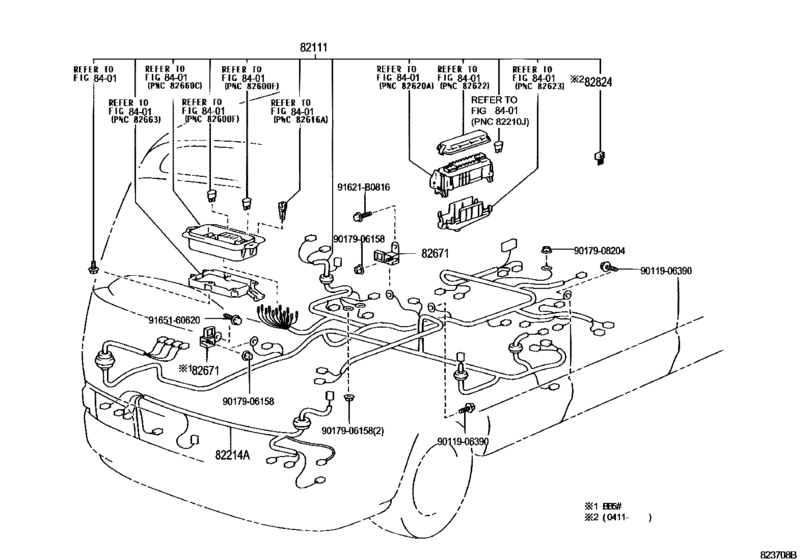

Wiring & Clamp ([10.2003 - 01.2007] ENGINE ROOM (0310-0701)) Diagram Toyota COASTER
- Year
- 2003 - 2007
- Sales region
- General
- Frame
- BB54
- grade
- STD
- ENGINE
- 15BFT
- TRANSMISSION
- MTM
- Model
- COASTER (CHINA)
- From
- 10.2003
- To
- 01.2007
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82111
|
82111
82111-36B50
Wire, Engine Room Main
[11.2004 - 01.2007] BB54 |
82111-36B50 |
— | ||
|
82111
|
82111
82111-3B020
Wire, Engine Room Main
[10.2003 - 12.2003] BB54 |
82111-3B020 |
— | ||
|
82111
|
82111
82111-3B021
Wire, Engine Room Main
[12.2003 - 11.2004] BB54 |
82111-3B021 |
— | ||
|
82214A
|
82214A
82214-36210
Wire, Lamp
[10.2003 - 01.2007] BB5# |
82214-36210 |
— | ||
|
82671
|
82671
82671-28010 Block, Junction[10.2003 - 11.2004] BB5# |
82671-28010 |
US $10.72 |
||
|
82671
|
82671
82671-36010 Block, JunctionJUNCTION [11.2004 - 01.2007] BB5# |
82671-36010 |
US $6.55 |
||
|
82824
|
82824
82824-30130 Connector, Wiring Harness[11.2004 -] BB5#..20S,24S |
82824-30130 |
US $3.52 |
||
|
91621B0816
|
91621B0816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.90 |
||
|
9011906390
|
9011906390
90119-06390 BOLT WWASHER |
90119-06390 |
US $1.12 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $1.03 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.80 |
||
|
9165160620
|
9165160620
91651-60620 BOLTWWASHER |
91651-60620 |
from US $1.28 |
||
