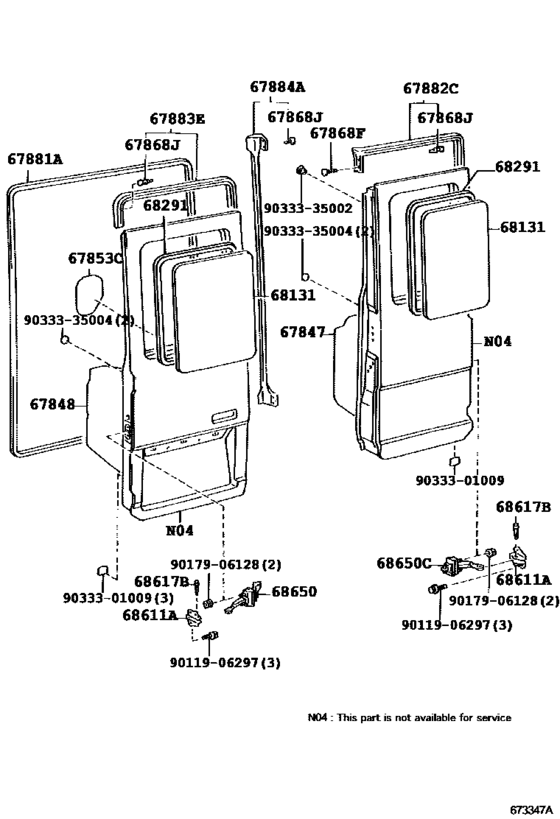

Back Door Panel & Glass ([10.2003 - ] DOUBLE SWING BACK DOOR (0310- )TRB53,XZB53 ; (0310- )BB54,RZB54.. 23S,29S,30S) Diagram Toyota COASTER
- Year
- 2004 - 2007
- Sales region
- General
- Frame
- BB54
- grade
- STD
- ENGINE
- 15BFT
- TRANSMISSION
- MTM
- Model
- COASTER (CHINA)
- From
- 11.2004
- To
- 01.2007
- Seating Capacity
- 23S
- Vehicle Model
- Coaster
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67847
|
67847
67847-36010 Cover, Back Door Service Hole, Rh[10.2003 -] TRB53..IV5;BB54,RZB54..23S,29S,30S |
67847-36010 |
US $7.86 |
||
|
67848
|
67848
67848-36010 Cover, Back Door Service Hole, Lh[10.2003 -] TRB53..IV5;BB54,RZB54..23S,29S,30S |
67848-36010 |
US $6.12 |
||
|
67853C
|
67853C
67853-36010 Cover, Back Door Service Hole, No.3[10.2003 -] TRB53..IV5;BB54,RZB54..23S,29S,30S |
67853-36010 |
US $1.31 |
||
|
67868F
|
67868F
67868-30030 Clip, Roof Side Rail Weatherstrip[11.2004 -] TRB53..IV5;BB54,RZB54..23S |
67868-30030 |
US $3.04 |
||
|
67868J
|
67868J
67867-12150 Clip(For Hood Air Intake Duct Seal)[10.2003 -] BB5#,RZB5#,TRB53,XZB53..CBU NO.1 |
67867-12150 |
from US $1.60 |
||
|
67868J
|
67868J
67868-30030 Clip, Roof Side Rail Weatherstrip[11.2004 - 08.2011] TRB53,XZB53;BB54,RZB54..23S W(DOUBLE SWING BACK DOOR),CENTER |
67868-30030 |
US $3.04 |
||
|
67868J
|
67868J
67868-30040 Retainer, Roof Side Rail, Rh[10.2003 -] BB5#,RZB5#,TRB53,XZB53..CBU NO.2 |
67868-30040 |
US $1.76 |
||
|
67881A
|
67881A
67881-36010
Weatherstrip, Back Door
[10.2003 -] BB5#,RZB5#,TRB53,XZB53..CBU |
67881-36010 |
— | ||
| replacement | |||||
|
67881A
|
67881A
67881-36040 Weatherstrip, Back Door[10.2003 -] BB5#,RZB5#,TRB53,XZB53..CBU |
67881-36040 |
US $151.20 |
||
|
67881A
|
67881A
67881-36031 Weatherstrip, Back Door[10.2003 - 08.2011] TRB53,XZB53;BB54,RZB54..23S,29S,30S W(DOUBLE SWING BACK DOOR) |
67881-36031 |
US $145.04 |
||
|
67882C
|
67882C
67882-36020 Weatherstrip, Back Door, No.2[10.2003 - 08.2011] TRB53,XZB53;BB54,RZB54..23S,29S,30S W(DOUBLE SWING BACK DOOR) |
67882-36020 |
US $35.29 |
||
|
67882C
|
67882C
67882-36030
Weatherstrip, Back Door, No.2
[10.2003 -] BB5#,RZB5#,TRB53,XZB53..CBU |
67882-36030 |
— | ||
|
67883E
|
67883E
67883-36020 Weatherstrip, Back Door, No.3[10.2003 -] TRB53..IV5;BB54,RZB54..23S,29S,30S |
67883-36020 |
US $47.03 |
||
|
67884A
|
67884A
67884-36011 Weatherstrip, Back Door, Center[10.2003 -] TRB53..IV5;BB54,RZB54..23S,29S,30S |
67884-36011 |
US $37.45 |
||
|
68131
|
68131
68131-36051
Glass, Back Door
[10.2003 -] TRB53..IV5;BB54,RZB54..23S,29S,30S *TT,T=3.5, GREEN,RH |
68131-36051 |
— | ||
|
68131
|
68131
68132-36111 Glass, Back Door[10.2003 - 01.2007] BB54..23S,29S *EHTT,T=3.5,GREEN,LH |
68132-36111 |
US $400.40 |
||
|
68291
|
68291
68291-36010 Weatherstrip, Back Door Glass[10.2003 -] TRB53..IV5;BB54,RZB54..23S,29S,30S RH |
68291-36010 |
US $68.72 |
||
|
68291
|
68291
68292-36010 Weatherstrip, Back Door Glass[10.2003 -] TRB53..IV5;BB54,RZB54..23S,29S,30S LH |
68292-36010 |
US $83.52 |
||
|
68611A
|
68611A
68611-90K00
Base, Back Door Check, Rh
[10.2003 - 11.2007] TRB53,XZB53;BB54,RZB54..23S,29S,30S |
68611-90K00 |
— | ||
| replacement | |||||
|
68611A
|
68611A
68611-60030 Base, Back Door Check, Rh[10.2003 - 11.2007] TRB53,XZB53;BB54,RZB54..23S,29S,30S |
68611-60030 |
US $27.51 |
||
|
68617B
|
68617B
68617-50010 Pin(For Front Door Check)[10.2003 -] TRB53..IV5;BB54,RZB54..23S,29S,30S |
68617-50010 |
from US $1.79 |
||
|
68650
|
68650
68660-36010 Check Assy, Back Door[10.2003 - 11.2007] TRB53,XZB53;BB54,RZB54..23S,29S,30S |
68660-36010 |
US $60.13 |
||
| replacement | |||||
|
68650
|
68650
68660-36011 Check Assy, Back Door[10.2003 - 11.2007] TRB53,XZB53;BB54,RZB54..23S,29S,30S |
68660-36011 |
US $41.64 |
||
|
68650C
|
68650C
68650-36010 Check Assy, Back Door, Rh[10.2003 - 11.2007] TRB53,XZB53;BB54,RZB54..23S,29S,30S |
68650-36010 |
US $60.13 |
||
| replacement | |||||
|
68650C
|
68650C
68650-36011 Check Assy, Back Door, Rh[10.2003 - 11.2007] TRB53,XZB53;BB54,RZB54..23S,29S,30S |
68650-36011 |
US $41.64 |
||
|
9011906297
|
9011906297
90119-06297 BOLT |
90119-06297 |
US $1.92 |
||
|
9017906128
|
9017906128
90179-06128 NUT |
90179-06128 |
US $1.12 |
||
|
9033301009
|
9033301009
90333-01009 New Genuine Part |
90333-01009 |
US $1.76 |
||
|
9033335002
|
9033335002
90333-35002 Plug, Hole(For Rear Door Panel) |
90333-35002 |
US $1.28 |
||
|
9033335004
|
9033335004
90333-35004 Plate, Noise Control, No.1 |
90333-35004 |
US $1.12 |
||
