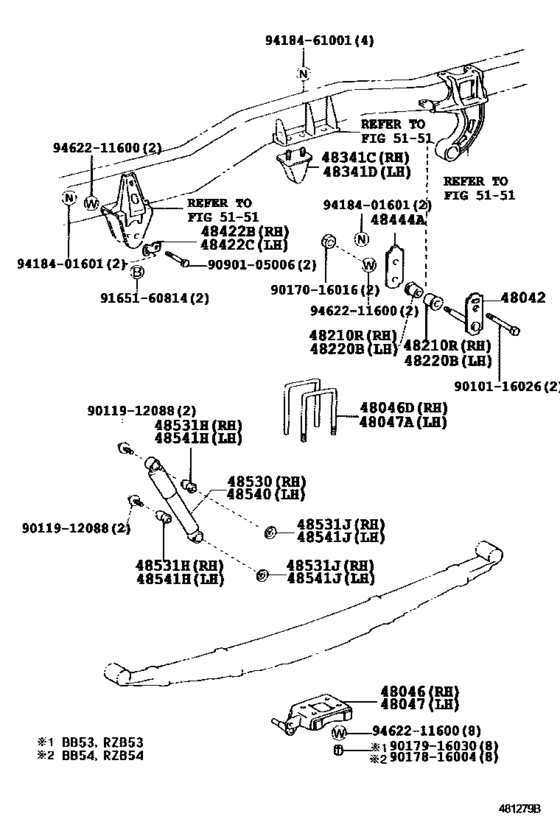

Rear Spring & Shock Absorber ([12.2000 - 10.2003] (0012-0310)) Diagram Toyota COASTER
- Year
- 2000 - 2003
- Sales region
- General
- Frame
- BB54
- grade
- STD
- ENGINE
- 15BF
- TRANSMISSION
- MTM
- Model
- COASTER (CHINA)
- From
- 12.2000
- To
- 10.2003
- Seating Capacity
- 30S
- Vehicle Model
- Coaster
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48042
|
48042
48041-36090 Shackle Sub-Assy, Rear Spring, No.2REAR SPRING, NO.2 [12.2000 - 10.2003] BB5#,RZB5# |
48041-36090 |
US $36.55 |
||
|
48046
|
48046
48046-36281 Seat Sub-Assy, Spring U Bolt, RhSPRING U BOLT, RH [12.2000 - 10.2003] BB54,RZB54 |
48046-36281 |
US $50.96 |
||
|
48046D
|
48046D
90117-16084 Bolt, U(For Rear Spring Rh)U(FOR REAR SPRING RH) [12.2000 - 10.2003] BB54,RZB54 |
90117-16084 |
US $15.14 |
||
|
48047
|
48047
48047-36281 Seat Sub-Assy, Spring U Bolt, LhSPRING U BOLT, LH [12.2000 - 10.2003] BB54,RZB54 |
48047-36281 |
US $50.96 |
||
|
48047A
|
48047A
90117-16084 Bolt, U(For Rear Spring Rh)U(FOR REAR SPRING RH) [12.2000 - 10.2003] BB54,RZB54 |
90117-16084 |
US $15.14 |
||
|
48210R
|
48210R
90385-23006
Bush(For Front Spring Shackle)
[12.2000 - 10.2003] BB5#,RZB5# |
90385-23006 |
— | ||
|
48220B
|
48220B
90385-23006
Bush(For Front Spring Shackle)
[12.2000 - 10.2003] BB5#,RZB5# |
90385-23006 |
— | ||
|
48341C
|
48341C
48306-36100
Bumper, Rear Spring, No.2 Rh
[12.2000 - 10.2003] BB5#,RZB5# |
48306-36100 |
— | ||
|
48341D
|
48341D
48306-36100
Bumper, Rear Spring, No.2 Rh
[12.2000 - 10.2003] BB5#,RZB5# |
48306-36100 |
— | ||
|
48422B
|
48422B
48422-36030
Support, Front Spring Pin
[12.2000 - 08.2002] BB5#,RZB5# |
48422-36030 |
— | ||
| replacement | |||||
|
48422B
|
48422B
48422-37010 Support, Front Spring Pin[12.2000 - 08.2002] BB5#,RZB5# |
48422-37010 |
US $5.12 |
||
|
48422B
|
48422B
48422-37010 Support, Front Spring Pin[08.2002 - 10.2003] BB5#,RZB5# |
48422-37010 |
US $5.12 |
||
|
48422C
|
48422C
48422-36030
Support, Front Spring Pin
[12.2000 - 08.2002] BB5#,RZB5# |
48422-36030 |
— | ||
| replacement | |||||
|
48422C
|
48422C
48422-37010 Support, Front Spring Pin[12.2000 - 08.2002] BB5#,RZB5# |
48422-37010 |
US $5.12 |
||
|
48422C
|
48422C
48422-37010 Support, Front Spring Pin[08.2002 - 10.2003] BB5#,RZB5# |
48422-37010 |
US $5.12 |
||
|
48444A
|
48444A
48444-36090 Plate, Rear Spring Shackle, InnerREAR SPRING SHACKLE, INNER [12.2000 - 10.2003] BB5#,RZB5# |
48444-36090 |
US $20.68 |
||
|
48530
|
48530
48531-36200
Absorber Assy, Shock, Rear Rh
[12.2000 - 10.2003] BB5#,RZB5# MARK 48531-36200 |
48531-36200 |
— | ||
|
48531H
|
48531H
90385-19012
Bush(For Front Shock Absorber Rh)
[12.2000 - 10.2003] BB5#,RZB5# |
90385-19012 |
— | ||
|
48531J
|
48531J
90948-03011 Washer, Front Shock Absorber Cushion, No.1[12.2000 - 10.2003] BB5#,RZB5# |
90948-03011 |
from US $2.08 |
||
|
48540
|
48540
48531-36200
Absorber Assy, Shock, Rear Rh
[12.2000 - 10.2003] BB5#,RZB5# MARK 48531-36200 |
48531-36200 |
— | ||
|
48541H
|
48541H
90385-19012
Bush(For Front Shock Absorber Rh)
[12.2000 - 10.2003] BB5#,RZB5# |
90385-19012 |
— | ||
|
48541J
|
48541J
90948-03011 Washer, Front Shock Absorber Cushion, No.1[12.2000 - 10.2003] BB5#,RZB5# |
90948-03011 |
from US $2.08 |
||
|
9010116026
|
9010116026
90101-16026 BOLT HEXAGON |
90101-16026 |
US $6.19 |
||
|
9011912088
|
9011912088
90119-12088 BOLT |
90119-12088 |
from US $2.13 |
||
|
9017016016
|
9017016016
90170-16016 NUT HEXAGON |
90170-16016 |
from US $1.83 |
||
|
9017816004
|
9017816004
90178-16004 NUT FLANGE |
90178-16004 |
US $4.96 |
||
|
9017916030
|
9017916030
90179-16030 NUT |
90179-16030 |
US $3.04 |
||
|
9090105006
|
9090105006
90901-05006 BOLT WASHER BASED |
90901-05006 |
US $9.44 |
||
|
9165160814
|
9165160814
91651-60814
Clamp Or Clip, Hose(for Radiator Outlet No.1)
|
91651-60814 |
— | ||
| replacement | |||||
|
9165160814
|
9165160814
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.86 |
||
|
9418401601
|
9418401601
94184-01601 NUT LOCK |
94184-01601 |
from US $2.56 |
||
|
9418461001
|
9418461001
94184-61001 Nut(For Front Stabilizer Bar) |
94184-61001 |
from US $0.82 |
||
|
9462211600
|
9462211600
94622-11600 WASHER |
94622-11600 |
from US $1.66 |
||
