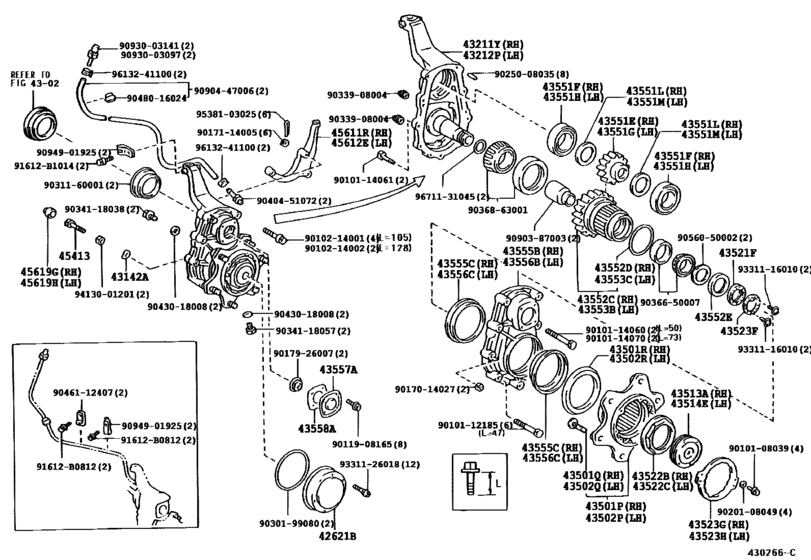

Front Hub Reduction ([01.1997 - 02.1998] (9701-9802)BB5#) Diagram Toyota COASTER
- Year
- 1995 - 1997
- Sales region
- Japan
- Frame
- BB55
- grade
- LX
- Roof
- HRF
- ENGINE
- 15BF
- TRANSMISSION
- ATM
- COOLER
- WC
- Model
- COASTER
- From
- 12.1995
- To
- 05.1997
- Gear Shift Type
- 4FC
- Seating Capacity
- 29S
- Vehicle Model
- Coaster
- Fuel Induction
- DSL4
- Building Condition
- CBU
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42621B
|
42621B
42621-36150
Cap, Wheel(For Rear Axle)
[12.1995 - 07.1999] BB5# |
42621-36150 |
— | ||
|
43142A
|
43142A
43142-65010 Seat, Steering Knuckle Stopper[12.1995 - 07.1999] BB5# |
43142-65010 |
US $6.88 |
||
|
43211Y
|
43211Y
43211-65020 Knuckle, Front Steering, Rh[12.1995 - 01.1997] BB55 |
43211-65020 |
US $877.97 |
||
|
43211Y
|
43211Y
43211-65050
Knuckle, Rear Steering, Rh
[01.1997 - 07.1999] BB5# |
43211-65050 |
— | ||
|
43212P
|
43212P
43212-65020 Knuckle, Front Steering, Lh[12.1995 - 01.1997] BB55 |
43212-65020 |
US $877.97 |
||
|
43212P
|
43212P
43212-65050
Knuckle, Rear Steering, Lh
[01.1997 - 07.1999] BB5# |
43212-65050 |
— | ||
|
43501P
|
43501P
43501-65010
Hub Sub-Assy, Rear Axle, Rh
[12.1995 - 07.1999] BB5# |
43501-65010 |
— | ||
|
43501Q
|
43501Q
90942-02074 Bolt, Hub(For Rear Axle Hub Rh)[12.1995 - 07.1999] BB5# |
90942-02074 |
US $13.92 |
||
|
43501R
|
43501R
90304-99005 Seal, Dust(For Rear Axle Hub)[12.1995 - 07.1999] BB5# |
90304-99005 |
US $21.43 |
||
|
43502P
|
43502P
43502-65010
Hub Sub-Assy, Rear Axle, Lh
[12.1995 - 07.1999] BB5# |
43502-65010 |
— | ||
|
43502Q
|
43502Q
90942-02075 Bolt, Hub(For Rear Axle Hub Lh)[12.1995 - 07.1999] BB5# |
90942-02075 |
US $13.92 |
||
|
43502R
|
43502R
90304-99005 Seal, Dust(For Rear Axle Hub)[12.1995 - 07.1999] BB5# |
90304-99005 |
US $21.43 |
||
|
43513A
|
43513A
43513-65020 Cap, Wheel Bearing, Rh(For Rear Axle)[12.1995 - 07.1999] BB5# |
43513-65020 |
US $21.32 |
||
|
43514E
|
43514E
43514-65020 Cap, Wheel Bearing, Lh(For Rear Axle)[12.1995 - 07.1999] BB5# |
43514-65020 |
US $21.32 |
||
|
43521F
|
43521F
43521-65010 Nut, Rear Axle Bearing Lock[12.1995 - 07.1999] BB5# |
43521-65010 |
US $16.11 |
||
|
43522B
|
43522B
43522-65010 Nut, Hub Set(For Rear Axle Rh)[12.1995 - 07.1999] BB5# |
43522-65010 |
US $12.16 |
||
|
43522C
|
43522C
43522-65020 Nut, Hub Set(For Rear Axle Lh)[12.1995 - 07.1999] BB5# |
43522-65020 |
US $12.16 |
||
|
43523F
|
43523F
43523-65010 Washer, Hub Set Claw(For Rear Axle)[12.1995 - 07.1999] BB5# |
43523-65010 |
US $4.02 |
||
|
43523G
|
43523G
43523-65020 Washer, Hub Set Claw(For Rear Axle Rh)[12.1995 - 07.1999] BB5# |
43523-65020 |
US $8.80 |
||
|
43523H
|
43523H
43523-65020 Washer, Hub Set Claw(For Rear Axle Rh)[12.1995 - 07.1999] BB5# |
43523-65020 |
US $8.80 |
||
|
43551E
|
43551E
43551-36010 Gear, Rear Hub Reduction Drive, Rh[12.1995 - 01.1997] BB55 |
43551-36010 |
US $75.71 |
||
|
43551E
|
43551E
43551-65020 Gear, Rear Hub Reduction Drive, Rh[01.1997 - 07.1999] BB5# |
43551-65020 |
US $44.54 |
||
|
43551F
|
43551F
90366-50042
Bearing, Roller(For Rear Hub Reduction Rh)
[12.1995 - 01.1997] BB55 |
90366-50042 |
— | ||
| replacement | |||||
|
43551F
|
43551F
90366-50136 Bearing, Tapered Roller (For Front Differential Case Front)TAPERED ROLLER (FOR FR DIFFERENTIAL CASE FRONT) [12.1995 - 01.1997] BB55 |
90366-50136 |
US $25.16 |
||
|
43551F
|
43551F
90366-55051 Bearing, Roller(For Rear Hub Reduction Rh)[01.1997 - 07.1999] BB5# |
90366-55051 |
US $23.59 |
||
|
43551G
|
43551G
43551-36020 Gear, Rear Hub Reduction Drive, Lh[12.1995 - 01.1997] BB55 |
43551-36020 |
US $75.71 |
||
|
43551G
|
43551G
43551-65030 Gear, Rear Hub Reduction Drive, Lh[01.1997 - 07.1999] BB5# |
43551-65030 |
US $42.64 |
||
|
43551H
|
43551H
90366-50042
Bearing, Roller(For Rear Hub Reduction Rh)
[12.1995 - 01.1997] BB55 |
90366-50042 |
— | ||
| replacement | |||||
|
43551H
|
43551H
90366-50136 Bearing, Tapered Roller (For Front Differential Case Front)TAPERED ROLLER (FOR FR DIFFERENTIAL CASE FRONT) [12.1995 - 01.1997] BB55 |
90366-50136 |
US $25.16 |
||
|
43551H
|
43551H
90366-55051 Bearing, Roller(For Rear Hub Reduction Rh)[01.1997 - 07.1999] BB5# |
90366-55051 |
US $23.59 |
||
|
43551L
|
43551L
43524-65010 Shim(For Rear Hub Reduction Drive Gear Rh)[01.1997 - 07.1999] BB5# 厚さ＝１．２５ |
43524-65010 |
US $2.62 |
||
|
43551L
|
43551L
43524-65020 Shim(For Rear Hub Reduction Drive Gear Rh)[01.1997 - 07.1999] BB5# 厚さ＝１．００ |
43524-65020 |
US $2.62 |
||
|
43551L
|
43551L
43524-65030 Shim(For Rear Hub Reduction Drive Gear Rh)[01.1997 - 07.1999] BB5# 厚さ＝０．２０ |
43524-65030 |
US $0.71 |
||
|
43551L
|
43551L
43524-65040 Shim(For Rear Hub Reduction Drive Gear Rh)[01.1997 - 07.1999] BB5# 厚さ＝０．１５ |
43524-65040 |
US $0.55 |
||
|
43551L
|
43551L
43524-65050 Shim(For Rear Hub Reduction Drive Gear Rh)[01.1997 - 07.1999] BB5# 厚さ＝０．１０ |
43524-65050 |
US $0.28 |
||
|
43551L
|
43551L
90564-50119
Shim(For Rear Hub Reduction Drive Gear Rh)
[12.1995 - 01.1997] BB55 厚さ＝１．２５ |
90564-50119 |
— | ||
|
43551L
|
43551L
90564-50120
Shim(For Rear Hub Reduction Drive Gear Rh)
[12.1995 - 01.1997] BB55 厚さ＝１．００ |
90564-50120 |
— | ||
|
43551L
|
43551L
90564-50121
Shim(For Rear Hub Reduction Drive Gear Rh)
[12.1995 - 01.1997] BB55 厚さ＝０．２０ |
90564-50121 |
— | ||
|
43551L
|
43551L
90564-50122
Shim(For Rear Hub Reduction Drive Gear Rh)
[12.1995 - 01.1997] BB55 厚さ＝０．１５ |
90564-50122 |
— | ||
|
43551L
|
43551L
90564-50123
Shim(For Rear Hub Reduction Drive Gear Rh)
[12.1995 - 01.1997] BB55 厚さ＝０．１０ |
90564-50123 |
— | ||
|
43551M
|
43551M
43524-65010 Shim(For Rear Hub Reduction Drive Gear Rh)[01.1997 - 07.1999] BB5# 厚さ＝１．２５ |
43524-65010 |
US $2.62 |
||
|
43551M
|
43551M
43524-65020 Shim(For Rear Hub Reduction Drive Gear Rh)[01.1997 - 07.1999] BB5# 厚さ＝１．００ |
43524-65020 |
US $2.62 |
||
|
43551M
|
43551M
43524-65030 Shim(For Rear Hub Reduction Drive Gear Rh)[01.1997 - 07.1999] BB5# 厚さ＝０．２０ |
43524-65030 |
US $0.71 |
||
|
43551M
|
43551M
43524-65040 Shim(For Rear Hub Reduction Drive Gear Rh)[01.1997 - 07.1999] BB5# 厚さ＝０．１５ |
43524-65040 |
US $0.55 |
||
|
43551M
|
43551M
43524-65050 Shim(For Rear Hub Reduction Drive Gear Rh)[01.1997 - 07.1999] BB5# 厚さ＝０．１０ |
43524-65050 |
US $0.28 |
||
|
43551M
|
43551M
90564-50119
Shim(For Rear Hub Reduction Drive Gear Rh)
[12.1995 - 01.1997] BB55 厚さ＝１．２５ |
90564-50119 |
— | ||
|
43551M
|
43551M
90564-50120
Shim(For Rear Hub Reduction Drive Gear Rh)
[12.1995 - 01.1997] BB55 厚さ＝１．００ |
90564-50120 |
— | ||
|
43551M
|
43551M
90564-50121
Shim(For Rear Hub Reduction Drive Gear Rh)
[12.1995 - 01.1997] BB55 厚さ＝０．２０ |
90564-50121 |
— | ||
|
43551M
|
43551M
90564-50122
Shim(For Rear Hub Reduction Drive Gear Rh)
[12.1995 - 01.1997] BB55 厚さ＝０．１５ |
90564-50122 |
— | ||
|
43551M
|
43551M
90564-50123
Shim(For Rear Hub Reduction Drive Gear Rh)
[12.1995 - 01.1997] BB55 厚さ＝０．１０ |
90564-50123 |
— | ||
|
43552C
|
43552C
43552-36010 Gear, Rear Hub Reduction Driven, Rh[12.1995 - 01.1997] BB55 |
43552-36010 |
US $227.14 |
||
|
43552C
|
43552C
43552-65020 Gear, Rear Hub Reduction Driven, Rh[01.1997 - 07.1999] BB5# |
43552-65020 |
US $214.56 |
||
|
43552D
|
43552D
90301-94003 Ring, O(For Rear Hub Reduction Drive Gear Rh)[12.1995 - 07.1999] BB5# |
90301-94003 |
US $4.19 |
||
|
43552E
|
43552E
90311-75010 Seal, Oil(For Rear Hub Reduction Driven Gear)[12.1995 - 07.1999] BB5# |
90311-75010 |
US $15.36 |
||
|
43553B
|
43553B
43553-36010 Gear, Rear Hub Reduction Driven, Lh[12.1995 - 01.1997] BB55 |
43553-36010 |
US $227.14 |
||
|
43553B
|
43553B
43553-65020 Gear, Rear Hub Reduction Driven, Lh[01.1997 - 07.1999] BB5# |
43553-65020 |
US $214.56 |
||
|
43553C
|
43553C
90301-94003 Ring, O(For Rear Hub Reduction Drive Gear Rh)[06.1996 - 07.1999] BB5# |
90301-94003 |
US $4.19 |
||
|
43555B
|
43555B
43555-36010 Cover, Rear Hub Reduction Gear, Rh[12.1995 - 01.1997] BB55 |
43555-36010 |
US $214.03 |
||
|
43555B
|
43555B
43555-65020 Cover, Rear Hub Reduction Gear, Rh[01.1997 - 07.1999] BB5# |
43555-65020 |
US $132.50 |
||
|
43555C
|
43555C
90311-99007 Seal, Oil(For Rear Hub Reduction Gear Cover Rh)[12.1995 - 07.1999] BB5# 内側 |
90311-99007 |
US $42.26 |
||
|
43555C
|
43555C
90311-99008 Seal, Oil(For Rear Hub Reduction Gear Cover)[12.1995 - 07.1999] BB5# 外側 |
90311-99008 |
US $42.26 |
||
|
43556B
|
43556B
43556-36010 Cover, Rear Hub Reduction Gear, Lh[12.1995 - 01.1997] BB55 |
43556-36010 |
US $214.03 |
||
|
43556B
|
43556B
43556-65020 Cover, Rear Hub Reduction Gear, Lh[01.1997 - 07.1999] BB5# |
43556-65020 |
US $132.50 |
||
|
43556C
|
43556C
90311-99007 Seal, Oil(For Rear Hub Reduction Gear Cover Rh)[12.1995 - 07.1999] BB5# 内側 |
90311-99007 |
US $42.26 |
||
|
43556C
|
43556C
90311-99008 Seal, Oil(For Rear Hub Reduction Gear Cover)[12.1995 - 07.1999] BB5# 外側 |
90311-99008 |
US $42.26 |
||
|
43557A
|
43557A
43557-65010 Cover, Rear Hub Reduction Drive Shaft[12.1995 - 02.1998] BB5# |
43557-65010 |
US $11.36 |
||
|
43558A
|
43558A
43558-65010 Gasket, Rear Hub Reduction Drive Shaft End[12.1995 - 07.1999] BB5# |
43558-65010 |
US $3.20 |
||
|
45413
|
45413
45413-65010 Stopper, Pitman Arm[12.1995 - 07.1999] BB5# |
45413-65010 |
US $1.12 |
||
|
45611R
|
45611R
45611-65020
Arm, Front Steering Knuckle, Rh
[12.1995 - 07.1999] BB5# |
45611-65020 |
— | ||
|
45612E
|
45612E
45612-65020
Arm, Steering Knuckle, Front Lh
[12.1995 - 07.1999] BB5# |
45612-65020 |
— | ||
|
45619G
|
45619G
45619-36010 Cover, Knuckle Stopper[12.1995 - 07.1999] BB5# |
45619-36010 |
from US $4.52 |
||
|
45619H
|
45619H
45619-36010 Cover, Knuckle Stopper[12.1995 - 07.1999] BB5# |
45619-36010 |
from US $4.52 |
||
|
91612B0812
|
91612B0812
91612-B0812 Bolt(For Transaxle Case Receiver) |
91612-B0812 |
US $1.46 |
||
| replacement | |||||
|
91612B0812
|
91612B0812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
91612B1014
|
91612B1014
91612-B1014 BOLT WWASHER |
91612-B1014 |
US $1.16 |
||
|
9010108039
|
9010108039
90101-08039 Bolt (For Propeller Shaft) |
90101-08039 |
US $1.60 |
||
|
9010112185
|
9010112185
90101-12185 New Genuine Part |
90101-12185 |
US $2.56 |
||
|
9010114060
|
9010114060
90101-14060 New Genuine Part |
90101-14060 |
US $2.34 |
||
|
9010114061
|
9010114061
90101-14061 BOLT HEXAGON |
90101-14061 |
US $4.08 |
||
|
9010114070
|
9010114070
90101-14070 New Genuine Part |
90101-14070 |
US $3.03 |
||
|
9010214001
|
9010214001
90102-14001 New Genuine Part |
90102-14001 |
US $4.80 |
||
|
9010214002
|
9010214002
90102-14002 New Genuine Part |
90102-14002 |
US $4.80 |
||
|
9011908165
|
9011908165
90119-08165 New Genuine Part |
90119-08165 |
US $2.62 |
||
|
9017014027
|
9017014027
90170-14027 New Genuine Part |
90170-14027 |
US $1.51 |
||
|
9017114005
|
9017114005
90171-14005 New Genuine Part |
90171-14005 |
US $1.60 |
||
|
9017926007
|
9017926007
90179-26007 New Genuine Part |
90179-26007 |
US $5.28 |
||
|
9020108049
|
9020108049
90201-08049 Washer(For Rear Wheel Cylinder) |
90201-08049 |
US $0.70 |
||
|
9025008035
|
9025008035
90250-08035 New Genuine Part |
90250-08035 |
US $3.20 |
||
|
9030199080
|
9030199080
90301-99080 New Genuine Part |
90301-99080 |
US $3.20 |
||
|
9031160001
|
9031160001
90311-60001 OIL SEAL |
90311-60001 |
US $17.63 |
||
|
9033908004
|
9033908004
90339-08004 Plug No.2(For Air Reservoir) |
90339-08004 |
US $3.20 |
||
|
9034118038
|
9034118038
90341-18038 Plug(For Manual Transmission Filler) |
90341-18038 |
from US $3.52 |
||
|
9034118057
|
9034118057
90341-18057 Drain Plug (with Magnet) |
90341-18057 |
US $5.60 |
||
|
9036650007
|
9036650007
90366-50007 Bearing(For Rear Differential Case) |
90366-50007 |
from US $40.89 |
||
|
9036863001
|
9036863001
90368-63001 Bearing (For Rear Axle Hub Inner Rh) |
90368-63001 |
US $103.38 |
||
|
9040451072
|
9040451072
90404-51072 Union(For Intake Air Control Valve) |
90404-51072 |
US $5.39 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $0.99 |
||
|
9046112407
|
9046112407
90461-12407 Clamp |
90461-12407 |
US $2.62 |
||
|
9048016024
|
9048016024
90480-16024 New Genuine Part |
90480-16024 |
US $2.48 |
||
|
9056050002
|
9056050002
90560-50002 New Genuine Part |
90560-50002 |
US $5.94 |
||
|
9090387003
|
9090387003
90903-87003 New Genuine Part |
90903-87003 |
US $19 |
||
|
9090447006
|
9090447006
90904-47006 New Genuine Part |
90904-47006 |
US $49.21 |
||
|
9093003097
|
9093003097
90930-03097 Plug, Breather (For Differential) |
90930-03097 |
from US $5.92 |
||
|
9093003141
|
9093003141
90930-03141 New Genuine Part |
90930-03141 |
US $7.28 |
||
|
9094901925
|
9094901925
90949-01925 New Genuine Part |
90949-01925 |
US $3.20 |
||
|
9331116010
|
9331116010
93311-16010 Screw |
93311-16010 |
US $2.56 |
||
|
9331126018
|
9331126018
93311-26018 New Genuine Part |
93311-26018 |
US $1.46 |
||
|
9413001201
|
9413001201
94130-01201 New Genuine Part |
94130-01201 |
US $1.60 |
||
|
9538103025
|
9538103025
95381-03025 PIN |
95381-03025 |
from US $0.84 |
||
|
9613241100
|
9613241100
96132-41100 Clamp Or Clip(For Radiator Reserve Tank Hose) |
96132-41100 |
US $1.92 |
||
| replacement | |||||
|
9613241100
|
9613241100
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.68 |
||
|
9671131045
|
9671131045
96711-31045 New Genuine Part |
96711-31045 |
US $1.31 |
||
