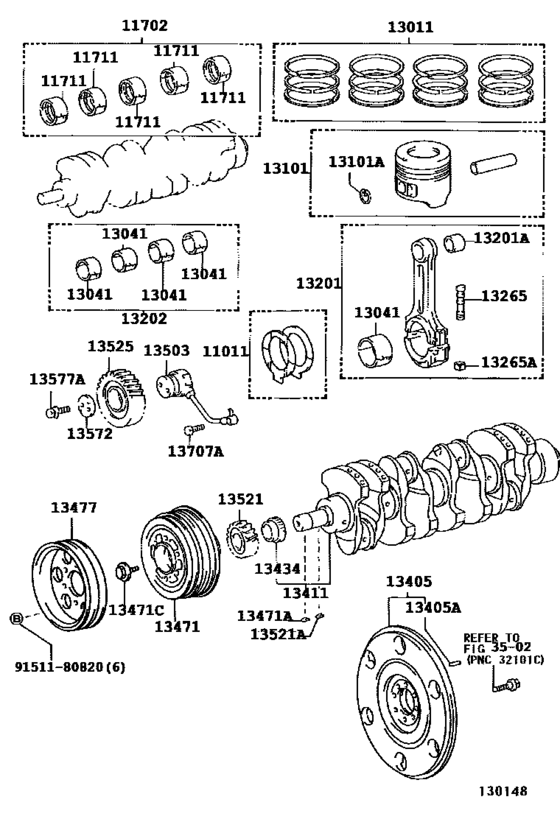

Crankshaft & Piston ([12.1995 - 07.1999] (9512-9907)15BF) Diagram Toyota COASTER
- Year
- 1998 - 1999
- Sales region
- Japan
- Frame
- BB58
- grade
- DX
- Roof
- HRF
- ENGINE
- 15BF
- TRANSMISSION
- ATM
- COOLER
- WOC
- Model
- COASTER
- From
- 04.1998
- To
- 07.1999
- Gear Shift Type
- 4FC
- Seating Capacity
- 29S
- Vehicle Model
- Coaster
- Fuel Induction
- DSL4
- Building Condition
- CBU
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-56020
Washer Set, Crankshaft Thrust
[01.1993 - 07.1999] 15BF,3B..BB4#,5# ＳＴＤ |
11011-56020 |
— | ||
| replacement | |||||
|
11011
|
11011
11011-58020 Washer Set, Crankshaft Thrust[01.1993 - 07.1999] 15BF,3B..BB4#,5# ＳＴＤ |
11011-58020 |
from US $28.83 |
||
|
11011
|
11011
11012-56020
Washer Set, Crankshaft Thrust
[01.1993 - 07.1999] 15BF,3B..BB4#,5# Ｏ／Ｓ ０．１２５ |
11012-56020 |
— | ||
| replacement | |||||
|
11011
|
11011
11012-58020 Washer Set, Crankshaft Thrust[01.1993 - 07.1999] 15BF,3B..BB4#,5# Ｏ／Ｓ ０．１２５ |
11012-58020 |
US $28.83 |
||
|
11011
|
11011
11013-56020
Washer Set, Crankshaft Thrust
[01.1993 - 07.1999] 15BF,3B..BB4#,5# Ｏ／Ｓ ０．２５０ |
11013-56020 |
— | ||
| replacement | |||||
|
11011
|
11011
11013-58020 Washer Set, Crankshaft Thrust[01.1993 - 07.1999] 15BF,3B..BB4#,5# Ｏ／Ｓ ０．２５０ |
11013-58020 |
US $28.83 |
||
|
11702
|
11702
11704-56031
Bearing Set, Crankshaft
[12.1997 - 05.1999] 15BF,3B..BB4#,58 Ｕ／Ｓ ０．２５ |
11704-56031 |
— | ||
| replacement | |||||
|
11702
|
11702
11704-56032
Bearing Set, Crankshaft
[12.1997 - 05.1999] 15BF,3B..BB4#,58 Ｕ／Ｓ ０．２５ |
11704-56032 |
— | ||
|
11702
|
11702
11704-56032
Bearing Set, Crankshaft
[05.1999 - 07.1999] 15BF,3B..BB4#,58 Ｕ／Ｓ ０．２５ |
11704-56032 |
— | ||
|
11702
|
11702
11705-56031
Bearing Set, Crankshaft
[12.1997 - 05.1999] 15BF,3B..BB4#,58 Ｕ／Ｓ ０．５０ |
11705-56031 |
— | ||
| replacement | |||||
|
11702
|
11702
11705-56032 Bearing Set, Crankshaft[12.1997 - 05.1999] 15BF,3B..BB4#,58 Ｕ／Ｓ ０．５０ |
11705-56032 |
US $396.03 |
||
|
11702
|
11702
11705-56032 Bearing Set, Crankshaft[05.1999 - 07.1999] 15BF,3B..BB4#,58 Ｕ／Ｓ ０．５０ |
11705-56032 |
US $396.03 |
||
|
11702
|
11702
11707-56031 Bearing Set, Crankshaft[12.1997 - 05.1999] 15BF,3B..BB4#,58 Ｕ／Ｓ １．００ |
11707-56031 |
US $396.03 |
||
| replacement | |||||
|
11702
|
11702
11707-56032
Bearing Set, Crankshaft
[12.1997 - 05.1999] 15BF,3B..BB4#,58 Ｕ／Ｓ １．００ |
11707-56032 |
— | ||
|
11702
|
11702
11707-56032
Bearing Set, Crankshaft
[05.1999 - 07.1999] 15BF,3B..BB4#,58 Ｕ／Ｓ １．００ |
11707-56032 |
— | ||
|
11711
|
11711
11701-56021-01
Bearing, Crankshaft
[12.1997 - 05.1999] 15BF,3B..BB4#,58 MARK 1:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1 |
11701-56021-01 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-58010-01 Bearing, Crankshaft[12.1997 - 05.1999] 15BF,3B..BB4#,58 MARK 1:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1 |
11701-58010-01 |
from US $24.61 |
||
|
11711
|
11711
11701-56021-02 Bearing, Crankshaft[12.1997 - 05.1999] 15BF,3B..BB4#,58 MARK 2:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2 |
11701-56021-02 |
US $65.67 |
||
| replacement | |||||
|
11711
|
11711
11701-58010-02 Bearing, Crankshaft[12.1997 - 05.1999] 15BF,3B..BB4#,58 MARK 2:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2 |
11701-58010-02 |
from US $21.08 |
||
|
11711
|
11711
11701-56022-01 Bearing, Crankshaft[05.1999 - 07.1999] 15BF,3B..BB4#,58 MARK 1:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1 |
11701-56022-01 |
US $45.57 |
||
| replacement | |||||
|
11711
|
11711
11701-58010-01 Bearing, Crankshaft[05.1999 - 07.1999] 15BF,3B..BB4#,58 MARK 1:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1 |
11701-58010-01 |
from US $24.61 |
||
|
11711
|
11711
11701-56022-02
Bearing, Crankshaft
[05.1999 - 07.1999] 15BF,3B..BB4#,58 MARK 2:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2 |
11701-56022-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-58010-02 Bearing, Crankshaft[05.1999 - 07.1999] 15BF,3B..BB4#,58 MARK 2:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2 |
11701-58010-02 |
from US $21.08 |
||
|
13011
|
13011
13011-58090 Ring Set, Piston[12.1995 - 07.1999] 15BF..BB5# ＳＴＤ |
13011-58090 |
from US $251.24 |
||
|
13011
|
13011
13013-58090
Ring Set, Piston
[12.1995 - 07.1999] 15BF..BB5# Ｏ／Ｓ ０．５０ |
13013-58090 |
— | ||
|
13011
|
13011
13014-58090 Ring Set, Piston[12.1995 - 07.1999] 15BF..BB5# Ｏ／Ｓ ０．７５ |
13014-58090 |
US $269.36 |
||
|
13011
|
13011
13015-58090 Ring Set, Piston[12.1995 - 07.1999] 15BF..BB5# Ｏ／Ｓ １．００ |
13015-58090 |
US $269.36 |
||
|
13041
|
13041
13041-58031-01
Bearing, Connecting Rod
[12.1997 - 12.1998] 15BF,3B..BB4#,58 MARK 1:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1 |
13041-58031-01 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-58050-01 Bearing, Connecting Rod[12.1997 - 12.1998] 15BF,3B..BB4#,58 MARK 1:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1 |
13041-58050-01 |
from US $17.61 |
||
|
13041
|
13041
13041-58031-02 Bearing, Connecting Rod[12.1997 - 12.1998] 15BF,3B..BB4#,58 MARK 2:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2 |
13041-58031-02 |
US $37.13 |
||
| replacement | |||||
|
13041
|
13041
13041-58050-02 Bearing, Connecting Rod[12.1997 - 12.1998] 15BF,3B..BB4#,58 MARK 2:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2 |
13041-58050-02 |
from US $15.60 |
||
|
13041
|
13041
13041-58032-01
Bearing, Connecting Rod
[12.1998 - 07.1999] 15BF,3B..BB4#,58 MARK 1:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1 |
13041-58032-01 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-58050-01 Bearing, Connecting Rod[12.1998 - 07.1999] 15BF,3B..BB4#,58 MARK 1:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1 |
13041-58050-01 |
from US $17.61 |
||
|
13041
|
13041
13041-58032-02 Bearing, Connecting Rod[12.1998 - 07.1999] 15BF,3B..BB4#,58 MARK 2:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2 |
13041-58032-02 |
US $37.13 |
||
| replacement | |||||
|
13041
|
13041
13041-58050-02 Bearing, Connecting Rod[12.1998 - 07.1999] 15BF,3B..BB4#,58 MARK 2:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2 |
13041-58050-02 |
from US $15.60 |
||
|
13101
|
13101
13101-58090-01 Piston Sub-Assy, W/pin[12.1995 - 07.1999] 15BF..BB5# ＳＴＤ,MARK 1:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1 |
13101-58090-01 |
US $336.34 |
||
|
13101
|
13101
13101-58090-02 Piston Sub-Assy, W/pin[12.1995 - 07.1999] 15BF..BB5# ＳＴＤ,MARK 2:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2 |
13101-58090-02 |
US $336.34 |
||
|
13101
|
13101
13101-58090-03 Piston Sub-Assy, W/pin[12.1995 - 07.1999] 15BF..BB5# ＳＴＤ,MARK 3:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3 |
13101-58090-03 |
US $336.34 |
||
|
13101
|
13101
13103-58090 Piston Sub-Assy, W/pin[12.1995 - 07.1999] 15BF..BB5# Ｏ／Ｓ ０．５０ |
13103-58090 |
US $398.94 |
||
|
13101
|
13101
13104-58090 Piston Sub-Assy, W/pin[12.1995 - 07.1999] 15BF..BB5# Ｏ／Ｓ ０．７５ |
13104-58090 |
US $398.94 |
||
|
13101
|
13101
13105-58090 Piston Sub-Assy, W/pin[12.1995 - 07.1999] 15BF..BB5# Ｏ／Ｓ １．００ |
13105-58090 |
US $398.94 |
||
|
13101A
|
13101A
90521-37007 Ring, Hole Snap(For Piston Pin)[12.1995 - 07.1999] 15BF..BB5# |
90521-37007 |
US $1.22 |
||
|
13201
|
13201
13201-59185
Rod Sub-Assy, Connecting
[12.1995 - 07.1999] 15BF..BB5# |
13201-59185 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-49056 Rod Sub-Assy, Connecting[12.1995 - 07.1999] 15BF..BB5# |
13201-49056 |
US $211.41 |
||
|
13201A
|
13201A
90999-73134 Bush(For Connecting Rod Small End)[12.1995 - 07.1999] 15BF..BB5# |
90999-73134 |
US $12.48 |
||
|
13202
|
13202
13204-58031 Bearing Set, Connecting Rod[12.1997 - 12.1998] 15BF,3B..BB4#,58 Ｕ／Ｓ ０．２５ |
13204-58031 |
US $180.54 |
||
| replacement | |||||
|
13202
|
13202
13204-58050 Bearing Set, Connecting Rod (0.25)[12.1997 - 12.1998] 15BF,3B..BB4#,58 Ｕ／Ｓ ０．２５ |
13204-58050 |
from US $69.83 |
||
|
13202
|
13202
13204-58032
Bearing Set, Connecting Rod
[12.1998 - 07.1999] 15BF,3B..BB4#,58 Ｕ／Ｓ ０．２５ |
13204-58032 |
— | ||
| replacement | |||||
|
13202
|
13202
13204-58050 Bearing Set, Connecting Rod (0.25)[12.1998 - 07.1999] 15BF,3B..BB4#,58 Ｕ／Ｓ ０．２５ |
13204-58050 |
from US $69.83 |
||
|
13202
|
13202
13205-58031 Bearing Set, Connecting Rod[12.1997 - 12.1998] 15BF,3B..BB4#,58 Ｕ／Ｓ ０．５０ |
13205-58031 |
US $180.54 |
||
| replacement | |||||
|
13202
|
13202
13205-58050 Bearing Set, Connecting Rod (0.50)[12.1997 - 12.1998] 15BF,3B..BB4#,58 Ｕ／Ｓ ０．５０ |
13205-58050 |
US $112.11 |
||
|
13202
|
13202
13205-58032 Bearing Set, Connecting Rod[12.1998 - 07.1999] 15BF,3B..BB4#,58 Ｕ／Ｓ ０．５０ |
13205-58032 |
US $123.76 |
||
| replacement | |||||
|
13202
|
13202
13205-58050 Bearing Set, Connecting Rod (0.50)[12.1998 - 07.1999] 15BF,3B..BB4#,58 Ｕ／Ｓ ０．５０ |
13205-58050 |
US $112.11 |
||
|
13202
|
13202
13207-58031 Bearing Set, Connecting Rod[12.1997 - 12.1998] 15BF,3B..BB4#,58 Ｕ／Ｓ １．００ |
13207-58031 |
US $180.54 |
||
| replacement | |||||
|
13202
|
13202
13207-58050 Bearing Set, Connecting Rod (1.00)[12.1997 - 12.1998] 15BF,3B..BB4#,58 Ｕ／Ｓ １．００ |
13207-58050 |
US $112.11 |
||
|
13202
|
13202
13207-58032 Bearing Set, Connecting Rod[12.1998 - 07.1999] 15BF,3B..BB4#,58 Ｕ／Ｓ １．００ |
13207-58032 |
from US $18.78 |
||
| replacement | |||||
|
13202
|
13202
13207-58050 Bearing Set, Connecting Rod (1.00)[12.1998 - 07.1999] 15BF,3B..BB4#,58 Ｕ／Ｓ １．００ |
13207-58050 |
US $112.11 |
||
|
13265
|
13265
13265-58020
Bolt, Connecting Rod
[01.1993 - 07.1999] 15BF,3B..BB4#,5# |
13265-58020 |
— | ||
|
13265A
|
13265A
13266-58010 Nut, Hexagon(For Connecting Rod Bolt)[01.1993 - 07.1999] 15BF,3B..BB4#,5# |
13266-58010 |
US $7.27 |
||
|
13405
|
13405
13405-58040
Flywheel Sub-Assy
[12.1995 - 07.1999] 15BF..BB5# |
13405-58040 |
— | ||
|
13405A
|
13405A
90250-05121 Pin, Straight, No.3(For Camshaft Knock)[12.1995 - 07.1999] 15BF..BB5# 長さ＝１５，外径＝５ |
90250-05121 |
from US $1.21 |
||
|
13411
|
13411
13401-58050
Crankshaft
[12.1995 - 03.1999] 15BF..BB5# |
13401-58050 |
— | ||
| replacements | |||||
|
13411
|
13411
13041-58050-01 Bearing, Connecting Rod[12.1995 - 03.1999] 15BF..BB5# |
13041-58050-01 |
from US $17.61 |
||
|
13411
|
13411
13041-58050-02 Bearing, Connecting Rod[12.1995 - 03.1999] 15BF..BB5# |
13041-58050-02 |
from US $15.60 |
||
|
13411
|
13411
13401-58051 Crankshaft[12.1995 - 03.1999] 15BF..BB5# |
13401-58051 |
US $2,184 |
||
|
13411
|
13411
13401-58051 Crankshaft[03.1999 - 07.1999] 15BF..BB58 |
13401-58051 |
US $2,184 |
||
|
13434
|
13434
13519-56010 Spline, Oil Pump Drive[01.1993 - 03.1999] 15BF,3B..BB4#,5# |
13519-56010 |
US $70.76 |
||
|
13434
|
13434
13519-56011
Spline, Oil Pump Drive
[03.1999 - 07.1999] 15BF,3B..BB4#,58 |
13519-56011 |
— | ||
|
13471
|
13471
13470-58050
Pulley, Crankshaft
[12.1995 - 03.1999] 15BF..BB5# |
13470-58050 |
— | ||
| replacement | |||||
|
13471
|
13471
13470-58051 Pulley, Crankshaft[12.1995 - 03.1999] 15BF..BB5# |
13470-58051 |
US $436.80 |
||
|
13471
|
13471
13470-58051 Pulley, Crankshaft[03.1999 - 07.1999] 15BF..BB58 |
13470-58051 |
US $436.80 |
||
|
13471A
|
13471A
95161-30416 Pin, Straight(For Crankshaft)[01.1993 - 07.1999] 15BF,3B..BB4#,5# |
95161-30416 |
from US $1.54 |
||
|
13471C
|
13471C
90901-19032 Bolt(For Crankshaft Pulley Set)[05.1995 - 07.1999] 15BF,3B..BB4#,5# |
90901-19032 |
US $23.76 |
||
|
13503
|
13503
13504-58010 Shaft Sub-Assy, Idle Gear[05.1995 - 07.1999] 15BF,3B..BB4#,5# |
13504-58010 |
US $139.78 |
||
|
13521
|
13521
13521-56030 Gear Or Sprocket, Crankshaft Timing[01.1993 - 07.1999] 15BF,3B..BB4#,5# |
13521-56030 |
US $106.56 |
||
|
13521A
|
13521A
95161-30519 Key(For Crankshaft Timing Gear)[01.1993 - 07.1999] 15BF,3B..BB4#,5# |
95161-30519 |
US $3.32 |
||
|
13525
|
13525
13508-56010 Gear, Idle, No.1[01.1993 - 07.1999] 15BF,3B..BB4#,5# |
13508-56010 |
US $118.81 |
||
|
13572
|
13572
13572-56020 Plate, Idle Gear Thrust[01.1993 - 07.1999] 15BF,3B..BB4#,5# |
13572-56020 |
US $8.56 |
||
|
13577A
|
13577A
90105-10194 Bolt, Hexagon(For Idle Gear Bolt Lock)[01.1993 - 07.1999] 15BF,3B..BB4#,5# |
90105-10194 |
US $4.72 |
||
|
13707A
|
13707A
90401-10026 Union(For Oil Pipe, No.1)[01.1993 - 07.1999] 15BF,3B..BB4#,5# |
90401-10026 |
US $1.40 |
||
|
9151180820
|
9151180820
91511-80820 BOLT FLANGE |
91511-80820 |
from US $0.86 |
||
