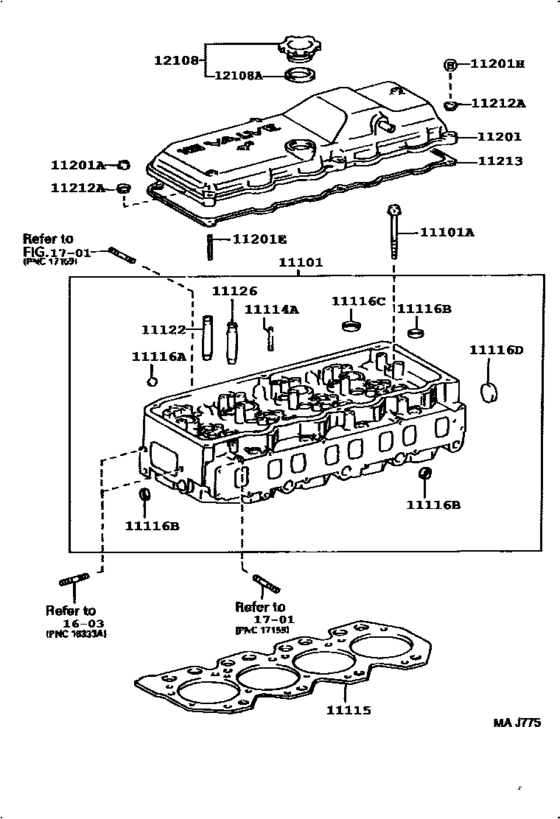

Cylinder Head ([12.1995 - 07.1999] (9512-9907)15BF) Diagram Toyota COASTER
- Year
- 1998 - 1999
- Sales region
- Japan
- Frame
- BB58
- grade
- DX
- Roof
- HRF
- ENGINE
- 15BF
- TRANSMISSION
- ATM
- COOLER
- WOC
- Model
- COASTER
- From
- 04.1998
- To
- 07.1999
- Gear Shift Type
- 4FC
- Seating Capacity
- 29S
- Vehicle Model
- Coaster
- Fuel Induction
- DSL4
- Building Condition
- CBU
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-58080
Head Sub-Assy, Cylinder
[12.1995 - 04.1999] 15BF..BB5# |
11101-58080 |
— | ||
| replacement | |||||
|
11101
|
11101
11101-58081 Head Sub-Assy, Cylinder[12.1995 - 04.1999] 15BF..BB5# |
11101-58081 |
US $2,367.89 |
||
|
11101
|
11101
11101-58081 Head Sub-Assy, Cylinder[04.1999 - 07.1999] 15BF..BB58 |
11101-58081 |
US $2,367.89 |
||
|
11101A
|
11101A
90910-02084 Bolt(For Cylinder Head Set)[01.1993 - 07.1999] 15BF,3B..BB4#,5# |
90910-02084 |
from US $8.48 |
||
|
11114A
|
11114A
90250-09007 Pin, Straight[12.1995 - 07.1999] 15BF..BB5# 長さ＝５３．５，外径＝９ |
90250-09007 |
US $3.84 |
||
|
11115
|
11115
11115-58130
Gasket, Cylinder Head
[12.1995 - 05.1999] 15BF..BB5# 厚さ＝１．２０ |
11115-58130 |
— | ||
| replacement | |||||
|
11115
|
11115
11115-58131 Gasket, Cylinder Head[12.1995 - 05.1999] 15BF..BB5# 厚さ＝１．２０ |
11115-58131 |
from US $100.25 |
||
|
11115
|
11115
11115-58131 Gasket, Cylinder Head[05.1999 - 07.1999] 15BF..BB58 厚さ＝１．２０ |
11115-58131 |
from US $100.25 |
||
|
11115
|
11115
11115-58140
Gasket, Cylinder Head
[12.1995 - 05.1999] 15BF..BB5# 厚さ＝１．３０ |
11115-58140 |
— | ||
| replacement | |||||
|
11115
|
11115
11115-58141 Gasket, Cylinder Head[12.1995 - 05.1999] 15BF..BB5# 厚さ＝１．３０ |
11115-58141 |
from US $108.54 |
||
|
11115
|
11115
11115-58141 Gasket, Cylinder Head[05.1999 - 07.1999] 15BF..BB58 厚さ＝１．３０ |
11115-58141 |
from US $108.54 |
||
|
11115
|
11115
11115-58150
Gasket, Cylinder Head
[12.1995 - 05.1999] 15BF..BB5# 厚さ＝１．４０ |
11115-58150 |
— | ||
| replacement | |||||
|
11115
|
11115
11115-58151 Gasket, Cylinder Head[12.1995 - 05.1999] 15BF..BB5# 厚さ＝１．４０ |
11115-58151 |
from US $107.62 |
||
|
11115
|
11115
11115-58151 Gasket, Cylinder Head[05.1999 - 07.1999] 15BF..BB58 厚さ＝１．４０ |
11115-58151 |
from US $107.62 |
||
|
11116A
|
11116A
90331-14006 Plug, Tight, No.1[12.1995 - 07.1999] 15BF..BB5# |
90331-14006 |
US $0.35 |
||
|
11116B
|
11116B
96411-62500 Plug, Tight, No.1[12.1995 - 07.1999] 15BF..BB5# |
96411-62500 |
from US $3.20 |
||
|
11116C
|
11116C
96411-63000 Plug, Tight[12.1995 - 07.1999] 15BF..BB5# |
96411-63000 |
from US $3.36 |
||
|
11116D
|
11116D
96411-64000 Plug, Tight, No.2[12.1995 - 07.1999] 15BF..BB5# |
96411-64000 |
from US $3.68 |
||
|
11122
|
11122
11122-58010 Bush, Intake Valve Guide[12.1995 - 04.1999] 15BF..BB5# ＳＴＤ |
11122-58010 |
US $10.48 |
||
| replacement | |||||
|
11122
|
11122
11122-58020 Bush, Intake Valve Guide[12.1995 - 04.1999] 15BF..BB5# ＳＴＤ |
11122-58020 |
from US $7.43 |
||
|
11122
|
11122
11122-58020 Bush, Intake Valve Guide[04.1999 - 07.1999] 15BF..BB58 ＳＴＤ |
11122-58020 |
from US $7.43 |
||
|
11126
|
11126
11122-58010 Bush, Intake Valve Guide[12.1995 - 04.1999] 15BF..BB5# ＳＴＤ |
11122-58010 |
US $10.48 |
||
| replacement | |||||
|
11126
|
11126
11122-58020 Bush, Intake Valve Guide[12.1995 - 04.1999] 15BF..BB5# ＳＴＤ |
11122-58020 |
from US $7.43 |
||
|
11126
|
11126
11122-58020 Bush, Intake Valve Guide[04.1999 - 07.1999] 15BF..BB58 ＳＴＤ |
11122-58020 |
from US $7.43 |
||
|
11201
|
11201
11201-58040
Cover Sub-Assy, Cylinder Head
[12.1995 - 07.1999] 15BF..BB5# |
11201-58040 |
— | ||
| replacement | |||||
|
11201
|
11201
11201-58041 Cover Sub-Assy, Cylinder Head[12.1995 - 07.1999] 15BF..BB5# |
11201-58041 |
US $283.05 |
||
|
11201A
|
11201A
90179-08025 Nut, Cap(For Cylinder Head Cover)[05.1995 - 05.1999] 15BF,3B..BB4#,5# |
90179-08025 |
from US $0.92 |
||
|
11201A
|
11201A
90179-08040 Nut, Cap(For Cylinder Head Cover)[05.1999 - 07.1999] 15BF,3B..BB4#,58 |
90179-08040 |
from US $1.13 |
||
|
11201E
|
11201E
92112-60835 Bolt, Stud(For Cylinder Head Cover Set)[12.1995 - 07.1999] 15BF..BB5# |
92112-60835 |
US $3.04 |
||
|
11201H
|
11201H
91511-60835
Bolt(For Cylinder Head Set Sub)
[12.1995 - 07.1999] 15BF..BB5# |
91511-60835 |
— | ||
| replacement | |||||
|
11201H
|
11201H
90105-08200 Bolt(For Cylinder Head Set Sub)[12.1995 - 07.1999] 15BF..BB5# |
90105-08200 |
from US $1.56 |
||
|
11212A
|
11212A
11228-56010 Cushion, Cylinder Head Cover[01.1993 - 07.1999] 15BF,3B..BB4#,5# |
11228-56010 |
US $5.28 |
||
|
11213
|
11213
11213-58020
Gasket, Cylinder Head Cover
[12.1995 - 03.1999] 15BF..BB5# |
11213-58020 |
— | ||
| replacement | |||||
|
11213
|
11213
11213-58021 Gasket, Cylinder Head Cover[12.1995 - 03.1999] 15BF..BB5# |
11213-58021 |
US $18.54 |
||
|
11213
|
11213
11213-58021 Gasket, Cylinder Head Cover[03.1999 - 07.1999] 15BF..BB58 |
11213-58021 |
US $18.54 |
||
|
12108
|
12108
12180-55010 Cap Sub-Assy, Oil Filler[12.1993 - 07.1999] 15BF,3B..BB4#,5# |
12180-55010 |
from US $10.08 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[01.1993 - 07.1999] 15BF,3B..BB4#,5# |
90430-37140 |
from US $1.25 |
||
