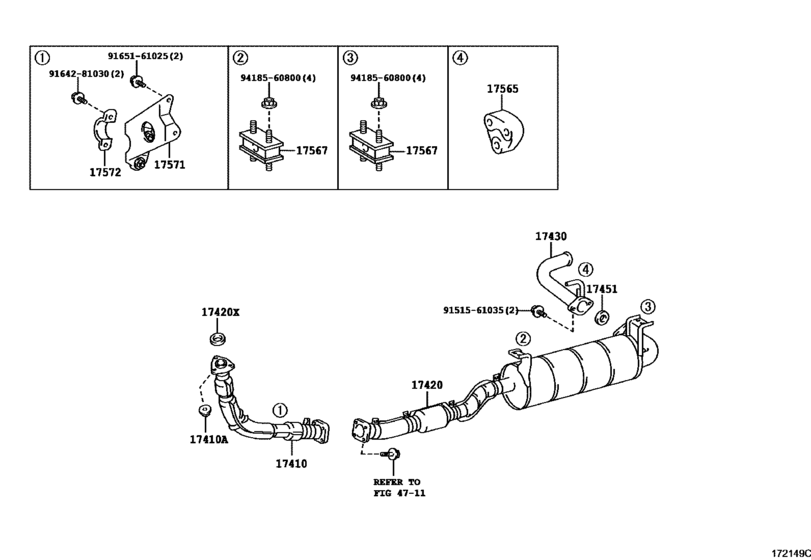

Exhaust Pipe ([07.1999 - 08.2004] (9907-0408)15BFTE) Diagram Toyota COASTER
- Year
- 1999 - 2004
- Sales region
- Japan
- Frame
- BB58
- grade
- LX
- Roof
- HRF
- ENGINE
- 15BFTE
- TRANSMISSION
- ATM
- COOLER
- WC
- Model
- COASTER
- From
- 07.1999
- To
- 08.2004
- Gear Shift Type
- 4FC
- Seating Capacity
- 29S
- Vehicle Model
- Coaster
- Fuel Induction
- TDEFI
- Building Condition
- CBU
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-58280 Pipe Assy, Exhaust, Front[07.1999 - 08.2004] 15BFTE..BB58 |
17410-58280 |
US $365.46 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[07.1999 - 08.2004] 15BFTE,1BZFPE,1H#..BB58,BZB40,50,HDB5#,HZB4#,5# |
90179-10070 |
from US $1.54 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[07.1999 - 08.2004] 15BFTE,1BZFPE,1H#..BB58,BZB40,50,HDB5#,HZB4#,5# |
90080-17187 |
US $33.80 |
||
|
17420
|
17420
17420-5C070 Pipe Assy, Exhaust, Center[07.1999 - 08.2004] 15BFTE..BB58 |
17420-5C070 |
US $579.49 |
||
|
17420X
|
17420X
90917-06059 Gasket, Exhaust Pipe[07.1999 - 08.2004] 15BFTE..BB58 |
90917-06059 |
from US $4.95 |
||
|
17430
|
17430
17405-58630 Pipe Assy, Exhaust, Tail[07.1999 - 08.2004] 15BFTE..BB58 |
17405-58630 |
US $168.90 |
||
|
17451
|
17451
90917-06068 Gasket, Exhaust Pipe[07.1999 - 08.2004] 15BFTE..BB58 |
90917-06068 |
US $9.44 |
||
|
17565
|
17565
17566-64010 Ring, Catalytic Converter[07.1999 - 08.2004] 15BFTE..BB58 |
17566-64010 |
US $12.80 |
||
|
17567
|
17567
17567-35010 Cushion, Exhaust Pipe Front (For Rear)[07.1999 - 08.2004] 15BFTE..BB58 |
17567-35010 |
US $35.26 |
||
|
17571
|
17571
17571-58410 Bracket, Exhaust Pipe Support, No.1[07.1999 - 08.2004] 15BFTE..BB58 |
17571-58410 |
US $26.79 |
||
|
17572
|
17572
17572-58120 Bracket, Exhaust Pipe No.1 Support[07.1999 - 08.2004] 15BFTE..BB58 |
17572-58120 |
US $14.88 |
||
|
9151561035
|
9151561035
91515-61035 BOLT |
91515-61035 |
from US $1.05 |
||
|
9164281030
|
9164281030
91642-81030 Bolt |
91642-81030 |
US $2.72 |
||
|
9165161025
|
9165161025
91651-61025 Bolt with washer |
91651-61025 |
from US $1.58 |
||
|
9418560800
|
9418560800
94185-60800 NUT |
94185-60800 |
US $1.60 |
||
