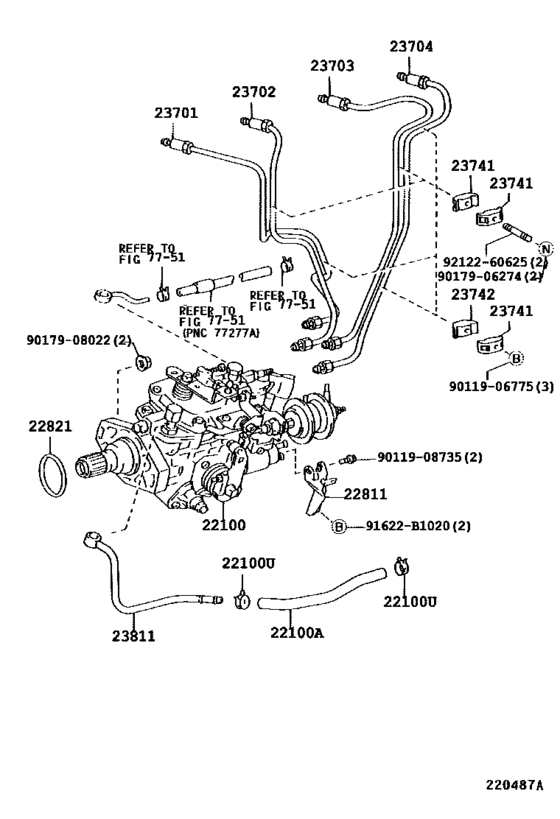

Injection Pump Assembly ([05.1997 - ] VE PUMP (9705- )15BFT..BB58 ; (9705- )15BFT..BB50. .STD..GEN..IV) Diagram Toyota COASTER
- Year
- 1997 - 1999
- Sales region
- General
- Frame
- BB58
- grade
- STD
- Roof
- HRF
- ENGINE
- 15BFT
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 05.1997
- To
- 07.1999
- Gear Shift Type
- 5F
- Seating Capacity
- 22S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22100
|
22100
22100-5C420
Pump Assy, Injection Or Supply
[05.1997 - 07.1999] 15BFT..BB58;15BFT..BB50..GEN..IV |
22100-5C420 |
— | ||
|
22100A
|
22100A
95332-10030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[05.1997 - 07.1999] 15BFT..BB58;15BFT..BB50..WC..GEN..IV *H,L=260 |
95332-10030 |
from US $15.66 |
||
|
22100U
|
22100U
96132-41500 Clip(For Ventilation Tube)[01.1993 - 07.1999] 14B,15BFT,3B..BB4#,5# |
96132-41500 |
from US $1.44 |
||
|
22811
|
22811
22811-58030 Stay, Injection Pump, No.1[05.1995 - 07.1999] 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
22811-58030 |
US $14.41 |
||
| replacement | |||||
|
22811
|
22811
22811-58031 Stay, Injection Pump, No.1INJECTION PUMP, NO.1 [05.1995 - 07.1999] 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
22811-58031 |
US $8.88 |
||
|
22821
|
22821
90301-49003 Gasket, Injection Pump[01.1993 - 07.1999] 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
90301-49003 |
from US $2.36 |
||
|
23701
|
23701
23701-58030 Pipe Sub-Assy, Injection, No.1[05.1997 - 07.1999] 15BFT..BB58;15BFT..BB50..GEN..IV |
23701-58030 |
US $36.17 |
||
|
23702
|
23702
23702-58030 Pipe Sub-Assy, Injection, No.2[05.1997 - 07.1999] 15BFT..BB58;15BFT..BB50..GEN..IV |
23702-58030 |
US $39.14 |
||
|
23703
|
23703
23703-58030 Pipe Sub-Assy, Injection, No.3[05.1997 - 07.1999] 15BFT..BB58;15BFT..BB50..GEN..IV |
23703-58030 |
US $36.17 |
||
|
23704
|
23704
23704-58030 Pipe Sub-Assy, Injection, No.4[05.1997 - 07.1999] 15BFT..BB58;15BFT..BB50..GEN..IV |
23704-58030 |
US $36.17 |
||
|
23741
|
23741
23741-58010 Clamp, Injection Pipe, No.1[05.1997 - 07.1999] 15BFT..BB58;15BFT..BB50..GEN..IV |
23741-58010 |
from US $2.09 |
||
|
23742
|
23742
23742-58010 Clamp, Injection Pipe, No.2[05.1997 - 07.1999] 15BFT..BB58;15BFT..BB50..GEN..IV |
23742-58010 |
US $3.67 |
||
|
23811
|
23811
23811-58010 Pipe, Fuel(For Fuel Filter To Injection Pump)[05.1997 - 07.1999] 15BFT..BB58;15BFT..BB50..GEN..IV |
23811-58010 |
US $58.82 |
||
|
91622B1020
|
91622B1020
91622-B1020 Bolt(For Transaxle & Engine Setting) |
91622-B1020 |
US $1.92 |
||
|
9011906775
|
9011906775
90119-06775 BOLT WWASHER |
90119-06775 |
from US $1.11 |
||
|
9011908735
|
9011908735
90119-08735 New Genuine Part |
90119-08735 |
US $1.75 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9017908022
|
9017908022
90179-08022 NUT |
90179-08022 |
from US $1.58 |
||
|
9212260625
|
9212260625
92122-60625 New Genuine Part |
92122-60625 |
US $0.76 |
||
