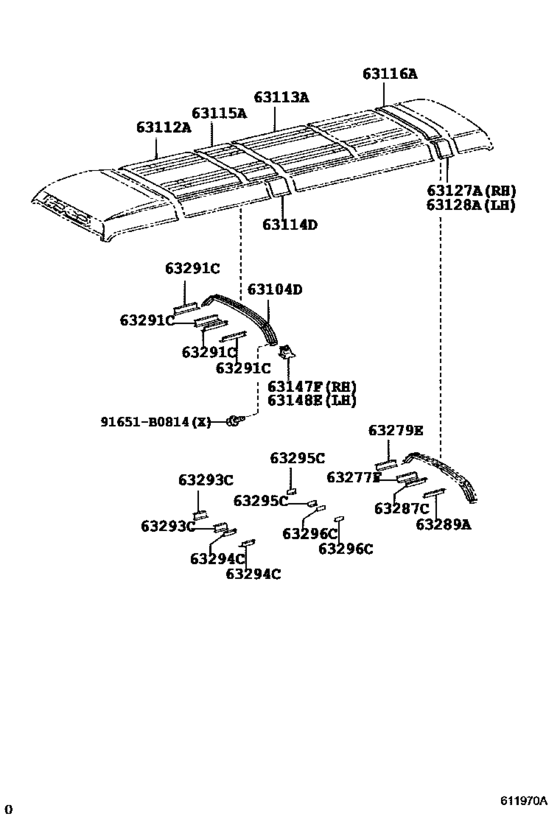

Roof Panel & Back Panel ([11.2003 - ] S-LONG, ILLUST. NO. 1/6 & 5/6 (0311- )BB59,XZB59) Diagram Toyota COASTER
- Year
- 2001 - 2006
- Sales region
- Europe
- Frame
- BB59
- grade
- EX
- Roof
- HRF
- ENGINE
- 15BFTE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 08.2001
- To
- 08.2006
- Gear Shift Type
- 5F
- Vehicle Model
- Coaster
- Driver's Position
- RHD
- Fuel Induction
- TDEFI
- Building Condition
- IV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63104D
|
63104D
63104-36011 Reinforcement Sub-Assy, Roof Panel, No.3[07.1999 - 05.2004] HZB50..LHD..EX;HZB50..HRF..30S..WC;BB42,HZB50..LHD..HRF..WOC;BB59,BZB40,50,RZB50.. HRF..(GCC,GEN);BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);BB50,RZB40..HRF..(17S, 21S,26S,30S)..(ARL,GCC,GEN) |
63104-36011 |
US $163.07 |
||
| replacement | |||||
|
63104D
|
63104D
63104-36012 Reinforcement Sub-Assy, Roof Panel, No.3[07.1999 - 05.2004] HZB50..LHD..EX;HZB50..HRF..30S..WC;BB42,HZB50..LHD..HRF..WOC;BB59,BZB40,50,RZB50.. HRF..(GCC,GEN);BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);BB50,RZB40..HRF..(17S, 21S,26S,30S)..(ARL,GCC,GEN) |
63104-36012 |
US $112.11 |
||
|
63104D
|
63104D
63104-36012 Reinforcement Sub-Assy, Roof Panel, No.3[06.2004 - 08.2004] BB42,50,59,BZB40,50,HZB50,RZB40,50..HRF..(ARL,GCC,GEN) |
63104-36012 |
US $112.11 |
||
|
63112A
|
63112A
63116-36040 Panel, Roof, No.2[07.1999 - 08.2004] BB50..DX,EX;BB50..STD..CBU;BB4#,58,59,BZB40,50,HZB50,RZB40,50 |
63116-36040 |
US $1,291.47 |
||
|
63113A
|
63113A
63117-36070 Panel, Roof, No.3[07.1999 - 08.2004] BB50..DX,EX;BB50..STD..CBU;BB4#,58,59,BZB40,50,HZB50,RZB40,50 |
63117-36070 |
US $1,291.47 |
||
|
63114D
|
63114D
63114-36060 Panel, Roof, Center SideROOF, CENTER SIDE [11.2003 - 08.2004] BB59 |
63114-36060 |
US $87.36 |
||
|
63115A
|
63115A
63116-36090 Panel, Roof, No.5ROOF, NO.2 [11.2003 - 08.2004] BB59 |
63116-36090 |
US $116.48 |
||
|
63116A
|
63116A
63117-36110 Panel, Roof, No.6ROOF, NO.3 [11.2003 - 08.2004] BB59 |
63117-36110 |
US $91.73 |
||
|
63127A
|
63127A
63127-36060 Extension, Roof Panel, Rear RhROOF PANEL, REAR RH [11.2003 - 08.2004] BB59 |
63127-36060 |
US $51.25 |
||
|
63128A
|
63128A
63128-36040 Extension, Roof Panel, Rear LhROOF PANEL, REAR LH [11.2003 - 08.2004] BB59 |
63128-36040 |
US $51.25 |
||
|
63147F
|
63147F
63147-36010 Bracket, Roof Panel Reinforcement[11.2003 - 08.2004] BB59 |
63147-36010 |
US $29.27 |
||
| replacement | |||||
|
63147F
|
63147F
63147-36011 Bracket, Roof Panel Reinforcement[11.2003 - 08.2004] BB59 |
63147-36011 |
US $21.99 |
||
|
63148E
|
63148E
63147-36010 Bracket, Roof Panel Reinforcement[11.2003 - 08.2004] BB59 |
63147-36010 |
US $29.27 |
||
| replacement | |||||
|
63148E
|
63148E
63147-36011 Bracket, Roof Panel Reinforcement[11.2003 - 08.2004] BB59 |
63147-36011 |
US $21.99 |
||
|
63277F
|
63277F
63277-36050 Strength, Roof Panel, No.7 RhROOF PANEL, NO.7 RH [11.2003 - 08.2004] BB59 |
63277-36050 |
US $19.66 |
||
|
63279E
|
63279E
63279-36060 Strength, Roof Panel, No.9 RhROOF PANEL, NO.9 RH [11.2003 - 08.2004] BB59 |
63279-36060 |
US $21.11 |
||
|
63287C
|
63287C
63287-36050 Strength, Roof Panel, No.7 LhROOF PANEL, NO.7 LH [11.2003 - 08.2004] BB59 |
63287-36050 |
US $19.66 |
||
|
63289A
|
63289A
63289-36060 Strength, Roof Panel, No.9 LhROOF PANEL, NO.9 LH [11.2003 - 08.2004] BB59 |
63289-36060 |
US $21.11 |
||
|
63291C
|
63291C
63291-36030 Strength, Roof Panel, No.10ROOF PANEL, NO.10 [11.2003 - 08.2004] BB59 |
63291-36030 |
US $38.15 |
||
|
63293C
|
63293C
63293-36030 Strength, Roof Panel, No.11 RhROOF PANEL, NO.11 RH [11.2003 - 08.2004] BB59 |
63293-36030 |
US $19.07 |
||
|
63294C
|
63294C
63294-36010 Strength, Roof Panel, No.11 LhROOF PANEL, NO.11 LH [11.2003 - 08.2004] BB59 |
63294-36010 |
US $19.07 |
||
|
63295C
|
63295C
63295-36030 Strength, Roof Panel, No.12 RhROOF PANEL, NO.12 RH [08.2004 - 08.2006] BB59 |
63295-36030 |
US $11.65 |
||
|
63296C
|
63296C
63295-36030 Strength, Roof Panel, No.12 RhROOF PANEL, NO.12 RH [08.2004 - 08.2006] BB59 |
63295-36030 |
US $11.65 |
||
|
91651B0814
|
91651B0814
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.88 |
||
| replacement | |||||
|
91651B0814
|
91651B0814
90119-A0109 New Genuine Part |
90119-A0109 |
US $2.97 |
||
