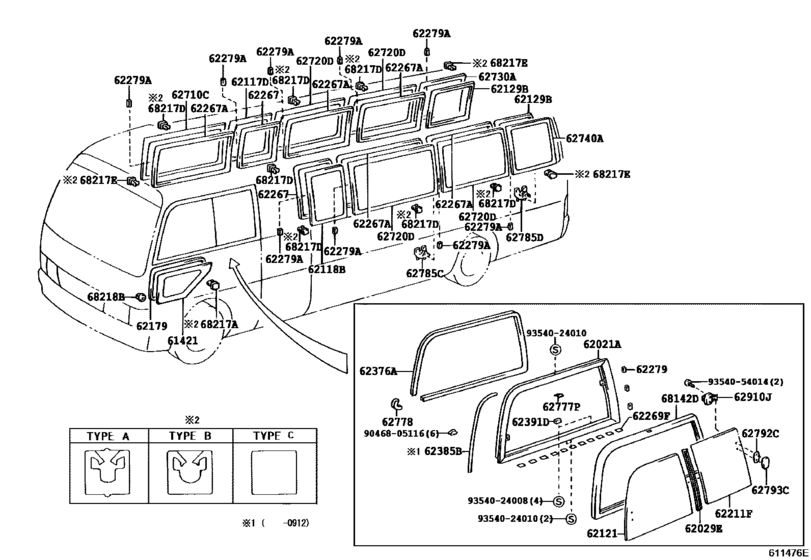

Side Window ([08.2001 - ] (0104-0108)EX..IV ; (0108- )BB59,XZB59) Diagram Toyota COASTER
- Year
- 2001 - 2006
- Sales region
- General
- Frame
- BB59
- grade
- EX
- Roof
- HRF
- ENGINE
- 15BFTE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 08.2001
- To
- 08.2006
- Gear Shift Type
- 5F
- Vehicle Model
- Coaster
- Driver's Position
- RHD
- Fuel Induction
- TDEFI
- Building Condition
- IV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61421
|
61421
62171-36080
Glass, Side Lower Window
[07.1999 - 08.2004] BB42..RHD..SRF;BB50..RHD..CBU..TDEFI;BB42,59,BZB40,50..RHD..WC;HZB50..RHD..HRF..ST D..WC..GEN..5F *TT,T=3.5,GREEN |
62171-36080 |
— | ||
|
62021A
|
62021A
62021-36032 Frame Sub-Assy, Front Side Window, Outer Lh[07.1999 - 08.2004] BB59,BZB50..EX;BB50..(20S,21S)..TDEFI BLACK |
62021-36032 |
US $611.52 |
||
|
62029E
|
62029E
62029-36044 Frame Sub-Assy, Side Window, Center Lh[05.2000 - 08.2004] BB59,BZB50..EX;BB50..(20S,21S)..TDEFI |
62029-36044 |
US $88.74 |
||
|
62117D
|
62117D
62117-36010
Glass, Reart Side Window, Rear Rh
[04.2001 - 08.2004] BB59 |
62117-36010 |
— | ||
|
62118B
|
62118B
62118-36010
Glass, Reart Side Window, Rear Lh
[04.2001 - 08.2004] BB59 |
62118-36010 |
— | ||
|
62121
|
62121
62121-36050
Glass, Front Side Window, Front Lh
[07.1999 - 08.2004] BB42..RHD..SRF;BB50..RHD..CBU..TDEFI;BB42,59,BZB40,50..RHD..WC;HZB50..RHD..HRF..ST D..WC..GEN..5F *TT,T=5.0,GREEN |
62121-36050 |
— | ||
|
62129B
|
62129B
62129-36020 Dam, Rear Side WindowREAR SIDE WINDOW [08.2004 - 08.2006] BB59 |
62129-36020 |
US $13.83 |
||
|
62179
|
62179
62179-36010 Dam, Side Lower Window[07.1999 - 08.2004] BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..S RF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50, RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB |
62179-36010 |
US $9.92 |
||
|
62211F
|
62211F
62211-36080
Glass, Side Window, Rear Lh
[07.1999 - 08.2004] BB42..RHD..SRF;BB50..RHD..CBU..TDEFI;BB42,59,BZB40,50..RHD..WC;HZB50..RHD..HRF..ST D..WC..GEN..5F *TT,T=5.0,GREEN |
62211-36080 |
— | ||
|
62267
|
62267
62267-36040 Dam, Side Window AdhesiveSIDE WINDOW ADHESIVE [04.2001 - 08.2004] BB59 RH |
62267-36040 |
US $10.92 |
||
|
62267
|
62267
62267-36050 Dam, Side Window AdhesiveSIDE WINDOW ADHESIVE [04.2001 - 08.2004] BB59 LH |
62267-36050 |
US $10.92 |
||
|
62267A
|
62267A
62267-36010 Dam, Side Window Adhesive[04.2001 - 08.2004] BB59 |
62267-36010 |
US $15 |
||
|
62269F
|
62269F
62269-90K01 Film, Side Window Frame[07.1999 - 08.2004] BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..S RF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50, RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB |
62269-90K01 |
US $1.92 |
||
|
62279
|
62279
62279-36030 Spacer, Side Window Frame, Upper[07.1999 - 08.2004] BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..S RF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50, RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB |
62279-36030 |
US $2.56 |
||
|
62279A
|
62279A
62279-36020 Spacer, Side Window Frame[04.2001 - 08.2004] BB59 |
62279-36020 |
US $1.31 |
||
|
62376A
|
62376A
62376-36010-B0 Clip, Front Door Window[08.2001 - 08.2004] HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,GCC,GEN MD.CHARCOAL,TRIM1# |
62376-36010-B0 |
US $76.35 |
||
|
62385B
|
62385B
62385-36020 Seal, Side Window, No.5[07.1999 - 08.2004] HZB50..LHD..EX;BB59,BZB50,RZB40..EX;BB50..(19S,20S,21S)..TDEFI |
62385-36020 |
US $16.60 |
||
|
62391D
|
62391D
62391-36010 Stopper, Side Window, No.1 Lh[07.1999 - 08.2004] BB42..RHD..SRF;BB50..RHD..CBU..TDEFI;BB42,59,BZB40,50..RHD..WC;HZB50..RHD..HRF..ST D..WC..GEN..5F |
62391-36010 |
US $3.52 |
||
|
62710C
|
62710C
62715-36030
Glass Sub-Assy, Side Front Window, Rh
[07.1999 - 08.2004] BB50,59,BZB50..EX..(LPG,TDEFI) |
62715-36030 |
— | ||
|
62720D
|
62720D
62717-36030
Glass Sub-Assy, Side Front Window, Rh
[04.2001 - 08.2004] BB59 |
62717-36030 |
— | ||
|
62730A
|
62730A
62115-36090
Window Assy, Side, Rear Rh
[08.2004 - 08.2006] BB59 *TT,T=5.0,GREEN |
62115-36090 |
— | ||
|
62740A
|
62740A
62115-36090
Window Assy, Side, Rear Rh
[08.2004 - 08.2006] BB59 *TT,T=5.0,GREEN |
62115-36090 |
— | ||
|
62777P
|
62777P
62777-36060 Cap, Side Window Center Sash[05.2000 - 08.2004] BB59,BZB50..EX;BB50..(20S,21S)..TDEFI |
62777-36060 |
US $3.49 |
||
|
62778
|
62778
62778-36010-B0 Cap, Side Window Front Sash[08.2001 - 08.2004] HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,GCC,GEN MD.CHARCOAL,TRIM1# |
62778-36010-B0 |
US $9.92 |
||
|
62785C
|
62785C
62785-36010 Spacer, Quarter Window Glass[04.2001 - 08.2004] BB59 |
62785-36010 |
from US $8 |
||
|
62785D
|
62785D
62785-36010 Spacer, Quarter Window Glass[07.1999 - 08.2004] HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(19S, 20S)..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN) |
62785-36010 |
from US $8 |
||
|
62792C
|
62792C
62792-95A00 Packing, Side Rear Window, Rh[08.2004 - 08.2006] BB59,BZB50..EX;BB50..RHD..CBU |
62792-95A00 |
from US $1.64 |
||
|
62793C
|
62793C
62793-95J00 Retainer, Side Window Lock, No.1[08.2004 - 08.2006] BB59,BZB50..EX;BB50..RHD..CBU |
62793-95J00 |
from US $4.80 |
||
|
62910J
|
62910J
62910-95702 Lock, Side Window, No.1 Glass (For Slide Type)[08.2004 - 08.2006] BB59,BZB50..EX;BB50..RHD..CBU |
62910-95702 |
from US $10.82 |
||
|
68142D
|
68142D
68142-36013 Run, Side Front Window, Lh[05.2000 - 08.2004] BB42..RHD..SRF;BB50..RHD..CBU..TDEFI;BB42,59,BZB40,50..RHD..WC;HZB50..RHD..HRF..ST D..WC..GEN..5F |
68142-36013 |
US $119.88 |
||
|
68217A
|
68217A
68217-36010 Pin, Front Door Fix Window[07.1999 - 08.2004] BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..S RF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50, RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB |
68217-36010 |
US $3.84 |
||
|
68217A
|
68217A
68217-36020 Pin, Front Door Fix Window[07.1999 - 08.2004] BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..S RF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50, RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB |
68217-36020 |
US $3.84 |
||
|
68217A
|
68217A
68217-36030 Pin, Side Window , No.1[07.1999 - 08.2004] BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..S RF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50, RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB |
68217-36030 |
US $3.84 |
||
|
68217D
|
68217D
68217-36010 Pin, Front Door Fix Window[04.2001 - 08.2004] BB59 TYPE A:REFER TO ILLUSTRATION,ORANGE OR BLACK |
68217-36010 |
US $3.84 |
||
|
68217D
|
68217D
68217-36020 Pin, Front Door Fix Window[04.2001 - 08.2004] BB59 TYPE C:REFER TO ILLUSTRATION,GRAY OR GREEN |
68217-36020 |
US $3.84 |
||
|
68217D
|
68217D
68217-36030 Pin, Side Window , No.1[04.2001 - 08.2004] BB59 TYPE B:REFER TO ILLUSTRATION,ORANGE OR BLACK |
68217-36030 |
US $3.84 |
||
|
68217D
|
68217D
68217-36040 Pin, Side Window, No.3[04.2001 - 08.2004] BB59 TYPE B:REFER TO ILLUSTRATION,GREEN |
68217-36040 |
US $2.18 |
||
|
68217E
|
68217E
68217-36010 Pin, Front Door Fix Window[07.1999 - 08.2004] HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(19S, 20S)..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN) TYPE A:REFER TO ILLUSTRATION,ORANGE OR BLACK |
68217-36010 |
US $3.84 |
||
|
68217E
|
68217E
68217-36030 Pin, Side Window , No.1[07.1999 - 08.2004] HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(19S, 20S)..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN) TYPE B:REFER TO ILLUSTRATION,ORANGE OR BLACK |
68217-36030 |
US $3.84 |
||
|
68218B
|
68218B
68218-36010 Bush, Front Door Fix Window[07.1999 - 08.2004] BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..S RF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50, RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB |
68218-36010 |
US $2.88 |
||
|
9046805116
|
9046805116
90468-05116 CLIP |
90468-05116 |
from US $1.23 |
||
|
9354024008
|
9354024008
93540-24008 SCREW |
93540-24008 |
US $1.44 |
||
|
9354024010
|
9354024010
93540-24010 Screw, Roof Headlining Trim |
93540-24010 |
US $2.56 |
||
|
9354054014
|
9354054014
93540-54014 SCREW |
93540-54014 |
from US $1.05 |
