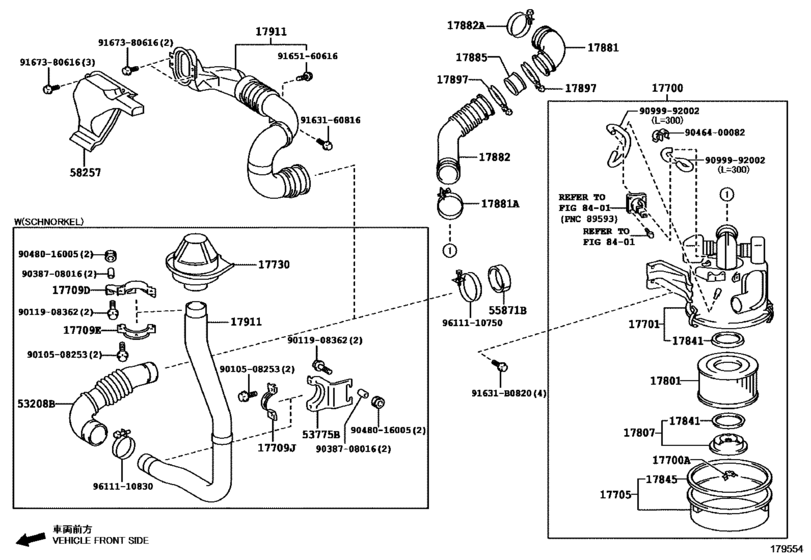

Air Cleaner ([01.2017 - ] (1701- )14B) Diagram Toyota COASTER
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- BB60
- grade
- STD
- Roof
- HRF
- ENGINE
- 14B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 01.2017
- Gear Shift Type
- 5F
- Seating Capacity
- 26S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-58691
Cleaner Assy, Air
[01.2017 -] 14B..BB60 |
17700-58691 |
— | ||
|
17700A
|
17700A
90175-08008 Nut, Wing(For Air Cleaner)[01.2017 -] 2TRFE..TRB60,70; 1BZFPE..BZB70 NO.1:REFER ILLUST.; 1HZ..HZB70..GEN; 14B..BB60; N04C..XZB70 |
90175-08008 |
from US $2.71 |
||
|
17701
|
17701
17701-58360
Case Sub-Assy, Air Cleaner
[01.2017 -] 14B..BB60 |
17701-58360 |
— | ||
|
17705
|
17705
17705-58360 Cap Sub-Assy, Air CleanerAIR CLEANER [01.2017 -] 2TRFE..TRB60,70; 14B..BB60 |
17705-58360 |
US $85.20 |
||
|
17709D
|
17709D
53772-36050
Bracket, Air Cleaner Inlet, No.1
[01.2017 -] 14B..BB60 COOL AIR INTAKE-SCHNORKEL(LOADING ON BOARD); 14B..BB60 COOL AIR INTAKE-SCHNORKEL |
53772-36050 |
— | ||
|
17709E
|
17709E
53773-36010
Bracket, Air Cleaner Inlet, No.2
[01.2017 -] N04C..XZB70..STD..GEN COOL AIR INTAKE-SCHNORKEL(LOADING ON BOARD); 2TRFE..TRB60,70..GEN COOL AIR INTAKE-SCHNORKEL(LOADING ON BOARD),NO.1; 1HZ..HZB70..GEN COOL AIR INTAKE-SCHNORKEL(LOADING ON BOARD),NO.1; 14B..BB60 COOL AIR INTAKE-SCHNORKEL(LOA |
53773-36010 |
— | ||
|
17709J
|
17709J
53773-36021
Bracket, Air Cleaner Inlet, No.3
[01.2017 -] N04C..XZB70..STD..GEN COOL AIR INTAKE-SCHNORKEL(LOADING ON BOARD); 1HZ..HZB70..GEN COOL AIR INTAKE-SCHNORKEL(LOADING ON BOARD); 14B..BB60 COOL AIR INTAKE-SCHNORKEL(LOADING ON BOARD); N04C..XZB70..STD..GEN COOL AIR INTAKE-SCHNORKEL; 1HZ..HZB70. |
53773-36021 |
— | ||
|
17730
|
17730
17730-66010 Precleaner Assy, Air W/hose[01.2017 -] N04C..XZB70..STD..GEN COOL AIR INTAKE-SCHNORKEL(LOADING ON BOARD); 2TRFE..TRB60,70..GEN COOL AIR INTAKE-SCHNORKEL(LOADING ON BOARD); 1HZ..HZB70..GEN COOL AIR INTAKE-SCHNORKEL(LOADING ON BOARD); 14B..BB60 COOL AIR INTAKE-SCHNORKEL(LOADING ON BO |
17730-66010 |
from US $79.64 |
||
|
17801
|
17801
17801-58010 Element Sub-Assy, Air Cleaner FilterAIR CLEANER FILTER [01.2017 -] 2TRFE..TRB60,70; 14B..BB60 |
17801-58010 |
from US $64.21 |
||
|
17807
|
17807
17807-56020
Plate Sub-Assy, Air Cleaner Filter Set
[01.2017 -] 2TRFE..TRB60,70; 14B,1BZFPE..BB60,BZB70 |
17807-56020 |
— | ||
|
17841
|
17841
17841-44030 Gasket, Filter Element[01.2017 -] 2TRFE..TRB60,70; 14B,1BZFPE..BB60,BZB70 |
17841-44030 |
from US $4.54 |
||
|
17845
|
17845
17845-56020 Gasket, Air Cleaner Cap[01.2017 -] 2TRFE..TRB60,70; 14B..BB60 |
17845-56020 |
from US $7.34 |
||
|
17881
|
17881
17881-58210 Hose, Air Cleaner, No.1AIR CLEANER, NO.1 [01.2017 -] 14B..BB60 |
17881-58210 |
US $31.45 |
||
|
17881A
|
17881A
96111-10750 Clamp, Hose(For Air Cleaner Duct)[01.2017 -] 14B,1BZFPE..BB60,BZB70 |
96111-10750 |
from US $3.04 |
||
|
17882
|
17882
17882-58130 Hose, Air Cleaner, No.2[01.2017 -] 14B..BB60 |
17882-58130 |
from US $52.85 |
||
|
17882A
|
17882A
96111-10900 Clamp, Hose[01.2017 -] 1HZ..HZB70..GEN NO.2; 14B..BB60 |
96111-10900 |
from US $2.57 |
||
|
17885
|
17885
17885-17010 Pipe, Air Cleaner[01.2017 -] 1HZ..HZB70..GEN; 14B..BB60 |
17885-17010 |
from US $11.21 |
||
|
17897
|
17897
96111-10780 Clamp, Hose(For Air Connector)[01.2017 -] 14B..BB60 |
96111-10780 |
from US $3.76 |
||
|
17911
|
17911
52810-36020 Duct, Cool Air Intake, No.1[01.2017 -] 14B,1BZFPE..BB60,BZB70; 14B..BB60 COOL AIR INTAKE-SCHNORKEL(LOADING ON BOARD); 14B..BB60 COOL AIR INTAKE-SCHNORKEL |
52810-36020 |
US $68.87 |
||
|
17911
|
17911
53207-36231
Duct, Cool Air Intake, No.1
[01.2017 -] 14B..BB60 COOL AIR INTAKE-SCHNORKEL(LOADING ON BOARD); 14B..BB60 COOL AIR INTAKE-SCHNORKEL |
53207-36231 |
— | ||
|
53208B
|
53208B
53208-36031
Duct Sub-Assy, Cool Air Intake, No.2
[01.2017 -] BB60 COOL AIR INTAKE-SCHNORKEL(LOADING ON BOARD); BB60 COOL AIR INTAKE-SCHNORKEL |
53208-36031 |
— | ||
|
53775B
|
53775B
53775-36071
Bracket, Cool Air Intake Duct Mounting
[01.2017 -] BB60..LHD COOL AIR INTAKE-SCHNORKEL(LOADING ON BOARD); BB60..LHD COOL AIR INTAKE-SCHNORKEL |
53775-36071 |
— | ||
|
55871B
|
55871B
55871-36020 Seal, Air Duct[01.2017 -] TRB60,70; XZB60,70; HZB70..GEN; BB60,BZB70; BB60 COOL AIR INTAKE-SCHNORKEL(LOADING ON BOARD); XZB70..STD..GEN COOL AIR INTAKE-SCHNORKEL(LOADING ON BOARD); TRB60,70..GEN COOL AIR INTAKE-SCHNORKEL(LOADING ON BOARD); HZB70..GEN COOL AIR INTAKE-SC |
55871-36020 |
US $2.20 |
||
|
58257
|
58257
58257-36070 Plate, Air Cleaner House[01.2017 -] BB60,BZB70; BB60 COOL AIR INTAKE-SCHNORKEL(LOADING ON BOARD); BB60 COOL AIR INTAKE-SCHNORKEL |
58257-36070 |
US $39.17 |
||
|
91631B0820
|
91631B0820
91631-B0820 BOLT WWASHER |
91631-B0820 |
from US $0.82 |
||
|
9010508253
|
9010508253
90105-08253 BOLT WASHER BASED |
90105-08253 |
US $1.44 |
||
|
9011908362
|
9011908362
90119-08362
BOLT
|
90119-08362 |
— | ||
|
9038708016
|
9038708016
90387-08016 Collar(For Intake Air Connector) |
90387-08016 |
US $3.84 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
from US $1.60 |
||
|
9048016005
|
9048016005
90480-16005 Grommet(For Air Cleaner Bracket) |
90480-16005 |
US $9.92 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9163160816
|
9163160816
91631-60816 BOLT |
91631-60816 |
US $2.56 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.47 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
|
9611110750
|
9611110750
96111-10750 Clamp, Hose(For Air Cleaner Duct) |
96111-10750 |
from US $3.04 |
||
|
9611110830
|
9611110830
96111-10830 Clamp, Hose(For Air Connector) |
96111-10830 |
from US $2.88 |
