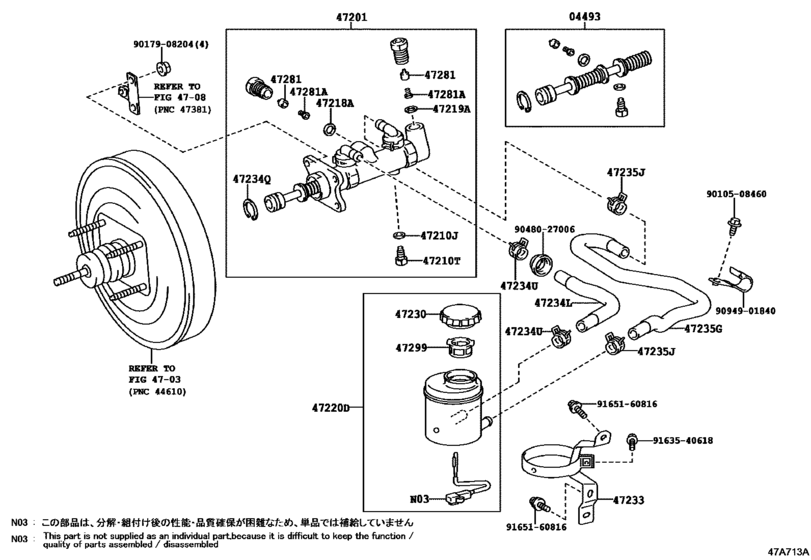

Brake Master Cylinder ([01.2017 - ] W/O(ABS) (1701- )LHD..GEN) Diagram Toyota COASTER
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- BB60
- grade
- STD
- Roof
- HRF
- ENGINE
- 14B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 01.2017
- Gear Shift Type
- 5F
- Seating Capacity
- 26S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04493
|
04493
04493-36171 Cylinder Kit, Brake Master[01.2017 -] BB60,TRB60..GEN FRONT WHEEL BRAKE-DISC(ROTOR=296MM) |
04493-36171 |
US $51.72 |
||
|
04493
|
04493
04493-37022 Cylinder Kit, Brake Master[01.2017 -] BB60,HZB70,TRB60,XZB70..STD..GEN |
04493-37022 |
from US $80.20 |
||
|
47201
|
47201
47201-36392 Cylinder Sub-Assy, Brake MasterBRAKE MASTER [01.2017 -] BB60,HZB70,TRB60,XZB70..LHD..GEN |
47201-36392 |
from US $237.62 |
||
|
47201
|
47201
47201-36412 Cylinder Sub-Assy, Brake MasterBRAKE MASTER [01.2017 -] BB60,TRB60..LHD..GEN FRONT WHEEL BRAKE-DISC(ROTOR=296MM) |
47201-36412 |
from US $244.61 |
||
|
47210J
|
47210J
90430-06104 Gasket(For Brake Actuator)[01.2017 -] BB60,HZB70,TRB60,70,XZB70..STD..GEN |
90430-06104 |
from US $1.60 |
||
|
47210T
|
47210T
90109-06008 Bolt(For Brake Master Cylinder)[01.2017 -] BB60,HZB70,TRB60,70,XZB70..STD..GEN |
90109-06008 |
US $0.44 |
||
|
47218A
|
47218A
90430-11001 Gasket(For Fluid Outlet Plug)[01.2017 -] BB60,HZB70,TRB60,70,XZB70..STD..GEN |
90430-11001 |
US $1.76 |
||
|
47219A
|
47219A
90430-11001 Gasket(For Fluid Outlet Plug)[01.2017 -] BB60,HZB70,TRB60,70,XZB70..STD..GEN |
90430-11001 |
US $1.76 |
||
|
47220D
|
47220D
47220-36130 Reservoir Sub-Assy, Brake Master CylinderBRAKE MASTER CYLINDER [01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD |
47220-36130 |
US $87.36 |
||
|
47230
|
47230
47230-20100
Cap Assy, Brake Master Cylinder Reservoir Filler
[01.2017 -] XZB70..4FC;HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD |
47230-20100 |
— | ||
| replacement | |||||
|
47230
|
47230
47230-47090 Cap Assy, Brake Master Cylinder Reservoir Filler[01.2017 -] XZB70..4FC;HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD |
47230-47090 |
from US $12.32 |
||
|
47233
|
47233
47233-36090
Bracket, Reservoir
[01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD |
47233-36090 |
— | ||
|
47234L
|
47234L
47234-36230
Hose, Reservoir, No.1
[01.2017 -] BB60,HZB70,TRB60,70,XZB70..LHD..GEN |
47234-36230 |
— | ||
|
47234Q
|
47234Q
96151-03000 Ring, Snap (For C-0 Accumulator Piston Spacer)[01.2017 -] BB60,HZB70,TRB60,XZB70..STD..GEN |
96151-03000 |
US $1.31 |
||
|
47234U
|
47234U
96133-41500 Clamp Or Clip(For Air Hose, No.5)[01.2017 -] TRB60,70;BB60,BZB60,70,HZB70,XZB60,70..ARL,GEN,TAIW |
96133-41500 |
from US $2.24 |
||
|
47235G
|
47235G
47235-36240
Hose, Reservoir, No.2
[01.2017 -] BB60,HZB70,TRB60,70,XZB70..LHD..GEN |
47235-36240 |
— | ||
|
47235J
|
47235J
96133-41500 Clamp Or Clip(For Air Hose, No.5)[01.2017 -] TRB60,70;BB60,BZB60,70,HZB70,XZB60,70..ARL,GEN,TAIW |
96133-41500 |
from US $2.24 |
||
|
47281
|
47281
47281-30020 Valve Assy, Brake Master Cylinder Outlet Check[01.2017 -] BB60,HZB70,TRB60,XZB70..STD..GEN |
47281-30020 |
US $2.88 |
||
|
47281A
|
47281A
90501-05012 Spring, Compression[01.2017 -] BB60,HZB70,TRB60,XZB70..STD..GEN |
90501-05012 |
US $1.16 |
||
|
47299
|
47299
47299-20060 Strainer, Brake Master Cylinder Reservoir[01.2017 -] TRB60,70;BB60,BZB60,70,HZB70,XZB60,70..ARL,GEN,TAIW |
47299-20060 |
US $1.89 |
||
|
9010508460
|
9010508460
90105-08460 New Genuine Part |
90105-08460 |
US $1.02 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.80 |
||
|
9048027006
|
9048027006
90480-27006 Grommet(For Brake Master Cylinder Bracket) |
90480-27006 |
US $1.89 |
||
|
9094901840
|
9094901840
90949-01840
New Genuine Part
|
90949-01840 |
— | ||
|
9163540618
|
9163540618
91635-40618 BOLT W-WASHER |
91635-40618 |
from US $0.88 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.07 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 Bolt |
90080-11396 |
US $3.72 |
||
