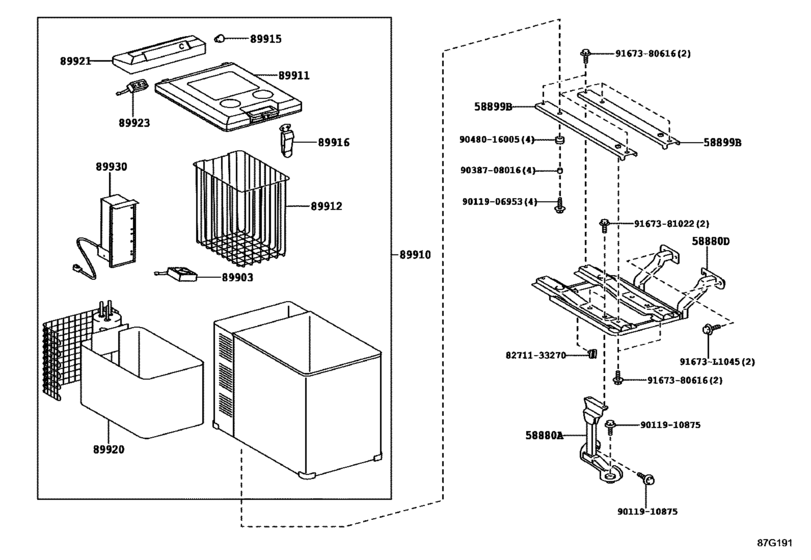

Heating & Air Conditioning - Cooler Unit ([01.2017 - ] COOL BOX (1701- )LHD) Diagram Toyota COASTER
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- BB60
- grade
- STD
- Roof
- HRF
- ENGINE
- 14B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 01.2017
- Gear Shift Type
- 5F
- Seating Capacity
- 26S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
8271133270
|
8271133270
82711-33270 Wire, Fuse To Fuse(for Combustion Heater) |
82711-33270 |
US $2.04 |
||
|
9011906953
|
9011906953
90119-06953 BOLT WWASHER |
90119-06953 |
from US $0.80 |
||
|
9011910875
|
9011910875
90119-10875 New Genuine Part |
90119-10875 |
US $2.56 |
||
|
9038708016
|
9038708016
90387-08016 Collar(For Intake Air Connector) |
90387-08016 |
US $3.84 |
||
|
9048016005
|
9048016005
90480-16005 Grommet(For Air Cleaner Bracket) |
90480-16005 |
US $9.92 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
|
9167381022
|
9167381022
91673-81022 BOLT FLANGE |
91673-81022 |
US $1.92 |
